EE90L-AHMNSW (1987)
Toyota Corolla Hb
ILLUST NO. 5 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-12300 | ||||
| 82711-12770 | ||||
| 82711-14350 | ||||
| 82711-16450 | ||||
| 82711-16460 | ||||
| 82711-1A040 | ||||
| 82711-1A150 | ||||
| 82711-1A300 | ||||
| 82711-1A330 | ||||
| 82711-1A400 | ||||
| 82711-1A410 | ||||
| 82711-1A420 | ||||
| 82711-1A430 | ||||
| 82711-1A440 | ||||
| 82711-1A450 | ||||
| 82711-1A500 | ||||
| 82711-1A510 | ||||
| 82711-1A540 | ||||
| 82711-1A630 | ||||
| 82711-22300 | ||||
| 82711-24070 | ||||
| 82711-24210 | ||||
| 82711-30130 | ||||
| 82711-95718 | ||||
ILLUST NO. 2 OF 5(8705- )5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-12330 |
AE92,CE90,EE90..LHD..5D W(*EL) |
1 | ||
| 82151-12260 |
AE92,CE90,EE90..5D W(*DRC) |
1 | ||
| 82151-12760 |
AE92,CE90..5D;EE90..5D..5F..EFI;EE90..LHD..5D..CBR W(*EL) |
1 | ||
| 82151-12340 |
AE92,CE90,EE90..LHD..5D W(*PW & *EL) |
1 | ||
| 82151-12650 |
CE90,EE90..LHD..5D W(*PW & *EL) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-12270 |
AE92,CE90,EE90..LHD..5D W(*PW & *EL) |
1 | ||
| 82152-12250 |
AE92,CE90,EE90..LHD..5D W(*EL) |
1 | ||
| 82152-12400 |
AE92,CE90,EE90..5D W(*DRC) |
1 | ||
| 82152-12760 |
AE92,CE90,EE90..LHD..5D W(*PW & *EL) |
1 | ||
| 82152-12670 |
AE92,CE90..5D;EE90..5D..5F..EFI;EE90..LHD..5D..CBR W(*EL) |
1 | ||
| 82152-12400 |
AE92,CE90,EE90..5D W(*DRC) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-12140 |
AE92,CE90..5D;EE90..5D..CBR;EE90..5D..5F..EFI W(*EL) |
1 | ||
| 82153-12080 |
AE92,CE90,EE90..5D W(*PW & *EL) |
1 | ||
| 82153-12070 |
AE92,CE90,EE90..5D W(*EL) |
1 | ||
| 82153-12150 |
AE92,CE90..5D;EE90..5D..CBR;EE90..5D..5F..EFI W(*PW & *EL) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-12060 |
AE92,CE90,EE90..5D W(*EL) |
1 | ||
| 82154-12070 |
AE92,CE90,EE90..5D W(*PW & *EL) |
1 | ||
| 82154-12150 |
AE92,CE90..5D;EE90..5D..CBR;EE90..5D..5F..EFI W(*PW & *EL) |
1 | ||
| 82154-12140 |
AE92,CE90..5D;EE90..5D..CBR;EE90..5D..5F..EFI W(*EL) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-1A410 |
AE92,CE90,EE90..LHD |
1 | ||
| 82161-1A430 |
AE92,CE90,EE90..LHD..5D W(*EL) |
1 | ||
| 82161-1H130 |
AE92,CE90..5D;EE90..5D..5F..EFI;EE90..3D..3FC..EFI;EE90..LHD..5D..CBR W(*EL) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12170 |
AE92,CE90,EE90..LHD..(GL,GTI,XL) W(SUN ROOF) |
1 | ||
| 82171-12160 |
AE92,CE90,EE90..LHD |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-12240 |
AE92,CE90,EE90..CBR,DSL |
1 | ||
| 82184-12410 |
AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI |
1 | ||
| 82184-12420 |
AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI W(*RW) |
1 | ||
| 82184-12250 |
AE92,CE90,EE90..CBR,DSL W(*RW) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-12310 |
AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI |
1 | ||
| 82185-12330 |
AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI W(*RW) |
1 | ||
| 82344 - WIRE, MIRROR, RH | ||||
| 82344-12010 |
AE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI |
1 | ||
| 82344A - WIRE, MIRROR, LH | ||||
| 82344-12010 |
AE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-16100 |
AE92,CE90,EE90 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||

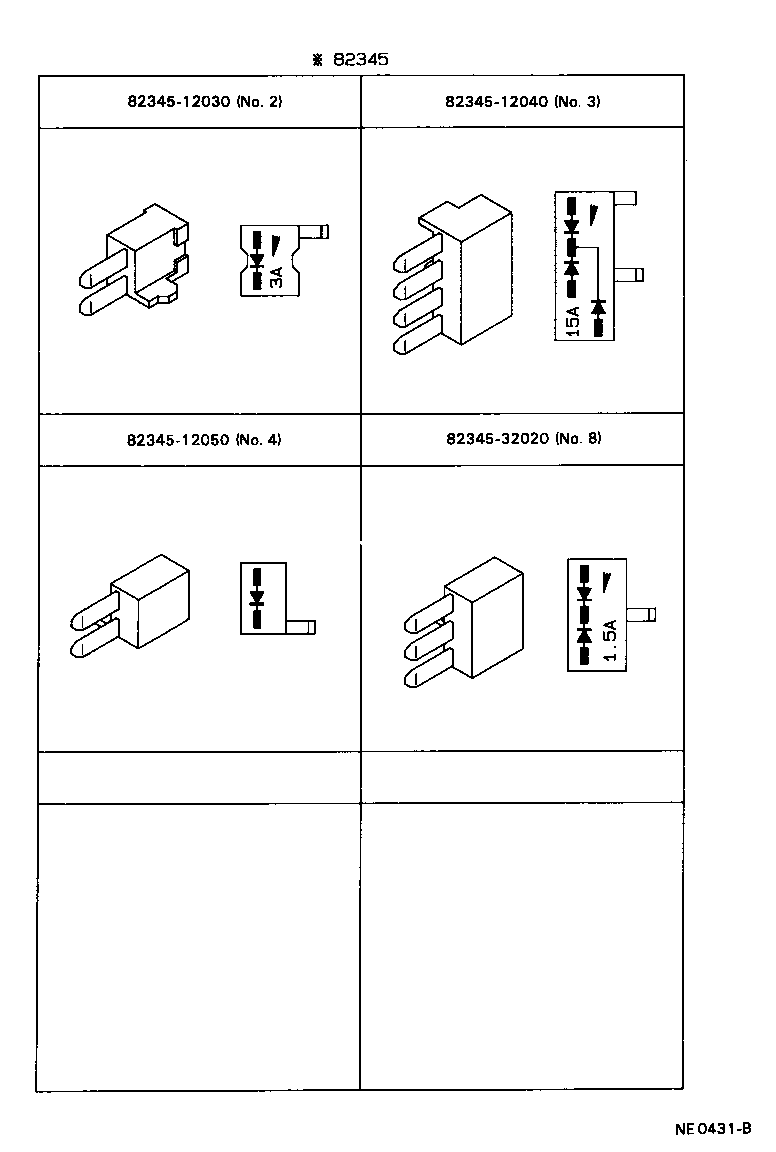

ILLUST NO. 3 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-12030 |
EE90..LHD..MTM..(GL,XL) NO.2 |
1 | ||
| 82345-12030 |
EE90..LHD..MTM..(GL,XL) NO.2 |
1 | ||
| 82345-12030 |
AE92,EE90..LHD..5F..CBR NO.2 |
1 | ||
| 82345-32020 |
AE92,EE90..LHD..MTM..(GL,XL) NO.8 |
2 | ||
| 82345-32020 |
AE92,EE90..LHD..MTM..(GL,SR5,XL)..CBR NO.8 |
2 | ||
| 82345-12030 |
AE92,EE90..LHD..5F..CBR NO.2 |
1 | ||
| 82345-12030 |
AE92,EE90..LHD..5F..CBR NO.2 |
1 | ||
| 82345-32020 |
CE90,EE90..RHD;AE92,EE90..LHD..MTM..CBR NO.8 |
1 | ||
| 82345-12030 |
AE92,EE90..LHD..5F..CBR NO.2 |
1 | ||
| Common parts | ||||
| 82345-12030 | ||||
| 82345-12040 | ||||
| 82345-12050 | ||||
| 82345-32020 | ||||

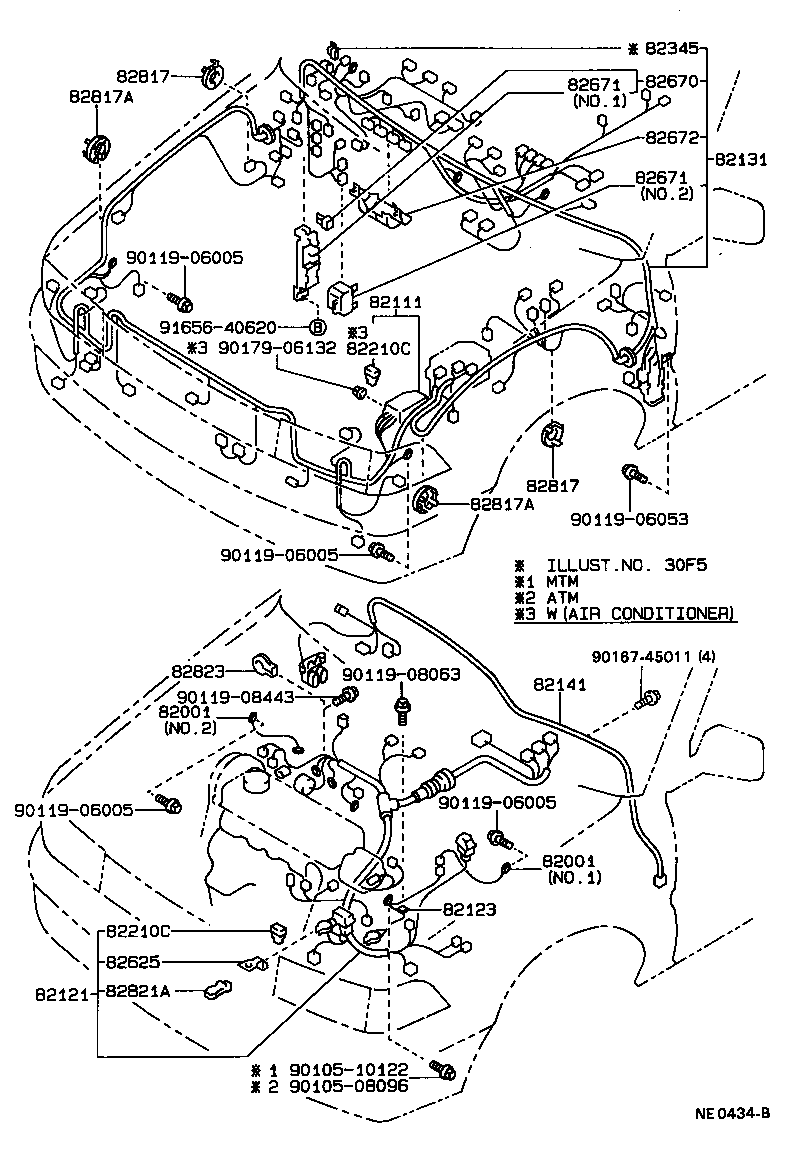

ILLUST NO. 1 OF 5(8705- )EE90
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07293 |
EE90 NO.2 |
1 | ||
| 90980-07206 |
EE90 NO.1 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07293 |
EE90 NO.2 |
1 | ||
| 90980-07206 |
EE90 NO.1 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1A290 |
CE90,EE90..LHD *FRG OR NORWAY SPEC |
1 | ||
| 82111-1A300 |
AE92,CE90,EE90..LHD..(CBR,DSL) W(AIR CONDITIONER) |
1 | ||
| 82111-1A270 |
AE92,CE90,EE90..LHD |
1 | ||
| 82111-1A290 |
AE92,EE90..LHD..5F *FRG OR SWEDEN SPEC & W(HEADLAMP CLEANER) OR NORWAY SPEC |
1 | ||
| 82111-1A280 |
AE92,CE90,EE90..LHD W(HEADLAMP CLEANER) |
1 | ||
| 82111-1A780 |
AE92,EE90..LHD..CBR ANTI PROJECT MEASURE COUNTRIES & W(AIR CONDITIONER) |
1 | ||
| 82111-1A300 |
AE92,EE90..LHD..CBR W(AIR CONDITIONER) |
1 | ||
| 82111-1A790 |
AE92,CE90,EE90..LHD *FRG |
1 | ||
| 82111-1A780 |
AE92,CE90,EE90..LHD..(CBR,DSL) ANTI PROJECT MEASURE COUNTRIES |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-1A350 |
EE90..LHD..MTM |
1 | ||
| 82121-1A390 |
EE90..LHD..MTM W(AIR CONDITIONER) |
1 | ||
| 82121-1A351 |
EE90..LHD..MTM |
1 | ||
| 82121-1A391 |
EE90..LHD..MTM W(AIR CONDITIONER) |
1 | ||
| 82121-1A391 |
EE90..LHD..MTM W(AIR CONDITIONER) |
1 | ||
| 82121-1A380 |
EE90..LHD..MTM EX.EMISSION CONTROL(A 11) |
1 | ||
| 82121-1E530 |
EE90..LHD..MTM..CBR EX.EMISSION CONTROL(ANNEX 25) |
1 | ||
| 82121-1A370 |
EE90..LHD..MTM EX.EMISSION CONTROL(ANNEX 25) |
1 | ||
| 82121-1E540 |
EE90..LHD..MTM..CBR W(AIR CONDITIONER) |
1 | ||
| 82121-1E510 |
EE90..LHD..MTM..CBR |
1 | ||
| 82121-1E540 |
EE90..LHD..MTM..CBR ANTI PROJECT MEASURE COUNTRIES |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-12170 |
AE92,EE90..MTM |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-1A870 |
EE90..LHD..MTM..(GL,XL) NORWAY SPEC |
1 | ||
| 82131-1A800 |
AE92,EE90..LHD..MTM..CBR |
1 | ||
| 82131-1A840 |
AE92,EE90..LHD..MTM..(GL,XL) *FRG |
1 | ||
| 82131-1A810 |
AE92,EE90..LHD..MTM..(GL,XL) EX.EMISSION CONTROL(A 11) OR W(*EL) OR W(*RW) OR W(*DRC) |
1 | ||
| 82131-1E010 |
AE92,EE90..LHD..MTM..(GL,XL) W(AIR CONDITIONER) |
1 | ||
| 82131-1A870 |
EE90..LHD..GL;EE90..LHD..5D..MTM..XL NORWAY SPEC OR W(*DRC) |
1 | ||
| 82131-1E800 |
EE90..LHD..GL;EE90..LHD..5D..XL FINLAND SPEC OR DENMARK SPEC & W(SEAT HEATER) |
1 | ||
| 82131-1A871 |
EE90..LHD..GL;EE90..LHD..5D..MTM..XL NORWAY SPEC OR W(*DRC) |
1 | ||
| 82131-1A811 |
AE92,EE90..LHD..MTM..(GL,XL) EX.EMISSION CONTROL(A 11) OR W(*EL) OR W(*RW) OR W(*DRC) |
1 | ||
| 82131-1A801 |
AE92,EE90..LHD..MTM..CBR |
1 | ||
| 82131-1A841 |
AE92..CBR;EE90..LHD..GL;EE90..3D..4F..XL;EE90..LHD..5D..MTM..XL *FRG |
1 | ||
| 82131-1E801 |
EE90..LHD..GL;EE90..LHD..5D..XL FINLAND SPEC OR DENMARK SPEC & W(SEAT HEATER) |
1 | ||
| 82131-1E011 |
AE92,EE90..LHD..MTM..(GL,XL) W(AIR CONDITIONER) |
1 | ||
| 82131-1A871 |
AE92..5D;AE92..3D..GL;EE90..LHD..GL;EE90..LHD..5D..5F..XL SWEDEN SPEC |
1 | ||
| 82131-1H770 |
EE90..LHD..5D..MTM..CBR ANTI PROJECT MEASURE COUNTRIES & W(AIR CONDITIONER) |
1 | ||
| 82131-1H780 |
AE92,EE90..LHD..5D..MTM..CBR FINLAND OR DENMARK SPEC |
1 | ||
| 82131-1K140 |
AE92,EE90..LHD..MTM..(GL,SR5,XL)..CBR *FRG |
1 | ||
| 82131-1H770 |
AE92,EE90..LHD..5D..MTM..CBR ANTI PROJECT MEASURE COUNTRIES |
1 | ||
| 82131-1H750 |
AE92,EE90..LHD..MTM..CBR |
1 | ||
| 82131-1H760 |
AE92,EE90..LHD..MTM..(GL,SR5,XL)..CBR W(*EL) OR W(*RW) OR W(*DRC) |
1 | ||
| 82131-1H780 |
AE92,EE90..LHD..5D..MTM..CBR FINLAND SPEC OR DENMARK SPEC & W(SEAT HEATER) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-12020 |
AE92,CE90,EE90..LHD..(GL,GTI,XL) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE92,CE90,EE90 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08188 |
AE92,CE90,EE90 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08190 |
AE92,EE90..CBR 60A,TERM.:FEMALE,YEL |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE92,CE90,EE90 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08188 |
AE92,CE90,EE90 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08190 |
AE92,EE90..CBR 60A,TERM.:FEMALE,YEL |
1 | ||
| 82345 - DIODE | ||||
| 82345-12030 |
EE90..LHD..MTM..(GL,XL) NO.2 |
1 | ||
| 82345-12030 |
EE90..LHD..MTM..(GL,XL) NO.2 |
1 | ||
| 82345-12030 |
AE92,EE90..LHD..5F..CBR NO.2 |
1 | ||
| 82345-32020 |
AE92,EE90..LHD..MTM..(GL,XL) NO.8 |
2 | ||
| 82345-32020 |
AE92,EE90..LHD..MTM..(GL,SR5,XL)..CBR NO.8 |
2 | ||
| 82345-12030 |
AE92,EE90..LHD..5F..CBR NO.2 |
1 | ||
| 82345-12030 |
AE92,EE90..LHD..5F..CBR NO.2 |
1 | ||
| 82345-32020 |
CE90,EE90..RHD;AE92,EE90..LHD..MTM..CBR NO.8 |
1 | ||
| 82345-12030 |
AE92,EE90..LHD..5F..CBR NO.2 |
1 | ||
| 82625 - TERMINAL, FUSIBLE LINK | ||||
| 82625-12010 |
AE92,EE90..CBR |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-12090 |
EE90..LHD..GL;EE90..LHD..5D..MTM..XL |
1 | ||
| 82670-12090 |
EE90..LHD..GL;EE90..LHD..5D..MTM..XL |
1 | ||
| 82670-12090 |
EE90..LHD..GL;EE90..LHD..5D..5F..XL |
1 | ||
| 82670-12090 |
EE90..LHD..GL;EE90..LHD..5D..MTM..XL |
1 | ||
| 82670-12100 |
AE92,CE90,EE90..LHD *FRG |
1 | ||
| 82670-12090 |
EE90..LHD..GL;EE90..LHD..5D..MTM..XL |
1 | ||
| 82670-12090 |
AE92,CE90,EE90 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-12030 |
AE92,CE90,EE90..LHD NO.1 |
1 | ||
| 82671-12070 |
AE92,CE90,EE90..LHD NO.2 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-12030 |
AE92,CE90,EE90..LHD NO.1 |
1 | ||
| 82671-12070 |
AE92,CE90,EE90..LHD NO.2 |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-12110 |
AE92,CE90,EE90..LHD |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14350 |
AE92,CE90,EE90 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14350 |
AE92,CE90,EE90 |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
AE92,CE90,EE90 |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
AE92,CE90,EE90 |
2 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12190 |
AE92,EE90;CE90..LHD |
1 | ||
| 82821-12180 |
EE90;CE90..RHD;AE92..CBR |
1 | ||
| 82821-12180 |
CE90..RHD;AE92,EE90..CBR |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22050 |
EE90;AE92..CBR;AE92..GTI |
1 | ||
| Common parts | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06005 | ||||
| 90119-06053 | ||||
| 90119-08063 | ||||
| 90119-08443 | ||||
| 90167-45011 | ||||
| 90179-06132 | ||||
| 91656-40620 | ||||
ILLUST NO. 4 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82981-17010 | ||||
| 82982-22050 | ||||
| 82983-10020 | ||||
| 82984-20010 | ||||
| 82985-12010 | ||||

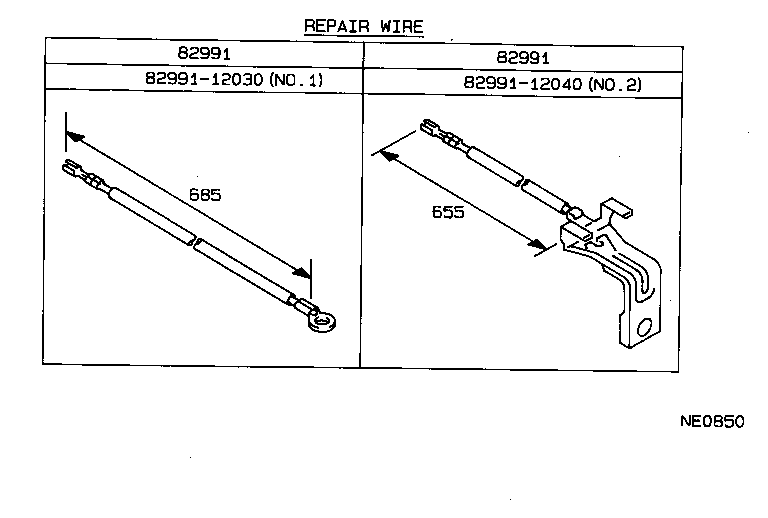

ILLUST NO. 4 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82991-12030 | ||||
| 82991-12040 | ||||
ILLUST NO. 5 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16470 | ||||
| 82711-1A620 | ||||
| 82711-22270 | ||||
| 82715-12010 | ||||
| 82715-12020 | ||||
| 82715-12030 | ||||
| 82715-89113 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
