EE90L-AHMNSW (1987)

Toyota Corolla Hb

Production May 1987 - Jun 1992
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

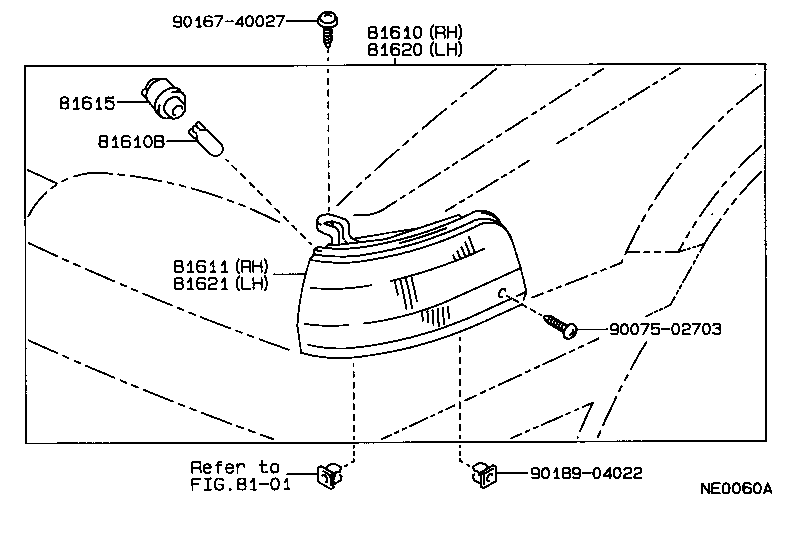

Click highlighted areas on diagram

diagram 8101 81610 81610B 81611 81615 81620 81621 9007502703 9016740027 9018904022
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-12480

EE90..LHD..5D

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

EE90..LHD..5D

12V 5W

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-12480

EE90..LHD..5D

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81735-12180

EE90..LHD..5D

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-12480

EE90..LHD..5D

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-12480

EE90..LHD..5D

 1
Common parts
90075-02703
90167-40027
90189-04022
Linked diagrams
8101
