EE90L-AHMNSW (1987)

Toyota Corolla Hb

Production May 1987 - Jun 1992
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )LHD

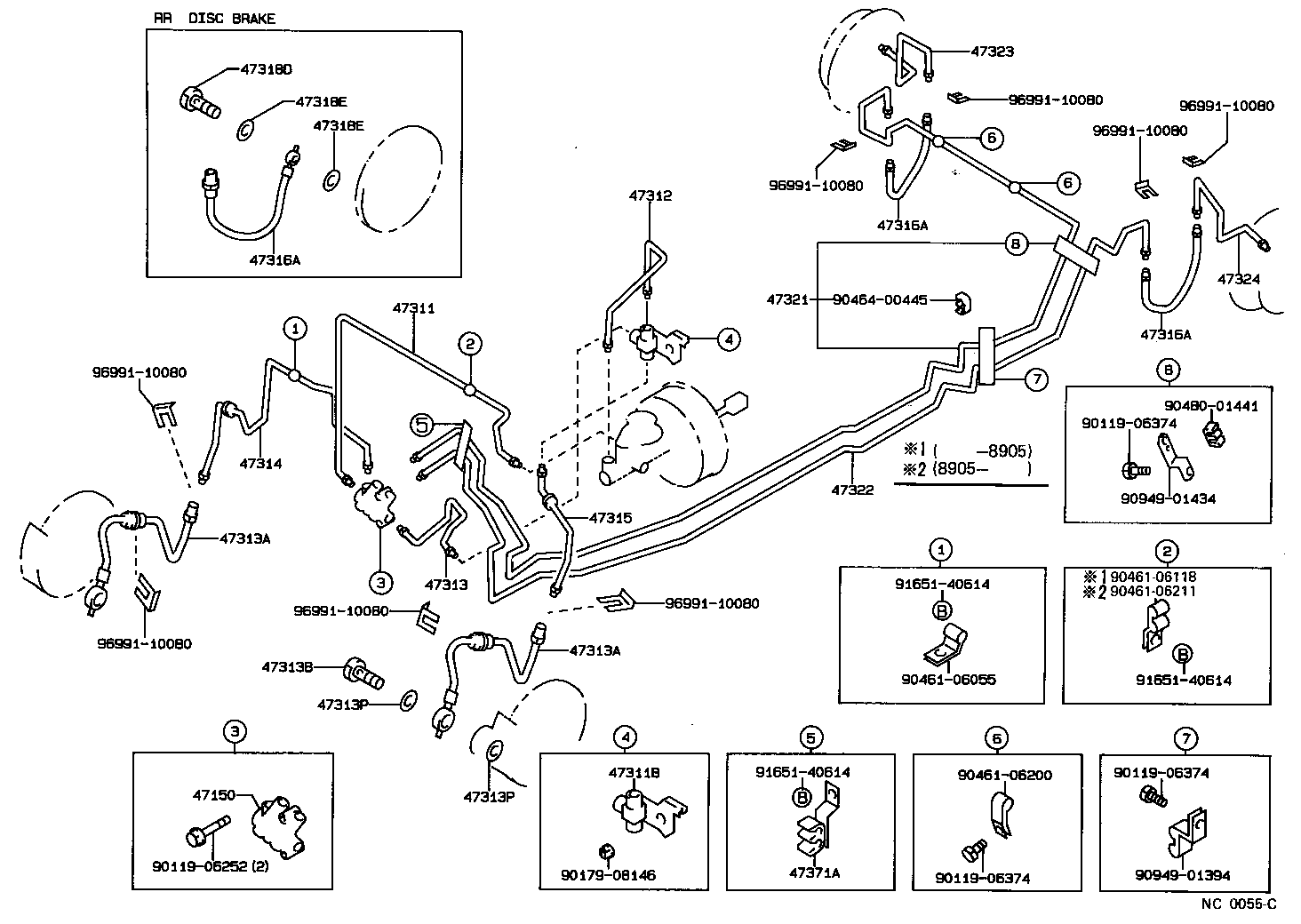

Click highlighted areas on diagram

diagram 47150 47311 47311B 47312 47313 47313A 47313A 47313B 47313P 47313P 47314 47315 47316A 47316A 47316A 47318D 47318E 47318E 47321 47322 47323 47324 47371A 9011906252 9011906374 9011906374 9011906374 9017908146 9046106055 9046106118 9046106200 9046106211 9046400445 9048001441 9094901394 9094901434 9165140614 9165140614 9165140614 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-12080

AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI

 1
47150-20140

AE92,CE90,EE90..CBR,DSL

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-12390

AE92,CE90,EE90..LHD

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10159

AE92,CE90,EE90..LHD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-12260

AE92,CE90,EE90..LHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-12190

AE92,CE90,EE90..LHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02532

AE92,CE90,EE90

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02532

AE92,CE90,EE90

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

AE92,CE90,EE90

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AE92,CE90,EE90

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AE92,CE90,EE90

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-12270

AE92,CE90,EE90..LHD

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-12410

AE92,CE90,EE90..LHD

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02533

AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI

 2
90947-02533

AE92,CE90,EE90..CBR,DSL

 2
90947-02533

AE92,CE90,EE90..LHD..(CBR,DSL)

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02533

AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI

 2
90947-02533

AE92,CE90,EE90..CBR,DSL

 2
90947-02533

AE92,CE90,EE90..LHD..(CBR,DSL)

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02533

AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI

 2
90947-02533

AE92,CE90,EE90..CBR,DSL

 2
90947-02533

AE92,CE90,EE90..LHD..(CBR,DSL)

 2
47321 - TUBE, REAR BRAKE, NO.1
47321-12050

AE92,CE90,EE90..LHD

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-12200

AE92,CE90,EE90..LHD

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-12210

AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI

 1
47323-12210

AE92,CE90,EE90..CBR,DSL

 1
47323-12210

AE92,CE90,EE90..LHD..(CBR,DSL)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-12170

AE92,CE90,EE90..CBR,DSL

 1
47324-12170

AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI

 1
47324-12170

AE92,CE90,EE90..LHD..(CBR,DSL)

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-12010

AE92,CE90,EE90..LHD

 1
Common parts
90119-06252
90119-06374
90179-08146
90461-06055
90461-06118
90461-06200
90461-06211
90464-00445
90480-01441
90949-01394
90949-01434
91651-40614
96991-10080
