EE90L-AHMNSW (1987)

Toyota Corolla Hb

Production May 1987 - Jun 1992
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

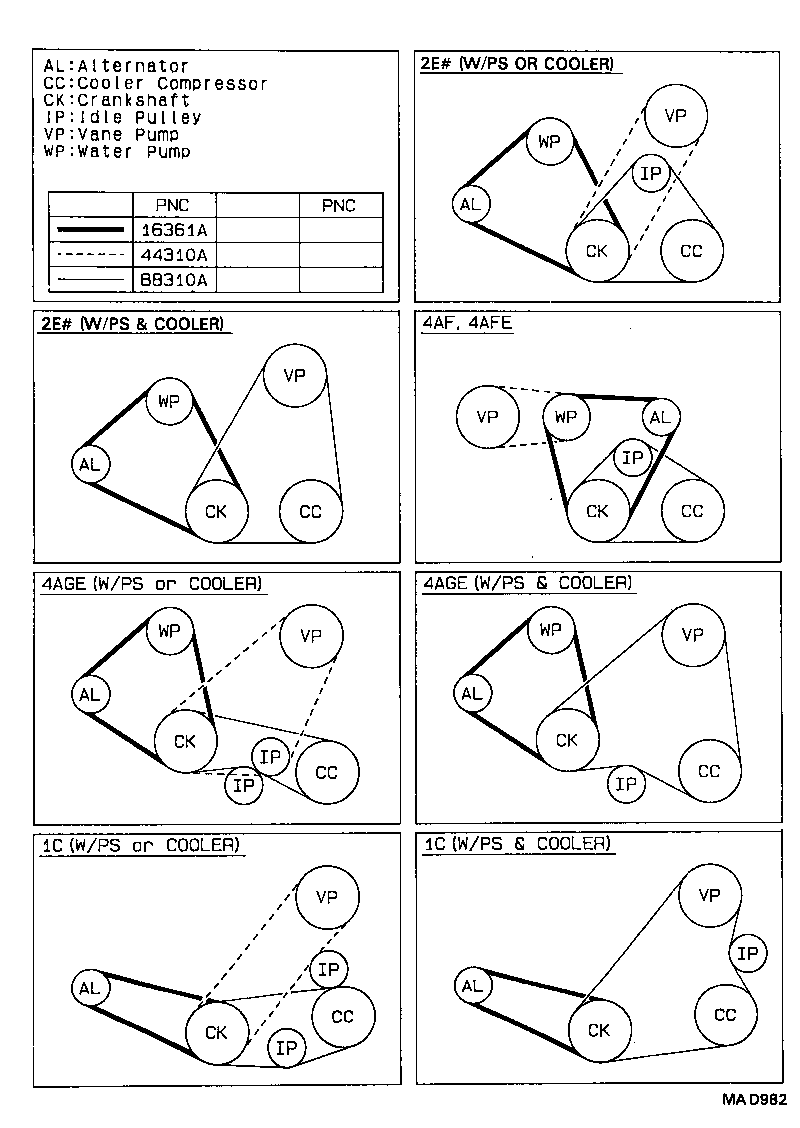

Click highlighted areas on diagram

diagram 16361A 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02135

2E..EE90

 1
90916-02332

2E#..EE90

 1
90916-02135

2E#..EE90

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99365-50860

EE90..LHD

ANTI-PROJECT MEASURE COUNTRIES & W(AIR CONDITIONER

 1
99365-50870

EE90..LHD..CBR

W(LOW PULLEY AIR CONDITIONER)

 1
99365-00880

EE90..LHD..CBR

W(AIR CONDITIONER),MITUBOSI

 1
99365-00880

EE90..LHD

ANTI-PROJECT MEASURE COUNTRIES & W(AIR CONDITIONER),MITUBOSI

 1
99365-50870

EE90..LHD

ANTI-PROJECT MEASURE COUNTRIES & W(AIR CONDITIONER)

 1
99365-50880

EE90..LHD

ANTI-PROJECT MEASURE COUNTRIES & W(AIR CONDITIONER),BANDO

 1
99365-21050

EE90..LHD..CBR

L=1050,W(POWER STEERING & LOW PULLEY AIR CONDITIONER),MITUBOSHI

 1
99365-50860

EE90..LHD

ANTI-PROJECT MEASURE COUNTRIES & W(AIR CONDITIONER)

 1
99365-50880

EE90..LHD..CBR

W(AIR CONDITIONER),BANDO

 1
99365-21070

EE90..LHD..CBR

L=1070,W(POWER STEERING & AIR CONDITIONER),MITUBOSI

 1
99365-51070

EE90..LHD..CBR

W(POWER STEERING & AIR CONDITIONER)

 1
99365-70870

EE90..LHD..CBR

W(LOW PULLEY AIR CONDITIONER)

 1
99365-71070

EE90..LHD..CBR

W(POWER STEERING & AIR CONDITIONER),BANDO

 1
99365-70880

EE90..LHD..CBR

W(AIR CONDITIONER),BANDO

 1
99365-20880

EE90..LHD..CBR

L=880,W(AIR CONDITIONER),MITUBOSI

 1
99365-71050

EE90..LHD..CBR

W(POWER STEERING & LOW PULLEY AIR CONDITIONER),BANDO

 1
99365-51050

EE90..LHD..CBR

W(POWER STEERING & LOW PULLEY AIR CONDITIONER)

 1
