EE90L-AHMDSW (1987)

Toyota Corolla Hb

Production May 1987 - Jun 1992
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )EE90..LHD

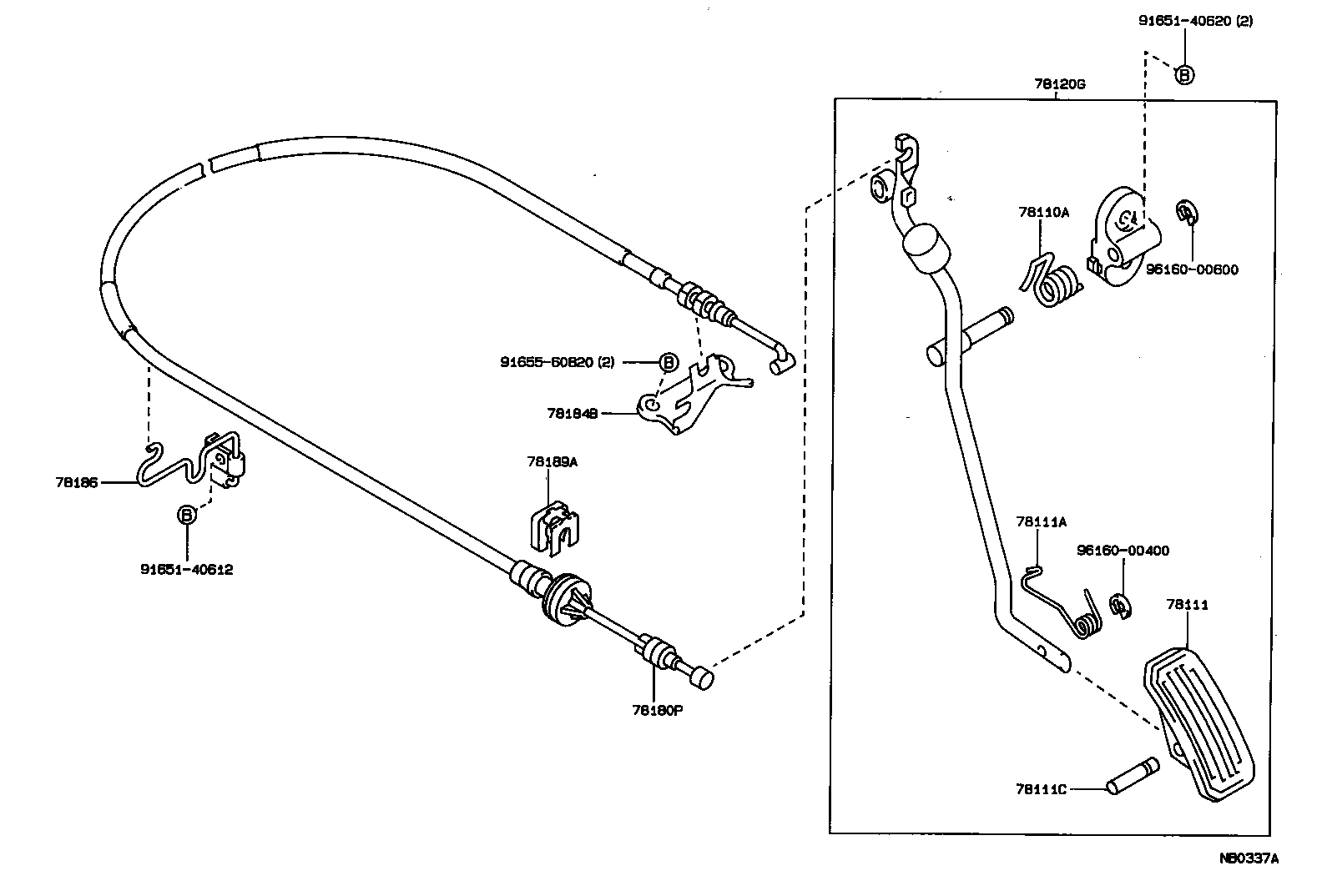

Click highlighted areas on diagram

diagram 78110A 78111 78111A 78111C 78120G 78180P 78184B 78186 78189A 9165140612 9165140620 9165560820 9616000400 9616000600
Part # Description Qty Price
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18025

EE90..RHD..5F;AE92,EE90..LHD..(GL,GLI,SR5,STD,XL,XLI)

 1
90508-18025

AE92,EE90..CBR

 1
78111 - PEDAL, ACCELERATOR
78111-32010

AE92,CE90,EE90

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-20056

AE92,CE90,EE90

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

AE92,CE90,EE90

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-12120

AE92,EE90..LHD..(GL,GLI,SR5,STD,XL,XLI)

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-1A190

EE90..LHD

 1
78180-1A510

EE90..LHD..CBR

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-10070

EE90

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-12170

EE90..LHD

 1
78186-12190

EE90..LHD..CBR

TYPE B

 1
78186-12170

EE90..LHD..CBR

TYPE A

 1
78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2
78189-12030

AE92,CE90,EE90..LHD

 1
Common parts
91651-40612
91651-40620
91655-60820
96160-00400
96160-00600
