EE90L-AHKDSW (1987)

Toyota Corolla Hb

Production May 1987 - Jun 1992
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

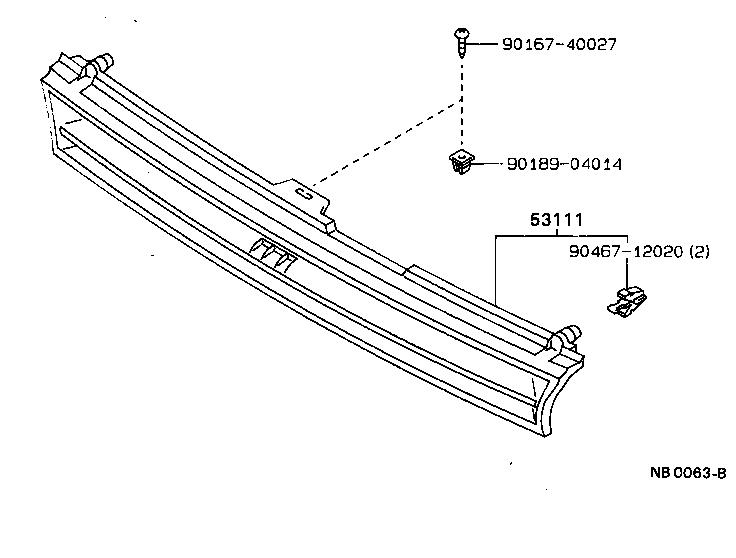

Click highlighted areas on diagram

diagram 53111 9016740027 9018904014 9046712020
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53101-1271003

AE92,CE90,EE90..GL,GTI,XL

GRAY M,168

 1
53101-1271008

AE92,CE90,EE90..GL,GTI,XL

SUPER WHITE 2,040

 1
53101-12660

AE92,CE90,EE90

 1
53101-1271002

AE92,CE90,EE90..GL,GTI,XL

SUPER RED 2,3E5

 1
53101-1271004

AE92,CE90,EE90..GL,GTI,XL

DARK BLUE,27E

 1
Common parts
90167-40027
90189-04014
90467-12020
