EE90L-AHKDSW (1987)
Toyota Corolla Hb
Production
May 1987
-
Jun 1992
Engine
2E
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8705- )2E#

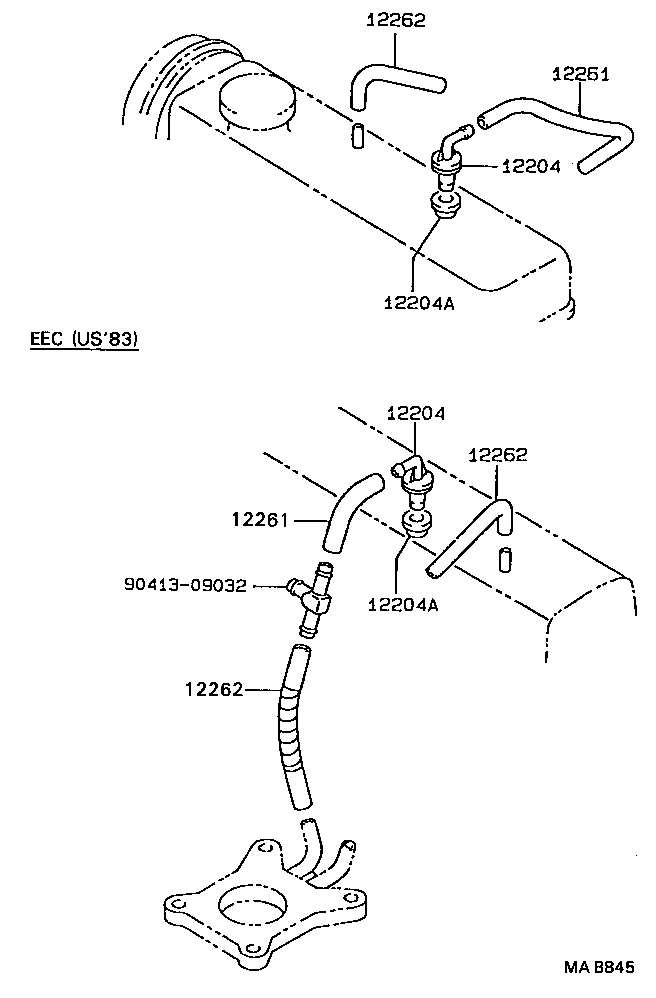

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-11040 |
2E#..EE90 |
1 | ||
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-11040 |
2E#..EE90 |
1 | ||
| 12204A - GROMMET(FOR VENTILATION SYSTEM) | ||||
| 90480-18001 |
2E..EE90 |
1 | ||
| 90480-18006 |
2E#..EE90 |
1 | ||
| 12204A - GROMMET(FOR VENTILATION SYSTEM) | ||||
| 90480-18001 |
2E..EE90 |
1 | ||
| 90480-18006 |
2E#..EE90 |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 90445-15038 |
2E..EE90..LHD..MTM EX. EMISSION COUNTROL(US83) |
1 | ||
| 12261-10010 |
2E..EE90 |
1 | ||
| 12261-11020 |
2E..EE90 |
1 | ||
| 12261-11020 |
2E..EE90 |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 90445-15038 |
2E..EE90..LHD..MTM EX. EMISSION COUNTROL(US83) |
1 | ||
| 12261-10010 |
2E..EE90 |
1 | ||
| 12261-11020 |
2E..EE90 |
1 | ||
| 12261-11020 |
2E..EE90 |
1 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 90447-15019 |
2E..EE90..LHD..MTM EX. EMISSION COUNTROL(US83) |
1 | ||
| 12262-10020 |
2E..EE90 |
1 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 90447-15019 |
2E..EE90..LHD..MTM EX. EMISSION COUNTROL(US83) |
1 | ||
| 12262-10020 |
2E..EE90 |
1 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 90447-15019 |
2E..EE90..LHD..MTM EX. EMISSION COUNTROL(US83) |
1 | ||
| 12262-10020 |
2E..EE90 |
1 | ||
| Common parts | ||||
| 90413-09032 | ||||
