EE90L-AHHDSW (1987)

Toyota Corolla Hb

Production May 1987 - Jun 1992
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

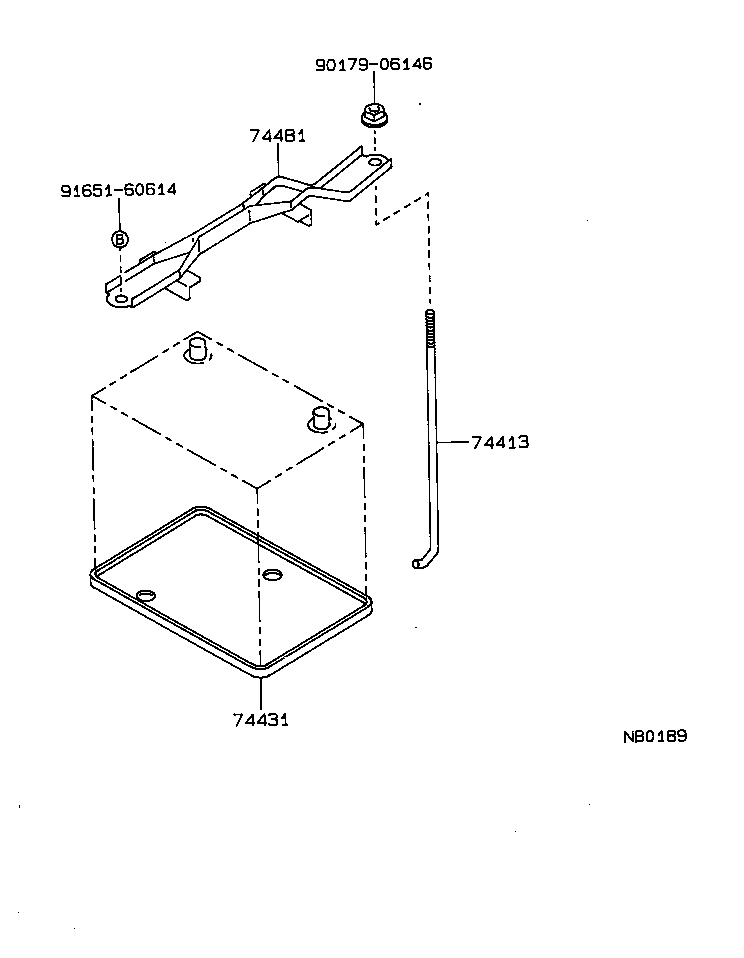

Click highlighted areas on diagram

diagram 74413 74431 74481 9017906146 9165160614
Part # Description Qty Price
74413 - BOLT, BATTERY CLAMP
74451-12050

AE92,CE90,EE90

 1
74431 - TRAY, BATTERY
74431-14020

AE92,EE90

 1
74431-12010

EE90

W(50AH,50D20L-MF BATTERY)

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-12270

EE90

W(50D20L-MF BATTERY)

 1
74404-12260

AE92,EE90

 1
Common parts
90179-06146
91651-60614
