EE90L-AGMNSW (1987)

Toyota Corolla Hb

Production May 1987 - Aug 1989
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

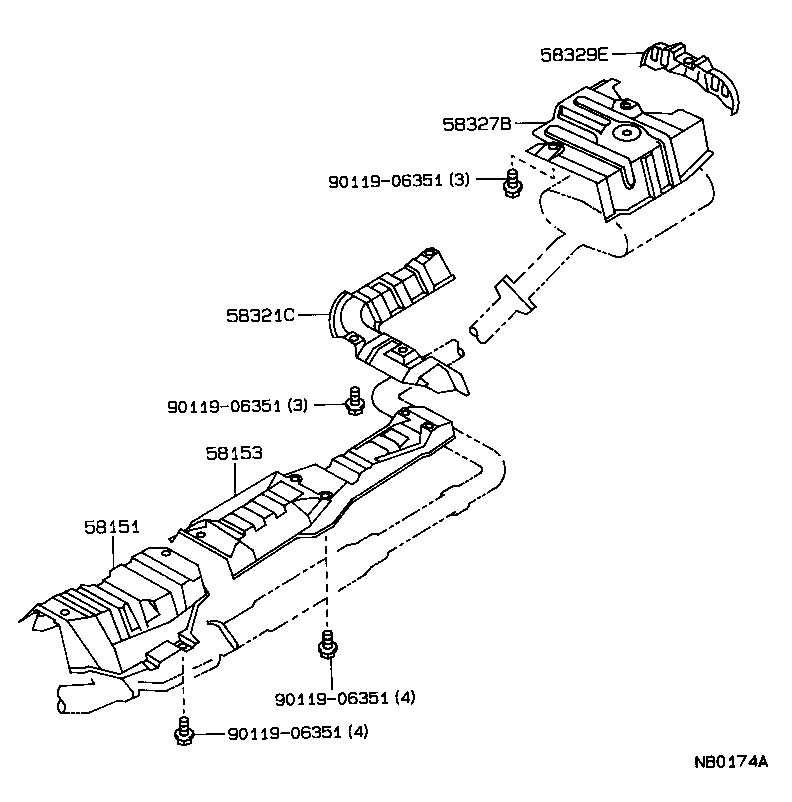

Click highlighted areas on diagram

diagram 58151 58153 58321C 58327B 58329E 9011906351 9011906351 9011906351 9011906351
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-12120

AE92,EE90..LHD..MTM

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-12100

AE92,EE90..LHD..MTM

 1
58321C - INSULATOR, REAR FLOOR HEAT, FRONT
58321-12030

AE92,EE90..LHD..MTM

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-12080

AE92..GTI;AE92,EE90..CBR

 1
58329E - INSULATOR, MAIN MUFFLER HART, REAR UPPER
58329-12010

AE92..GTI;AE92,CE90,EE90..CBR,DSL

 1
Common parts
90119-06351
