Toyota Corolla hb EE90 AIR CLEANER

EE90L-AGMDSW (1987)

Toyota Corolla Hb

Production May 1987 - May 1992

Engine 2E

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

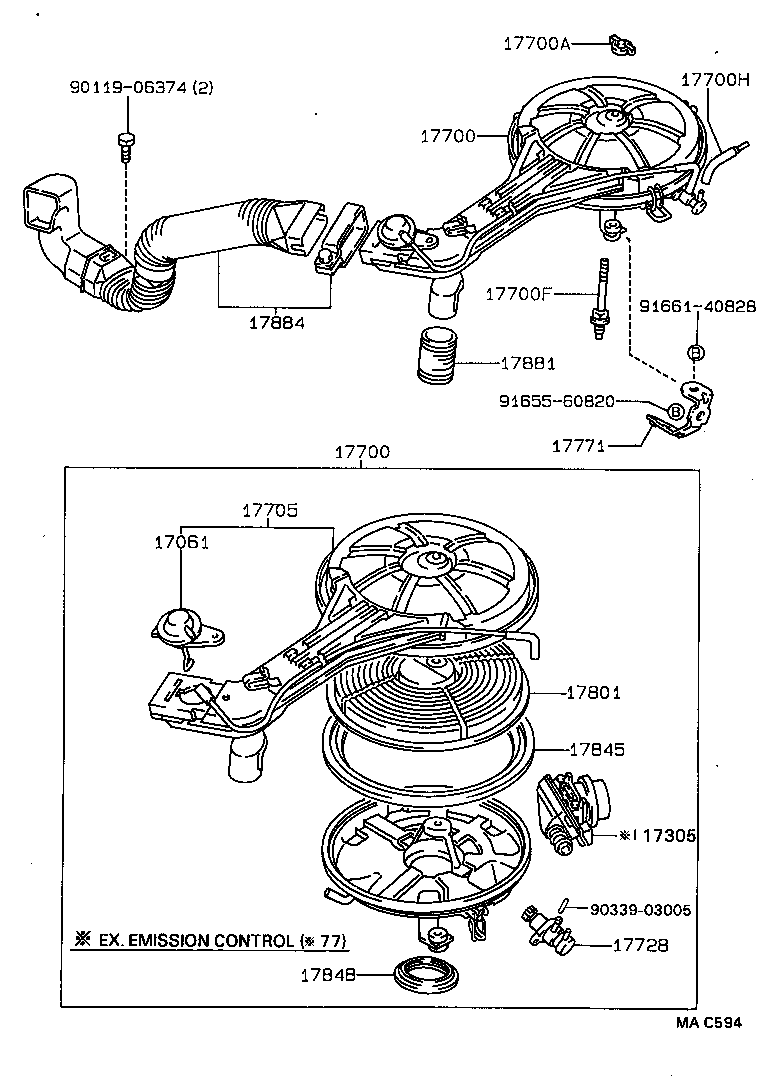

(8908- )2E

Click highlighted areas on diagram

Part #	Description	Period	Qty
17061 - DIAPHRAGM SUB-ASSY
17061-11010	2E..EE90	05/1987 - 08/1989	1
17305 - VALVE SUB-ASSY, REED
17350-11020	2E..EE90..LHD..MTM	05/1987 - 04/1989	1
17350-11060	2E..EE90..LHD..MTM	08/1989 - 11/1989	1
17350-11021	2E..EE90..LHD..MTM	04/1989 - 08/1989	1
17700 - CLEANER ASSY, AIR
17700-11370	2E..EE90..LHD..MTM EX. EMISSION CONTROL(US83)	07/1987 - 08/1989	1
17700-11360	2E..EE90	05/1987 - 08/1989	1
17700-11400	2E..EE90..LHD..MTM EX. EMISSION CONTROL(*77)	05/1987 - 04/1989	1
17700-11530	2E..EE90..LHD..MTM EX. EMISSION CONTROL(*77)	08/1989 - 11/1989	1
17700-11401	2E..EE90..LHD..MTM EX. EMISSION CONTROL(*77)	04/1989 - 08/1989	1
17700 - CLEANER ASSY, AIR
17700-11370	2E..EE90..LHD..MTM EX. EMISSION CONTROL(US83)	07/1987 - 08/1989	1
17700-11360	2E..EE90	05/1987 - 08/1989	1
17700-11400	2E..EE90..LHD..MTM EX. EMISSION CONTROL(*77)	05/1987 - 04/1989	1
17700-11530	2E..EE90..LHD..MTM EX. EMISSION CONTROL(*77)	08/1989 - 11/1989	1
17700-11401	2E..EE90..LHD..MTM EX. EMISSION CONTROL(*77)	04/1989 - 08/1989	1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06010	2E..EE90	05/1987 - 06/1992	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-11290	2E..EE90..LHD..MTM EX. EMISSION CONTROL(US83)	05/1987 - 08/1989	1
17705-11170	2E..EE90	05/1987 - 08/1989	1
17728 - VALVE, THERMOSTATIC
17728-11040	2E..EE90	05/1987 - 08/1989	1
17728-11050	2E..EE90..LHD..MTM EX. EMISSION CONTROL(US83)	05/1987 - 08/1989	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-10030	2E..EE90	05/1987 - 02/1992	1
17845 - GASKET, AIR CLEANER CAP
17845-10020	2E..EE90	05/1987 - 06/1992	1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-15010	2E..EE90	05/1987 - 08/1989	1
17881 - HOSE, AIR CLEANER, NO.1
17881-10031	2E..EE90	02/1988 - 12/1989	1
17881-10030	2E..EE90	05/1987 - 02/1988	1
17881-10032	2E..EE90	12/1989 - 10/1991	1
17884 - HOSE, AIR CLEANER, NO.4
17880-14070	2E..EE90	05/1987 - 06/1992	1
Common parts
90119-06374
90339-03005
91655-60820
91661-40828

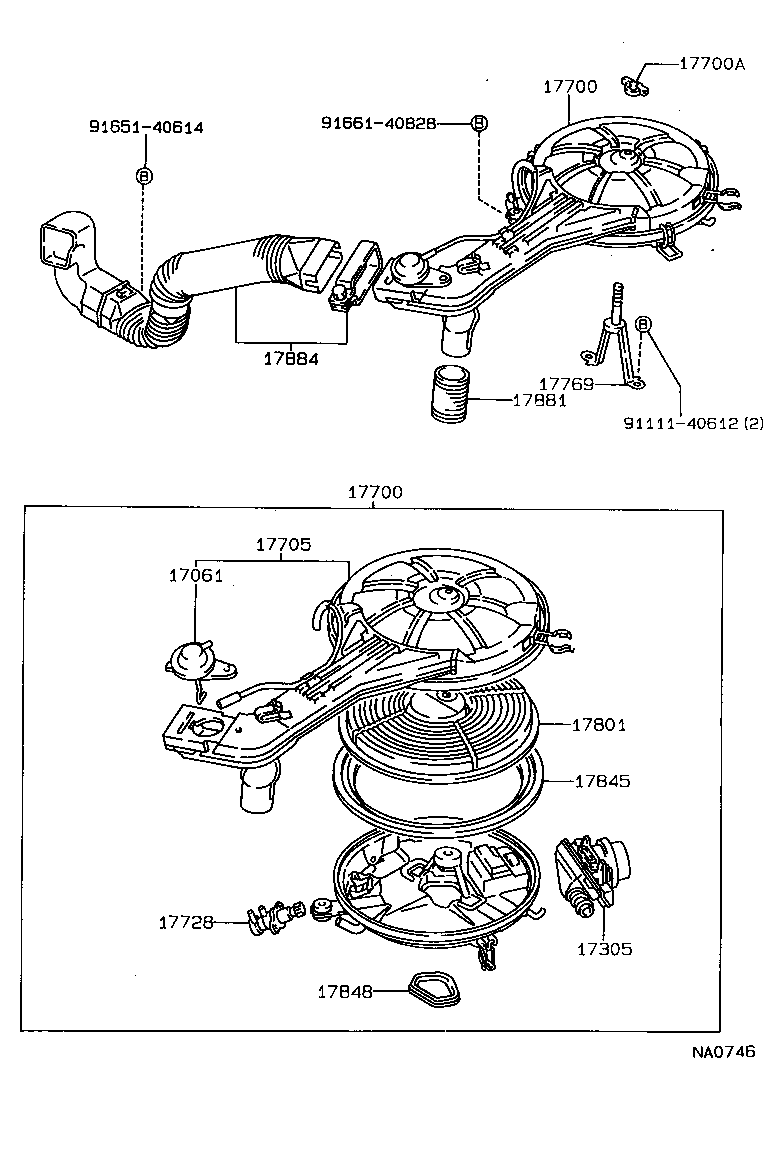

(8705-8908)2E

Click highlighted areas on diagram

Part #	Description	Period	Qty
17061 - DIAPHRAGM SUB-ASSY
17061-11010	2E..EE90	05/1987 - 08/1989	1
17305 - VALVE SUB-ASSY, REED
17350-11020	2E..EE90..LHD..MTM	05/1987 - 04/1989	1
17350-11060	2E..EE90..LHD..MTM	08/1989 - 11/1989	1
17350-11021	2E..EE90..LHD..MTM	04/1989 - 08/1989	1
17700 - CLEANER ASSY, AIR
17700-11370	2E..EE90..LHD..MTM EX. EMISSION CONTROL(US83)	07/1987 - 08/1989	1
17700-11360	2E..EE90	05/1987 - 08/1989	1
17700-11400	2E..EE90..LHD..MTM EX. EMISSION CONTROL(*77)	05/1987 - 04/1989	1
17700-11530	2E..EE90..LHD..MTM EX. EMISSION CONTROL(*77)	08/1989 - 11/1989	1
17700-11401	2E..EE90..LHD..MTM EX. EMISSION CONTROL(*77)	04/1989 - 08/1989	1
17700 - CLEANER ASSY, AIR
17700-11370	2E..EE90..LHD..MTM EX. EMISSION CONTROL(US83)	07/1987 - 08/1989	1
17700-11360	2E..EE90	05/1987 - 08/1989	1
17700-11400	2E..EE90..LHD..MTM EX. EMISSION CONTROL(*77)	05/1987 - 04/1989	1
17700-11530	2E..EE90..LHD..MTM EX. EMISSION CONTROL(*77)	08/1989 - 11/1989	1
17700-11401	2E..EE90..LHD..MTM EX. EMISSION CONTROL(*77)	04/1989 - 08/1989	1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06010	2E..EE90	05/1987 - 06/1992	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-11290	2E..EE90..LHD..MTM EX. EMISSION CONTROL(US83)	05/1987 - 08/1989	1
17705-11170	2E..EE90	05/1987 - 08/1989	1
17728 - VALVE, THERMOSTATIC
17728-11040	2E..EE90	05/1987 - 08/1989	1
17728-11050	2E..EE90..LHD..MTM EX. EMISSION CONTROL(US83)	05/1987 - 08/1989	1
17769 - SUPPORT, AIR CLEANER
17769-11020	2E..EE90	05/1987 - 08/1989	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-10030	2E..EE90	05/1987 - 02/1992	1
17845 - GASKET, AIR CLEANER CAP
17845-10020	2E..EE90	05/1987 - 06/1992	1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-15010	2E..EE90	05/1987 - 08/1989	1
17881 - HOSE, AIR CLEANER, NO.1
17881-10031	2E..EE90	02/1988 - 12/1989	1
17881-10030	2E..EE90	05/1987 - 02/1988	1
17881-10032	2E..EE90	12/1989 - 10/1991	1
17884 - HOSE, AIR CLEANER, NO.4
17880-14070	2E..EE90	05/1987 - 06/1992	1
Common parts
91111-40612
91651-40614
91661-40828
