EE90L-AGKRSW (1987)

Toyota Corolla Hb

Production May 1987 - May 1992
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

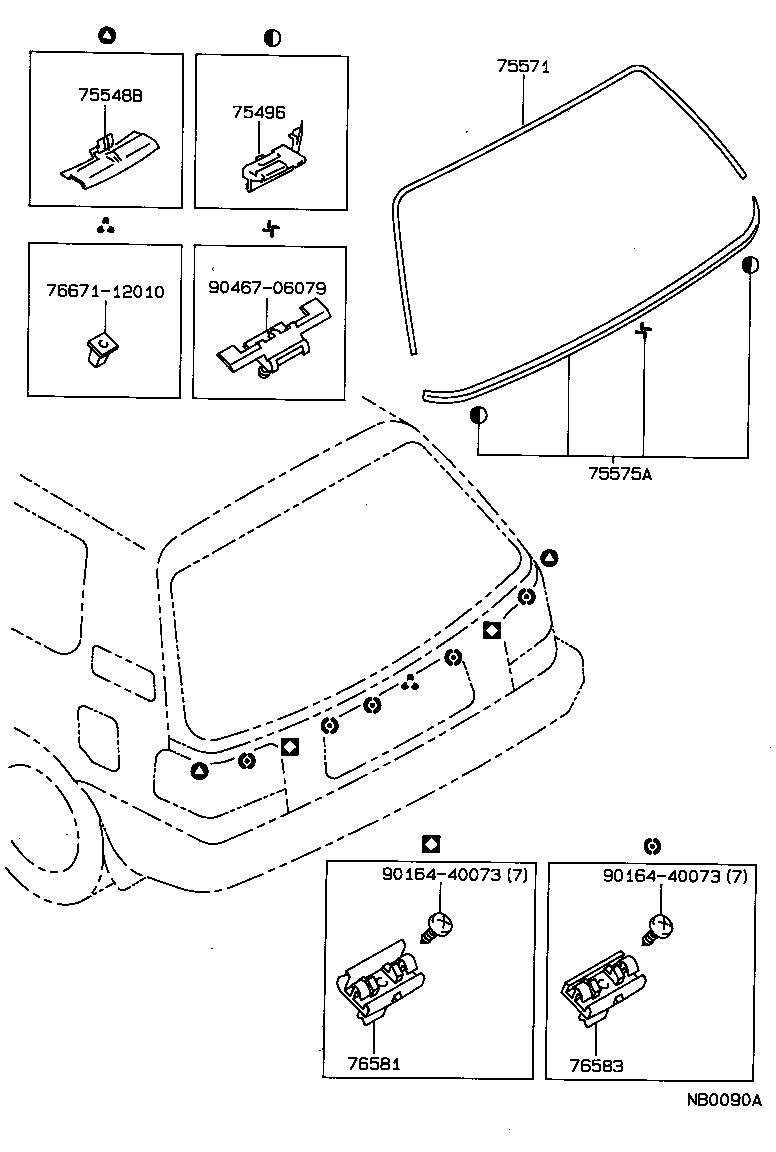

Click highlighted areas on diagram

diagram 75496 75548B 75571 75575A 76581 76583 7667112010 9016440073 9016440073 9046706079
Part # Description Qty Price
75496 - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1
75496-12010

AE92,CE90,EE90

RH

 1
75497-12010

AE92,CE90,EE90

LH

 1
76671-12010

AE92,CE90,EE90..3D

 6
75548B - FASTENER, BACK WINDOW OUTSIDE MOULDING
75548-12100

AE92,CE90,EE90

 2
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-12410

AE92,CE90,EE90

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75507-12030

AE92,CE90,EE90

 1
76581 - RETAINER, BACK WINDOW OUTSIDE MOULDING
76581-12030

AE92,CE90,EE90

 2
76583 - RETAINER, BACK WINDOW OUTSIDE LOWER MOULDING, RH
76583-12020

AE92,CE90,EE90

 5
Common parts
76671-12010
90164-40073
90467-06079
