EE90L-AGKRSW (1987)

Toyota Corolla Hb

Production May 1987 - May 1992
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )3D

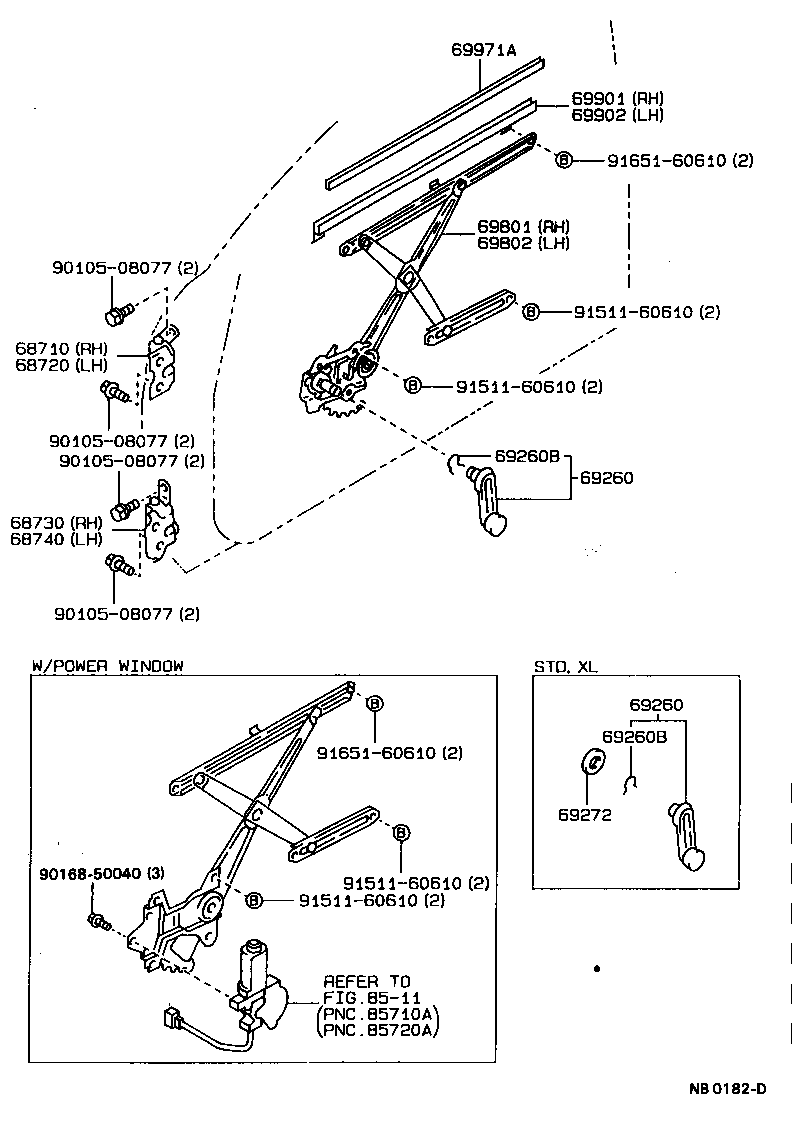

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260 69260B 69260B 69272 69801 69802 69901 69902 69971A 8511 9010508077 9010508077 9010508077 9010508077 9016850040 9151160610 9151160610 9151160610 9151160610 9165160610 9165160610
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-12110

AE92,CE90,EE90..3D

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-12110

AE92,CE90,EE90..3D

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-12070

AE92,CE90,EE90..3D

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-12070

AE92,CE90,EE90..3D

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1207015

EE90..LHD..3D..GL;AE92,CE90,EE90..3D..(STD,XL)

DARK BEIGE,TRIM4#

 2
69260-1207013

EE90..LHD..3D..GL;AE92,CE90,EE90..3D..(STD,XL,XLI)

GRAY,TRIM1#

 2
69260-1207034

AE92,CE90,EE90..3D..(STD,XL,XLI)

BLUE,TRIM8#

 2
69260-1403053

EE90..LHD..3D..GL;AE92,CE90,EE90..3D..(STD,XL,XLI)

SHADOW GRAY,TRIM1#

 2
69260-1403059

AE92,CE90,EE90..3D..(STD,XL,XLI)

DARK BLUE,TRIM8#

 2
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1207015

EE90..LHD..3D..GL;AE92,CE90,EE90..3D..(STD,XL)

DARK BEIGE,TRIM4#

 2
69260-1207013

EE90..LHD..3D..GL;AE92,CE90,EE90..3D..(STD,XL,XLI)

GRAY,TRIM1#

 2
69260-1207034

AE92,CE90,EE90..3D..(STD,XL,XLI)

BLUE,TRIM8#

 2
69260-1403053

EE90..LHD..3D..GL;AE92,CE90,EE90..3D..(STD,XL,XLI)

SHADOW GRAY,TRIM1#

 2
69260-1403059

AE92,CE90,EE90..3D..(STD,XL,XLI)

DARK BLUE,TRIM8#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

EE90..LHD..3D..GL;AE92,CE90,EE90..3D..(STD,XL)

 4
90520-01002

AE92,CE90,EE90..3D..(STD,XL,XLI)

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

EE90..LHD..3D..GL;AE92,CE90,EE90..3D..(STD,XL)

 4
90520-01002

AE92,CE90,EE90..3D..(STD,XL,XLI)

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-16010

AE92,CE90,EE90

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-12320

AE92,CE90,EE90..3D

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-12320

AE92,CE90,EE90..3D

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-12200

AE92,CE90,EE90..3D

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69902-12140

AE92,CE90,EE90..3D

 1
69971A - FILLER, FRONT DOOR GLASS CHANNEL
69971-12090

AE92,CE90,EE90..3D

 2
Common parts
90105-08077
90168-50040
91511-60610
91651-60610
Linked diagrams
8511
