EE90L-AGKRSW (1987)

Toyota Corolla Hb

Production May 1987 - May 1992
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8908- )3D

Click highlighted areas on diagram

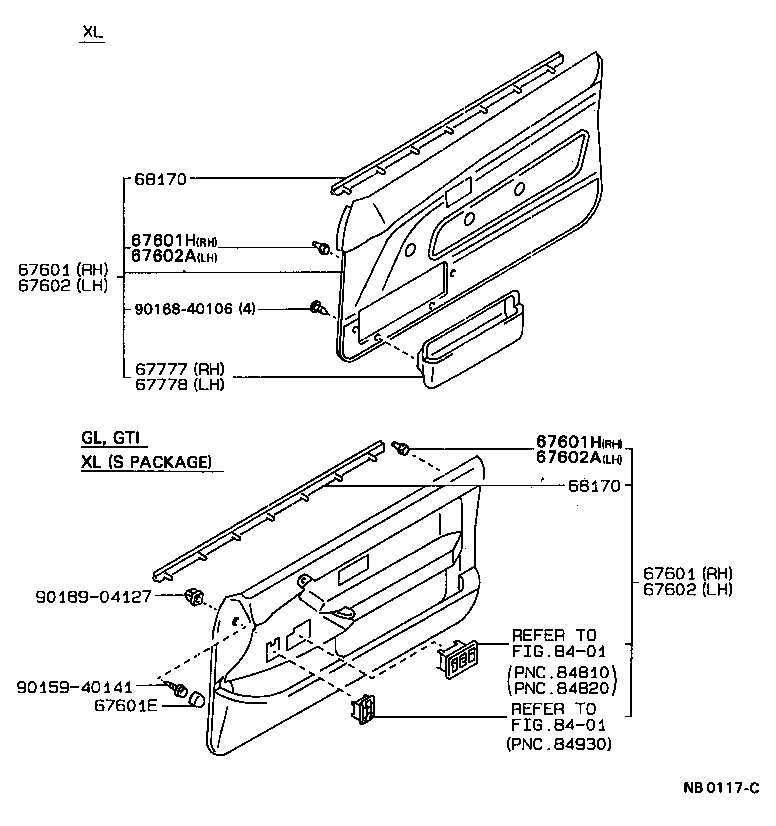

diagram 67601 67601 67601 67601E 67601E 67601H 67601H 67601H 67602 67602 67602 67602A 67602A 67602A 67777 67778 68170 68170 68170 7401 7401 8401 8401 9015940141 9015940141 9016840025 9018904127 9018904127
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67650-1A39003

CE90,EE90..STD

SHADOW GRAY,TRIM1#

 1
67650-1A39005

CE90,EE90..STD

DARK BEIGE,TRIM4#

 1
67650-1A39004

CE90,EE90..STD

DARK BLUE,TRIM8#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67650-1A39003

CE90,EE90..STD

SHADOW GRAY,TRIM1#

 1
67650-1A39005

CE90,EE90..STD

DARK BEIGE,TRIM4#

 1
67650-1A39004

CE90,EE90..STD

DARK BLUE,TRIM8#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67650-1A39003

CE90,EE90..STD

SHADOW GRAY,TRIM1#

 1
67650-1A39005

CE90,EE90..STD

DARK BEIGE,TRIM4#

 1
67650-1A39004

CE90,EE90..STD

DARK BLUE,TRIM8#

 1
67601H - RETAINER, DOOR TRIM, RH
67771-12040

AE92,CE90,EE90..3D..(STD,XL,XLI)

 11
67601H - RETAINER, DOOR TRIM, RH
67771-12040

AE92,CE90,EE90..3D..(STD,XL,XLI)

 11
67601H - RETAINER, DOOR TRIM, RH
67771-12040

AE92,CE90,EE90..3D..(STD,XL,XLI)

 11
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1E72003

CE90,EE90..STD

SHADOW GRAY,TRIM1#

 1
67620-1E72005

CE90,EE90..STD

DARK BEIGE,TRIM4#

 1
67620-1E72004

CE90,EE90..STD

DARK BLUE,TRIM8#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1E72003

CE90,EE90..STD

SHADOW GRAY,TRIM1#

 1
67620-1E72005

CE90,EE90..STD

DARK BEIGE,TRIM4#

 1
67620-1E72004

CE90,EE90..STD

DARK BLUE,TRIM8#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1E72003

CE90,EE90..STD

SHADOW GRAY,TRIM1#

 1
67620-1E72005

CE90,EE90..STD

DARK BEIGE,TRIM4#

 1
67620-1E72004

CE90,EE90..STD

DARK BLUE,TRIM8#

 1
67602A - RETAINER, DOOR TRIM, LH
67771-12040

AE92,CE90,EE90..3D..(STD,XL,XLI)

 11
67602A - RETAINER, DOOR TRIM, LH
67771-12040

AE92,CE90,EE90..3D..(STD,XL,XLI)

 11
67602A - RETAINER, DOOR TRIM, LH
67771-12040

AE92,CE90,EE90..3D..(STD,XL,XLI)

 11
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-12210

AE92,CE90,EE90..3D..(STD,XL,XLI)

RH

 1
68172-12140

AE92,CE90,EE90..3D..(STD,XL,XLI)

LH

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-12210

AE92,CE90,EE90..3D..(STD,XL,XLI)

RH

 1
68172-12140

AE92,CE90,EE90..3D..(STD,XL,XLI)

LH

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-12210

AE92,CE90,EE90..3D..(STD,XL,XLI)

RH

 1
68172-12140

AE92,CE90,EE90..3D..(STD,XL,XLI)

LH

 1
Common parts
90159-40141
90168-40025
90189-04127
Linked diagrams
7401
8401

ILLUST NO. 2 OF 2(8705-8908)3D

Click highlighted areas on diagram

diagram 67601 67601 67601E 67601H 67601H 67602 67602 67602A 67602A 67777 67778 68170 68170 8401 8401 9015940141 9016840106 9018904127
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67650-1A39003

CE90,EE90..STD

SHADOW GRAY,TRIM1#

 1
67650-1A39005

CE90,EE90..STD

DARK BEIGE,TRIM4#

 1
67650-1A39004

CE90,EE90..STD

DARK BLUE,TRIM8#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67650-1A39003

CE90,EE90..STD

SHADOW GRAY,TRIM1#

 1
67650-1A39005

CE90,EE90..STD

DARK BEIGE,TRIM4#

 1
67650-1A39004

CE90,EE90..STD

DARK BLUE,TRIM8#

 1
67601H - RETAINER, DOOR TRIM, RH
67771-12040

AE92,CE90,EE90..3D..(STD,XL,XLI)

 11
67601H - RETAINER, DOOR TRIM, RH
67771-12040

AE92,CE90,EE90..3D..(STD,XL,XLI)

 11
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1E72003

CE90,EE90..STD

SHADOW GRAY,TRIM1#

 1
67620-1E72005

CE90,EE90..STD

DARK BEIGE,TRIM4#

 1
67620-1E72004

CE90,EE90..STD

DARK BLUE,TRIM8#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1E72003

CE90,EE90..STD

SHADOW GRAY,TRIM1#

 1
67620-1E72005

CE90,EE90..STD

DARK BEIGE,TRIM4#

 1
67620-1E72004

CE90,EE90..STD

DARK BLUE,TRIM8#

 1
67602A - RETAINER, DOOR TRIM, LH
67771-12040

AE92,CE90,EE90..3D..(STD,XL,XLI)

 11
67602A - RETAINER, DOOR TRIM, LH
67771-12040

AE92,CE90,EE90..3D..(STD,XL,XLI)

 11
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-12210

AE92,CE90,EE90..3D..(STD,XL,XLI)

RH

 1
68172-12140

AE92,CE90,EE90..3D..(STD,XL,XLI)

LH

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-12210

AE92,CE90,EE90..3D..(STD,XL,XLI)

RH

 1
68172-12140

AE92,CE90,EE90..3D..(STD,XL,XLI)

LH

 1
Common parts
90159-40141
90168-40106
90189-04127
Linked diagrams
8401

ILLUST NO. 1 OF 2(8705- )3D

Click highlighted areas on diagram

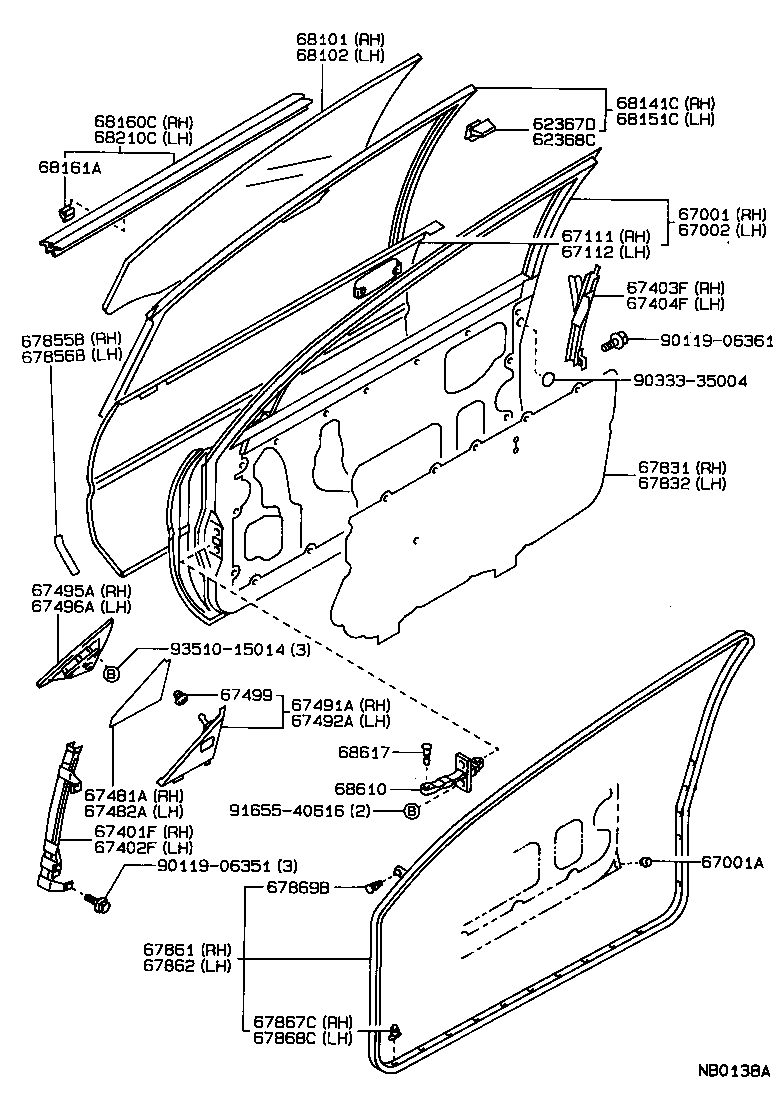

diagram 62367D 62368C 67001 67001A 67002 67111 67112 67401F 67402F 67403F 67404F 67481A 67482A 67491A 67492A 67495A 67496A 67499 67831 67832 67855B 67856B 67861 67862 67867C 67868C 67869B 68101 68102 68141C 68151C 68160C 68161A 68210C 68610 68617 9011906351 9011906361 9033335004 9165540616 9351015014
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-1A320

AE92,CE90,EE90..3D

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09059

AE92,CE90,EE90..3D

 2
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-1A300

AE92,CE90,EE90..3D

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-12480

AE92,CE90,EE90..3D

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-12470

AE92,CE90,EE90..3D

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-12280

AE92,CE90,EE90..3D

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-12300

AE92,CE90,EE90..3D

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-12140

AE92,CE90,EE90..3D

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-12140

AE92,CE90,EE90..3D

 1
67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH
67481-12210

AE92,CE90,EE90

 1
67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH
67482-12140

AE92,CE90,EE90

 1
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-12190

CE90,EE90..3D;AE92..LHD..3D

 1
67491-12200

AE92,CE90,EE90..LHD..3D

W(MANUAL REMOTE CONTROL MIRROR)

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-12200

AE92,CE90,EE90..LHD..3D..(GL,GLI,SR5,STD,XL,XLI)

W(MANUAL REMOTE CONTROL MIRROR)

 1
67492-12190

AE92..RHD;AE92,CE90,EE90..3D..(GL,GLI,SR5,STD,XL,XLI)

 1
67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67495-12140

AE92,CE90,EE90..LHD..3D

 1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67499-32010

AE92,CE90,EE90

 2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67832-12260

AE92,CE90,EE90..3D

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-12260

AE92,CE90,EE90..3D

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-12610

AE92,CE90,EE90..3D

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-12610

AE92,CE90,EE90..3D

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67868-12020

AE92,CE90,EE90..3D

 21
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67868-12050

AE92,CE90,EE90..3D

 21
67868-12050

AE92,CE90,EE90..3D

 21
67869B - CLIP, FRONT DOOR WEATHERSTRIP
67869-12020

AE92,CE90,EE90

 2
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-12650

AE92,CE90,EE90..3D..(GL,GLI,SR5,STD,XL,XLI)

*TEM,T=3.5

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-12650

AE92,CE90,EE90..3D..(GL,GLI,SR5,STD,XL,XLI)

*TEM,T=3.5

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-12360

AE92,CE90,EE90..3D

 1
68141-12380

AE92,CE90,EE90..3D

 1
68151C - RUN, FRONT DOOR GLASS, LH
68151-12100

AE92,CE90,EE90..3D

 1
68151-12080

AE92,CE90,EE90..3D

 1
68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68160-12180

AE92,CE90,EE90..3D..(STD,XL,XLI)

 1
68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68211-12160

AE92,CE90,EE90..3D..(STD,XL,XLI)

 14
68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68210-12130

AE92,CE90,EE90..3D..(STD,XL,XLI)

 1
68610 - CHECK ASSY, FRONT DOOR
68610-12050

AE92,CE90,EE90

 2
68610-12050

AE92,CE90,EE90..3D

AISIN

 2
68617 - PIN, FRONT DOOR CHECK
68617-22020

AE92,CE90,EE90

 2
Common parts
90119-06351
90119-06361
90333-35004
91655-40616
93510-15014
