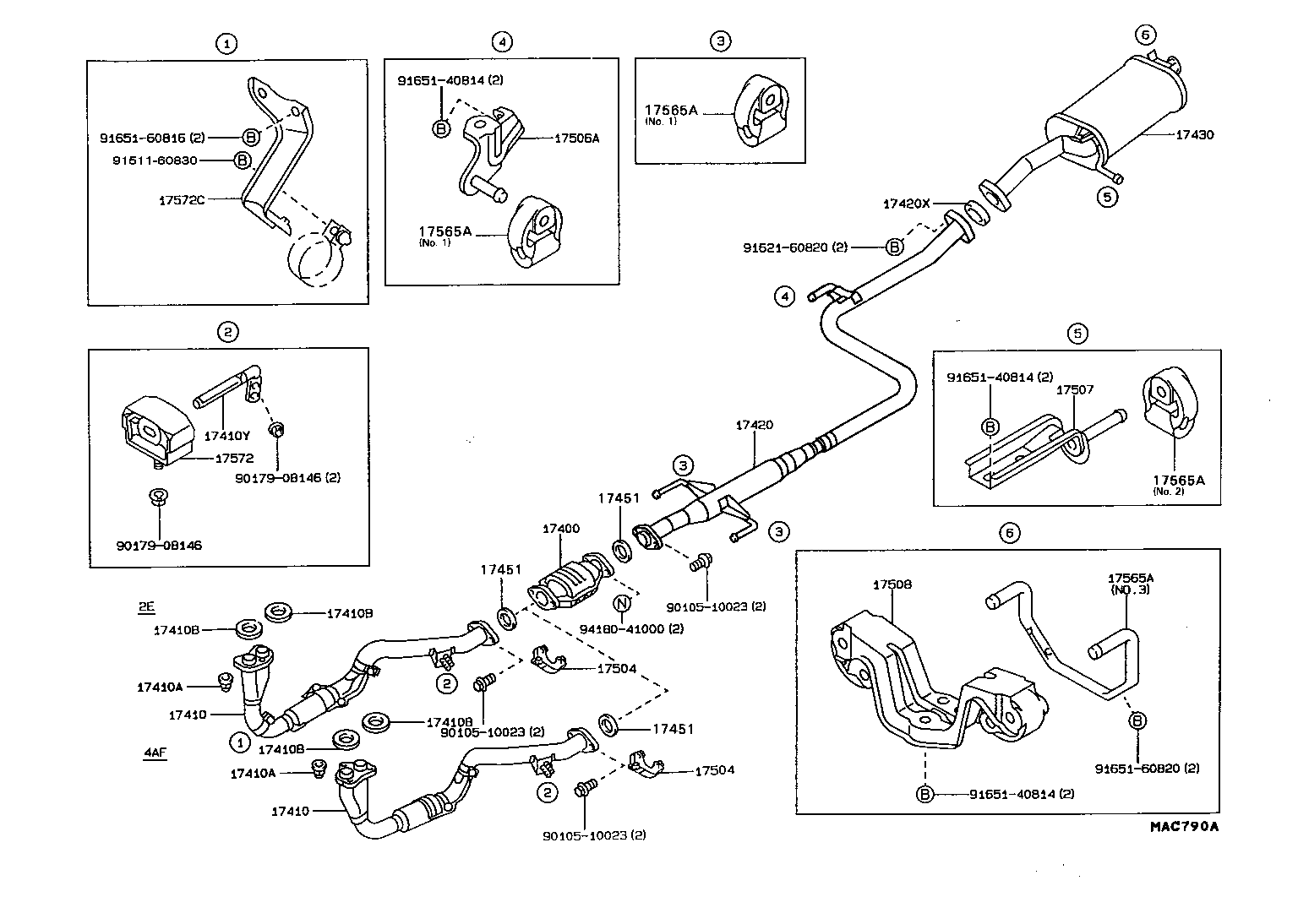

EE90L-AGKREW (1989)
Toyota Corolla Hb
(8705-8911)4AF,2E
EX.EMISSION CONT.=PHASE C/ANNEX25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17400 - CONVERTER ASSY, W/CATALYST | ||||
| 18450-11060 |
2E..EE90..LHD..MTM EX. EMISSION CONTROL(US83) |
1 | ||
| 18450-11050 |
2E..EE90..LHD..MTM EX. EMISSION CONTROL(*77) |
1 | ||
| 18450-11050 |
2E..EE90..LHD..MTM |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-11300 |
2E..EE90..LHD..MTM EX. EMISSION CONTROL(US83) |
1 | ||
| 17410-11290 |
2E..EE90..LHD..MTM EX. EMISSION CONTROL(*77) |
1 | ||
| 17410-11280 |
2E..EE90 |
1 | ||
| 17410-11300 |
2EE..EE90 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-11300 |
2E..EE90..LHD..MTM EX. EMISSION CONTROL(US83) |
1 | ||
| 17410-11290 |
2E..EE90..LHD..MTM EX. EMISSION CONTROL(*77) |
1 | ||
| 17410-11280 |
2E..EE90 |
1 | ||
| 17410-11300 |
2EE..EE90 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
4AF#,4AGE,2E#..AE92,EE90 |
3 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
4AF#,4AGE,2E#..AE92,EE90 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06006 |
2E..EE90 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06006 |
2E..EE90 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06006 |
2E..EE90 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06006 |
2E..EE90 |
2 | ||
| 17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17561-16140 |
4AF#,2E#..AE92,EE90..LHD..MTM |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-11080 |
2E..EE90..LHD..MTM EX. EMISSION CONTROL(US83) |
1 | ||
| 17420-11070 |
2E..EE90..LHD..MTM EX. EMISSION CONTROL(*77) |
1 | ||
| 17420-11120 |
2E..EE90..LHD..MTM EX. EMISSION CONTROL(*77) |
1 | ||
| 17420-11060 |
2E..EE90 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06001 |
2E..EE90 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-11270 |
2E..EE90..LHD..MTM EX. EMISSION CONTROL(US83 OR *77) |
1 | ||
| 17430-11200 |
2E..EE90 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06020 |
4AF,2E..AE92,EE90..LHD..MTM FR |
1 | ||
| 90917-06012 |
4AF,2E..AE92,EE90..LHD..MTM RR |
1 | ||
| 90917-06004 |
4AF,1C,2E..AE92,CE90,EE90 |
1 | ||
| 90917-06047 |
4AFE,2EE..AE92,EE90 RR |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06020 |
4AF,2E..AE92,EE90..LHD..MTM FR |
1 | ||
| 90917-06012 |
4AF,2E..AE92,EE90..LHD..MTM RR |
1 | ||
| 90917-06004 |
4AF,1C,2E..AE92,CE90,EE90 |
1 | ||
| 90917-06047 |
4AFE,2EE..AE92,EE90 RR |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06020 |
4AF,2E..AE92,EE90..LHD..MTM FR |
1 | ||
| 90917-06012 |
4AF,2E..AE92,EE90..LHD..MTM RR |
1 | ||
| 90917-06004 |
4AF,1C,2E..AE92,CE90,EE90 |
1 | ||
| 90917-06047 |
4AFE,2EE..AE92,EE90 RR |
1 | ||
| 17504 - BRACKET SUB-ASSY, CATALYTIC CONVERTER | ||||
| 17504-16010 |
4AF,4AGE,2E#..AE92,EE90..LHD..MTM |
1 | ||
| 17504-16010 |
4AGE,2EE..AE92,EE90..LHD |
1 | ||
| 17504 - BRACKET SUB-ASSY, CATALYTIC CONVERTER | ||||
| 17504-16010 |
4AF,4AGE,2E#..AE92,EE90..LHD..MTM |
1 | ||
| 17504-16010 |
4AGE,2EE..AE92,EE90..LHD |
1 | ||
| 17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17506-15050 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 |
1 | ||
| 17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT | ||||
| 17507-15030 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 |
1 | ||
| 17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3 | ||||
| 17508-15040 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-15050 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.2 |
1 | ||
| 17565-15070 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.1 |
3 | ||
| 17565-15040 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 NO.3 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-15050 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.2 |
1 | ||
| 17565-15070 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.1 |
3 | ||
| 17565-15040 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 NO.3 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-15050 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.2 |
1 | ||
| 17565-15070 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.1 |
3 | ||
| 17565-15040 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 NO.3 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-15050 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.2 |
1 | ||
| 17565-15070 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.1 |
3 | ||
| 17565-15040 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 NO.3 |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-15050 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 |
1 | ||
| 17572C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-11110 |
2E#..EE90 |
1 | ||
| Common parts | ||||
| 90105-10023 | ||||
| 90179-08146 | ||||
| 91511-60830 | ||||
| 91621-60820 | ||||
| 91651-40814 | ||||
| 91651-60816 | ||||
| 91651-60820 | ||||
| 94180-41000 | ||||

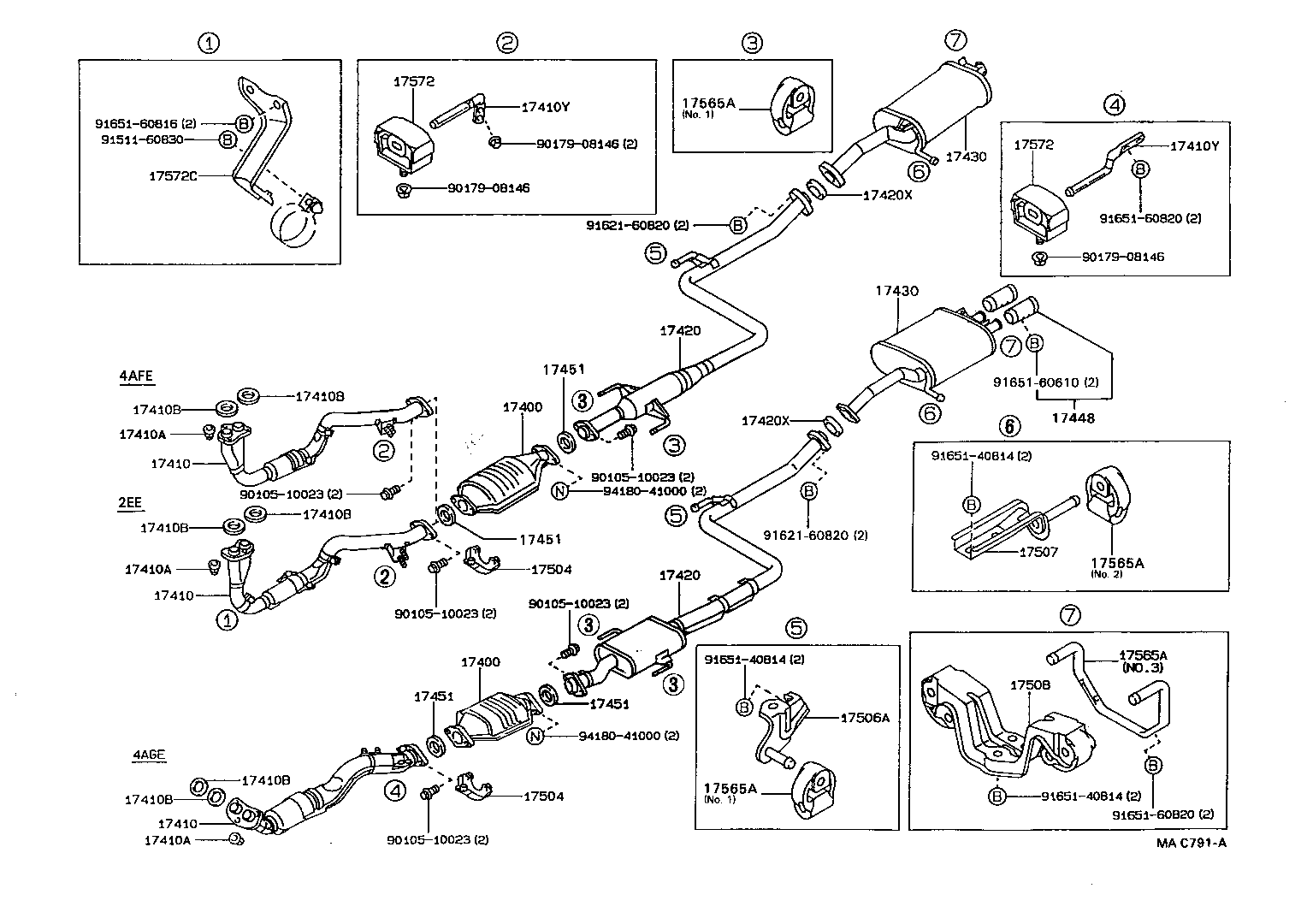

(8908- )4AFE,4AGE,2EE
EXHAUST EMISSION CONTROL(US'83)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17400 - CONVERTER ASSY, W/CATALYST | ||||
| 18450-11060 |
2E..EE90..LHD..MTM EX. EMISSION CONTROL(US83) |
1 | ||
| 18450-11050 |
2E..EE90..LHD..MTM EX. EMISSION CONTROL(*77) |
1 | ||
| 18450-11050 |
2E..EE90..LHD..MTM |
1 | ||
| 17400 - CONVERTER ASSY, W/CATALYST | ||||
| 18450-11060 |
2E..EE90..LHD..MTM EX. EMISSION CONTROL(US83) |
1 | ||
| 18450-11050 |
2E..EE90..LHD..MTM EX. EMISSION CONTROL(*77) |
1 | ||
| 18450-11050 |
2E..EE90..LHD..MTM |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-11300 |
2E..EE90..LHD..MTM EX. EMISSION CONTROL(US83) |
1 | ||
| 17410-11290 |
2E..EE90..LHD..MTM EX. EMISSION CONTROL(*77) |
1 | ||
| 17410-11280 |
2E..EE90 |
1 | ||
| 17410-11300 |
2EE..EE90 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-11300 |
2E..EE90..LHD..MTM EX. EMISSION CONTROL(US83) |
1 | ||
| 17410-11290 |
2E..EE90..LHD..MTM EX. EMISSION CONTROL(*77) |
1 | ||
| 17410-11280 |
2E..EE90 |
1 | ||
| 17410-11300 |
2EE..EE90 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-11300 |
2E..EE90..LHD..MTM EX. EMISSION CONTROL(US83) |
1 | ||
| 17410-11290 |
2E..EE90..LHD..MTM EX. EMISSION CONTROL(*77) |
1 | ||
| 17410-11280 |
2E..EE90 |
1 | ||
| 17410-11300 |
2EE..EE90 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
4AF#,4AGE,2E#..AE92,EE90 |
3 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
4AF#,4AGE,2E#..AE92,EE90 |
3 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
4AF#,4AGE,2E#..AE92,EE90 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06006 |
2E..EE90 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06006 |
2E..EE90 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06006 |
2E..EE90 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06006 |
2E..EE90 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06006 |
2E..EE90 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06006 |
2E..EE90 |
2 | ||
| 17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17561-16140 |
4AF#,2E#..AE92,EE90..LHD..MTM |
1 | ||
| 17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17561-16140 |
4AF#,2E#..AE92,EE90..LHD..MTM |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-11080 |
2E..EE90..LHD..MTM EX. EMISSION CONTROL(US83) |
1 | ||
| 17420-11070 |
2E..EE90..LHD..MTM EX. EMISSION CONTROL(*77) |
1 | ||
| 17420-11120 |
2E..EE90..LHD..MTM EX. EMISSION CONTROL(*77) |
1 | ||
| 17420-11060 |
2E..EE90 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-11080 |
2E..EE90..LHD..MTM EX. EMISSION CONTROL(US83) |
1 | ||
| 17420-11070 |
2E..EE90..LHD..MTM EX. EMISSION CONTROL(*77) |
1 | ||
| 17420-11120 |
2E..EE90..LHD..MTM EX. EMISSION CONTROL(*77) |
1 | ||
| 17420-11060 |
2E..EE90 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06001 |
2E..EE90 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06001 |
2E..EE90 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-11270 |
2E..EE90..LHD..MTM EX. EMISSION CONTROL(US83 OR *77) |
1 | ||
| 17430-11200 |
2E..EE90 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-11270 |
2E..EE90..LHD..MTM EX. EMISSION CONTROL(US83 OR *77) |
1 | ||
| 17430-11200 |
2E..EE90 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06020 |
4AF,2E..AE92,EE90..LHD..MTM FR |
1 | ||
| 90917-06012 |
4AF,2E..AE92,EE90..LHD..MTM RR |
1 | ||
| 90917-06004 |
4AF,1C,2E..AE92,CE90,EE90 |
1 | ||
| 90917-06047 |
4AFE,2EE..AE92,EE90 RR |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06020 |
4AF,2E..AE92,EE90..LHD..MTM FR |
1 | ||
| 90917-06012 |
4AF,2E..AE92,EE90..LHD..MTM RR |
1 | ||
| 90917-06004 |
4AF,1C,2E..AE92,CE90,EE90 |
1 | ||
| 90917-06047 |
4AFE,2EE..AE92,EE90 RR |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06020 |
4AF,2E..AE92,EE90..LHD..MTM FR |
1 | ||
| 90917-06012 |
4AF,2E..AE92,EE90..LHD..MTM RR |
1 | ||
| 90917-06004 |
4AF,1C,2E..AE92,CE90,EE90 |
1 | ||
| 90917-06047 |
4AFE,2EE..AE92,EE90 RR |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06020 |
4AF,2E..AE92,EE90..LHD..MTM FR |
1 | ||
| 90917-06012 |
4AF,2E..AE92,EE90..LHD..MTM RR |
1 | ||
| 90917-06004 |
4AF,1C,2E..AE92,CE90,EE90 |
1 | ||
| 90917-06047 |
4AFE,2EE..AE92,EE90 RR |
1 | ||
| 17504 - BRACKET SUB-ASSY, CATALYTIC CONVERTER | ||||
| 17504-16010 |
4AF,4AGE,2E#..AE92,EE90..LHD..MTM |
1 | ||
| 17504-16010 |
4AGE,2EE..AE92,EE90..LHD |
1 | ||
| 17504 - BRACKET SUB-ASSY, CATALYTIC CONVERTER | ||||
| 17504-16010 |
4AF,4AGE,2E#..AE92,EE90..LHD..MTM |
1 | ||
| 17504-16010 |
4AGE,2EE..AE92,EE90..LHD |
1 | ||
| 17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17506-15050 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 |
1 | ||
| 17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT | ||||
| 17507-15030 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 |
1 | ||
| 17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3 | ||||
| 17508-15040 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-15050 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.2 |
1 | ||
| 17565-15070 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.1 |
3 | ||
| 17565-15040 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 NO.3 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-15050 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.2 |
1 | ||
| 17565-15070 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.1 |
3 | ||
| 17565-15040 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 NO.3 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-15050 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.2 |
1 | ||
| 17565-15070 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.1 |
3 | ||
| 17565-15040 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 NO.3 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-15050 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.2 |
1 | ||
| 17565-15070 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.1 |
3 | ||
| 17565-15040 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 NO.3 |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-15050 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-15050 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 |
1 | ||
| 17572C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-11110 |
2E#..EE90 |
1 | ||
| Common parts | ||||
| 90105-10023 | ||||
| 90179-08146 | ||||
| 91511-60830 | ||||
| 91621-60820 | ||||
| 91651-40814 | ||||
| 91651-60610 | ||||
| 91651-60816 | ||||
| 91651-60820 | ||||
| 94180-41000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
