EE90L-AGKDSW (1987)

Toyota Corolla Hb

Production May 1987 - May 1992
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

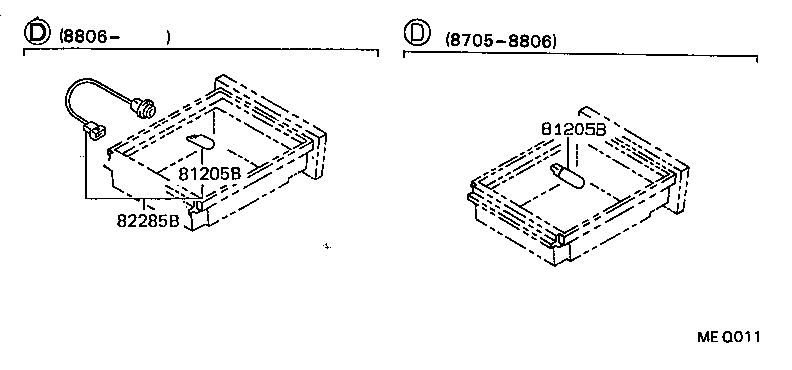

ILLUST NO. 2 OF 2(8705- )

Click highlighted areas on diagram

diagram 81205B 81205B 82285B
Part # Description Qty Price
81205B - BULB, ASH RECEPTACLE LAMP
90981-11014

AE92,CE90,EE90

14V 1.4W

 1
81205B - BULB, ASH RECEPTACLE LAMP
90981-11014

AE92,CE90,EE90

14V 1.4W

 1

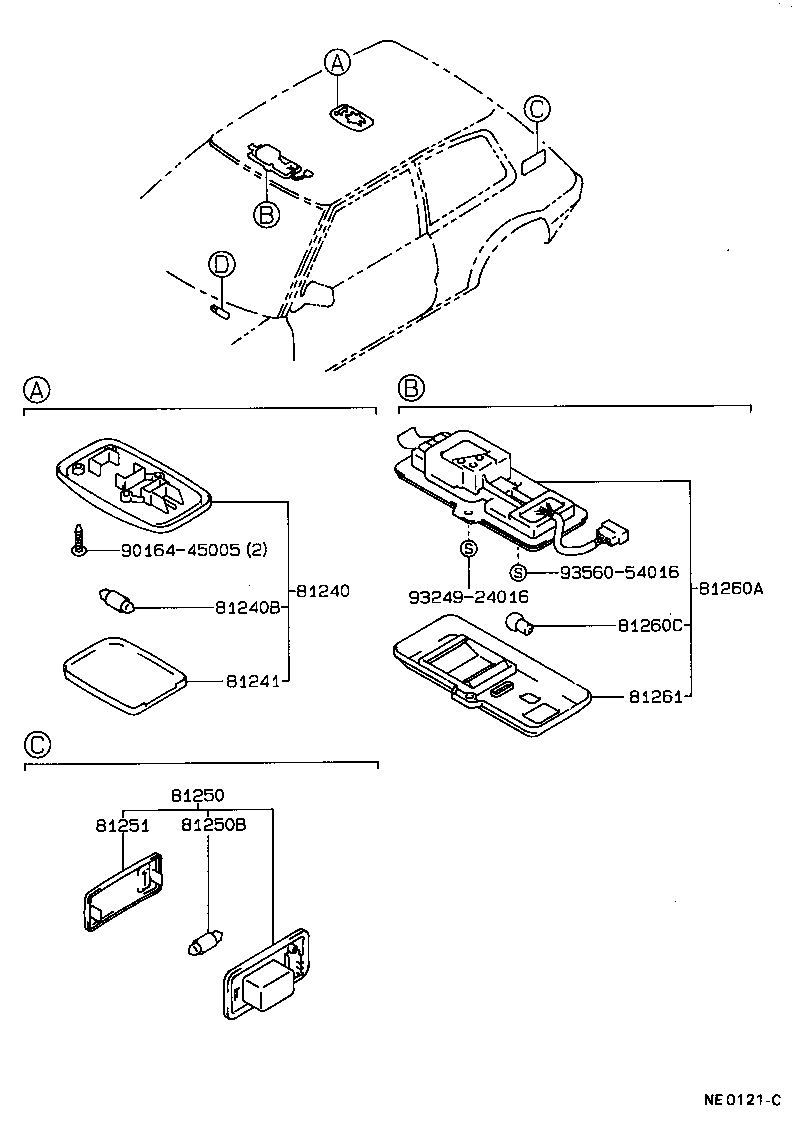

ILLUST NO. 1 OF 2(8705- )

Click highlighted areas on diagram

diagram 81240 81240B 81241 81250 81250B 81251 81260A 81260C 81261 9016445005 9324924016 9356054016
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-1202004

AE92,CE90,EE90..LHD..(GL,XL)

LIGHT BLUE,TRIM8#

 1
81240-1202003

AE92,CE90,EE90..3D..(GL,GLI,SR5,STD,XL,XLI)

LIGHT GRAY,TRIM1#

 1
81240-1202005

AE92,CE90,EE90..CBR,DSL

LIGHT BEIGE,TRIM4#

 1
81240-1202003

AE92,CE90,EE90

LIGHT GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

AE92,CE90,EE90

12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-12020

AE92,CE90,EE90

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-1203004

AE92,CE90,EE90..LHD..(GL,XL)

DARK BLUE,TRIM8#

 1
81250-1203005

AE92,CE90,EE90..CBR,DSL

DARK BEIGE,TRIM4#

 1
81250-1203003

AE92,CE90,EE90

SHADOW GRAY,TRIM1#

 1
81250B - BULB, ROOM LAMP, NO.2
99132-13050

AE92,CE90,EE90

12V 5W

 1
81251 - LENS, ROOM LAMP, NO.2
81251-12030

AE92,CE90,EE90

 1
81260A - LAMP ASSY, MAP
81260-16040E0

AE92,CE90,EE90..GL,XL

LIGHT BEIGE,TRIM4#

 1
81260-16040J0

AE92,CE90,EE90..LHD..(GL,XL)

LIGHT BLUE,TRIM8#

 1
81260-1604004

AE92,CE90,EE90..LHD..(GL,XL)

LIGHT BLUE,TRIM8#

 1
81260-1604005

AE92,CE90,EE90..GL,XL

LIGHT BEIGE,TRIM4#

 1
81260-1604003

AE92..GL,GTI;AE92..3D..XL;CE90,EE90..GL,XL

LIGHT GRAY,TRIM1#

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

AE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI

12V 10W

 1
81261 - LENS AND COVER, MAP LAMP
81261-20061J0

AE92,CE90,EE90..LHD..(GL,XL)

LIGHT BLUE,TRIM8#

 1
81261-2006113

AE92,CE90,EE90..GL,GTI,XL

LIGHT GRAY,TRIM1#

 1
81261-2006114

AE92,CE90,EE90..LHD..(GL,XL)

LIGHT BLUE,TRIM8#

 1
81261-2006105

AE92,CE90,EE90..GL,XL

LIGHT BEIGE,TRIM4#

 1
81261-20061E0

AE92,CE90,EE90..GL,XL

LIGHT BEIGE,TRIM4#

 1
Common parts
90164-45005
93249-24016
93560-54016
