EE90L-AGKDSW (1987)

Toyota Corolla Hb

Production May 1987 - May 1992
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

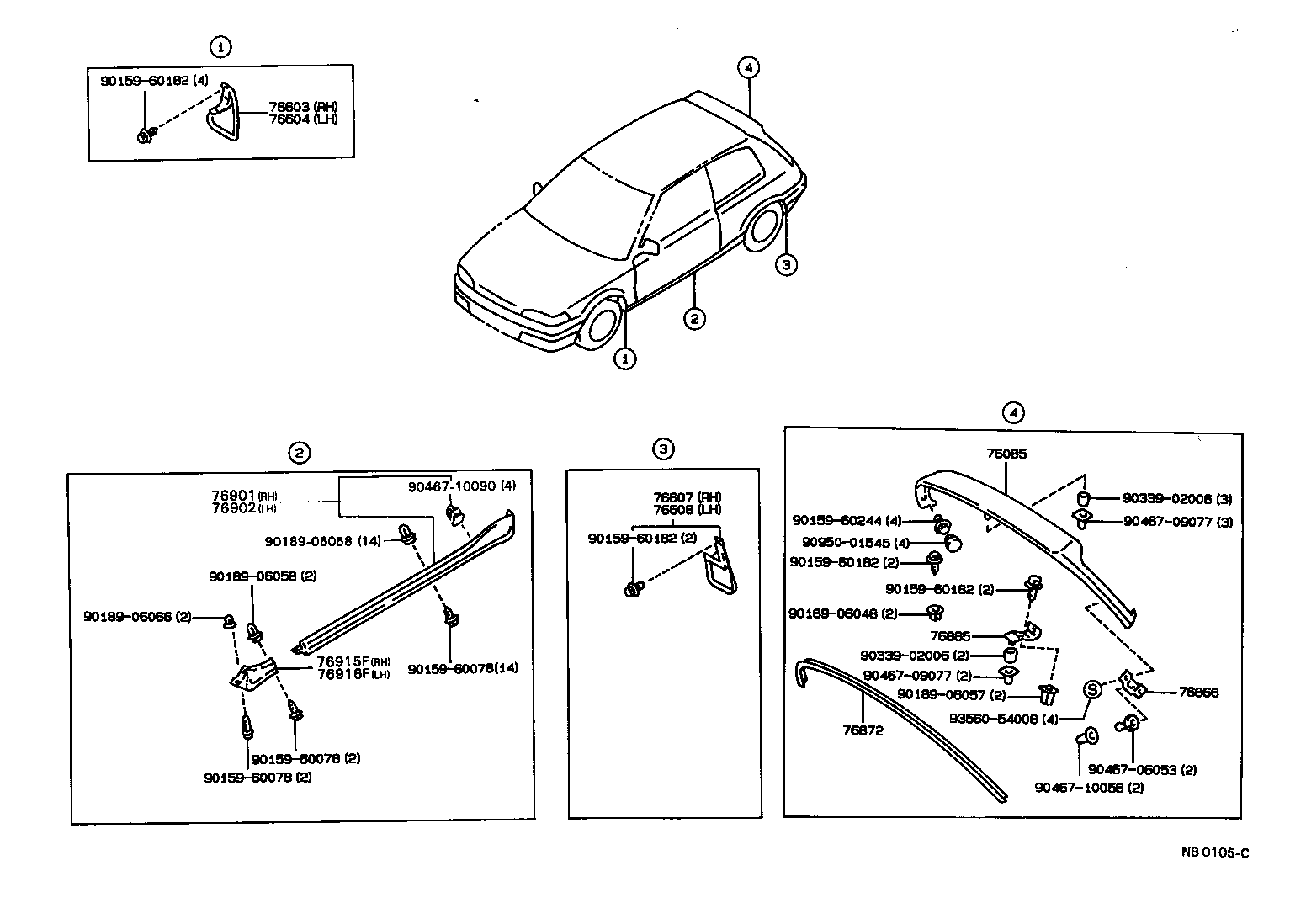

Click highlighted areas on diagram

diagram 76085 76603 76604 76607 76608 76866 76872 76885 76901 76902 76915F 76916F 9015960078 9015960078 9015960078 9015960182 9015960182 9015960182 9015960182 9015960244 9018906048 9018906057 9018906058 9018906058 9018906066 9033902006 9033902006 9046706053 9046709077 9046709077 9046710058 9046710090 9095001545 9356054008
Part # Description Qty Price
76085 - SPOILER SUB-ASSY, REAR
76085-12900

AE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI

 1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-12050

AE92,CE90,EE90..CBR,DSL

 1
76621-12050

AE92,CE90,EE90..CBR,DSL

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-12050

AE92,CE90,EE90..CBR,DSL

 1
76622-12050

AE92,CE90,EE90..CBR,DSL

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-19225

AE92,CE90,EE90

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-19235

AE92,CE90,EE90

 1
76866 - RETAINER, REAR SPOILER, NO.2
76866-12030

AE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI

 2
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-12070

AE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI

 1
76885 - RETAINER, REAR SPOILER, NO.5
76885-12050

AE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI

 2
Common parts
90159-60078
90159-60182
90159-60244
90189-06048
90189-06057
90189-06058
90189-06066
90339-02006
90467-06053
90467-09077
90467-10058
90467-10090
90950-01545
93560-54008
