EE90L-AGKDSW (1987)
Toyota Corolla Hb

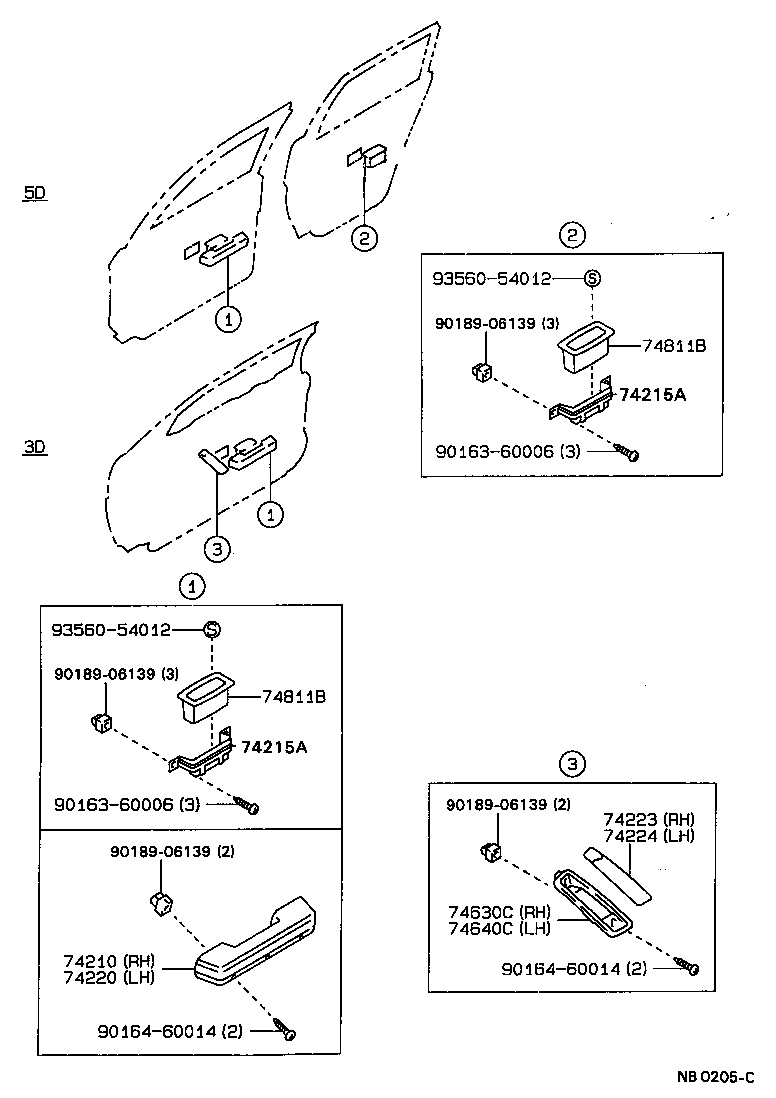

ILLUST NO. 1 OF 2(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-2206125 |
AE92,CE90,EE90..3D..(STD,XL) DARK BEIGE,TRIM4# |
1 | ||
| 74210-2206124 |
AE92,CE90,EE90..LHD..3D..XL DARK BLUE,TRIM8# |
1 | ||
| 74210-2206124 |
AE92,CE90,EE90..3D..(STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 74210-2206123 |
AE92,CE90,EE90..3D..(STD,XL,XLI) GRAY,TRIM1# |
1 | ||
| 74210-2206116 |
AE92,CE90,EE90..LHD..3D..(XL,XLI) BROWN,TRIM4# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74210-2206123 |
AE92,CE90,EE90..3D..(STD,XL,XLI) GRAY,TRIM1# |
1 | ||
| 74210-2206124 |
AE92,CE90,EE90..LHD..3D..XL DARK BLUE,TRIM8# |
1 | ||
| 74210-2206116 |
AE92,CE90,EE90..LHD..3D..(XL,XLI) BROWN,TRIM4# |
1 | ||
| 74210-2206125 |
AE92,CE90,EE90..3D..(STD,XL) DARK BEIGE,TRIM4# |
1 | ||
| 74210-2206124 |
AE92,CE90,EE90..3D..(STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90163-60006 | ||||
| 90164-60014 | ||||
| 90168-40025 | ||||
| 90189-06020 | ||||
| 90189-06139 | ||||
| 90467-10012 | ||||
| 93560-54016 | ||||

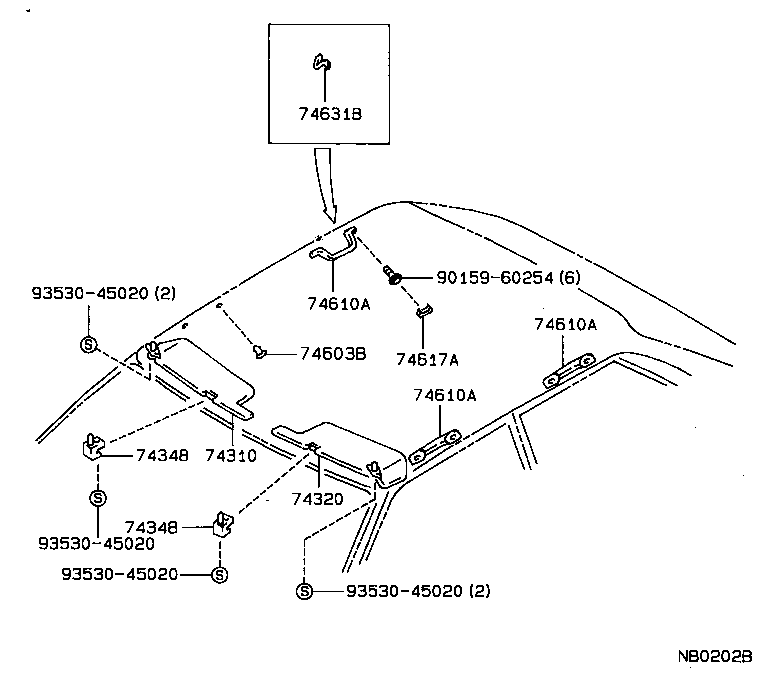

ILLUST NO. 2 OF 2(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-1271004 |
AE92,CE90,EE90..LHD..XL W(PROTECTOR),LIGHT BLUE,TRIM8# |
1 | ||
| 74310-1270005 |
EE90..5D..3FC;EE90..LHD..3D..(STD,XL);AE92,CE90..LHD..(STD,XL) LIGHT BEIGE,TRIM4# |
1 | ||
| 74310-1270004 |
AE92,CE90,EE90..LHD..XL LIGHT BLUE,TRIM8# |
1 | ||
| 74310-1270005 |
AE92,CE90,EE90..LHD..(STD,XL) LIGHT BEIGE,TRIM4# |
1 | ||
| 74310-1271005 |
AE92,CE90,EE90..LHD..(STD,XL) W(PROTECTOR),LIGHT BEIGE,TRIM4# |
1 | ||
| 74310-1274005 |
AE92,CE90,EE90..LHD..XL W(VANITY MIRROR),LIGHT BEIGE,TRIM4# |
1 | ||
| 74310-1275005 |
AE92,CE90,EE90..LHD..XL W(VANITY MIRROR & PROTECTOR),LIGHT BEIGE,TRIM4# |
1 | ||
| 74310-1270003 |
EE90..5D..3FC;EE90..LHD..3D..(STD,XL);AE92,CE90..LHD..(STD,XL) LIGHT GRAY,TRIM1# |
1 | ||
| 74310-1270003 |
AE92,CE90,EE90..LHD..(STD,XL) LIGHT GRAY,TRIM1# |
1 | ||
| 74310-1278005 |
EE90..LHD..XL;AE92,CE90..LHD..(GL,XL) MOQUETTE & W(PROTECTOR),LIGHT BEIGE,TRIM4# |
1 | ||
| 74310-1270004 |
EE90..5D..3FC;EE90..LHD..3D..XL;AE92,CE90..LHD..XL LIGHT BLUE,TRIM8# |
1 | ||
| 74310-12700J0 |
AE92,CE90,EE90..LHD..XL LIGHT BLUE,TRIM8# |
1 | ||
| 74310-12700B0 |
AE92,CE90,EE90..LHD..(STD,XL,XLI) LIGHT GRAY,TRIM1# |
1 | ||
| 74310-1279003 |
AE92,CE90,EE90..LHD..(SR5,XL,XLI) MOQUETTE & W(VANITY MIRROR & PROTECTOR),LIGHT GRAY,TRIM1# |
1 | ||
| 74310-1279005 |
AE92,CE90,EE90..LHD..XL MOQUETTE & W(VANITY MIRROR & PROTECTOR),LIGHT BEIGE,TRIM4# |
1 | ||
| 74310-1274003 |
AE92,CE90,EE90..LHD..(SR5,XL,XLI) W(VANITY MIRROR),LIGHT GRAY,TRIM1# |
1 | ||
| 74310-1274004 |
AE92,CE90,EE90..LHD..(XL,XLI) W(VANITY MIRROR),LIGHT BLUE,TRIM8# |
1 | ||
| 74310-1275003 |
AE92,CE90,EE90..LHD..(SR5,XL,XLI) W(VANITY MIRROR & PROTECTOR),LIGHT GRAY,TRIM1# |
1 | ||
| 74310-1270006 |
AE92,CE90,EE90..LHD..(XL,XLI) LIGHT BROWN,TRIM4# |
1 | ||
| 74310-1271003 |
AE92,CE90,EE90..LHD..(SR5,STD,XL,XLI) W(PROTECTOR),LIGHT GRAY,TRIM1# |
1 | ||
| 74310-12700E0 |
AE92,CE90,EE90..LHD..(STD,XL) LIGHT BEIGE,TRIM4# |
1 | ||
| 74310-1279004 |
AE92,CE90,EE90..LHD..(XL,XLI) MOQUETTE & W(VANITY MIRROR & PROTECTOR),LIGHT BLUE,TRIM8# |
1 | ||
| 74310-1278004 |
EE90..LHD..(XL,XLI);AE92,CE90..LHD..(GL,GLI,XL,XLI) MOQUETTE & W(PROTECTOR),LIGHT BLUE,TRIM8# |
1 | ||
| 74310-1278003 |
EE90..LHD..(XL,XLI);AE92,CE90..LHD..(GL,GLI,GTI,SR5,XL,XLI) MOQUETTE & W(PROTECTOR),LIGHT GRAY,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-1255004 |
EE90..5D..3FC;EE90..LHD..3D..XL;AE92,CE90..LHD..XL LIGHT BLUE,TRIM8# |
1 | ||
| 74320-1255005 |
EE90..5D..3FC;EE90..LHD..3D..(STD,XL);AE92,CE90..LHD..(STD,XL) LIGHT BEIGE,TRIM4# |
1 | ||
| 74320-1255005 |
AE92,CE90,EE90..LHD..(STD,XL) LIGHT BEIGE,TRIM4# |
1 | ||
| 74320-1256004 |
AE92,CE90,EE90..LHD..XL W(PROTECTOR),LIGHT BLUE,TRIM8# |
1 | ||
| 74320-1255004 |
AE92,CE90,EE90..LHD..XL LIGHT BLUE,TRIM8# |
1 | ||
| 74320-1255003 |
AE92,CE90,EE90..LHD..(STD,XL) LIGHT GRAY,TRIM1# |
1 | ||
| 74320-1255003 |
EE90..5D..3FC;EE90..LHD..3D..(STD,XL);AE92,CE90..LHD..(STD,XL) LIGHT GRAY,TRIM1# |
1 | ||
| 74320-1260005 |
AE92,CE90,EE90..LHD..XL MOQUETTE & W(PROTECTOR),LIGHT BEIGE,TRIM4# |
1 | ||
| 74320-12550J0 |
AE92,CE90,EE90..LHD..XL LIGHT BLUE,TRIM8# |
1 | ||
| 74320-1256005 |
AE92,CE90,EE90..LHD..XL W(PROTECTOR),LIGHT BEIGE,TRIM4# |
1 | ||
| 74320-12550E0 |
AE92,CE90,EE90..LHD..(STD,XL) LIGHT BEIGE,TRIM4# |
1 | ||
| 74320-12550B0 |
AE92,CE90,EE90..LHD..(STD,XL,XLI) LIGHT GRAY,TRIM1# |
1 | ||
| 74320-1260004 |
AE92,CE90,EE90..LHD..(XL,XLI) MOQUETTE & W(PROTECTOR),LIGHT BLUE,TRIM8# |
1 | ||
| 74320-1260003 |
AE92,CE90,EE90..LHD..(SR5,XL,XLI) MOQUETTE & W(PROTECTOR),LIGHT GRAY,TRIM1# |
1 | ||
| 74320-1256003 |
AE92,CE90,EE90..LHD..(SR5,XL,XLI) W(PROTECTOR),LIGHT GRAY,TRIM1# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-1202005 |
AE92,CE90,EE90..CBR,DSL LIGHT BEIGE,TRIM4# |
2 | ||
| 74348-1202004 |
AE92,CE90,EE90..LHD..(GL,XL) LIGHT BLUE,TRIM8# |
2 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-1202005 |
AE92,CE90,EE90..CBR,DSL LIGHT BEIGE,TRIM4# |
2 | ||
| 74348-1202004 |
AE92,CE90,EE90..LHD..(GL,XL) LIGHT BLUE,TRIM8# |
2 | ||
| 74603B - CLIP (FOR ASSIST GRIP) | ||||
| 90467-0604834 |
AE92,CE90,EE90..LHD..3D..XL W/O(REAR SEAT),LIGHT BLUE,TRIM8# |
6 | ||
| 90467-0604833 |
AE92,CE90,EE90..GL,GTI,XL LIGHT GRAY,TRIM1# |
2 | ||
| 90467-0604833 |
AE92,CE90,EE90..3D..XL W/O(REAR SEAT),LIGHT GRAY,TRIM1# |
6 | ||
| 90467-0604825 |
AE92,CE90,EE90..GL,XL LIGHT BEIGE,TRIM4# |
2 | ||
| 90467-06048E0 |
AE92,CE90,EE90..3D..XL W/O(REAR SEAT),LIGHT BEIGE,TRIM4# |
6 | ||
| 90467-06048E0 |
AE92,CE90,EE90..GL,XL LIGHT BEIGE,TRIM4# |
2 | ||
| 90467-06048J0 |
AE92,CE90,EE90..LHD..3D..XL W/O(REAR SEAT),LIGHT BLUE,TRIM8# |
6 | ||
| 90467-0604834 |
AE92,CE90,EE90..LHD..(GL,XL) LIGHT BLUE,TRIM8# |
2 | ||
| 90467-0604825 |
AE92,CE90,EE90..3D..XL W/O(REAR SEAT),LIGHT BEIGE,TRIM4# |
6 | ||
| 90467-06048J0 |
AE92,CE90,EE90..LHD..(GL,XL) LIGHT BLUE,TRIM8# |
2 | ||
| 90467-0604816 |
EE90..LHD..3D..XL;EE90..3D..(3FC,4F)..XLI;AE92,CE90..LHD..3D..(XL,XLI) W/O(REAR SEAT),LIGHT BROWN,TRIM4# |
6 | ||
| 90467-06048J0 |
EE90..3D..XL;AE92,CE90..3D..(XL,XLI);EE90..3D..(3FC,4F)..XLI W/O(REAR SEAT),LIGHT BLUE,TRIM8# |
6 | ||
| 90467-06048B1 |
EE90..3D..XL;AE92,CE90..3D..(XL,XLI);EE90..3D..(3FC,4F)..XLI W/O(REAR SEAT),LIGHT GRAY,TRIM1# |
6 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-1202003 |
AE92,CE90,EE90..GL,GTI,XL W(SUN ROOF),LIGHT GRAY,TRIM1# |
3 | ||
| 74610-1202004 |
AE92,CE90,EE90..LHD..3D..XL W(SUN ROOF) & W/O(REAR SEAT),LIGHT BLUE,TRIM8# |
1 | ||
| 74610-1601004 |
AE92,CE90,EE90..LHD..(GL,XL) LIGHT BLUE,TRIM8# |
3 | ||
| 74610-1202005 |
AE92,CE90,EE90..GL,XL W(SUN ROOF),LIGHT BEIGE,TRIM4# |
3 | ||
| 74610-1601005 |
AE92,CE90,EE90..3D..XL W/O(REAR SEAT),LIGHT BEIGE,TRIM4# |
1 | ||
| 74610-1202005 |
AE92,CE90,EE90..3D..XL W(SUN ROOF) & W/O(REAR SEAT),LIGHT BEIGE,TRIM4# |
1 | ||
| 74610-1601005 |
AE92,CE90,EE90..GL,XL LIGHT BEIGE,TRIM4# |
3 | ||
| 74610-1601004 |
AE92,CE90,EE90..LHD..3D..XL W/O(REAR SEAT),LIGHT BLUE,TRIM8# |
1 | ||
| 74610-1601003 |
EE90..3D..XL;AE92,CE90..3D..(XL,XLI);EE90..3D..(3FC,4F)..XLI W/O(REAR SEAT),LIGHT GRAY,TRIM1# |
1 | ||
| 74610-1202004 |
AE92,CE90,EE90..LHD..(GL,XL) W(SUN ROOF),LIGHT BLUE,TRIM8# |
3 | ||
| 74610-1202004 |
EE90..3D..XL;AE92,CE90..3D..(XL,XLI);EE90..3D..(3FC,4F)..XLI W(SUN ROOF) & W/O(REAR SEAT),LIGHT BLUE,TRIM8# |
1 | ||
| 74610-1202003 |
EE90..3D..XL;AE92,CE90..3D..(XL,XLI);EE90..3D..(3FC,4F)..XLI W(SUN ROOF) & W/O(REAR SEAT),LIGHT GRAY,TRIM1# |
1 | ||
| 74610-1601004 |
EE90..3D..XL;AE92,CE90..3D..(XL,XLI);EE90..3D..(3FC,4F)..XLI W/O(REAR SEAT),LIGHT BLUE,TRIM8# |
1 | ||
| 74610-1202006 |
EE90..LHD..3D..XL;EE90..3D..(3FC,4F)..XLI;AE92,CE90..LHD..3D..(XL,XLI) W(SUN ROOF) & W/O(REAR SEAT),LIGHT BROWN,TRIM4# |
1 | ||
| 74610-1601006 |
EE90..LHD..3D..XL;EE90..3D..(3FC,4F)..XLI;AE92,CE90..LHD..3D..(XL,XLI) W/O(REAR SEAT),BROWN,TRIM4# |
1 | ||
| 74610-1601003 |
AE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI LIGHT GRAY,TRIM1# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-1202003 |
AE92,CE90,EE90..GL,GTI,XL W(SUN ROOF),LIGHT GRAY,TRIM1# |
3 | ||
| 74610-1202004 |
AE92,CE90,EE90..LHD..3D..XL W(SUN ROOF) & W/O(REAR SEAT),LIGHT BLUE,TRIM8# |
1 | ||
| 74610-1601004 |
AE92,CE90,EE90..LHD..(GL,XL) LIGHT BLUE,TRIM8# |
3 | ||
| 74610-1202005 |
AE92,CE90,EE90..GL,XL W(SUN ROOF),LIGHT BEIGE,TRIM4# |
3 | ||
| 74610-1601005 |
AE92,CE90,EE90..3D..XL W/O(REAR SEAT),LIGHT BEIGE,TRIM4# |
1 | ||
| 74610-1202005 |
AE92,CE90,EE90..3D..XL W(SUN ROOF) & W/O(REAR SEAT),LIGHT BEIGE,TRIM4# |
1 | ||
| 74610-1601005 |
AE92,CE90,EE90..GL,XL LIGHT BEIGE,TRIM4# |
3 | ||
| 74610-1601004 |
AE92,CE90,EE90..LHD..3D..XL W/O(REAR SEAT),LIGHT BLUE,TRIM8# |
1 | ||
| 74610-1601003 |
EE90..3D..XL;AE92,CE90..3D..(XL,XLI);EE90..3D..(3FC,4F)..XLI W/O(REAR SEAT),LIGHT GRAY,TRIM1# |
1 | ||
| 74610-1202004 |
AE92,CE90,EE90..LHD..(GL,XL) W(SUN ROOF),LIGHT BLUE,TRIM8# |
3 | ||
| 74610-1202004 |
EE90..3D..XL;AE92,CE90..3D..(XL,XLI);EE90..3D..(3FC,4F)..XLI W(SUN ROOF) & W/O(REAR SEAT),LIGHT BLUE,TRIM8# |
1 | ||
| 74610-1202003 |
EE90..3D..XL;AE92,CE90..3D..(XL,XLI);EE90..3D..(3FC,4F)..XLI W(SUN ROOF) & W/O(REAR SEAT),LIGHT GRAY,TRIM1# |
1 | ||
| 74610-1601004 |
EE90..3D..XL;AE92,CE90..3D..(XL,XLI);EE90..3D..(3FC,4F)..XLI W/O(REAR SEAT),LIGHT BLUE,TRIM8# |
1 | ||
| 74610-1202006 |
EE90..LHD..3D..XL;EE90..3D..(3FC,4F)..XLI;AE92,CE90..LHD..3D..(XL,XLI) W(SUN ROOF) & W/O(REAR SEAT),LIGHT BROWN,TRIM4# |
1 | ||
| 74610-1601006 |
EE90..LHD..3D..XL;EE90..3D..(3FC,4F)..XLI;AE92,CE90..LHD..3D..(XL,XLI) W/O(REAR SEAT),BROWN,TRIM4# |
1 | ||
| 74610-1601003 |
AE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI LIGHT GRAY,TRIM1# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-1202003 |
AE92,CE90,EE90..GL,GTI,XL W(SUN ROOF),LIGHT GRAY,TRIM1# |
3 | ||
| 74610-1202004 |
AE92,CE90,EE90..LHD..3D..XL W(SUN ROOF) & W/O(REAR SEAT),LIGHT BLUE,TRIM8# |
1 | ||
| 74610-1601004 |
AE92,CE90,EE90..LHD..(GL,XL) LIGHT BLUE,TRIM8# |
3 | ||
| 74610-1202005 |
AE92,CE90,EE90..GL,XL W(SUN ROOF),LIGHT BEIGE,TRIM4# |
3 | ||
| 74610-1601005 |
AE92,CE90,EE90..3D..XL W/O(REAR SEAT),LIGHT BEIGE,TRIM4# |
1 | ||
| 74610-1202005 |
AE92,CE90,EE90..3D..XL W(SUN ROOF) & W/O(REAR SEAT),LIGHT BEIGE,TRIM4# |
1 | ||
| 74610-1601005 |
AE92,CE90,EE90..GL,XL LIGHT BEIGE,TRIM4# |
3 | ||
| 74610-1601004 |
AE92,CE90,EE90..LHD..3D..XL W/O(REAR SEAT),LIGHT BLUE,TRIM8# |
1 | ||
| 74610-1601003 |
EE90..3D..XL;AE92,CE90..3D..(XL,XLI);EE90..3D..(3FC,4F)..XLI W/O(REAR SEAT),LIGHT GRAY,TRIM1# |
1 | ||
| 74610-1202004 |
AE92,CE90,EE90..LHD..(GL,XL) W(SUN ROOF),LIGHT BLUE,TRIM8# |
3 | ||
| 74610-1202004 |
EE90..3D..XL;AE92,CE90..3D..(XL,XLI);EE90..3D..(3FC,4F)..XLI W(SUN ROOF) & W/O(REAR SEAT),LIGHT BLUE,TRIM8# |
1 | ||
| 74610-1202003 |
EE90..3D..XL;AE92,CE90..3D..(XL,XLI);EE90..3D..(3FC,4F)..XLI W(SUN ROOF) & W/O(REAR SEAT),LIGHT GRAY,TRIM1# |
1 | ||
| 74610-1601004 |
EE90..3D..XL;AE92,CE90..3D..(XL,XLI);EE90..3D..(3FC,4F)..XLI W/O(REAR SEAT),LIGHT BLUE,TRIM8# |
1 | ||
| 74610-1202006 |
EE90..LHD..3D..XL;EE90..3D..(3FC,4F)..XLI;AE92,CE90..LHD..3D..(XL,XLI) W(SUN ROOF) & W/O(REAR SEAT),LIGHT BROWN,TRIM4# |
1 | ||
| 74610-1601006 |
EE90..LHD..3D..XL;EE90..3D..(3FC,4F)..XLI;AE92,CE90..LHD..3D..(XL,XLI) W/O(REAR SEAT),BROWN,TRIM4# |
1 | ||
| 74610-1601003 |
AE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI LIGHT GRAY,TRIM1# |
3 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-1601024 |
AE92,CE90,EE90..LHD..3D..XL W/O(REAR SEAT),DEEP BLUE,TRIM8# |
2 | ||
| 74617-1601024 |
AE92,CE90,EE90..LHD..3D..XL W/O(REAR SEAT),DEEP BLUE,TRIM8# |
2 | ||
| 74617-1601053 |
EE90..3D..XL;AE92,CE90..3D..(XL,XLI);EE90..3D..(3FC,4F)..XLI W/O(REAR SEAT),LIGHT GRAY,TRIM1# |
2 | ||
| 74617-1601053 |
AE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI LIGHT GRAY,TRIM1# |
6 | ||
| 74617-1601024 |
EE90..3D..XL;AE92,CE90..3D..(XL,XLI);EE90..3D..(3FC,4F)..XLI W/O(REAR SEAT),DEEP BLUE,TRIM8# |
2 | ||
| 74617-1601020 |
AE92,CE90,EE90..3D..XL W/O(REAR SEAT),LIGHT BEIGE,TRIM4# |
2 | ||
| 74617-16010E1 |
EE90..LHD..3D..XL;EE90..3D..(3FC,4F)..XLI;AE92,CE90..LHD..3D..(XL,XLI) W/O(REAR SEAT),LIGHT BROWN,TRIM4# |
2 | ||
| 74617-1601024 |
AE92,CE90,EE90..LHD..(GL,XL) DEEP BLUE,TRIM8# |
6 | ||
| 74617-1601020 |
AE92,CE90,EE90..GL,XL LIGHT BEIGE,TRIM4# |
6 | ||
| 74631B - HOOK, COAT | ||||
| 74631-1401034 |
AE92,CE90,EE90..LHD..(GL,XL) DEEP BLUE,TRIM8# |
1 | ||
| 74631-1401055 |
AE92,CE90,EE90..GL,XL LIGHT BEIGE,TRIM4# |
1 | ||
| 74631-2004004 |
AE92,CE90,EE90..LHD..(GL,XL) BLUE,TRIM8# |
1 | ||
| 74631-1401010 |
AE92,CE90,EE90..GL,GTI,XL LIGHT GRAY,TRIM1# |
1 | ||
| 74631-2004015 |
AE92,CE90,EE90..GL,XL LIGHT BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90159-60254 | ||||
| 93530-45020 | ||||
ILLUST NO. 1 OF 2(8705-8908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-2206125 |
AE92,CE90,EE90..3D..(STD,XL) DARK BEIGE,TRIM4# |
1 | ||
| 74210-2206124 |
AE92,CE90,EE90..LHD..3D..XL DARK BLUE,TRIM8# |
1 | ||
| 74210-2206124 |
AE92,CE90,EE90..3D..(STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 74210-2206123 |
AE92,CE90,EE90..3D..(STD,XL,XLI) GRAY,TRIM1# |
1 | ||
| 74210-2206116 |
AE92,CE90,EE90..LHD..3D..(XL,XLI) BROWN,TRIM4# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74210-2206123 |
AE92,CE90,EE90..3D..(STD,XL,XLI) GRAY,TRIM1# |
1 | ||
| 74210-2206124 |
AE92,CE90,EE90..LHD..3D..XL DARK BLUE,TRIM8# |
1 | ||
| 74210-2206116 |
AE92,CE90,EE90..LHD..3D..(XL,XLI) BROWN,TRIM4# |
1 | ||
| 74210-2206125 |
AE92,CE90,EE90..3D..(STD,XL) DARK BEIGE,TRIM4# |
1 | ||
| 74210-2206124 |
AE92,CE90,EE90..3D..(STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90163-60006 | ||||
| 90164-60014 | ||||
| 90189-06139 | ||||
| 93560-54012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
