EE90L-AGKDSW (1987)
Toyota Corolla Hb

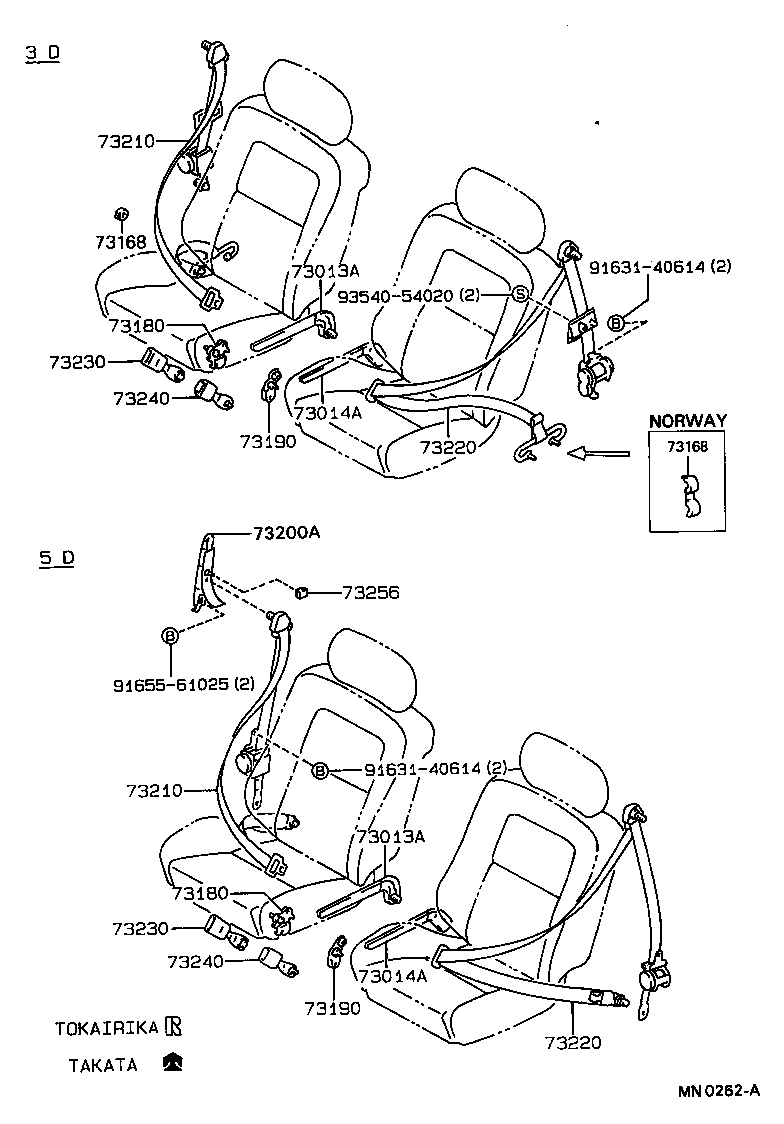

ILLUST NO. 1 OF 2(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73013A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH | ||||
| 73013-1203104 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 73013-1203004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 73013-1203003 |
AE92,CE90,EE90 SHADOW GRAY,TRIM1# |
1 | ||
| 73013-1203005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 73013-1203105 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 73013A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH | ||||
| 73013-1203104 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 73013-1203004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 73013-1203003 |
AE92,CE90,EE90 SHADOW GRAY,TRIM1# |
1 | ||
| 73013-1203005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 73013-1203105 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 73014A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH | ||||
| 73014-1203104 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 73014-1203105 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 73014-1203004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 73014-1203005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 73014-1203003 |
AE92,CE90,EE90 SHADOW GRAY,TRIM1# |
1 | ||
| 73014A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH | ||||
| 73014-1203104 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 73014-1203105 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 73014-1203004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 73014-1203005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 73014-1203003 |
AE92,CE90,EE90 SHADOW GRAY,TRIM1# |
1 | ||
| 73180 - BRACKET ASSY, SEAT BELT INNER ANCHOR, RH | ||||
| 73011-12030 |
AE92,CE90,EE90 |
1 | ||
| 73180 - BRACKET ASSY, SEAT BELT INNER ANCHOR, RH | ||||
| 73011-12030 |
AE92,CE90,EE90 |
1 | ||
| 73190 - BRACKET ASSY, SEAT BELT INNER ANCHOR, LH | ||||
| 73012-12030 |
AE92,CE90,EE90 |
1 | ||
| 73190 - BRACKET ASSY, SEAT BELT INNER ANCHOR, LH | ||||
| 73012-12030 |
AE92,CE90,EE90 |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-1270003 |
AE92,CE90,EE90..3D SHADOW GRAY,TRIM1# |
1 | ||
| 73210-1270004 |
AE92,CE90,EE90..LHD..3D..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 73210-1270005 |
AE92,CE90,EE90..3D..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 73210-1270104 |
AE92,CE90,EE90..3D..(GL,GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 73210-1270103 |
AE92,CE90,EE90..3D SHADOW GRAY,TRIM1# |
1 | ||
| 73210-1270106 |
AE92,CE90,EE90..LHD..3D..(GLI,XL,XLI) BROWN,TRIM4# |
1 | ||
| 73210-1270204 |
AE92,CE90,EE90..3D..(GL,GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 73210-1270206 |
AE92,CE90,EE90..LHD..3D..(GLI,XL,XLI) BROWN,TRIM4# |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-1270003 |
AE92,CE90,EE90..3D SHADOW GRAY,TRIM1# |
1 | ||
| 73210-1270004 |
AE92,CE90,EE90..LHD..3D..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 73210-1270005 |
AE92,CE90,EE90..3D..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 73210-1270104 |
AE92,CE90,EE90..3D..(GL,GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 73210-1270103 |
AE92,CE90,EE90..3D SHADOW GRAY,TRIM1# |
1 | ||
| 73210-1270106 |
AE92,CE90,EE90..LHD..3D..(GLI,XL,XLI) BROWN,TRIM4# |
1 | ||
| 73210-1270204 |
AE92,CE90,EE90..3D..(GL,GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 73210-1270206 |
AE92,CE90,EE90..LHD..3D..(GLI,XL,XLI) BROWN,TRIM4# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-1261003 |
AE92,CE90,EE90..3D SHADOW GRAY,TRIM1# |
1 | ||
| 73220-1261004 |
AE92,CE90,EE90..LHD..3D..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 73220-1261106 |
AE92,CE90,EE90..LHD..3D..(GLI,XL,XLI) BROWN,TRIM4# |
1 | ||
| 73220-1261206 |
AE92,CE90,EE90..LHD..3D..(GLI,XL,XLI) BROWN,TRIM4# |
1 | ||
| 73220-1261103 |
AE92,CE90,EE90..3D SHADOW GRAY,TRIM1# |
1 | ||
| 73220-1261005 |
AE92,CE90,EE90..3D..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 73220-1261204 |
AE92,CE90,EE90..3D..(GL,GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 73220-1261104 |
AE92,CE90,EE90..3D..(GL,GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-1261003 |
AE92,CE90,EE90..3D SHADOW GRAY,TRIM1# |
1 | ||
| 73220-1261004 |
AE92,CE90,EE90..LHD..3D..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 73220-1261106 |
AE92,CE90,EE90..LHD..3D..(GLI,XL,XLI) BROWN,TRIM4# |
1 | ||
| 73220-1261206 |
AE92,CE90,EE90..LHD..3D..(GLI,XL,XLI) BROWN,TRIM4# |
1 | ||
| 73220-1261103 |
AE92,CE90,EE90..3D SHADOW GRAY,TRIM1# |
1 | ||
| 73220-1261005 |
AE92,CE90,EE90..3D..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 73220-1261204 |
AE92,CE90,EE90..3D..(GL,GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 73220-1261104 |
AE92,CE90,EE90..3D..(GL,GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-1232004 |
AE92,CE90,EE90..LHD..3D..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 73230-1232006 |
AE92,CE90,EE90..LHD..(GL,GLI,XL,XLI) BROWN,TRIM4# |
1 | ||
| 73230-1232005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 73230-1232004 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 73230-1232004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 73230-1232003 |
AE92,CE90,EE90 SHADOW GRAY,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-1232004 |
AE92,CE90,EE90..LHD..3D..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 73230-1232006 |
AE92,CE90,EE90..LHD..(GL,GLI,XL,XLI) BROWN,TRIM4# |
1 | ||
| 73230-1232005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 73230-1232004 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 73230-1232004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 73230-1232003 |
AE92,CE90,EE90 SHADOW GRAY,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-1232004 |
AE92,CE90,EE90..LHD..3D..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 73230-1232005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 73230-1232004 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 73230-1232003 |
AE92,CE90,EE90 SHADOW GRAY,TRIM1# |
1 | ||
| 73230-1232004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 73230-1232006 |
AE92,CE90,EE90..LHD..(GL,GLI,XL,XLI) BROWN,TRIM4# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-1232004 |
AE92,CE90,EE90..LHD..3D..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 73230-1232005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 73230-1232004 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 73230-1232003 |
AE92,CE90,EE90 SHADOW GRAY,TRIM1# |
1 | ||
| 73230-1232004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 73230-1232006 |
AE92,CE90,EE90..LHD..(GL,GLI,XL,XLI) BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 91631-40614 | ||||
| 91655-61025 | ||||
| 93540-54020 | ||||

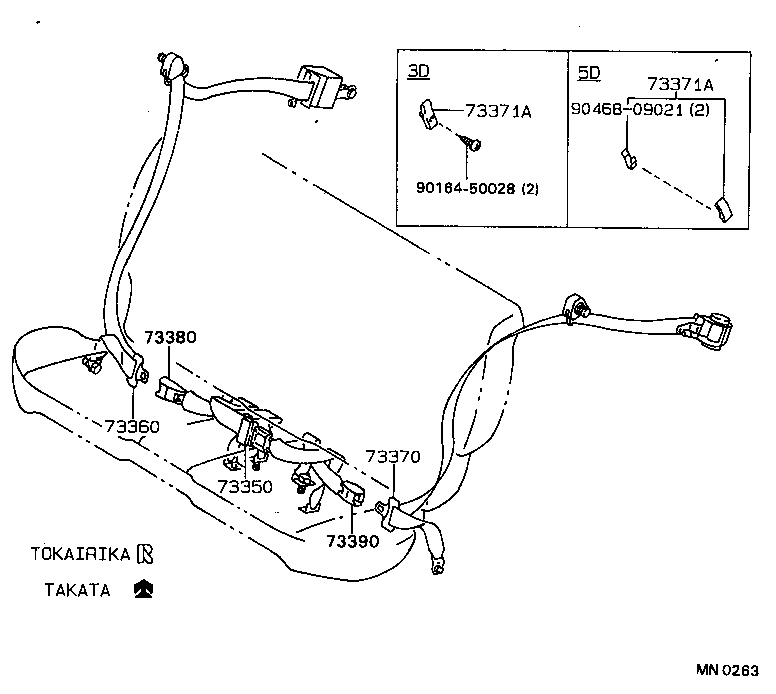

ILLUST NO. 2 OF 2(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER | ||||
| 73350-1214003 |
AE92,CE90,EE90 SHADOW GRAY,TRIM1# |
1 | ||
| 73350-1214005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 73350-1214004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 73350-1214004 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 73350-1214006 |
AE92,CE90,EE90..LHD..(GL,GLI,XL,XLI) BROWN,TRIM4# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-1233003 |
AE92,CE90,EE90 SHADOW GRAY,TRIM1# |
1 | ||
| 73360-1233104 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 73360-1233103 |
AE92,CE90,EE90 SHADOW GRAY,TRIM1# |
1 | ||
| 73360-1233005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 73360-1233106 |
AE92,CE90,EE90..LHD..(GL,GLI,XL,XLI) BROWN,TRIM4# |
1 | ||
| 73360-1233004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-1217005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 73370-1217104 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 73370-1217103 |
AE92,CE90,EE90 SHADOW GRAY,TRIM1# |
1 | ||
| 73370-1217003 |
AE92,CE90,EE90 SHADOW GRAY,TRIM1# |
1 | ||
| 73370-1217106 |
AE92,CE90,EE90..LHD..(GL,GLI,XL,XLI) BROWN,TRIM4# |
1 | ||
| 73370-1217004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-1205004 |
AE92,CE90,EE90..LHD..3D..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 73371-1205003 |
AE92,CE90,EE90..3D SHADOW GRAY,TRIM1# |
2 | ||
| 73371-1205005 |
AE92,CE90,EE90..3D..(CBR,DSL) DARK BEIGE,TRIM4# |
2 | ||
| 73371-1205006 |
AE92,CE90,EE90..LHD..3D..(GLI,XL,XLI) BROWN,TRIM4# |
2 | ||
| 73371-1205004 |
AE92,CE90,EE90..3D..(GL,GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
2 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-1205004 |
AE92,CE90,EE90..LHD..3D..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 73371-1205003 |
AE92,CE90,EE90..3D SHADOW GRAY,TRIM1# |
2 | ||
| 73371-1205005 |
AE92,CE90,EE90..3D..(CBR,DSL) DARK BEIGE,TRIM4# |
2 | ||
| 73371-1205006 |
AE92,CE90,EE90..LHD..3D..(GLI,XL,XLI) BROWN,TRIM4# |
2 | ||
| 73371-1205004 |
AE92,CE90,EE90..3D..(GL,GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
2 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-1219006 |
AE92,CE90,EE90..LHD..(GL,GLI,XL,XLI) BROWN,TRIM4# |
1 | ||
| 73380-1219004 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 73380-1219004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 73380-1219003 |
AE92,CE90,EE90 SHADOW GRAY,TRIM1# |
1 | ||
| 73380-1219005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73380-1219005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 73380-1219004 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI DARK BLUE,TRIM8# |
1 | ||
| 73380-1219006 |
AE92,CE90,EE90..LHD..(GL,GLI,XL,XLI) BROWN,TRIM4# |
1 | ||
| 73380-1219004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 73380-1219003 |
AE92,CE90,EE90 SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90164-50028 | ||||
| 90468-09021 | ||||
