EE90L-AGKDSW (1987)
Toyota Corolla Hb

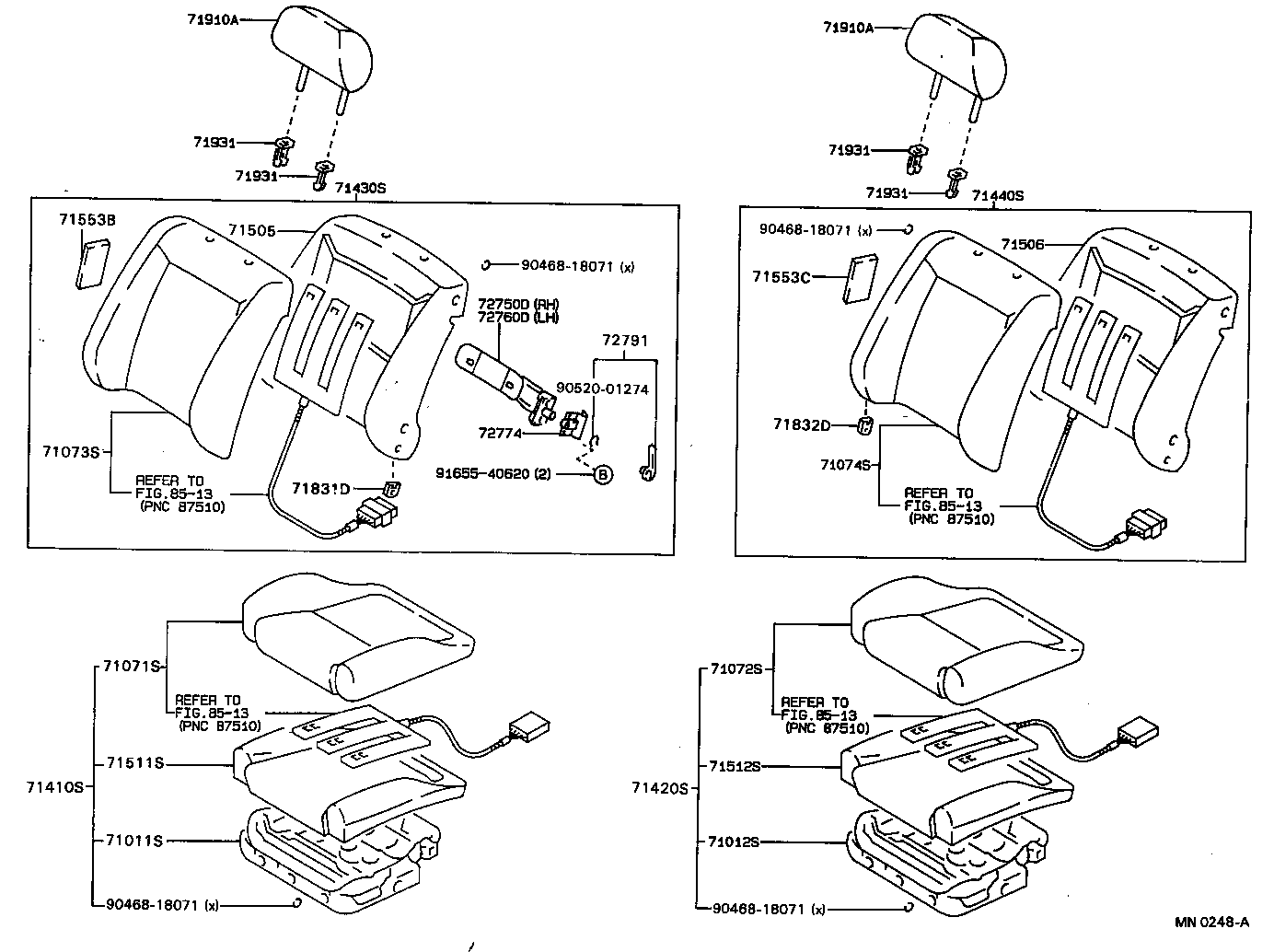

ILLUST NO. 1 OF 2(8705- )GL,GLI,STD,XL,XLI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-12280 |
AE92,CE90,EE90 |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-12280 |
AE92,CE90,EE90 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1H28004 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71071-1H86003 |
CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H86003 |
CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H86004 |
CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71071-1H28003 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H86004 |
CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71071-1H28003 |
AE92,CE90,EE90..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H28005 |
AE92,CE90,EE90..XL DARK BEIGE,TRIM4# |
1 | ||
| 71071-1H28004 |
AE92,CE90,EE90..LHD..XL BLUE,TRIM8# |
1 | ||
| 71071-1H28003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H28004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71071-1H86104 |
AE92..5D..CBR;CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71071-1H28103 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H86103 |
AE92..5D..CBR;CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H86003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H86104 |
AE92,CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71071-1H86004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71071-1H28104 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8# |
1 | ||
| 71071-1H86103 |
AE92,CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-1H37106 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),BROWN,TRIM4# |
1 | ||
| 71071-1H25004 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71071-1H37003 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H25005 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),DARK BEIGE,TRIM4# |
1 | ||
| 71071-1H37004 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),BLUE,TRIM8# |
1 | ||
| 71071-1H25003 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H37005 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),DARK BEIGE,TRIM4# |
1 | ||
| 71071-1H88003 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H28003 |
AE92,CE90,EE90..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H88004 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8# |
1 | ||
| 71071-1H28004 |
AE92,CE90,EE90..LHD..XL BLUE,TRIM8# |
1 | ||
| 71071-1H87003 |
AE92,CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H33003 |
AE92,CE90,EE90..LHD..XL W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H33004 |
AE92,CE90,EE90..LHD..XL W(2WAY VERTICAL SEAT),BLUE,TRIM8# |
1 | ||
| 71071-1H87004 |
AE92,CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71071-1H28005 |
AE92,CE90,EE90..XL DARK BEIGE,TRIM4# |
1 | ||
| 71071-1H33005 |
AE92,CE90,EE90..LHD..XL W(2WAY VERTICAL SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71071-1H25005 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(*SH),DARK BEIGE,TRIM4# |
1 | ||
| 71071-1H25004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71071-1H25003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H37005 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),DARK BEIGE,TRIM4# |
1 | ||
| 71071-1H37003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H88003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H88004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8# |
1 | ||
| 71071-1H37004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),BLUE,TRIM8# |
1 | ||
| 71071-1H25104 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8# |
1 | ||
| 71071-1H25106 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),BROWN,TRIM4# |
1 | ||
| 71071-1H25103 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H37103 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H37104 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8# |
1 | ||
| 71071-1H88103 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H88104 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1H28004 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71073-1H58003 |
CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H28003 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H58004 |
CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
1 | ||
| 71073-1H58004 |
CE90,EE90..LHD..3D..XL DARK BLUE,TRIM8# |
1 | ||
| 71073-1H28003 |
AE92,CE90,EE90..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H58003 |
CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H28003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H28004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71073-1H58004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
1 | ||
| 71073-1H28005 |
AE92,CE90,EE90..XL DARK BEIGE,TRIM4# |
1 | ||
| 71073-1H58003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H58103 |
CE90,EE90..LHD..3D..(XL,XLI) W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H28103 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H58104 |
CE90,EE90..LHD..3D..(XL,XLI) W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
1 | ||
| 71073-1H58104 |
AE92,CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
1 | ||
| 71073-1H28104 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8# |
1 | ||
| 71073-1H58103 |
AE92,CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1E21004 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71074-1E54004 |
CE90,EE90..LHD..3D..XL DARK BLUE,TRIM8# |
1 | ||
| 71074-1E21003 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1E21005 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),DARK BEIGE,TRIM4# |
1 | ||
| 71074-1E55003 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1E21003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1E24003 |
AE92,CE90,EE90..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1E55004 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),DARK BLUE,TRIM8# |
1 | ||
| 71074-1E24004 |
AE92,CE90,EE90..XL BLUE,TRIM8# |
1 | ||
| 71074-1E24005 |
AE92,CE90,EE90..XL DARK BEIGE,TRIM4# |
1 | ||
| 71074-1E54003 |
AE92,CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1E54004 |
AE92,CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
1 | ||
| 71074-1E21004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71074-1E21005 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(*SH),DARK BEIGE,TRIM4# |
1 | ||
| 71074-1E55003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1E55004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),DARK BLUE,TRIM8# |
1 | ||
| 71074-1E21103 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1E21104 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8# |
1 | ||
| 71074-1E21106 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),BROWN,TRIM4# |
1 | ||
| 71074-1E55104 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),DARK BLUE,TRIM8# |
1 | ||
| 71074-1E55103 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1H66004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71410-1K36003 |
CE90,EE90..LHD..XL ***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1K36004 |
CE90,EE90..LHD..XL ***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71410-1K36003 |
CE90,EE90..LHD..XL ***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H66004 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71410-1H66005 |
AE92,CE90,EE90..XL ***,DARK BEIGE,TRIM4# |
1 | ||
| 71410-1H66003 |
AE92,CE90,EE90..XL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H66004 |
AE92,CE90,EE90..LHD..XL ***,BLUE,TRIM8# |
1 | ||
| 71410-1K36004 |
CE90,EE90..LHD..XL ***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71410-1H66003 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H66003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1K36004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71410-1K36103 |
CE90,EE90..LHD..3D..(XL,XLI) ***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1K36003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H66103 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1K36104 |
CE90,EE90..LHD..3D..(XL,XLI) ***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71410-1H66104 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8# |
1 | ||
| 71410-1K36104 |
AE92,CE90,EE90..LHD..XL ***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71410-1K36103 |
AE92,CE90,EE90..LHD..XL ***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-1H75005 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),DARK BEIGE,TRIM4# |
1 | ||
| 71410-1H63004 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71410-1H63005 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),DARK BEIGE,TRIM4# |
1 | ||
| 71410-1H75004 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),BLUE,TRIM8# |
1 | ||
| 71410-1H63003 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H75003 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1K38004 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8# |
1 | ||
| 71410-1H74005 |
AE92,CE90,EE90..LHD..XL ***,W(2WAY VERTICAL SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71410-1H66004 |
AE92,CE90,EE90..LHD..XL ***,BLUE,TRIM8# |
1 | ||
| 71410-1K38003 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H66003 |
AE92,CE90,EE90..XL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H66005 |
AE92,CE90,EE90..XL ***,DARK BEIGE,TRIM4# |
1 | ||
| 71410-1K37003 |
AE92,CE90,EE90..LHD..XL ***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1K37004 |
AE92,CE90,EE90..LHD..XL ***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71410-1H74003 |
AE92,CE90,EE90..LHD..XL ***,W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H63004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71410-1H63005 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(*SH),DARK BEIGE,TRIM4# |
1 | ||
| 71410-1H63003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H75004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),BLUE,TRIM8# |
1 | ||
| 71410-1H75005 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),DARK BEIGE,TRIM4# |
1 | ||
| 71410-1H75003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1K38004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8# |
1 | ||
| 71410-1K38003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H63103 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H74004 |
AE92,CE90,EE90..LHD..XL ***,W(2WAY VERTICAL SEAT),BLUE,TRIM8# |
1 | ||
| 71410-1H75104 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8# |
1 | ||
| 71410-1H63106 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),BROWN,TRIM4# |
1 | ||
| 71410-1H75103 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H75106 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),BROWN,TRIM4# |
1 | ||
| 71410-1H63104 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8# |
1 | ||
| 71410-1K38103 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1K38104 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1K05003 |
CE90,EE90..LHD..XL ***,W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1H61003 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K05004 |
CE90,EE90..LHD..3D..XL ***,DARK BLUE,TRIM8# |
1 | ||
| 71430-1K05004 |
CE90,EE90..LHD..XL ***,W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
1 | ||
| 71430-1H61005 |
AE92,CE90,EE90..XL ***,DARK BEIGE,TRIM4# |
1 | ||
| 71430-1H61003 |
AE92,CE90,EE90..XL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K05003 |
CE90,EE90..LHD..XL ***,W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1H61004 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71430-1K05003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1H61003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K05004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
1 | ||
| 71430-1H61004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71430-1K05104 |
CE90,EE90..LHD..3D..(XL,XLI) ***,W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
1 | ||
| 71430-1H61104 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8# |
1 | ||
| 71430-1K05103 |
CE90,EE90..LHD..3D..(XL,XLI) ***,W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K05103 |
AE92,CE90,EE90..LHD..XL ***,W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1H61103 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K05104 |
AE92,CE90,EE90..LHD..XL ***,W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1H85004 |
CE90,EE90..LHD..3D..XL ***,DARK BLUE,TRIM8# |
1 | ||
| 71440-1H51005 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),DARK BEIGE,TRIM4# |
1 | ||
| 71440-1H51004 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71440-1H86003 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1H51003 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1H54003 |
AE92,CE90,EE90..XL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1H85003 |
AE92,CE90,EE90..LHD..XL ***,W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1H86004 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),DARK BLUE,TRIM8# |
1 | ||
| 71440-1H54005 |
AE92,CE90,EE90..XL ***,DARK BEIGE,TRIM4# |
1 | ||
| 71440-1H51003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1H51005 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(*SH),DARK BEIGE,TRIM4# |
1 | ||
| 71440-1H54004 |
AE92,CE90,EE90..XL ***,BLUE,TRIM8# |
1 | ||
| 71440-1H51004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71440-1H85004 |
AE92..3D..XL;CE90,EE90..LHD..XL ***,W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
1 | ||
| 71440-1H86003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1H86004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),DARK BLUE,TRIM8# |
1 | ||
| 71440-1H51106 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),BROWN,TRIM4# |
1 | ||
| 71440-1H51103 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1H51104 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8# |
1 | ||
| 71440-1H86103 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1H86104 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),DARK BLUE,TRIM8# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-12050 |
AE92,CE90,EE90..STD,XL,XLI |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-12040 |
AE92,CE90,EE90..STD,XL,XLI |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12590 |
AE92,CE90,EE90..STD,XL,XLI |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-12590 |
AE92,CE90,EE90..STD,XL,XLI |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-12200 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI |
1 | ||
| 71553C - PAD, FRONT SEAT BACK, C | ||||
| 71553-12200 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-12010 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-12010 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1A10004 |
CE90,EE90..LHD..3D..XL DARK BLUE,TRIM8# |
2 | ||
| 71910-1279003 |
CE90,EE90..LHD..XL SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1279003 |
AE92,CE90,EE90..XL SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A10003 |
CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1279004 |
CE90,EE90..LHD..XL BLUE,TRIM8# |
2 | ||
| 71910-1279005 |
AE92,CE90,EE90..XL DARK BEIGE,TRIM4# |
2 | ||
| 71910-1A10004 |
CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
2 | ||
| 71910-1A10003 |
CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A10103 |
CE90,EE90..LHD..3D..(XL,XLI) W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A10003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A10004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
2 | ||
| 71910-1279003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1279004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL BLUE,TRIM8# |
2 | ||
| 71910-1A10104 |
CE90,EE90..LHD..3D..(XL,XLI) W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
2 | ||
| 71910-1279103 |
AE92,CE90,EE90..LHD..XL SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A10103 |
AE92,CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A10104 |
AE92,CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
2 | ||
| 71910-1279104 |
AE92,CE90,EE90..LHD..XL DARK BLUE,TRIM8# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1A10004 |
CE90,EE90..LHD..3D..XL DARK BLUE,TRIM8# |
2 | ||
| 71910-1279003 |
CE90,EE90..LHD..XL SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1279003 |
AE92,CE90,EE90..XL SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A10003 |
CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1279004 |
CE90,EE90..LHD..XL BLUE,TRIM8# |
2 | ||
| 71910-1279005 |
AE92,CE90,EE90..XL DARK BEIGE,TRIM4# |
2 | ||
| 71910-1A10004 |
CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
2 | ||
| 71910-1A10003 |
CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A10103 |
CE90,EE90..LHD..3D..(XL,XLI) W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A10003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A10004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
2 | ||
| 71910-1279003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1279004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL BLUE,TRIM8# |
2 | ||
| 71910-1A10104 |
CE90,EE90..LHD..3D..(XL,XLI) W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
2 | ||
| 71910-1279103 |
AE92,CE90,EE90..LHD..XL SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A10103 |
AE92,CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A10104 |
AE92,CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
2 | ||
| 71910-1279104 |
AE92,CE90,EE90..LHD..XL DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205004 |
AE92..3D..GL;EE90..LHD..5D..XL;AE92,CE90..LHD..XL;EE90..LHD..3D..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201004 |
CE90,EE90..LHD..3D..XL W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205004 |
CE90..LHD..3D..XL;EE90..LHD..3D..(3FC,4F)..XL W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205005 |
AE92,CE90,EE90..CBR,DSL W(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71931-1201004 |
AE92..3D..GL;EE90..LHD..5D..XL;AE92,CE90..LHD..XL;EE90..LHD..3D..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205004 |
AE92,CE90,EE90..LHD..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205004 |
CE90,EE90..LHD..3D..XL W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201004 |
CE90..LHD..3D..XL;EE90..LHD..3D..(3FC,4F)..XL W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201004 |
AE92,CE90,EE90..LHD..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205003 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201005 |
AE92,CE90,EE90..CBR,DSL W/O(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205004 |
AE92..3D..GL;EE90..LHD..5D..XL;AE92,CE90..LHD..XL;EE90..LHD..3D..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201004 |
CE90,EE90..LHD..3D..XL W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205004 |
CE90..LHD..3D..XL;EE90..LHD..3D..(3FC,4F)..XL W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205005 |
AE92,CE90,EE90..CBR,DSL W(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71931-1201004 |
AE92..3D..GL;EE90..LHD..5D..XL;AE92,CE90..LHD..XL;EE90..LHD..3D..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205004 |
AE92,CE90,EE90..LHD..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205004 |
CE90,EE90..LHD..3D..XL W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201004 |
CE90..LHD..3D..XL;EE90..LHD..3D..(3FC,4F)..XL W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201004 |
AE92,CE90,EE90..LHD..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205003 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201005 |
AE92,CE90,EE90..CBR,DSL W/O(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205004 |
AE92..3D..GL;EE90..LHD..5D..XL;AE92,CE90..LHD..XL;EE90..LHD..3D..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201004 |
CE90,EE90..LHD..3D..XL W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205004 |
CE90..LHD..3D..XL;EE90..LHD..3D..(3FC,4F)..XL W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205005 |
AE92,CE90,EE90..CBR,DSL W(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71931-1201004 |
AE92..3D..GL;EE90..LHD..5D..XL;AE92,CE90..LHD..XL;EE90..LHD..3D..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205004 |
AE92,CE90,EE90..LHD..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205004 |
CE90,EE90..LHD..3D..XL W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201004 |
CE90..LHD..3D..XL;EE90..LHD..3D..(3FC,4F)..XL W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201004 |
AE92,CE90,EE90..LHD..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205003 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201005 |
AE92,CE90,EE90..CBR,DSL W/O(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205004 |
AE92..3D..GL;EE90..LHD..5D..XL;AE92,CE90..LHD..XL;EE90..LHD..3D..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201004 |
CE90,EE90..LHD..3D..XL W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205004 |
CE90..LHD..3D..XL;EE90..LHD..3D..(3FC,4F)..XL W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205005 |
AE92,CE90,EE90..CBR,DSL W(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71931-1201004 |
AE92..3D..GL;EE90..LHD..5D..XL;AE92,CE90..LHD..XL;EE90..LHD..3D..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205004 |
AE92,CE90,EE90..LHD..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205004 |
CE90,EE90..LHD..3D..XL W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201004 |
CE90..LHD..3D..XL;EE90..LHD..3D..(3FC,4F)..XL W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201004 |
AE92,CE90,EE90..LHD..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205003 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201005 |
AE92,CE90,EE90..CBR,DSL W/O(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| Common parts | ||||
| 90468-18071 | ||||
| 90520-01274 | ||||
| 91655-40620 | ||||
| Linked diagrams | ||||
| 8513 | ||||
ILLUST NO. 1 OF 2(8705- )GTI,SR5 ; (8812-8908)XL
(8812-8908)XL-S PACKAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-12280 |
AE92,CE90,EE90 |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-12280 |
AE92,CE90,EE90 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1H28004 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71071-1H86003 |
CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H86003 |
CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H86004 |
CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71071-1H28003 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H86004 |
CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71071-1H28003 |
AE92,CE90,EE90..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H28005 |
AE92,CE90,EE90..XL DARK BEIGE,TRIM4# |
1 | ||
| 71071-1H28004 |
AE92,CE90,EE90..LHD..XL BLUE,TRIM8# |
1 | ||
| 71071-1H28003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H28004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71071-1H86104 |
AE92..5D..CBR;CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71071-1H28103 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H86103 |
AE92..5D..CBR;CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H86003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H86104 |
AE92,CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71071-1H86004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71071-1H28104 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8# |
1 | ||
| 71071-1H86103 |
AE92,CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-1H25004 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71071-1H37003 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H25005 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),DARK BEIGE,TRIM4# |
1 | ||
| 71071-1H37004 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),BLUE,TRIM8# |
1 | ||
| 71071-1H25003 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H37005 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),DARK BEIGE,TRIM4# |
1 | ||
| 71071-1H88003 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H28003 |
AE92,CE90,EE90..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H88004 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8# |
1 | ||
| 71071-1H28004 |
AE92,CE90,EE90..LHD..XL BLUE,TRIM8# |
1 | ||
| 71071-1H87003 |
AE92,CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H33003 |
AE92,CE90,EE90..LHD..XL W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H33004 |
AE92,CE90,EE90..LHD..XL W(2WAY VERTICAL SEAT),BLUE,TRIM8# |
1 | ||
| 71071-1H87004 |
AE92,CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71071-1H28005 |
AE92,CE90,EE90..XL DARK BEIGE,TRIM4# |
1 | ||
| 71071-1H33005 |
AE92,CE90,EE90..LHD..XL W(2WAY VERTICAL SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71071-1H25005 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(*SH),DARK BEIGE,TRIM4# |
1 | ||
| 71071-1H25004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71071-1H25003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H37005 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),DARK BEIGE,TRIM4# |
1 | ||
| 71071-1H37003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H88003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H88004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8# |
1 | ||
| 71071-1H37106 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),BROWN,TRIM4# |
1 | ||
| 71071-1H37004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),BLUE,TRIM8# |
1 | ||
| 71071-1H25104 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8# |
1 | ||
| 71071-1H25106 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),BROWN,TRIM4# |
1 | ||
| 71071-1H25103 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H37103 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H37104 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8# |
1 | ||
| 71071-1H88103 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H88104 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1H28004 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71073-1H58003 |
CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H28003 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H58004 |
CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
1 | ||
| 71073-1H58004 |
CE90,EE90..LHD..3D..XL DARK BLUE,TRIM8# |
1 | ||
| 71073-1H28003 |
AE92,CE90,EE90..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H58003 |
CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H28003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H28004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71073-1H58004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
1 | ||
| 71073-1H28005 |
AE92,CE90,EE90..XL DARK BEIGE,TRIM4# |
1 | ||
| 71073-1H58003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H58103 |
CE90,EE90..LHD..3D..(XL,XLI) W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H28103 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H58104 |
CE90,EE90..LHD..3D..(XL,XLI) W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
1 | ||
| 71073-1H58104 |
AE92,CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
1 | ||
| 71073-1H28104 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8# |
1 | ||
| 71073-1H58103 |
AE92,CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1E21004 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71074-1E54004 |
CE90,EE90..LHD..3D..XL DARK BLUE,TRIM8# |
1 | ||
| 71074-1E21003 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1E21005 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),DARK BEIGE,TRIM4# |
1 | ||
| 71074-1E55003 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1E21003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1E24003 |
AE92,CE90,EE90..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1E55004 |
CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),DARK BLUE,TRIM8# |
1 | ||
| 71074-1E24004 |
AE92,CE90,EE90..XL BLUE,TRIM8# |
1 | ||
| 71074-1E24005 |
AE92,CE90,EE90..XL DARK BEIGE,TRIM4# |
1 | ||
| 71074-1E54003 |
AE92,CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1E54004 |
AE92,CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
1 | ||
| 71074-1E21004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71074-1E21005 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(*SH),DARK BEIGE,TRIM4# |
1 | ||
| 71074-1E55003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1E55004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),DARK BLUE,TRIM8# |
1 | ||
| 71074-1E21103 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1E21104 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8# |
1 | ||
| 71074-1E21106 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(*SH),BROWN,TRIM4# |
1 | ||
| 71074-1E55104 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),DARK BLUE,TRIM8# |
1 | ||
| 71074-1E55103 |
AE92,CE90,EE90..LHD..XL FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1H66004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71410-1K36003 |
CE90,EE90..LHD..XL ***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1K36004 |
CE90,EE90..LHD..XL ***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71410-1K36003 |
CE90,EE90..LHD..XL ***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H66004 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71410-1H66005 |
AE92,CE90,EE90..XL ***,DARK BEIGE,TRIM4# |
1 | ||
| 71410-1H66003 |
AE92,CE90,EE90..XL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H66004 |
AE92,CE90,EE90..LHD..XL ***,BLUE,TRIM8# |
1 | ||
| 71410-1K36004 |
CE90,EE90..LHD..XL ***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71410-1H66003 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H66003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1K36004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71410-1K36103 |
CE90,EE90..LHD..3D..(XL,XLI) ***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1K36003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H66103 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1K36104 |
CE90,EE90..LHD..3D..(XL,XLI) ***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71410-1H66104 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8# |
1 | ||
| 71410-1K36104 |
AE92,CE90,EE90..LHD..XL ***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71410-1K36103 |
AE92,CE90,EE90..LHD..XL ***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-1H75005 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),DARK BEIGE,TRIM4# |
1 | ||
| 71410-1H63004 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71410-1H63005 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),DARK BEIGE,TRIM4# |
1 | ||
| 71410-1H75004 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),BLUE,TRIM8# |
1 | ||
| 71410-1H63003 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H75003 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1K38004 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8# |
1 | ||
| 71410-1H74005 |
AE92,CE90,EE90..LHD..XL ***,W(2WAY VERTICAL SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71410-1H66004 |
AE92,CE90,EE90..LHD..XL ***,BLUE,TRIM8# |
1 | ||
| 71410-1K38003 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H66003 |
AE92,CE90,EE90..XL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H66005 |
AE92,CE90,EE90..XL ***,DARK BEIGE,TRIM4# |
1 | ||
| 71410-1K37003 |
AE92,CE90,EE90..LHD..XL ***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1K37004 |
AE92,CE90,EE90..LHD..XL ***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71410-1H74003 |
AE92,CE90,EE90..LHD..XL ***,W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H63004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71410-1H63005 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(*SH),DARK BEIGE,TRIM4# |
1 | ||
| 71410-1H63003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H75004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),BLUE,TRIM8# |
1 | ||
| 71410-1H75005 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),DARK BEIGE,TRIM4# |
1 | ||
| 71410-1H75003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1K38004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8# |
1 | ||
| 71410-1K38003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H63103 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H74004 |
AE92,CE90,EE90..LHD..XL ***,W(2WAY VERTICAL SEAT),BLUE,TRIM8# |
1 | ||
| 71410-1H75104 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8# |
1 | ||
| 71410-1H63106 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),BROWN,TRIM4# |
1 | ||
| 71410-1H75103 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H75106 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),BROWN,TRIM4# |
1 | ||
| 71410-1H63104 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8# |
1 | ||
| 71410-1K38103 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1K38104 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1K05003 |
CE90,EE90..LHD..XL ***,W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1H61003 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K05004 |
CE90,EE90..LHD..3D..XL ***,DARK BLUE,TRIM8# |
1 | ||
| 71430-1K05004 |
CE90,EE90..LHD..XL ***,W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
1 | ||
| 71430-1H61005 |
AE92,CE90,EE90..XL ***,DARK BEIGE,TRIM4# |
1 | ||
| 71430-1H61003 |
AE92,CE90,EE90..XL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K05003 |
CE90,EE90..LHD..XL ***,W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1H61004 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71430-1K05003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1H61003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K05004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
1 | ||
| 71430-1H61004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71430-1K05104 |
CE90,EE90..LHD..3D..(XL,XLI) ***,W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
1 | ||
| 71430-1H61104 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8# |
1 | ||
| 71430-1K05103 |
CE90,EE90..LHD..3D..(XL,XLI) ***,W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K05103 |
AE92,CE90,EE90..LHD..XL ***,W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1H61103 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K05104 |
AE92,CE90,EE90..LHD..XL ***,W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1H85004 |
CE90,EE90..LHD..3D..XL ***,DARK BLUE,TRIM8# |
1 | ||
| 71440-1H51005 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),DARK BEIGE,TRIM4# |
1 | ||
| 71440-1H51004 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71440-1H86003 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1H51003 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1H54003 |
AE92,CE90,EE90..XL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1H85003 |
AE92,CE90,EE90..LHD..XL ***,W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1H86004 |
CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),DARK BLUE,TRIM8# |
1 | ||
| 71440-1H54005 |
AE92,CE90,EE90..XL ***,DARK BEIGE,TRIM4# |
1 | ||
| 71440-1H51003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1H51005 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(*SH),DARK BEIGE,TRIM4# |
1 | ||
| 71440-1H54004 |
AE92,CE90,EE90..XL ***,BLUE,TRIM8# |
1 | ||
| 71440-1H51004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8# |
1 | ||
| 71440-1H85004 |
AE92..3D..XL;CE90,EE90..LHD..XL ***,W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
1 | ||
| 71440-1H86003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1H86004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL ***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),DARK BLUE,TRIM8# |
1 | ||
| 71440-1H51106 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),BROWN,TRIM4# |
1 | ||
| 71440-1H51103 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1H51104 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8# |
1 | ||
| 71440-1H86103 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1H86104 |
AE92,CE90,EE90..LHD..XL ***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),DARK BLUE,TRIM8# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12590 |
AE92,CE90,EE90..STD,XL,XLI |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-12590 |
AE92,CE90,EE90..STD,XL,XLI |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1A10004 |
CE90,EE90..LHD..3D..XL DARK BLUE,TRIM8# |
2 | ||
| 71910-1279003 |
CE90,EE90..LHD..XL SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1279003 |
AE92,CE90,EE90..XL SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A10003 |
CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1279004 |
CE90,EE90..LHD..XL BLUE,TRIM8# |
2 | ||
| 71910-1279005 |
AE92,CE90,EE90..XL DARK BEIGE,TRIM4# |
2 | ||
| 71910-1A10004 |
CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
2 | ||
| 71910-1A10003 |
CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A10103 |
CE90,EE90..LHD..3D..(XL,XLI) W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A10003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A10004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
2 | ||
| 71910-1279003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1279004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL BLUE,TRIM8# |
2 | ||
| 71910-1A10104 |
CE90,EE90..LHD..3D..(XL,XLI) W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
2 | ||
| 71910-1279103 |
AE92,CE90,EE90..LHD..XL SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A10103 |
AE92,CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A10104 |
AE92,CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
2 | ||
| 71910-1279104 |
AE92,CE90,EE90..LHD..XL DARK BLUE,TRIM8# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1A10004 |
CE90,EE90..LHD..3D..XL DARK BLUE,TRIM8# |
2 | ||
| 71910-1279003 |
CE90,EE90..LHD..XL SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1279003 |
AE92,CE90,EE90..XL SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A10003 |
CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1279004 |
CE90,EE90..LHD..XL BLUE,TRIM8# |
2 | ||
| 71910-1279005 |
AE92,CE90,EE90..XL DARK BEIGE,TRIM4# |
2 | ||
| 71910-1A10004 |
CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
2 | ||
| 71910-1A10003 |
CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A10103 |
CE90,EE90..LHD..3D..(XL,XLI) W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A10003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A10004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
2 | ||
| 71910-1279003 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1279004 |
CE90..LHD..XL;EE90..LHD..(3FC,4F)..XL BLUE,TRIM8# |
2 | ||
| 71910-1A10104 |
CE90,EE90..LHD..3D..(XL,XLI) W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
2 | ||
| 71910-1279103 |
AE92,CE90,EE90..LHD..XL SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A10103 |
AE92,CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A10104 |
AE92,CE90,EE90..LHD..XL W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8# |
2 | ||
| 71910-1279104 |
AE92,CE90,EE90..LHD..XL DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205004 |
AE92..3D..GL;EE90..LHD..5D..XL;AE92,CE90..LHD..XL;EE90..LHD..3D..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201004 |
CE90,EE90..LHD..3D..XL W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205004 |
CE90..LHD..3D..XL;EE90..LHD..3D..(3FC,4F)..XL W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205005 |
AE92,CE90,EE90..CBR,DSL W(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71931-1201004 |
AE92..3D..GL;EE90..LHD..5D..XL;AE92,CE90..LHD..XL;EE90..LHD..3D..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205004 |
AE92,CE90,EE90..LHD..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205004 |
CE90,EE90..LHD..3D..XL W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201004 |
CE90..LHD..3D..XL;EE90..LHD..3D..(3FC,4F)..XL W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201004 |
AE92,CE90,EE90..LHD..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205003 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201005 |
AE92,CE90,EE90..CBR,DSL W/O(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205004 |
AE92..3D..GL;EE90..LHD..5D..XL;AE92,CE90..LHD..XL;EE90..LHD..3D..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201004 |
CE90,EE90..LHD..3D..XL W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205004 |
CE90..LHD..3D..XL;EE90..LHD..3D..(3FC,4F)..XL W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205005 |
AE92,CE90,EE90..CBR,DSL W(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71931-1201004 |
AE92..3D..GL;EE90..LHD..5D..XL;AE92,CE90..LHD..XL;EE90..LHD..3D..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205004 |
AE92,CE90,EE90..LHD..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205004 |
CE90,EE90..LHD..3D..XL W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201004 |
CE90..LHD..3D..XL;EE90..LHD..3D..(3FC,4F)..XL W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201004 |
AE92,CE90,EE90..LHD..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205003 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201005 |
AE92,CE90,EE90..CBR,DSL W/O(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205004 |
AE92..3D..GL;EE90..LHD..5D..XL;AE92,CE90..LHD..XL;EE90..LHD..3D..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201004 |
CE90,EE90..LHD..3D..XL W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205004 |
CE90..LHD..3D..XL;EE90..LHD..3D..(3FC,4F)..XL W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205005 |
AE92,CE90,EE90..CBR,DSL W(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71931-1201004 |
AE92..3D..GL;EE90..LHD..5D..XL;AE92,CE90..LHD..XL;EE90..LHD..3D..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205004 |
AE92,CE90,EE90..LHD..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205004 |
CE90,EE90..LHD..3D..XL W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201004 |
CE90..LHD..3D..XL;EE90..LHD..3D..(3FC,4F)..XL W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201004 |
AE92,CE90,EE90..LHD..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205003 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201005 |
AE92,CE90,EE90..CBR,DSL W/O(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205004 |
AE92..3D..GL;EE90..LHD..5D..XL;AE92,CE90..LHD..XL;EE90..LHD..3D..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201004 |
CE90,EE90..LHD..3D..XL W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205004 |
CE90..LHD..3D..XL;EE90..LHD..3D..(3FC,4F)..XL W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205005 |
AE92,CE90,EE90..CBR,DSL W(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71931-1201004 |
AE92..3D..GL;EE90..LHD..5D..XL;AE92,CE90..LHD..XL;EE90..LHD..3D..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205004 |
AE92,CE90,EE90..LHD..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205004 |
CE90,EE90..LHD..3D..XL W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201004 |
CE90..LHD..3D..XL;EE90..LHD..3D..(3FC,4F)..XL W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201004 |
AE92,CE90,EE90..LHD..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205003 |
AE92,CE90,EE90..GL,GLI,STD,XL,XLI W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201005 |
AE92,CE90,EE90..CBR,DSL W/O(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| Common parts | ||||
| 67771-16010 | ||||
| 90468-18071 | ||||
| 90520-01002 | ||||
| 91665-40620 | ||||
| 93540-14014 | ||||
| Linked diagrams | ||||
| 8513 | ||||
ILLUST NO. 2 OF 2(8705- )GL,GLI,STD,XL,XLI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1216005 |
AE92,CE90,EE90..LHD..3D..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 71811-1216003 |
AE92,CE90,EE90..LHD..3D..(GL,GLI,STD,XL,XLI) SHADOW GRAY,TRIM1# |
1 | ||
| 71811-1216004 |
AE92,CE90,EE90..LHD..3D..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 71811-1216006 |
AE92,CE90,EE90..LHD..3D..(GLI,XL,XLI) BROWN,TRIM4# |
1 | ||
| 71811-1216004 |
AE92,CE90,EE90..LHD..3D..(GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1216005 |
AE92,CE90,EE90..LHD..3D..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 71811-1216003 |
AE92,CE90,EE90..LHD..3D..(GL,GLI,STD,XL,XLI) SHADOW GRAY,TRIM1# |
1 | ||
| 71811-1216004 |
AE92,CE90,EE90..LHD..3D..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 71811-1216006 |
AE92,CE90,EE90..LHD..3D..(GLI,XL,XLI) BROWN,TRIM4# |
1 | ||
| 71811-1216004 |
AE92,CE90,EE90..LHD..3D..(GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1216005 |
AE92,CE90,EE90..LHD..3D..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 71811-1216003 |
AE92,CE90,EE90..LHD..3D..(GL,GLI,STD,XL,XLI) SHADOW GRAY,TRIM1# |
1 | ||
| 71811-1216004 |
AE92,CE90,EE90..LHD..3D..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 71811-1216006 |
AE92,CE90,EE90..LHD..3D..(GLI,XL,XLI) BROWN,TRIM4# |
1 | ||
| 71811-1216004 |
AE92,CE90,EE90..LHD..3D..(GLI,STD,XL,XLI) DARK BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1215005 |
EE90..RHD..5D;AE92,CE90,EE90..LHD..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 71812-1215004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 71812-1215003 |
EE90..RHD..5D;AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) SHADOW GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1215005 |
EE90..RHD..5D;AE92,CE90,EE90..LHD..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 71812-1215004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 71812-1215003 |
EE90..RHD..5D;AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) SHADOW GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1215005 |
EE90..RHD..5D;AE92,CE90,EE90..LHD..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 71812-1215004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 71812-1215003 |
EE90..RHD..5D;AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1210004 |
AE92..5D;AE92..3D..XL;EE90..5D..GL;CE90,EE90..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 71861-1210005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 71861-1210003 |
CE90;AE92..GL;EE90..3D;AE92..3D..XL;EE90..LHD..5D SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1210004 |
AE92..5D;AE92..3D..XL;EE90..5D..GL;CE90,EE90..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 71861-1210005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 71861-1210003 |
CE90;AE92..GL;EE90..3D;AE92..3D..XL;EE90..LHD..5D SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1210004 |
AE92..5D;AE92..3D..XL;EE90..5D..GL;CE90,EE90..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 71861-1210005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 71861-1210003 |
CE90;AE92..GL;EE90..3D;AE92..3D..XL;EE90..LHD..5D SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1210004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 71862-1210003 |
CE90;AE92..GL;EE90..3D;AE92..3D..XL;EE90..LHD..5D SHADOW GRAY,TRIM1# |
1 | ||
| 71862-1210005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1210003 |
CE90;AE92..GL;EE90..3D;AE92..3D..XL;EE90..LHD..5D SHADOW GRAY,TRIM1# |
1 | ||
| 71862-1210005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 71862-1210004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1210003 |
CE90;AE92..GL;EE90..3D;AE92..3D..XL;EE90..LHD..5D SHADOW GRAY,TRIM1# |
1 | ||
| 71862-1210005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 71862-1210004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-12330 |
AE92,CE90,EE90..LHD..3D..(GL,GLI,STD,XL,XLI) |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-12330 |
AE92,CE90,EE90..LHD..3D..(GL,GLI,STD,XL,XLI) |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-12330 |
AE92,CE90,EE90..LHD..3D..(GL,GLI,STD,XL,XLI) |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-12330 |
EE90..RHD..5D;AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) |
1 | ||
| 72020-12340 |
AE92,CE90,EE90..LHD..(GL,GLI,XL,XLI) W(2WAY VERTICAL SEAT) |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-12330 |
EE90..RHD..5D;AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) |
1 | ||
| 72020-12340 |
AE92,CE90,EE90..LHD..(GL,GLI,XL,XLI) W(2WAY VERTICAL SEAT) |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-12330 |
EE90..RHD..5D;AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) |
1 | ||
| 72020-12340 |
AE92,CE90,EE90..LHD..(GL,GLI,XL,XLI) W(2WAY VERTICAL SEAT) |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-12500 |
AE92,CE90,EE90..LHD..3D..(GL,GLI,STD,XL,XLI) |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-12500 |
AE92,CE90,EE90..LHD..3D..(GL,GLI,STD,XL,XLI) |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-12500 |
AE92,CE90,EE90..LHD..3D..(GL,GLI,STD,XL,XLI) |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-1202005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
2 | ||
| 72137-1202003 |
AE92,CE90,EE90 SHADOW GRAY,TRIM1# |
2 | ||
| 72137-1202004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72137-1202006 |
AE92,CE90,EE90..LHD..(GL,GLI,XL,XLI) BROWN,TRIM4# |
2 | ||
| 72137-12020E0 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
2 | ||
| 72137-12020J0 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-1202005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
2 | ||
| 72137-1202003 |
AE92,CE90,EE90 SHADOW GRAY,TRIM1# |
2 | ||
| 72137-1202004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72137-1202006 |
AE92,CE90,EE90..LHD..(GL,GLI,XL,XLI) BROWN,TRIM4# |
2 | ||
| 72137-12020E0 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
2 | ||
| 72137-12020J0 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-1203004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72138-12030J0 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72138-12030E0 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
2 | ||
| 72138-1203005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
2 | ||
| 72138-1203003 |
AE92,CE90,EE90 SHADOW GRAY,TRIM1# |
2 | ||
| 72138-1203006 |
AE92,CE90,EE90..LHD..(GL,GLI,XL,XLI) BROWN,TRIM4# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-1203004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72138-12030J0 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72138-12030E0 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
2 | ||
| 72138-1203005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
2 | ||
| 72138-1203003 |
AE92,CE90,EE90 SHADOW GRAY,TRIM1# |
2 | ||
| 72138-1203006 |
AE92,CE90,EE90..LHD..(GL,GLI,XL,XLI) BROWN,TRIM4# |
2 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-12310 |
EE90..RHD..5D;AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) |
1 | ||
| 72140-12320 |
AE92,CE90,EE90..LHD..(GL,GLI,XL,XLI) W(2WAY VERTICAL SEAT) |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-12310 |
EE90..RHD..5D;AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) |
1 | ||
| 72140-12320 |
AE92,CE90,EE90..LHD..(GL,GLI,XL,XLI) W(2WAY VERTICAL SEAT) |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-12310 |
EE90..RHD..5D;AE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI) |
1 | ||
| 72140-12320 |
AE92,CE90,EE90..LHD..(GL,GLI,XL,XLI) W(2WAY VERTICAL SEAT) |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-12190 |
AE92,CE90,EE90..LHD..3D..(GL,GLI,STD,XL,XLI) |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-12040 |
AE92;CE90,EE90..LHD..(GL,XL,XLI) |
1 | ||
| 72457D - KNOB, VERTICAL SEAT ADJUSTER, LH | ||||
| 72457-1203005 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BEIGE,TRIM4# |
1 | ||
| 72457-1203004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 72457-12030E0 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BEIGE,TRIM4# |
1 | ||
| 72457-12030J0 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM4#,8# |
1 | ||
| 72457-1203003 |
AE92,CE90,EE90..LHD..(GL,GLI,GTI,XL,XLI) SHADOW GRAY,TRIM1# |
1 | ||
| 72457-1203006 |
AE92,CE90,EE90..LHD..(GL,GLI,XL,XLI) BROWN,TRIM4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1209034 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 72525-1209003 |
AE92,CE90,EE90 GRAY,TRIM1# |
1 | ||
| 72525-1209025 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1209034 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 72525-1209003 |
AE92,CE90,EE90 GRAY,TRIM1# |
1 | ||
| 72525-1209025 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1209034 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 72525-1209003 |
AE92,CE90,EE90 GRAY,TRIM1# |
1 | ||
| 72525-1209025 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1203034 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 72526-1203025 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203003 |
AE92,CE90,EE90 GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1203034 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 72526-1203025 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203003 |
AE92,CE90,EE90 GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1203034 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 72526-1203025 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203003 |
AE92,CE90,EE90 GRAY,TRIM1# |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-12040 |
AE92,CE90,EE90..3D |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10229 | ||||
| 90119-10404 | ||||
| 90167-40044 | ||||
| 90168-40011 | ||||
| 90520-01002 | ||||
| 93249-54006 | ||||
| 96160-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
