EE90L-AGKDSW (1987)

Toyota Corolla Hb

Production May 1987 - May 1992
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

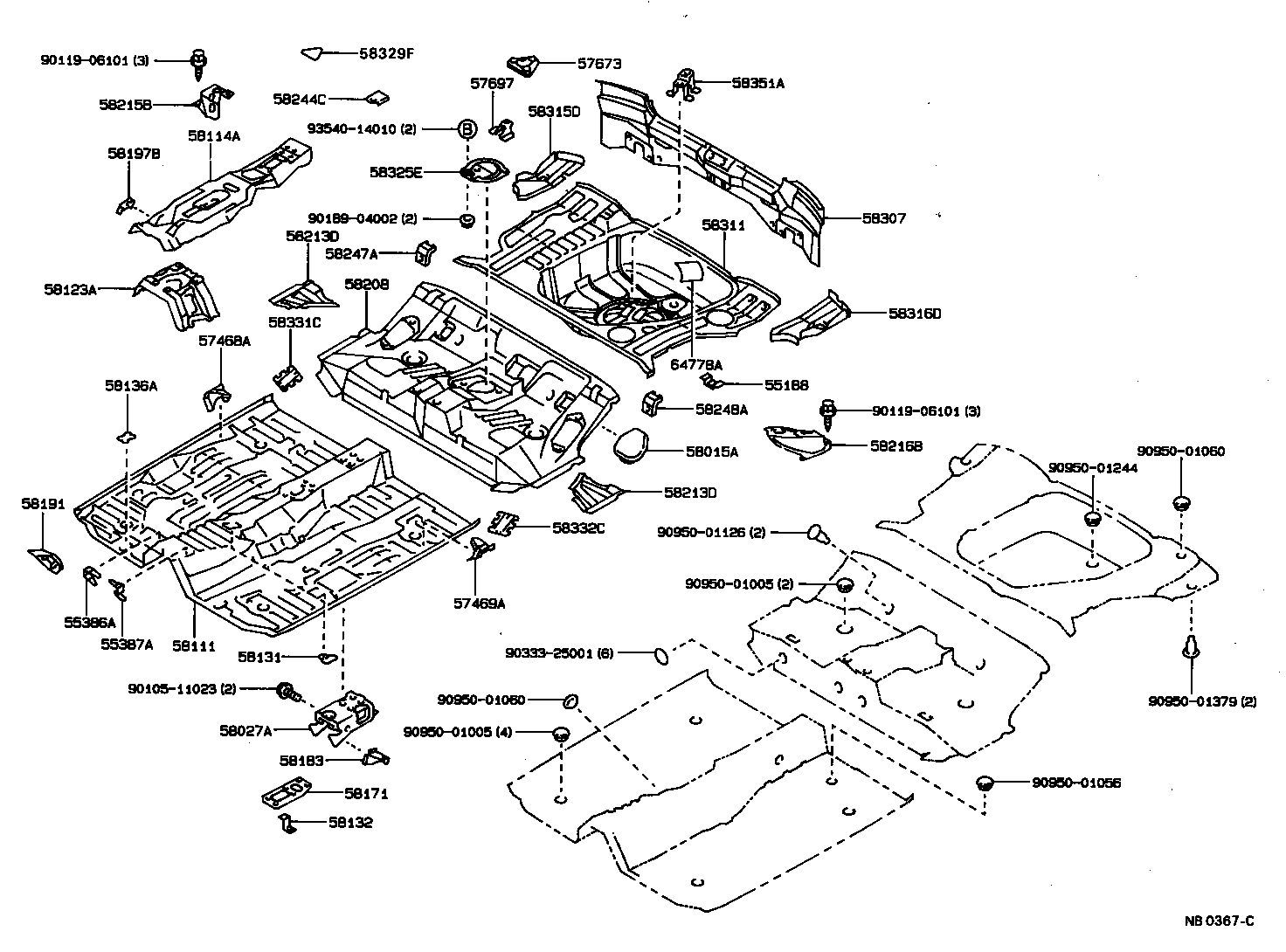

Click highlighted areas on diagram

diagram 55188 55386A 55387A 57468A 57469A 57673 57697 58015A 58027A 58111 58114A 58123A 58131 58132 58136A 58171 58183 58191 58197B 58208 58213D 58213D 58215B 58216B 58244C 58247A 58248A 58307 58311 58315D 58316D 58325E 58329F 58331C 58332C 58351A 64778A 9010511023 9011906101 9011906101 9018904002 9033325001 9095001005 9095001005 9095001056 9095001060 9095001060 9095001126 9095001244 9095001379 9354014010
Part # Description Qty Price
55188 - BRACKET, UNDER TRAY SUPPORT
55188-10010

AE92,CE90,EE90

 1
55386A - BRACKET, COMPUTER MOUNTING, NO.1
55386-12040

AE92,CE90,EE90

 1
55387A - BRACKET, COMPUTER MOUNTING, NO.2
55387-12020

AE92,CE90,EE90

 1
57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH
57468-12030

AE92,CE90,EE90

 1
57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH
57469-12030

AE92,CE90,EE90

 1
57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING
57607-12020

AE92,CE90,EE90

 1
57697 - RETAINER, REAR SEAT CUSHION
57697-12020

AE92,CE90,EE90

 1
58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58015-12020

AE92,CE90,EE90

 2
58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR
58027-12050

EE90..CBR;AE92,CE90..GL,GTI,STD,XL

 1
58027-12060

AE92,CE90,EE90

 1
58027-12030

AE92,CE90,EE90

 1
58111 - PAN, FRONT FLOOR
58111-12200

AE92,CE90,EE90

 1
58114A - REINFORCEMENT, FRONT FLOOR PANEL
58114-12050

AE92,CE90,EE90

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58123-12040

AE92,CE90,EE90

 1
58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58131-12060

AE92,EE90..LHD..MTM

 1
58132 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2
58132-32010

AE92,EE90..LHD..MTM

 2
58136A - COVER, FRONT FLOOR SERVICE HOLE
58136-12020

AE92,CE90,EE90

 2
58171 - REINFORCEMENT, PARKING BRAKE BASE
58171-12080

AE92,CE90,EE90

 1
58183 - BRACKET, FRONT SEAT MOUNTING, INNER
58184-12110

AE92,CE90,EE90

LH

 1
58183-12090

AE92,CE90,EE90

RH

 1
58197B - RETAINER, INSTRUMENT PANEL BRACE MOUNTING BRACKET
58197-12010

AE92,CE90,EE90

 2
58208 - PAN, CENTER FLOOR
58211-12170

AE92,CE90,EE90

 1
58213D - REINFORCEMENT, CENTER FLOOR PANEL
58214-12010

AE92,CE90,EE90

LH

 1
58213-12020

AE92,CE90,EE90

RH

 1
58213D - REINFORCEMENT, CENTER FLOOR PANEL
58214-12010

AE92,CE90,EE90

LH

 1
58213-12020

AE92,CE90,EE90

RH

 1
58215B - BRACKET, REAR SEAT MOUNTING, RH
58215-16010

AE92,CE90,EE90

 1
58216B - BRACKET, REAR SEAT MOUNTING, LH
58216-16010

AE92,CE90,EE90

 1
58244C - BRACKET, REAR SEAT CUSHION MOUNTING, RH
58244-16030

AE92,CE90,EE90

 4
58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58247-12030

AE92,CE90,EE90

 1
58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58247-12030

AE92,CE90,EE90

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-1A070

AE92,CE90,EE90

 1
58307-1A070

AE92,CE90,EE90

 1
58311 - PAN, REAR FLOOR
58311-12180

AE92,CE90,EE90

 1
58315D - EXTENSION, REAR FLOOR PAN, RH
58315-12040

AE92,CE90,EE90

 1
58316D - EXTENSION, REAR FLOOR PAN, LH
58316-12040

AE92,CE90,EE90

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-12020

AE92,CE90,EE90

 1
58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2
58329-16010

AE92,EE90..3D..XLI;AE92,CE90,EE90..3D..(SR5,STD,XL)..(CBR,DSL)

 1
58331C - COVER, REAR FLOOR SIDE SERVICE HOLE, RH
58331-12010

AE92,CE90,EE90

 1
58332C - COVER, REAR FLOOR SIDE SERVICE HOLE, LH
58332-12010

AE92,CE90,EE90

 1
58351A - BRACKET, SPARE WHEEL CARRIER
58351-12030

AE92,CE90,EE90

 1
64778A - PROTECTOR, SPARE WHEEL
64778-12030

AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI

 3
Common parts
90105-11023
90119-06101
90189-04002
90333-25001
90950-01005
90950-01056
90950-01060
90950-01126
90950-01244
90950-01379
93540-14010
