EE90L-AGKDSW (1987)
Toyota Corolla Hb
(8705- )LHD

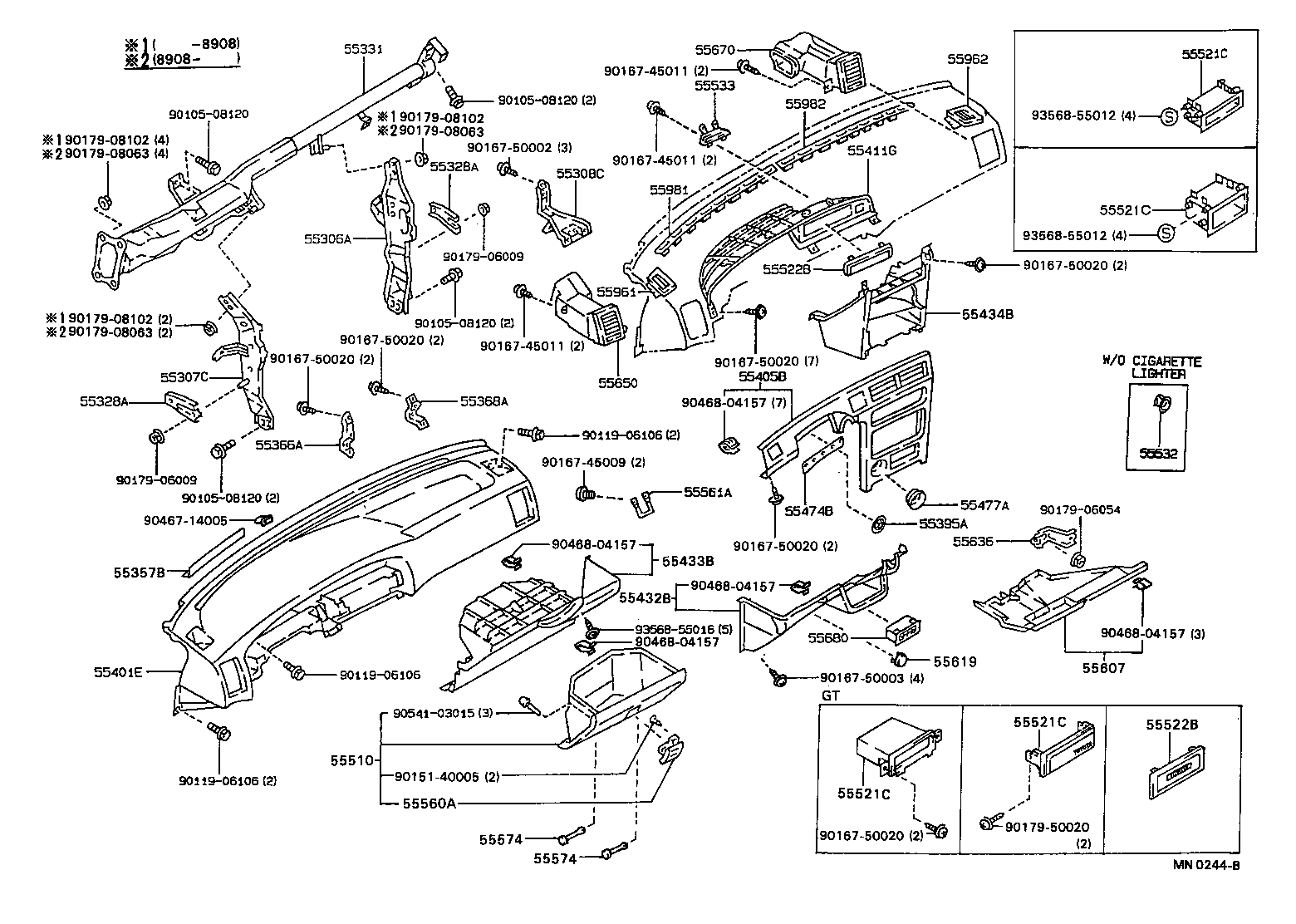

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-12070 |
AE92,CE90,EE90..LHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-12120 |
AE92,CE90,EE90..LHD |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-12150 |
AE92,CE90,EE90 |
1 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-12040 |
AE92,CE90,EE90 |
2 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-12040 |
AE92,CE90,EE90 |
2 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-12170 |
AE92,CE90,EE90..LHD |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-22010 |
AE92,CE90,EE90 |
2 | ||
| 55366A - BRACKET, RADIO MOUNTING, NO.1 | ||||
| 55366-12020 |
AE92,CE90,EE90..LHD..(GL,GLI,SR5,STD,XL,XLI) |
1 | ||
| 55368A - BRACKET, RADIO MOUNTING, NO.2 | ||||
| 55368-12020 |
AE92,CE90,EE90..LHD |
1 | ||
| 55395A - RETAINER, INSTRUMENT PANEL CLAMP | ||||
| 55395-12010 |
AE92,CE90;EE90..GL,XL |
5 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-1226004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 55401-1226005 |
AE92,CE90,EE90..LHD..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 55401-1226105 |
AE92,CE90,EE90..LHD..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 55401-1226003 |
AE92,CE90,EE90..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55401-1226104 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-1247001 |
AE92,CE90,EE90..LHD..(GL,XL) BLACK,TRIM1#,8# |
1 | ||
| 55405-1247005 |
AE92,CE90,EE90..LHD..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-12830 |
AE92,CE90,EE90..LHD..(GL,GLI,SR5,STD,XL,XLI) W(SPEAKER) |
1 | ||
| 55411-12840 |
AE92,CE90,EE90..LHD..(GL,GLI,SR5,STD,XL,XLI) |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-1227005 |
AE92,CE90,EE90..LHD..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 55432-1227013 |
AE92,CE90,EE90..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55432-1227014 |
AE92,CE90,EE90..LHD..(GL,XL) BLUE,TRIM8# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-1206005 |
AE92,CE90,EE90..LHD..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 55433-1206004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 55433-1206003 |
AE92,CE90,EE90..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-1205005 |
AE92,CE90,EE90..LHD..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 55434-1205004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 55434-1205003 |
AE92,CE90,EE90..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55474-12120 |
AE92,CE90;EE90..GL,XL |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-12080 |
AE92,CE90,EE90 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-1226003 |
AE92,CE90,EE90..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55550-1226005 |
AE92,CE90,EE90..LHD..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 55550-1226004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
AE92,CE90,EE90..LHD W(1DIN SIZE COVER) |
1 | ||
| 55521-16040 |
AE92,CE90,EE90 W(2DIN SIZE COVER) |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
AE92,CE90,EE90..LHD W(1DIN SIZE COVER) |
1 | ||
| 55521-16040 |
AE92,CE90,EE90 W(2DIN SIZE COVER) |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
AE92,CE90,EE90..LHD W(1DIN SIZE COVER) |
1 | ||
| 55521-16040 |
AE92,CE90,EE90 W(2DIN SIZE COVER) |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
AE92,CE90,EE90..LHD W(1DIN SIZE COVER) |
1 | ||
| 55521-16040 |
AE92,CE90,EE90 W(2DIN SIZE COVER) |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-12140 |
AE92,CE90,EE90..CBR,DSL W/O(RADIO) |
1 | ||
| 55522-20060 |
AE92,CE90;EE90..CBR;EE90..XLI |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-12140 |
AE92,CE90,EE90..CBR,DSL W/O(RADIO) |
1 | ||
| 55522-20060 |
AE92,CE90;EE90..CBR;EE90..XLI |
1 | ||
| 55532 - COVER, CIGAR LIGHTER HOLE | ||||
| 55532-1202005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 55532-1202001 |
AE92,CE90,EE90..CBR,DSL BLACK,TRIM1# |
1 | ||
| 55532-1202004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-12100 |
AE92,CE90,EE90..LHD..(GL,GLI,SR5,STD,XL,XLI) |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-1605005 |
AE92,CE90,EE90..LHD..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 55560-1605003 |
AE92,CE90,EE90..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55560-1605014 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-12050 |
AE92,CE90,EE90 |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
AE92,CE90,EE90 |
2 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
AE92,CE90,EE90 |
2 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-1205004 |
AE92,CE90,EE90..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 55607-1205003 |
AE92,CE90,EE90..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55607-1205005 |
AE92,CE90,EE90..LHD DARK BEIGE,TRIM4# |
1 | ||
| 55619 - COVER, SWITCH HOLE | ||||
| 55619-1401004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 55619-1401033 |
AE92,CE90,EE90 SHADOW GRAY,TRIM1# |
1 | ||
| 55619-1401025 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-1217005 |
AE92,CE90,EE90..LHD..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 55650-1217003 |
AE92,CE90,EE90..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55650-1217004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-1214005 |
AE92,CE90,EE90..LHD..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 55670-1214003 |
AE92,CE90,EE90..LHD..(GL,GTI,XL) SHADOW GRAY,TRIM1# |
1 | ||
| 55670-1214004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-14030J0 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 55680-1403005 |
AE92,CE90,EE90..LHD..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 55680-1403013 |
AE92,CE90,EE90..LHD..(CBR,DSL) SHADOW GRAY,TRIM1# |
1 | ||
| 55680-1403014 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-1215004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 55961-1215003 |
AE92,CE90,EE90..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-1213005 |
AE92,CE90,EE90..LHD..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 55962-1213004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 55962-1213003 |
AE92,CE90,EE90..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-1204005 |
AE92,CE90,EE90..LHD..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 55981-1204004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 55981-1204003 |
AE92,CE90,EE90..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-1204004 |
AE92,CE90,EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 55982-1204005 |
AE92,CE90,EE90..LHD..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 55982-1204003 |
AE92,CE90,EE90..LHD SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90119-06106 | ||||
| 90151-40005 | ||||
| 90167-45009 | ||||
| 90167-45011 | ||||
| 90167-50002 | ||||
| 90167-50003 | ||||
| 90167-50020 | ||||
| 90179-06009 | ||||
| 90179-06054 | ||||
| 90179-08063 | ||||
| 90179-08102 | ||||
| 90179-50020 | ||||
| 90467-14005 | ||||
| 90468-04157 | ||||
| 90541-03015 | ||||
| 93568-55012 | ||||
| 93568-55016 | ||||
