EE90L-AGKDSW (1987)

Toyota Corolla Hb

Production May 1987 - May 1992
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )3D

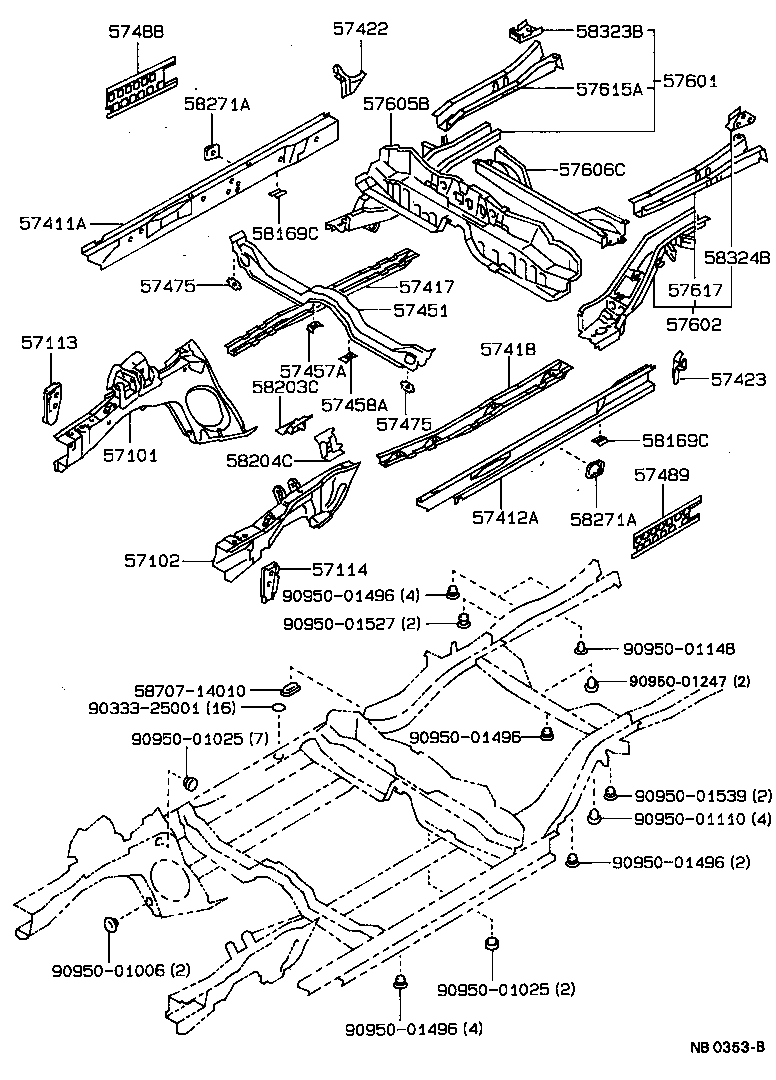

Click highlighted areas on diagram

diagram 57101 57102 57113 57114 57411A 57412A 57417 57418 57422 57423 57451 57457A 57458A 57475 57475 57488 57489 57601 57602 57605B 57606C 57615A 57617 58169C 58169C 58203C 58204C 58271A 58271A 58323B 58324B 5870714010 9033325001 9095001006 9095001025 9095001025 9095001110 9095001148 9095001247 9095001496 9095001496 9095001496 9095001496 9095001527 9095001539
Part # Description Qty Price
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-12351

CE90,EE90

 1
57101-12350

CE90,EE90

 1
57101-12351

CE90,EE90

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-12370

AE92,EE90

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-12110

AE92,CE90,EE90

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-12110

AE92,CE90,EE90

 1
57411A - MEMBER, FLOOR SIDE, INNER RH
57411-12180

AE92,CE90,EE90..3D

 1
57412A - MEMBER, FLOOR SIDE, INNER LH
57412-12180

AE92,CE90,EE90..3D

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-12080

AE92,CE90,EE90

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-12040

AE92,CE90,EE90

 1
57422 - PLATE, FLOOR SIDE RAIL, LH
57422-12020

AE92,CE90,EE90..3D

 1
57423 - BRACKET, FRONT FLOOR REINFORCEMENT, RH
57423-12020

AE92,CE90,EE90..3D

 1
57451 - MEMBER, FRONT FLOOR CROSS
57451-12110

AE92,CE90,EE90

 1
57457A - PLATE, FRONT FLOOR CROSSMEMBER, NO.2 RH
57457-12020

AE92,CE90,EE90

 1
57458A - PLATE, FRONT FLOOR CROSSMEMBER, NO.2 LH
57458-12020

AE92,CE90,EE90

 1
57475 - PLATE, FRONT FLOOR CROSSMEMBER
57475-32010

AE92,CE90,EE90

 2
57475 - PLATE, FRONT FLOOR CROSSMEMBER
57475-32010

AE92,CE90,EE90

 2
57488 - REINFORCEMENT, FLOOR SIDE MEMBER, NO.2 RH
57488-12030

AE92,CE90,EE90..3D

 1
57489 - REINFORCEMENT, FLOOR SIDE MEMBER, NO.2 LH
57489-12030

AE92,CE90,EE90..3D

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-12560

AE92,CE90,EE90

 1
57601-12570

AE92,EE90..LHD..MTM..CBR

EX. EMISSION CONTROL(US'83)

 1
57601-12790

AE92..GTI;AE92,CE90,EE90..CBR,DSL

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-12470

AE92,CE90,EE90

 1
57602-12660

AE92..GTI;AE92,CE90,EE90..CBR,DSL

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-12120

AE92..GTI;AE92,CE90,EE90..CBR,DSL

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-12100

AE92..GTI;AE92,CE90,EE90..CBR,DSL

 1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57615-12090

AE92..GTI;AE92,CE90,EE90..CBR,DSL

 1
57615-12060

AE92,CE90,EE90

 1
57617 - MEMBER, REAR FLOOR SIDE, REAR LH
57616-12090

AE92..GTI;AE92,CE90,EE90..CBR,DSL

 1
57616-12060

AE92,CE90,EE90

 1
58169C - PATCH, FRONT FLOOR REAR
58169-12010

AE92,CE90,EE90..3D

 2
58169C - PATCH, FRONT FLOOR REAR
58169-12010

AE92,CE90,EE90..3D

 2
58203C - BRACKET SUB-ASSY, EXHAUST PIPE MOUNTING
58203-12030

AE92,CE90,EE90

 1
58204C - BRACKET SUB-ASSY, EXHAUST PIPE MOUNTING, LH
58204-12010

AE92,CE90,EE90

 1
58271A - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3
58271-12050

AE92,CE90,EE90

 2
58271A - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3
58271-12050

AE92,CE90,EE90

 2
58323B - REINFORCE, REAR BUMPER ARM SUPPORT, RH
58323-12070

AE92..GTI;AE92,CE90,EE90..CBR,DSL

 1
58323-12020

AE92,CE90,EE90

 1
58324B - REINFORCE, REAR BUMPER ARM SUPPORT, LH
58323-12020

AE92,CE90,EE90

 1
58323-12070

AE92..GTI;AE92,CE90,EE90..CBR,DSL

 1
Common parts
58707-14010
90333-25001
90950-01006
90950-01025
90950-01110
90950-01148
90950-01247
90950-01496
90950-01527
90950-01539
