Toyota Corolla hb EE90 FRONT BUMPER & BUMPER STAY

Manufacturers Home
Toyota
EU
COROLLA HB
EE90L-AGKDSW (1987)
5201 - FRONT BUMPER & BUMPER STAY

EE90L-AGKDSW (1987)

Toyota Corolla Hb

Production May 1987 - May 1992

Engine 2E

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8908- )

Click highlighted areas on diagram

TYPE H

Part #	Description	Period	Qty
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-12360	EE90..LHD TYPE F	05/1987 - 08/1987	1
52011-12380	AE92,CE90,EE90..LHD..(GL,GLI,XL,XLI) TYPE G	08/1989 - 08/1990	1
52011-12360	EE90..3D;EE90..LHD..5D;AE92,CE90..CBR,DSL TYPE F	08/1987 - 12/1988	1
52011-12380	AE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI TYPE G	05/1987 - 08/1990	1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-12370	EE90..3D;EE90..LHD..5D;AE92,CE90..CBR,DSL TYPE F	08/1987 - 08/1989	1
52012-12390	AE92,CE90,EE90..LHD..(GL,XL) TYPE G	05/1987 - 12/1988	1
52012-12390	AE92..5D;AE92..3D..GL;CE90,EE90..LHD..(GL,XL) TYPE G	12/1988 - 08/1989	1
52012-12390	AE92,CE90,EE90..LHD..(GL,GLI,XL,XLI) TYPE G	08/1989 - 08/1990	1
52012-12370	AE92,EE90..LHD..XL TYPE F	05/1987 - 08/1987	1
52012-12370	AE92,CE90,EE90..LHD..(GL,GLI,XL,XLI) TYPE F	08/1989 - 08/1990	1
52012-12370	AE92,CE90,EE90..GL,GLI,STD,XL,XLI TYPE F	08/1989 - 08/1990	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12270	AE92,CE90,EE90..GL,GTI,XL TYPE A	05/1987 - 08/1989	1
52115-12260	EE90..3D;EE90..LHD..5D;AE92,CE90..CBR,DSL TYPE B	08/1987 - 12/1988	1
52115-12260	EE90..LHD..GL;EE90..LHD..5D..XL;AE92,CE90..CBR,DSL;EE90..3D..(STD,XL) TYPE B	05/1987 - 08/1987	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-12200	EE90..3D;EE90..LHD..5D;AE92,CE90..CBR,DSL TYPE B	08/1987 - 12/1988	1
52116-12210	AE92,CE90,EE90..GL,GTI,XL TYPE A	05/1987 - 08/1989	1
52116-12200	EE90..LHD..GL;EE90..LHD..5D..XL;AE92,CE90..CBR,DSL;EE90..3D..(STD,XL) TYPE B	05/1987 - 08/1987	1
52119A - COVER, FRONT BUMPER
52119-1A270	EE90..LHD..5D;AE92,CE90..GL,XL;EE90..3D..(GL,XL) TYPE G	08/1987 - 12/1988	1
52119-1A350	AE92,EE90..LHD..(GL,XL) TYPE F	05/1987 - 08/1987	1
52119-1A350	EE90..3D;EE90..LHD..5D;AE92,CE90..CBR,DSL TYPE F	08/1987 - 08/1989	1
52119-1A270	EE90..3D..XL;EE90..LHD..GL;AE92,CE90..GL,XL;EE90..LHD..5D..XL TYPE G	05/1987 - 08/1987	1
52119-1A280	AE92..5D;AE92..3D..GL;CE90,EE90..LHD..(GL,XL) TYPE G,W(HEAD LAMP CLEANER)	12/1988 - 08/1989	1
52119-1A270	AE92..5D;AE92..3D..GL;CE90,EE90..GL,XL TYPE G	12/1988 - 08/1989	1
52119-1A370	AE92,CE90,EE90..LHD..(CBR,DSL) TYPE F,W(HEAD LAMP CLEANER)	05/1987 - 08/1989	1
52119-1A280	AE92,CE90,EE90..LHD..(GL,XL) TYPE G,W(HEAD LAMP CLEANER)	05/1987 - 12/1988	1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52565-12090	AE92,CE90,EE90 TYPE B	05/1987 - 08/1987	2
52565-12110	EE90..3D;EE90..LHD..5D;AE92,CE90..CBR,DSL TYPE C	05/1987 - 05/1988	1
52565-12110	EE90..3D;EE90..LHD..5D;AE92,CE90..CBR,DSL TYPE C	05/1988 - 12/1988	1
52565-12090	AE92,CE90,EE90..LHD..XL TYPE B	08/1987 - 05/1988	4
52565-12040	AE92,CE90,EE90 TYPE A	05/1987 - 10/1989	4
52565-12110	AE92,CE90,EE90..CBR,DSL TYPE C	12/1988 - 08/1989	1
52565-12090	EE90..3D;EE90..LHD..5D;AE92,CE90..CBR,DSL TYPE B	08/1987 - 05/1988	2
Common parts
90109-08155
90119-06340
90119-06341
90119-12015
90159-60304
90179-06086
90467-05057

(8705- )

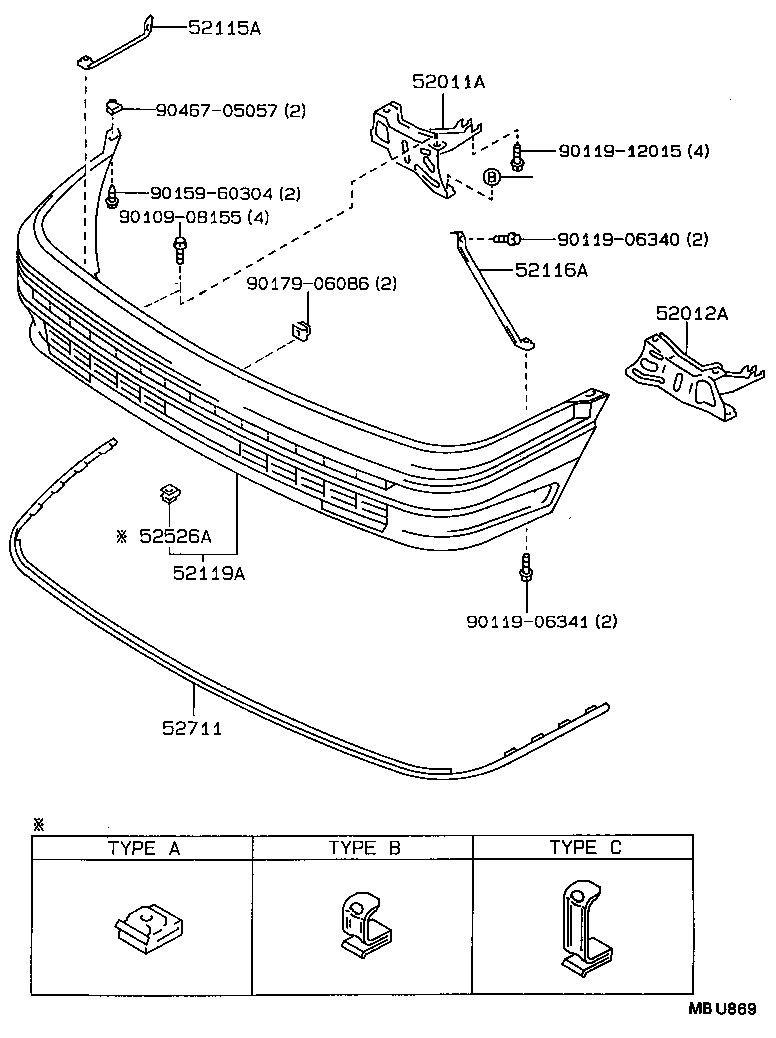

Click highlighted areas on diagram

TYPE G

Part #	Description	Period	Qty
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-12360	EE90..LHD TYPE F	05/1987 - 08/1987	1
52011-12380	AE92,CE90,EE90..LHD..(GL,GLI,XL,XLI) TYPE G	08/1989 - 08/1990	1
52011-12360	EE90..3D;EE90..LHD..5D;AE92,CE90..CBR,DSL TYPE F	08/1987 - 12/1988	1
52011-12380	AE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI TYPE G	05/1987 - 08/1990	1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-12370	EE90..3D;EE90..LHD..5D;AE92,CE90..CBR,DSL TYPE F	08/1987 - 08/1989	1
52012-12390	AE92,CE90,EE90..LHD..(GL,XL) TYPE G	05/1987 - 12/1988	1
52012-12390	AE92..5D;AE92..3D..GL;CE90,EE90..LHD..(GL,XL) TYPE G	12/1988 - 08/1989	1
52012-12390	AE92,CE90,EE90..LHD..(GL,GLI,XL,XLI) TYPE G	08/1989 - 08/1990	1
52012-12370	AE92,EE90..LHD..XL TYPE F	05/1987 - 08/1987	1
52012-12370	AE92,CE90,EE90..LHD..(GL,GLI,XL,XLI) TYPE F	08/1989 - 08/1990	1
52012-12370	AE92,CE90,EE90..GL,GLI,STD,XL,XLI TYPE F	08/1989 - 08/1990	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12270	AE92,CE90,EE90..GL,GTI,XL TYPE A	05/1987 - 08/1989	1
52115-12260	EE90..3D;EE90..LHD..5D;AE92,CE90..CBR,DSL TYPE B	08/1987 - 12/1988	1
52115-12260	EE90..LHD..GL;EE90..LHD..5D..XL;AE92,CE90..CBR,DSL;EE90..3D..(STD,XL) TYPE B	05/1987 - 08/1987	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-12200	EE90..3D;EE90..LHD..5D;AE92,CE90..CBR,DSL TYPE B	08/1987 - 12/1988	1
52116-12210	AE92,CE90,EE90..GL,GTI,XL TYPE A	05/1987 - 08/1989	1
52116-12200	EE90..LHD..GL;EE90..LHD..5D..XL;AE92,CE90..CBR,DSL;EE90..3D..(STD,XL) TYPE B	05/1987 - 08/1987	1
52119A - COVER, FRONT BUMPER
52119-1A270	EE90..LHD..5D;AE92,CE90..GL,XL;EE90..3D..(GL,XL) TYPE G	08/1987 - 12/1988	1
52119-1A350	AE92,EE90..LHD..(GL,XL) TYPE F	05/1987 - 08/1987	1
52119-1A350	EE90..3D;EE90..LHD..5D;AE92,CE90..CBR,DSL TYPE F	08/1987 - 08/1989	1
52119-1A270	EE90..3D..XL;EE90..LHD..GL;AE92,CE90..GL,XL;EE90..LHD..5D..XL TYPE G	05/1987 - 08/1987	1
52119-1A280	AE92..5D;AE92..3D..GL;CE90,EE90..LHD..(GL,XL) TYPE G,W(HEAD LAMP CLEANER)	12/1988 - 08/1989	1
52119-1A270	AE92..5D;AE92..3D..GL;CE90,EE90..GL,XL TYPE G	12/1988 - 08/1989	1
52119-1A370	AE92,CE90,EE90..LHD..(CBR,DSL) TYPE F,W(HEAD LAMP CLEANER)	05/1987 - 08/1989	1
52119-1A280	AE92,CE90,EE90..LHD..(GL,XL) TYPE G,W(HEAD LAMP CLEANER)	05/1987 - 12/1988	1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52565-12090	AE92,CE90,EE90 TYPE B	05/1987 - 08/1987	2
52565-12110	EE90..3D;EE90..LHD..5D;AE92,CE90..CBR,DSL TYPE C	05/1987 - 05/1988	1
52565-12110	EE90..3D;EE90..LHD..5D;AE92,CE90..CBR,DSL TYPE C	05/1988 - 12/1988	1
52565-12090	AE92,CE90,EE90..LHD..XL TYPE B	08/1987 - 05/1988	4
52565-12040	AE92,CE90,EE90 TYPE A	05/1987 - 10/1989	4
52565-12110	AE92,CE90,EE90..CBR,DSL TYPE C	12/1988 - 08/1989	1
52565-12090	EE90..3D;EE90..LHD..5D;AE92,CE90..CBR,DSL TYPE B	08/1987 - 05/1988	2
Common parts
90109-08155
90119-06340
90119-06341
90119-12015
90159-60304
90179-06086
90467-05057
91655-40820

(8705- )

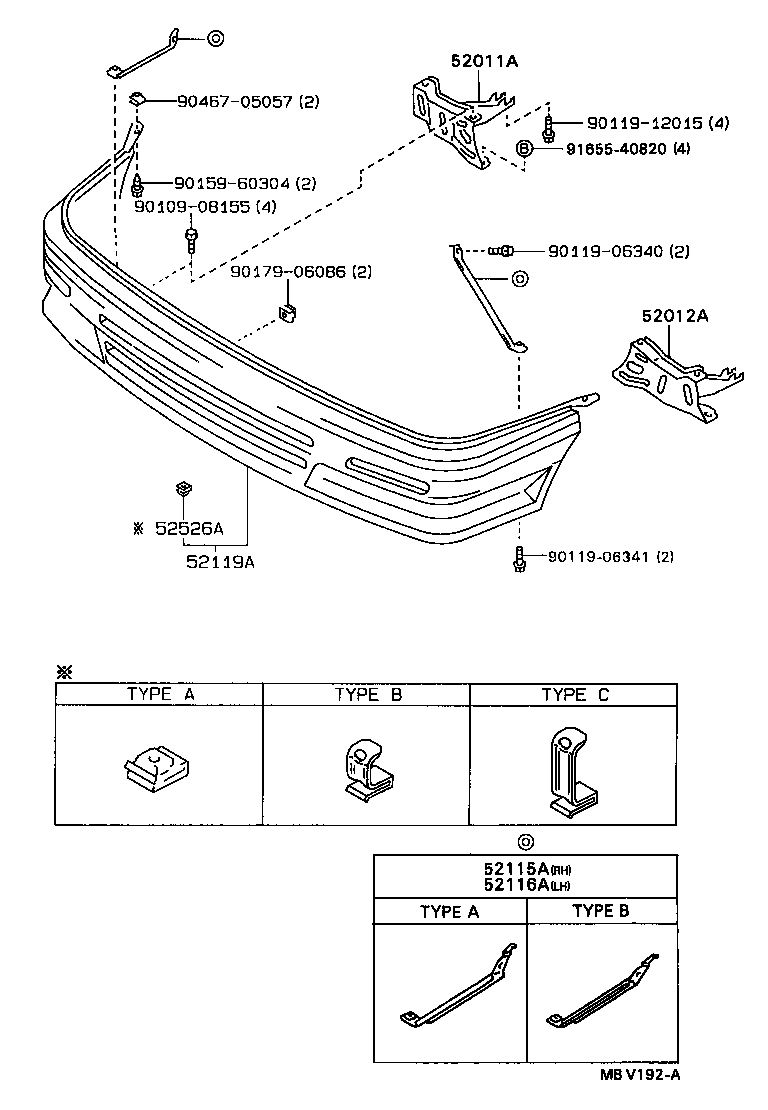

Click highlighted areas on diagram

TYPE F

Part #	Description	Period	Qty
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-12360	EE90..LHD TYPE F	05/1987 - 08/1987	1
52011-12380	AE92,CE90,EE90..LHD..(GL,GLI,XL,XLI) TYPE G	08/1989 - 08/1990	1
52011-12360	EE90..3D;EE90..LHD..5D;AE92,CE90..CBR,DSL TYPE F	08/1987 - 12/1988	1
52011-12380	AE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI TYPE G	05/1987 - 08/1990	1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-12370	EE90..3D;EE90..LHD..5D;AE92,CE90..CBR,DSL TYPE F	08/1987 - 08/1989	1
52012-12390	AE92,CE90,EE90..LHD..(GL,XL) TYPE G	05/1987 - 12/1988	1
52012-12390	AE92..5D;AE92..3D..GL;CE90,EE90..LHD..(GL,XL) TYPE G	12/1988 - 08/1989	1
52012-12390	AE92,CE90,EE90..LHD..(GL,GLI,XL,XLI) TYPE G	08/1989 - 08/1990	1
52012-12370	AE92,EE90..LHD..XL TYPE F	05/1987 - 08/1987	1
52012-12370	AE92,CE90,EE90..LHD..(GL,GLI,XL,XLI) TYPE F	08/1989 - 08/1990	1
52012-12370	AE92,CE90,EE90..GL,GLI,STD,XL,XLI TYPE F	08/1989 - 08/1990	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12270	AE92,CE90,EE90..GL,GTI,XL TYPE A	05/1987 - 08/1989	1
52115-12260	EE90..3D;EE90..LHD..5D;AE92,CE90..CBR,DSL TYPE B	08/1987 - 12/1988	1
52115-12260	EE90..LHD..GL;EE90..LHD..5D..XL;AE92,CE90..CBR,DSL;EE90..3D..(STD,XL) TYPE B	05/1987 - 08/1987	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-12200	EE90..3D;EE90..LHD..5D;AE92,CE90..CBR,DSL TYPE B	08/1987 - 12/1988	1
52116-12210	AE92,CE90,EE90..GL,GTI,XL TYPE A	05/1987 - 08/1989	1
52116-12200	EE90..LHD..GL;EE90..LHD..5D..XL;AE92,CE90..CBR,DSL;EE90..3D..(STD,XL) TYPE B	05/1987 - 08/1987	1
52119A - COVER, FRONT BUMPER
52119-1A270	EE90..LHD..5D;AE92,CE90..GL,XL;EE90..3D..(GL,XL) TYPE G	08/1987 - 12/1988	1
52119-1A350	AE92,EE90..LHD..(GL,XL) TYPE F	05/1987 - 08/1987	1
52119-1A350	EE90..3D;EE90..LHD..5D;AE92,CE90..CBR,DSL TYPE F	08/1987 - 08/1989	1
52119-1A270	EE90..3D..XL;EE90..LHD..GL;AE92,CE90..GL,XL;EE90..LHD..5D..XL TYPE G	05/1987 - 08/1987	1
52119-1A280	AE92..5D;AE92..3D..GL;CE90,EE90..LHD..(GL,XL) TYPE G,W(HEAD LAMP CLEANER)	12/1988 - 08/1989	1
52119-1A270	AE92..5D;AE92..3D..GL;CE90,EE90..GL,XL TYPE G	12/1988 - 08/1989	1
52119-1A370	AE92,CE90,EE90..LHD..(CBR,DSL) TYPE F,W(HEAD LAMP CLEANER)	05/1987 - 08/1989	1
52119-1A280	AE92,CE90,EE90..LHD..(GL,XL) TYPE G,W(HEAD LAMP CLEANER)	05/1987 - 12/1988	1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52565-12090	AE92,CE90,EE90 TYPE B	05/1987 - 08/1987	2
52565-12110	EE90..3D;EE90..LHD..5D;AE92,CE90..CBR,DSL TYPE C	05/1987 - 05/1988	1
52565-12110	EE90..3D;EE90..LHD..5D;AE92,CE90..CBR,DSL TYPE C	05/1988 - 12/1988	1
52565-12090	AE92,CE90,EE90..LHD..XL TYPE B	08/1987 - 05/1988	4
52565-12040	AE92,CE90,EE90 TYPE A	05/1987 - 10/1989	4
52565-12110	AE92,CE90,EE90..CBR,DSL TYPE C	12/1988 - 08/1989	1
52565-12090	EE90..3D;EE90..LHD..5D;AE92,CE90..CBR,DSL TYPE B	08/1987 - 05/1988	2
Common parts
90109-08155
90119-06340
90119-06341
90119-12015
90159-60304
90179-06086
90467-05057
91655-40820

EE90L-AGKDSW (1987)

(8908- )

(8705- )

(8705- )
