EE90L-AGKDSW (1987)
Toyota Corolla Hb
(8705- )

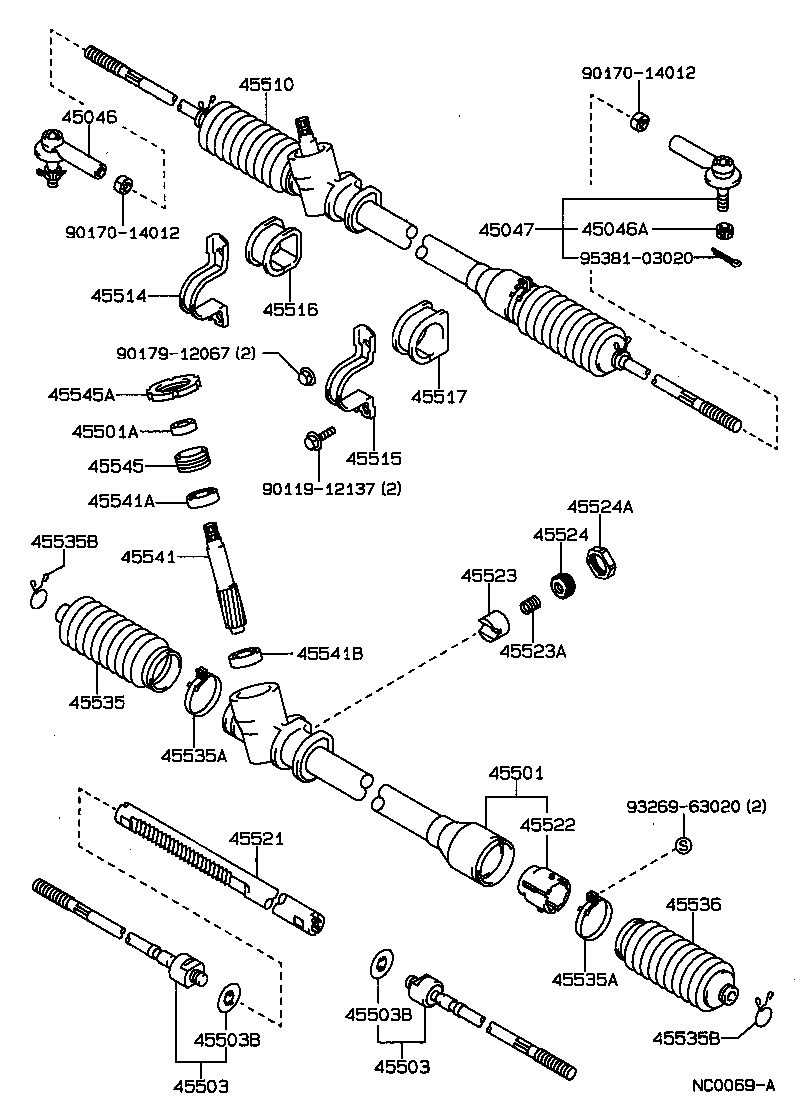

MANUAL STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19175 |
AE92,CE90,EE90 |
1 | ||
| 45046-19175 |
AE92,CE90,EE90 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AE92,CE90,EE90 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19175 |
AE92,CE90,EE90 |
1 | ||
| 45046-19175 |
AE92,CE90,EE90 |
1 | ||
| 45501 - HOUSING SUB-ASSY, STEERING RACK | ||||
| 45501-12120 |
AE92,CE90,EE90..LHD |
1 | ||
| 45501-12120 |
AE92,CE90,EE90..LHD |
1 | ||
| 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) | ||||
| 90311-15002 |
AE92,CE90,EE90 |
1 | ||
| 90311-15001 |
EE90;AE92,CE90..RHD |
1 | ||
| 90311-15002 |
AE92,CE90,EE90 |
1 | ||
| 90311-15001 |
AE92,CE90,EE90 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19135 |
EE90..CBR;AE92,CE90..GLI,GTI,SR5,XL,XLI W(POWER STEERING) |
2 | ||
| 45503-19125 |
AE92,CE90,EE90 |
2 | ||
| 45503-19125 |
AE92,CE90,EE90 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19135 |
EE90..CBR;AE92,CE90..GLI,GTI,SR5,XL,XLI W(POWER STEERING) |
2 | ||
| 45503-19125 |
AE92,CE90,EE90 |
2 | ||
| 45503-19125 |
AE92,CE90,EE90 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
AE92,CE90,EE90 OD=35.2 |
2 | ||
| 90214-14009 |
AE92,CE90,EE90 OD=35.2 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
AE92,CE90,EE90 OD=35.2 |
2 | ||
| 90214-14009 |
AE92,CE90,EE90 OD=35.2 |
2 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-12240 |
EE90..LHD |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12080 |
AE92,CE90,EE90 |
1 | ||
| 45514-12070 |
EE90..CBR;AE92,CE90..GLI,GTI,SR5,XL,XLI W(POWER STEERING) |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-12160 |
AE92,CE90,EE90 |
1 | ||
| 45515-12150 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,GTI,SR5,XL,XLI) W(POWER STEERING) |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-20010 |
AE92,CE90,EE90 |
1 | ||
| 45516-20010 |
EE90..CBR;AE92,CE90..GLI,GTI,SR5,XL,XLI W(POWER STEERING) |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-12110 |
EE90..CBR;AE92,CE90..GLI,GTI,SR5,XL,XLI W(POWER STEERING) |
1 | ||
| 45517-12120 |
AE92,CE90,EE90 |
1 | ||
| 45521 - RACK, STEERING | ||||
| 45521-12120 |
EE90..LHD |
1 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-17010 |
AE92..RHD;AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI |
1 | ||
| 45522-17010 |
AE92,CE90;EE90..LHD |
1 | ||
| 45522-17010 |
AE92,CE90,EE90 |
1 | ||
| 45522-17010 |
AE92,CE90,EE90 |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-12040 |
AE92,CE90,EE90 |
1 | ||
| 45523-12020 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,GTI,SR5,XL,XLI) W(POWER STEERING) |
1 | ||
| 45523-12040 |
EE90;AE92,CE90..RHD |
1 | ||
| 45523-12060 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,SR5,XL,XLI) W(POWER STEERING) |
1 | ||
| 45523-12020 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,SR5,XL,XLI) W(POWER STEERING) |
1 | ||
| 45523-12040 |
AE92,CE90,EE90 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-26038 |
EE90 |
1 | ||
| 90501-26038 |
AE92,CE90,EE90 |
1 | ||
| 90501-29016 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,GTI,SR5,XL,XLI) W(POWER STEERING) |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16010 |
AE92,CE90,EE90 |
1 | ||
| 45524-12010 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,GTI,SR5,XL,XLI) W(POWER STEERING) |
1 | ||
| 45524-16010 |
AE92,CE90,EE90 |
1 | ||
| 45524-12010 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,SR5,XL,XLI) W(POWER STEERING) |
1 | ||
| 45524-16010 |
EE90;AE92,CE90..RHD |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
EE90;AE92,CE90..RHD |
1 | ||
| 90179-33003 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,GTI,SR5,XL,XLI) W(POWER STEERING) |
1 | ||
| 90179-36002 |
AE92,CE90,EE90 |
1 | ||
| 90179-36002 |
AE92,CE90,EE90 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-12011 |
AE92,CE90,EE90 |
1 | ||
| 45535-12011 |
AE92,CE90,EE90 |
1 | ||
| 45535-12040 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,GTI,SR5,XL,XLI) W(POWER STEERING) |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10273 |
AE92,CE90,EE90 NO.1 BOOT |
1 | ||
| 90949-01082 |
AE92,CE90,EE90 NO.2 BOOT |
1 | ||
| 90949-01082 |
AE92,CE90,EE90 NO.2 BOOT |
1 | ||
| 90461-10273 |
AE92,CE90,EE90 NO.1 BOOT |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10273 |
AE92,CE90,EE90 NO.1 BOOT |
1 | ||
| 90949-01082 |
AE92,CE90,EE90 NO.2 BOOT |
1 | ||
| 90949-01082 |
AE92,CE90,EE90 NO.2 BOOT |
1 | ||
| 90461-10273 |
AE92,CE90,EE90 NO.1 BOOT |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AE92,CE90,EE90 |
2 | ||
| 90467-18003 |
AE92,CE90,EE90 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AE92,CE90,EE90 |
2 | ||
| 90467-18003 |
AE92,CE90,EE90 |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-12040 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,GTI,SR5,XL,XLI) W(POWER STEERING) |
1 | ||
| 45536-12030 |
AE92,CE90,EE90 |
1 | ||
| 45536-12030 |
AE92,CE90,EE90 |
1 | ||
| 45541 - PINION, STEERING | ||||
| 45541-12060 |
EE90..LHD |
1 | ||
| 45541A - BEARING, RADIAL BALL(FOR STEERING PINION UPPER) | ||||
| 90363-15003 |
EE90;AE92,CE90..RHD |
1 | ||
| 90363-15015 |
AE92,CE90,EE90 |
1 | ||
| 90363-15003 |
AE92,CE90,EE90 |
1 | ||
| 90363-15003 |
EE90;AE92,CE90..LHD |
1 | ||
| 90363-15003 |
AE92,CE90,EE90 |
1 | ||
| 90363-15003 |
AE92,CE90,EE90 |
1 | ||
| 45541B - BEARING, RADIAL BALL(FOR STEERING PINION LOWER) | ||||
| 90363-13001 |
EE90;AE92,CE90..RHD |
1 | ||
| 90363-13001 |
AE92,CE90,EE90 |
1 | ||
| 90363-13004 |
AE92,CE90,EE90 |
1 | ||
| 90363-13001 |
AE92,CE90,EE90 |
1 | ||
| 90363-13001 |
EE90;AE92,CE90..LHD |
1 | ||
| 90363-13001 |
AE92,CE90,EE90 |
1 | ||
| 45545 - SCREW, PINION BEARING ADJUSTING | ||||
| 45545-10010 |
AE92,CE90,EE90 |
1 | ||
| 45545-10010 |
EE90;AE92,CE90..RHD |
1 | ||
| 45545-10010 |
AE92,CE90,EE90 |
1 | ||
| 45545A - NUT(FOR PINION BEARING ADJUSTING SCREW) | ||||
| 90179-38001 |
AE92,CE90,EE90 |
1 | ||
| 90179-38001 |
EE90;AE92,CE90..RHD |
1 | ||
| 90179-38001 |
AE92,CE90,EE90 |
1 | ||
| Common parts | ||||
| 90119-12137 | ||||
| 90170-14012 | ||||
| 90179-12067 | ||||
| 93269-63020 | ||||
| 95381-03020 | ||||
ILLUST NO. 2 OF 2(8705- )LHD
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-12250 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,SR5,XL,XLI) |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19175 |
AE92,CE90,EE90 |
1 | ||
| 45046-19175 |
AE92,CE90,EE90 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AE92,CE90,EE90 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19175 |
AE92,CE90,EE90 |
1 | ||
| 45046-19175 |
AE92,CE90,EE90 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12080 |
AE92,CE90,EE90 |
1 | ||
| 45514-12070 |
EE90..CBR;AE92,CE90..GLI,GTI,SR5,XL,XLI W(POWER STEERING) |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-12160 |
AE92,CE90,EE90 |
1 | ||
| 45515-12150 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,GTI,SR5,XL,XLI) W(POWER STEERING) |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-20010 |
AE92,CE90,EE90 |
1 | ||
| 45516-20010 |
EE90..CBR;AE92,CE90..GLI,GTI,SR5,XL,XLI W(POWER STEERING) |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-12110 |
EE90..CBR;AE92,CE90..GLI,GTI,SR5,XL,XLI W(POWER STEERING) |
1 | ||
| 45517-12120 |
AE92,CE90,EE90 |
1 | ||
| Common parts | ||||
| 90119-12204 | ||||
| 90170-14012 | ||||
| 90179-12067 | ||||
| 95381-03020 | ||||
ILLUST NO. 2 OF 2(8705- )LHD
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-12040 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,GTI,SR5,XL,XLI) |
1 | ||
| 44201A - NUT, LOCK(FOR POWER STEERING CONTROL VALVE) | ||||
| 94184-61200 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,GTI,SR5,XL,XLI) |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-37001 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,GTI,SR5,XL,XLI) TOYOTA,OUTER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-37001 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,GTI,SR5,XL,XLI) TOYOTA,OUTER |
1 | ||
| 44206H - SPACER, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-25007 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,GTI,SR5,XL,XLI) |
1 | ||
| 44240 - HOUSING ASSY, POWER STEERING RACK | ||||
| 44240-12111 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,SR5,XL,XLI) |
1 | ||
| 44240-12110 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,SR5,XL,XLI) |
1 | ||
| 44240-12112 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,SR5,XL,XLI) |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-12020 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,GTI,SR5,XL,XLI) |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-12020 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,GTI,SR5,XL,XLI) |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19135 |
EE90..CBR;AE92,CE90..GLI,GTI,SR5,XL,XLI W(POWER STEERING) |
2 | ||
| 45503-19125 |
AE92,CE90,EE90 |
2 | ||
| 45503-19125 |
AE92,CE90,EE90 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19135 |
EE90..CBR;AE92,CE90..GLI,GTI,SR5,XL,XLI W(POWER STEERING) |
2 | ||
| 45503-19125 |
AE92,CE90,EE90 |
2 | ||
| 45503-19125 |
AE92,CE90,EE90 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
AE92,CE90,EE90 OD=35.2 |
2 | ||
| 90214-14009 |
AE92,CE90,EE90 OD=35.2 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
AE92,CE90,EE90 OD=35.2 |
2 | ||
| 90214-14009 |
AE92,CE90,EE90 OD=35.2 |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-12040 |
AE92,CE90,EE90 |
1 | ||
| 45523-12020 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,GTI,SR5,XL,XLI) W(POWER STEERING) |
1 | ||
| 45523-12040 |
EE90;AE92,CE90..RHD |
1 | ||
| 45523-12060 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,SR5,XL,XLI) W(POWER STEERING) |
1 | ||
| 45523-12020 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,SR5,XL,XLI) W(POWER STEERING) |
1 | ||
| 45523-12040 |
AE92,CE90,EE90 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-26038 |
EE90 |
1 | ||
| 90501-26038 |
AE92,CE90,EE90 |
1 | ||
| 90501-29016 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,GTI,SR5,XL,XLI) W(POWER STEERING) |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16010 |
AE92,CE90,EE90 |
1 | ||
| 45524-12010 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,GTI,SR5,XL,XLI) W(POWER STEERING) |
1 | ||
| 45524-16010 |
AE92,CE90,EE90 |
1 | ||
| 45524-12010 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,SR5,XL,XLI) W(POWER STEERING) |
1 | ||
| 45524-16010 |
EE90;AE92,CE90..RHD |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
EE90;AE92,CE90..RHD |
1 | ||
| 90179-33003 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,GTI,SR5,XL,XLI) W(POWER STEERING) |
1 | ||
| 90179-36002 |
AE92,CE90,EE90 |
1 | ||
| 90179-36002 |
AE92,CE90,EE90 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-12011 |
AE92,CE90,EE90 |
1 | ||
| 45535-12011 |
AE92,CE90,EE90 |
1 | ||
| 45535-12040 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,GTI,SR5,XL,XLI) W(POWER STEERING) |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10273 |
AE92,CE90,EE90 NO.1 BOOT |
1 | ||
| 90949-01082 |
AE92,CE90,EE90 NO.2 BOOT |
1 | ||
| 90949-01082 |
AE92,CE90,EE90 NO.2 BOOT |
1 | ||
| 90461-10273 |
AE92,CE90,EE90 NO.1 BOOT |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10273 |
AE92,CE90,EE90 NO.1 BOOT |
1 | ||
| 90949-01082 |
AE92,CE90,EE90 NO.2 BOOT |
1 | ||
| 90949-01082 |
AE92,CE90,EE90 NO.2 BOOT |
1 | ||
| 90461-10273 |
AE92,CE90,EE90 NO.1 BOOT |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AE92,CE90,EE90 |
2 | ||
| 90467-18003 |
AE92,CE90,EE90 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AE92,CE90,EE90 |
2 | ||
| 90467-18003 |
AE92,CE90,EE90 |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-12040 |
EE90..LHD..CBR;AE92,CE90..LHD..(GLI,GTI,SR5,XL,XLI) W(POWER STEERING) |
1 | ||
| 45536-12030 |
AE92,CE90,EE90 |
1 | ||
| 45536-12030 |
AE92,CE90,EE90 |
1 | ||
| Common parts | ||||
| 93269-63020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
