EE90L-AGKDEW (1989)

Toyota Corolla Hb

Production Aug 1989 - May 1992
Engine 2EE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

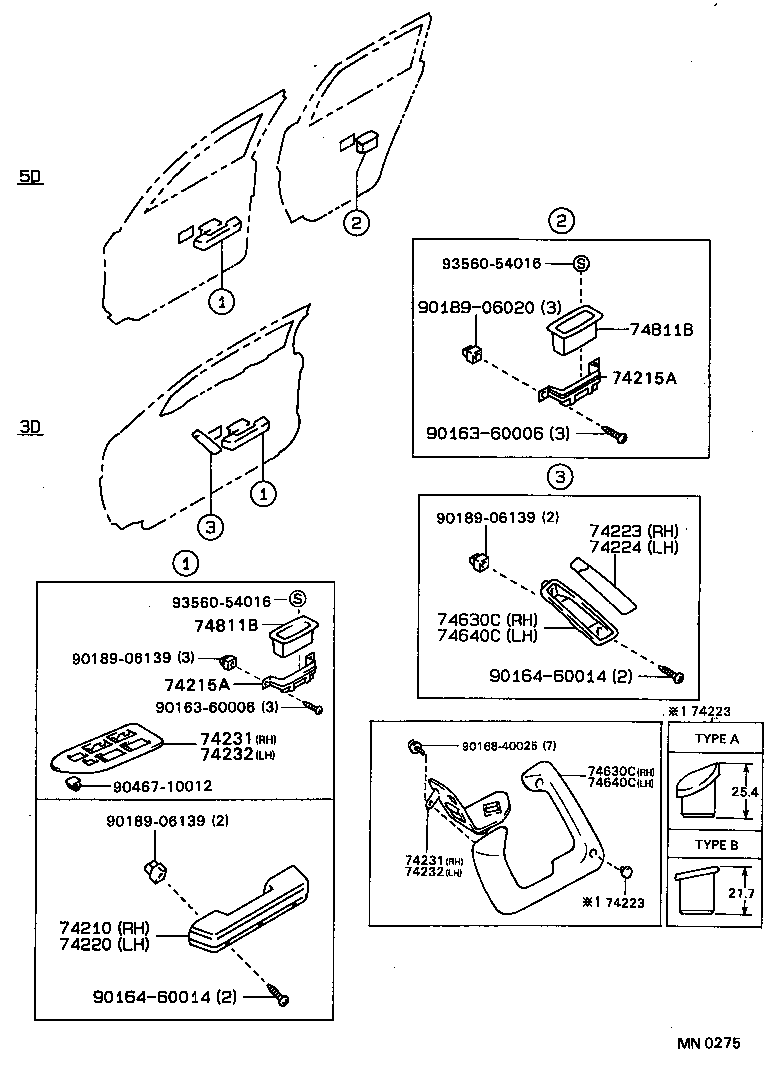

ILLUST NO. 1 OF 2(8908- )

Click highlighted areas on diagram

diagram 74210 74215A 74215A 74220 74223 74223 74223 74224 74231 74231 74232 74232 74630C 74630C 74640C 74640C 74811B 74811B 9016360006 9016360006 9016460014 9016460014 9016840025 9018906020 9018906139 9018906139 9018906139 9046710012 9356054016 9356054016
Part # Description Qty Price
74210 - ARMREST ASSY, FRONT, RH
74210-2206125

AE92,CE90,EE90..3D..(STD,XL)

DARK BEIGE,TRIM4#

 1
74210-2206124

AE92,CE90,EE90..LHD..3D..XL

DARK BLUE,TRIM8#

 1
74210-2206124

AE92,CE90,EE90..3D..(STD,XL,XLI)

DARK BLUE,TRIM8#

 1
74210-2206123

AE92,CE90,EE90..3D..(STD,XL,XLI)

GRAY,TRIM1#

 1
74210-2206116

AE92,CE90,EE90..LHD..3D..(XL,XLI)

BROWN,TRIM4#

 1
74220 - ARMREST ASSY, FRONT, LH
74210-2206123

AE92,CE90,EE90..3D..(STD,XL,XLI)

GRAY,TRIM1#

 1
74210-2206124

AE92,CE90,EE90..LHD..3D..XL

DARK BLUE,TRIM8#

 1
74210-2206116

AE92,CE90,EE90..LHD..3D..(XL,XLI)

BROWN,TRIM4#

 1
74210-2206125

AE92,CE90,EE90..3D..(STD,XL)

DARK BEIGE,TRIM4#

 1
74210-2206124

AE92,CE90,EE90..3D..(STD,XL,XLI)

DARK BLUE,TRIM8#

 1
Common parts
90163-60006
90164-60014
90168-40025
90189-06020
90189-06139
90467-10012
93560-54016
