EE90L-AGKDEW (1989)
Toyota Corolla Hb
Production
Aug 1989
-
May 1992
Engine
2EE
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8908- )2E

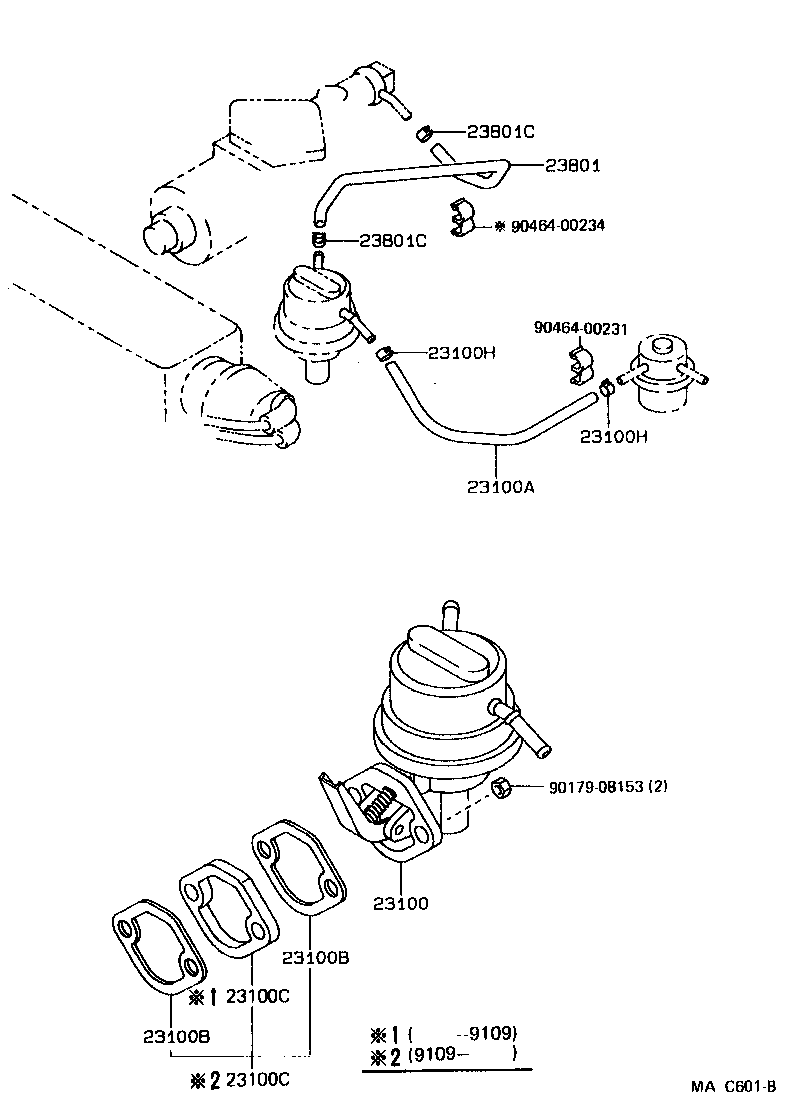

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-11070 |
2E..EE90..LHD..MTM EX. EMISSION CONTROL(US83) |
1 | ||
| 23100-11040 |
2E..EE90 |
1 | ||
| 23100A - HOSE, FUEL | ||||
| 90445-12213 |
2E..EE90 |
1 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05017 |
2E..EE90 |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05017 |
2E..EE90 |
2 | ||
| 23100C - INSULATOR, FUEL PUMP | ||||
| 23915-10020 |
2E..EE90 |
1 | ||
| 23100C - INSULATOR, FUEL PUMP | ||||
| 23915-10020 |
2E..EE90 |
1 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
2E..EE90 |
2 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
2E..EE90 |
2 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 95333-06030 |
2E..EE90..LHD..MTM *H,L=300 |
1 | ||
| 95333-06030 |
2E..EE90 *H,L=300,NO.1 |
1 | ||
| 95333-04030 |
2E..EE90 L=300,NO.2 |
1 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
2E..EE90..LHD..MTM |
2 | ||
| 96132-30400 |
2E..EE90 NO.2 |
2 | ||
| 96132-30600 |
2E..EE90 NO.1 |
2 | ||
| 90467-11009 |
2E..EE90 |
2 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
2E..EE90..LHD..MTM |
2 | ||
| 96132-30400 |
2E..EE90 NO.2 |
2 | ||
| 96132-30600 |
2E..EE90 NO.1 |
2 | ||
| 90467-11009 |
2E..EE90 |
2 | ||
| Common parts | ||||
| 90179-08153 | ||||
| 90464-00231 | ||||
| 90464-00234 | ||||
