EE90L-AGKDEW (1989)

Toyota Corolla Hb

Production Aug 1989 - May 1992
Engine 2EE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )2EE

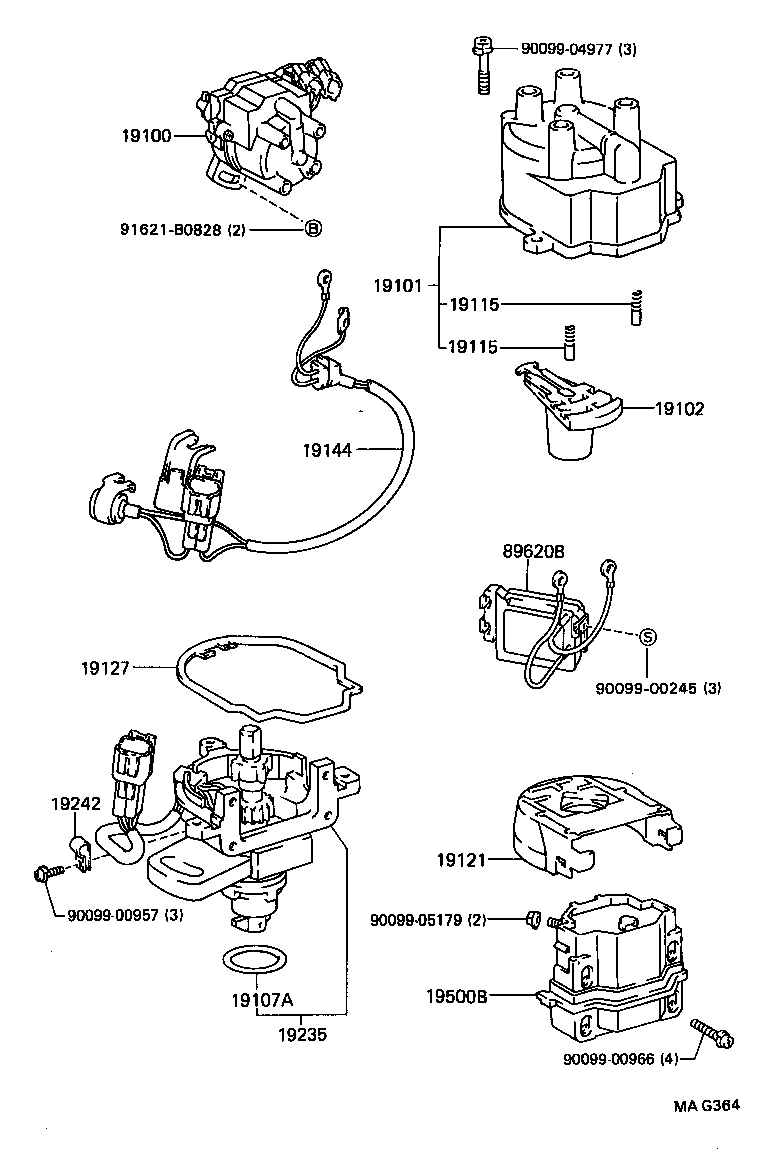

Click highlighted areas on diagram

diagram 19100 19101 19102 19107A 19115 19115 19121 19127 19144 19235 19242 19500B 89620B 9009900245 9009900957 9009900966 9009904977 9009905179 91621B0828
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19020-11160

2E..EE90..LHD..MTM

EX. EMISSION CONTROL(US83)

 1
19020-11032

2E..EE90

 1
19020-11140

2E..EE90..LHD..MTM

EX. EMISSION CONTROL(*77)

 1
19020-11142

2E..EE90..LHD..MTM

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-11010

2E..EE90..LHD..MTM

EX. EMISSION CONTROL(*77)

 1
19101-11010

2E#..EE90..LHD..MTM

 1
19101-11032

2E..EE90

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-11031

2E..EE90

 1
19102-11031

2E#..EE90..LHD..MTM

 1
19107A - RING, O, DISTRIBUTOR HOUSING
96711-35030

2E..EE90

 1
90099-14091

2EE..EE90

 1
96711-35030

2E..EE90

 1
96711-35030

2E..EE90..LHD..MTM

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

2E#..EE90..LHD..MTM

 2
19115-63010

2E..EE90

 2
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

2E#..EE90..LHD..MTM

 2
19115-63010

2E..EE90

 2
19121 - COVER, DUST PROOF
19121-11080

2E#..EE90..LHD..MTM

 1
19121-11080

2E..EE90

 1
19127 - PACKING, DUST PROOF
19127-15120

2E#..EE90..LHD..MTM

 1
19127-11010

2E..EE90..LHD..MTM

EX. EMISSION CONTROL(*77)

 1
19127-15120

2E..EE90

 1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-11130

2E..EE90

 1
19144-11032

2E..EE90

 1
19144-11130

2E..EE90..LHD..MTM

EX. EMISSION CONTROL(*77)

 1
19144-11130

2E..EE90..LHD..MTM

 1
19235 - HOUSING, DISTRIBUTOR
19235-11080

2E..EE90..LHD..MTM

 1
19235-11080

2E..EE90

 1
19500B - COIL ASSY, IGNITION
90919-02164

2E..EE90

 1
90919-02164

2E#..EE90..LHD..MTM

 1
89620B - IGNITER ASSY
89620-10090

EE90

 1
Common parts
90099-00245
90099-00957
90099-00966
90099-04977
90099-05179
91621-B0828
