EE90L-AGHDSW (1987)
Toyota Corolla Hb
Production
May 1987
-
May 1992
Engine
2E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

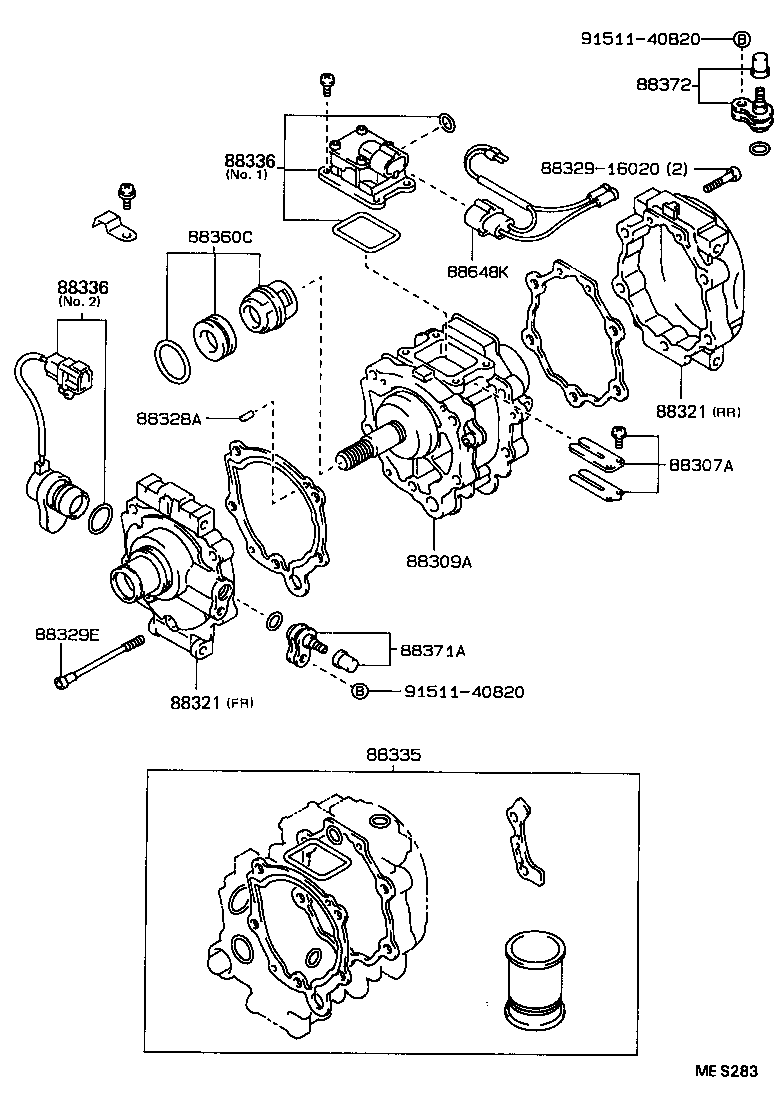

ILLUST NO. 2 OF 2(8705- )EE90..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88307A - REED SUB-ASSY, VALVE | ||||
| 88307-16010 |
EE90..LHD |
1 | ||
| 88307-16010 |
EE90..LHD |
1 | ||
| 88309A - PUMP SUB-ASSY, COMPRESSOR | ||||
| 88309-16020 |
EE90..LHD |
1 | ||
| 88309-16020 |
EE90..LHD |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-12030 |
EE90..LHD RR |
1 | ||
| 88321-16030 |
EE90..LHD FR |
1 | ||
| 88321-16030 |
EE90..LHD FR |
1 | ||
| 88322-12030 |
EE90..LHD RR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-12030 |
EE90..LHD RR |
1 | ||
| 88321-16030 |
EE90..LHD FR |
1 | ||
| 88321-16030 |
EE90..LHD FR |
1 | ||
| 88322-12030 |
EE90..LHD RR |
1 | ||
| 88328A - PIN, COMPRESSOR | ||||
| 88328-10010 |
EE90..LHD |
2 | ||
| 88328-10010 |
EE90..LHD |
2 | ||
| 88329E - BOLT, COMPRESSOR, NO.1 | ||||
| 88329-16010 |
EE90..LHD |
5 | ||
| 88329-16010 |
EE90..LHD |
5 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-16030 |
EE90..LHD..CBR |
1 | ||
| 88335-16030 |
EE90..LHD |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-16010 |
EE90..LHD NO.1 |
1 | ||
| 88336-16010 |
EE90..LHD..CBR NO.1 |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-16010 |
EE90..LHD NO.1 |
1 | ||
| 88336-16010 |
EE90..LHD..CBR NO.1 |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-16010 |
EE90..LHD |
1 | ||
| 88360-16010 |
EE90..LHD |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-16050 |
EE90..LHD |
1 | ||
| 88371-16050 |
EE90..LHD |
1 | ||
| 88372 - VALVE, DISCHARGE | ||||
| 88372-16030 |
EE90..LHD |
1 | ||
| 88372-16030 |
EE90..LHD |
1 | ||
| 88648K - WIRE SUB-ASSY, SENSOR | ||||
| 88648-12360 |
EE90..LHD |
1 | ||
| 88648-12360 |
EE90..LHD |
1 | ||
| Common parts | ||||
| 88329-16020 | ||||
| 91511-40820 | ||||

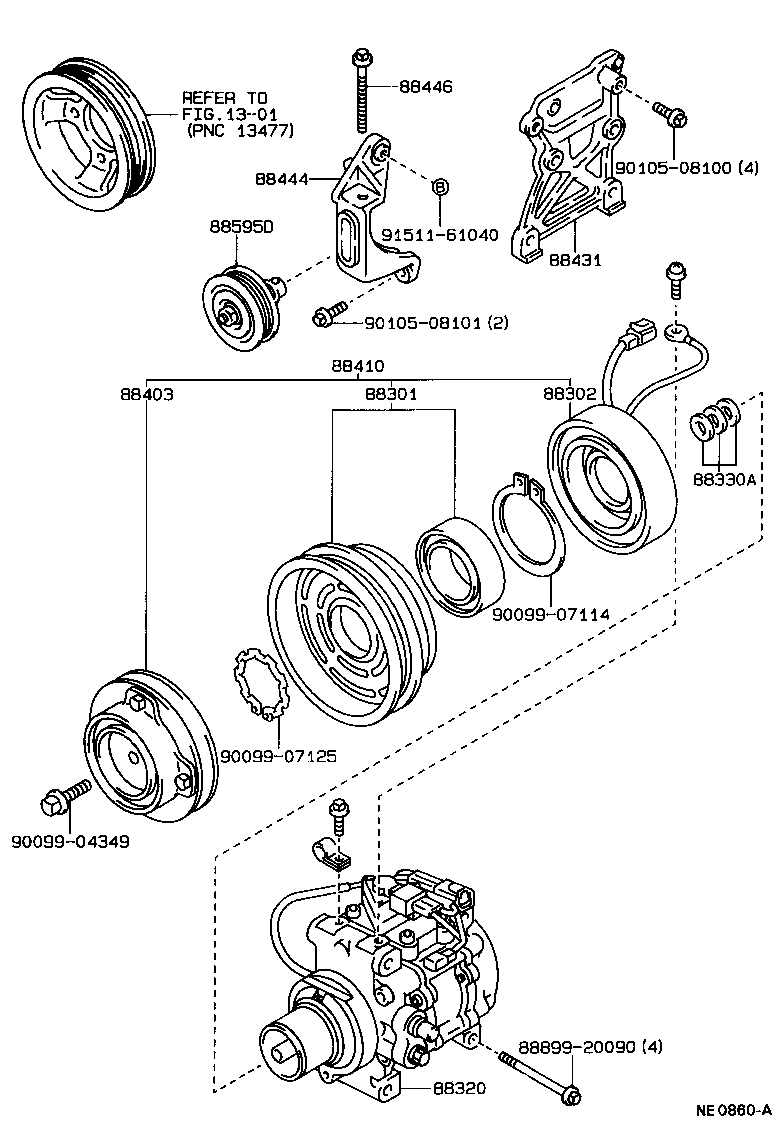

ILLUST NO. 1 OF 2(8705- )EE90..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-16030 |
EE90..LHD |
1 | ||
| 88412-16030 |
EE90..LHD |
1 | ||
| 88412-16050 |
EE90..LHD LOW PULLEY |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-16021 |
EE90..LHD |
1 | ||
| 88411-16021 |
EE90..LHD |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-12540 |
EE90..LHD |
1 | ||
| 88320-12540 |
EE90..LHD |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
EE90..LHD..CBR |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
AE92,EE90..LHD..CBR |
1 | ||
| 88403-16011 |
AE92,EE90..LHD..CBR |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-16021 |
EE90..LHD |
1 | ||
| 88410-16021 |
EE90..LHD |
1 | ||
| 88410-16050 |
EE90..LHD LOW PULLEY |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-12370 |
EE90..LHD |
1 | ||
| 88431-12370 |
EE90..LHD |
1 | ||
| Common parts | ||||
| 88899-20090 | ||||
| 90099-04349 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90105-08100 | ||||
| 90105-08101 | ||||
| 91511-61040 | ||||
| Linked diagrams | ||||
| 1301 | ||||
