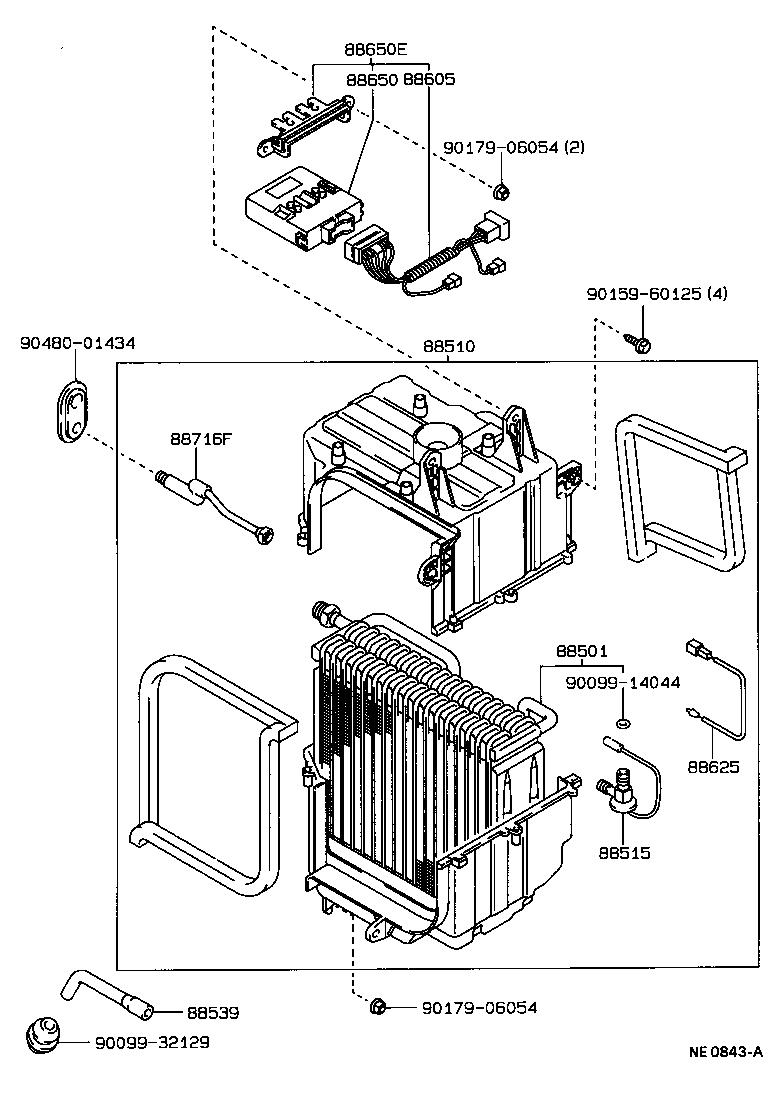

Toyota Corolla hb EE90 HEATING & AIR CONDITIONING - COOLER UNIT

Part #	Description	Period	Qty
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12340	CE90,EE90..LHD..3D..(CBR,DSL)	08/1989 - 06/1991	1
88501-12340	AE92,CE90,EE90..LHD..(CBR,DSL)	05/1987 - 08/1989	1
88510 - UNIT ASSY, COOLER
88510-12760	AE92,CE90,EE90..LHD..(CBR,DSL)	05/1987 - 08/1989	1
88510-12760	CE90,EE90..LHD..3D..(CBR,DSL)	08/1989 - 06/1991	1
88515 - VALVE, COOLER EXPANSION
88515-16040	CE90,EE90..LHD..3D..(CBR,DSL)	08/1989 - 06/1991	1
88515-16040	AE92,CE90,EE90..LHD..(CBR,DSL)	05/1987 - 08/1989	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12100	AE92,CE90,EE90..LHD..(CBR,DSL)	05/1987 - 08/1989	1
88539-12100	CE90,EE90..LHD..3D..(CBR,DSL)	08/1989 - 06/1991	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-1A270	AE92,EE90..LHD..CBR	05/1987 - 05/1988	1
88605-1E171	EE90..LHD..CBR	08/1989 - 11/1989	1
88605-1E172	EE90..LHD..CBR	11/1989 - 09/1990	1
88605-1A292	EE90..LHD..3D..CBR W(POWER STEERING)	11/1989 - 06/1991	1
88605-1A270	EE90..LHD	07/1988 - 08/1989	1
88605-1A291	EE90..LHD..CBR W(POWER STEERING)	08/1989 - 11/1989	1
88605-1A270	AE92,EE90..LHD..CBR	05/1988 - 07/1988	1
88605-1A292	EE90..LHD..CBR	09/1990 - 06/1991	1
88625 - THERMISTOR, COOLER, NO.1
88625-32040	AE92,CE90,EE90..LHD..(GL,STD,XL)..(CBR,DSL)	05/1987 - 09/1990	1
88625-32040	CE90,EE90..LHD..3D..(CBR,DSL)	08/1989 - 06/1991	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-1A010	EE90..LHD..(GL,XL)	06/1988 - 08/1989	1
88650-1A010	EE90..LHD..(GL,XL)	05/1987 - 06/1988	1
88650-12610	EE90..LHD..(GL,XL) W(POWER STEERING)	05/1987 - 08/1989	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-12481	EE90..LHD..CBR W(POWER STEERING)	08/1989 - 11/1989	1
88650-1A020	EE90..LHD	05/1987 - 05/1988	1
88650-12463	EE90..LHD..CBR	11/1989 - 09/1990	1
88650-12482	EE90..LHD..3D..CBR W(POWER STEERING)	11/1989 - 06/1991	1
88650-12462	EE90..LHD..CBR	08/1989 - 11/1989	1
88650-1A020	EE90..LHD	05/1988 - 08/1989	1
88650-12482	EE90..LHD..CBR	09/1990 - 06/1991	1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88726-12310	AE92,CE90,EE90..LHD..(CBR,DSL)	05/1987 - 08/1989	1
88726-12310	CE90,EE90..LHD..3D..(CBR,DSL)	08/1989 - 06/1991	1
Common parts
90099-14044
90099-32129
90159-60125
90179-06054
90480-01434

EE90L-AGHDSW (1987)

(8705- )LHD..GL,GLI,SR5,STD,XL,XLI
