EE90L-AGHDSW (1987)

Toyota Corolla Hb

Production May 1987 - May 1992
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

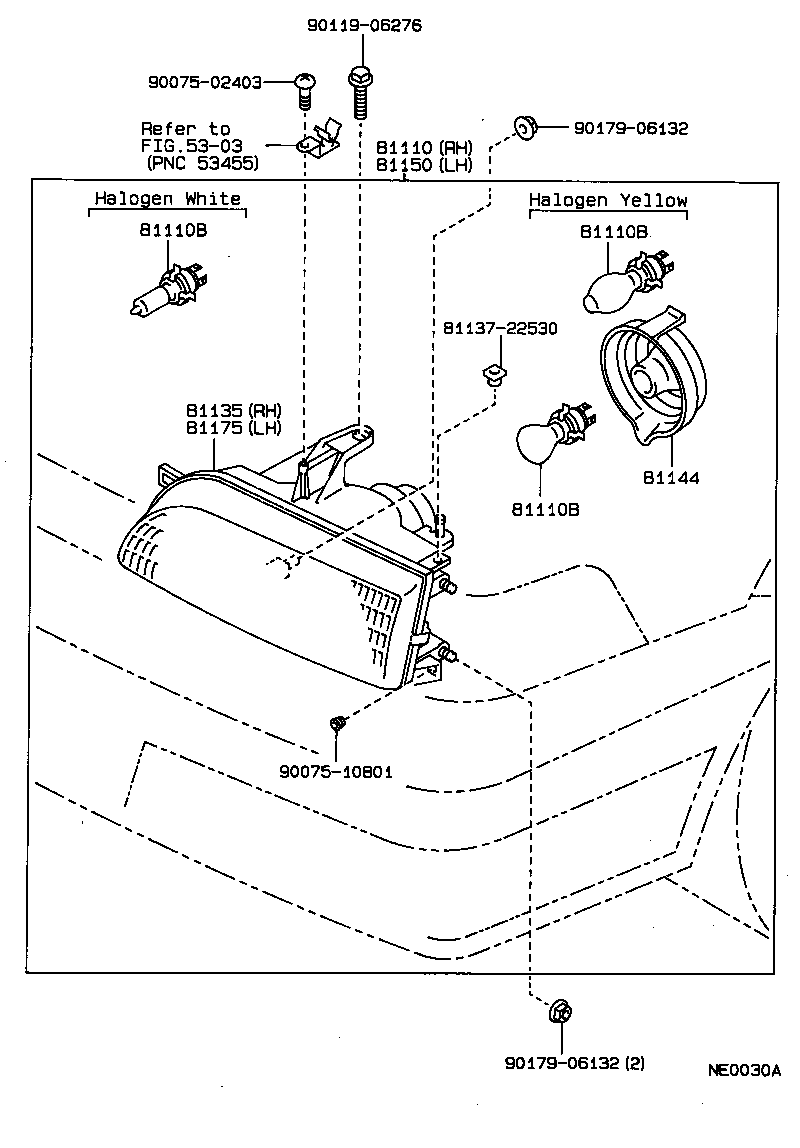

Click highlighted areas on diagram

diagram 5303 81110 81110B 81110B 81110B 81135 8113722530 81144 81150 81175 9007502403 9007510801 9011906276 9017906132 9017906132
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-1A820

AE92,CE90,EE90..LHD..(GL,GLI,SR5,STD,XL,XLI)

HALOGEN

 1
81110-1E110

AE92,CE90,EE90..LHD

W(HEAD LAMP LEVELING),HALOGEN

 1
81110-1A830

AE92,CE90,EE90..LHD

HALOGEN YELLOW

 1
81110-1A810

AE92,CE90,EE90..LHD..(GL,GLI,SR5,STD,XL,XLI)

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13013

AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI

12V 45/40W,WHITE

 2
90981-13015

AE92,CE90,EE90..LHD..(GL,GLI,SR5,STD,XL,XLI)

12V 60/55W,*HAL *WH

 2
90981-13015

AE92,CE90;EE90..STD,XL;EE90..LHD..GL

12V 60/55W,*HAL *WH

 2
90981-13016

AE92,CE90,EE90..LHD

12V 60/55W,*HAL *YE

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13013

AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI

12V 45/40W,WHITE

 2
90981-13015

AE92,CE90,EE90..LHD..(GL,GLI,SR5,STD,XL,XLI)

12V 60/55W,*HAL *WH

 2
90981-13015

AE92,CE90;EE90..STD,XL;EE90..LHD..GL

12V 60/55W,*HAL *WH

 2
90981-13016

AE92,CE90,EE90..LHD

12V 60/55W,*HAL *YE

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13013

AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI

12V 45/40W,WHITE

 2
90981-13015

AE92,CE90,EE90..LHD..(GL,GLI,SR5,STD,XL,XLI)

12V 60/55W,*HAL *WH

 2
90981-13015

AE92,CE90;EE90..STD,XL;EE90..LHD..GL

12V 60/55W,*HAL *WH

 2
90981-13016

AE92,CE90,EE90..LHD

12V 60/55W,*HAL *YE

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-1E110

AE92,CE90,EE90..LHD

W(HEAD LAMP LEVELING),HALOGEN

 1
81130-1A810

AE92,CE90,EE90..LHD..(GL,GLI,SR5,STD,XL,XLI)

 1
81130-1A820

AE92,CE90,EE90..LHD..(GL,GLI,SR5,STD,XL,XLI)

HALOGEN

 1
81144 - COVER, HEADLAMP, NO.1
81139-20730

AE92,CE90,EE90

 2
81150 - HEADLAMP ASSY, LH
81160-1E110

AE92,CE90,EE90..LHD

W(HEAD LAMP LEVELING),HALOGEN

 1
81160-1A820

AE92,CE90,EE90..LHD..(GL,GLI,SR5,STD,XL,XLI)

HALOGEN

 1
81160-1A810

AE92,CE90,EE90..LHD..(GL,GLI,SR5,STD,XL,XLI)

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-1A810

AE92,CE90,EE90..LHD..(GL,GLI,SR5,STD,XL,XLI)

 1
81170-1E110

AE92,CE90,EE90..LHD

W(HEAD LAMP LEVELING),HALOGEN

 1
81170-1A820

AE92,CE90,EE90..LHD..(GL,GLI,SR5,STD,XL,XLI)

HALOGEN

 1
Common parts
81137-22530
90075-02403
90075-10801
90119-06276
90179-06132
Linked diagrams
5303
