AE92R-AGMVFW (1987)

Toyota Corolla Hb

Production May 1987 - May 1992
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

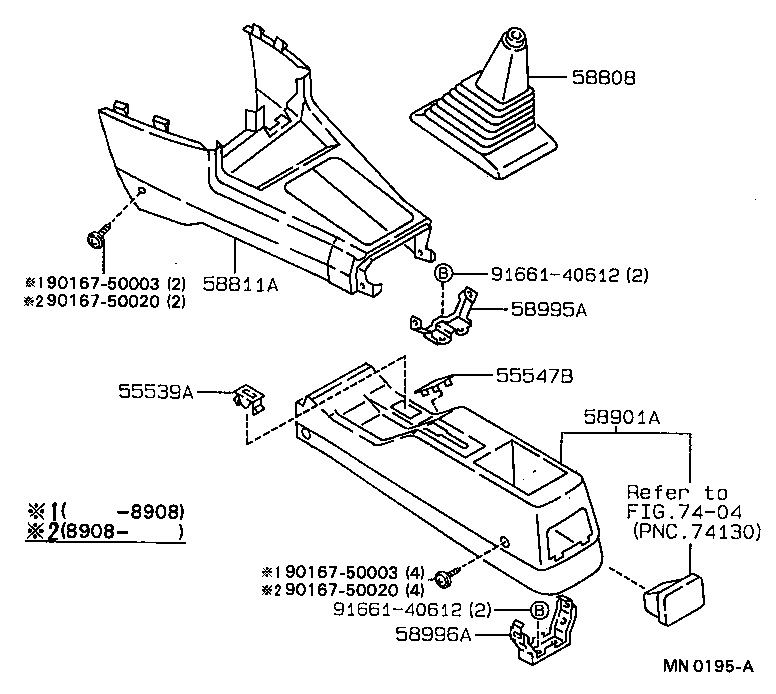

Click highlighted areas on diagram

diagram 55539A 55547B 58808 58811A 58901A 58995A 58996A 7404 9016750003 9016750003 9016750020 9016750020 9166140612 9166140612
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-2002003

AE92,CE90,EE90

SHADOW GRAY,TRIM1#,TYPE B

 1
55547B - COVER, REMOTE CONTROL MIRROR HOLE
55547-2002003

AE92,CE90;EE90..CBR;EE90..XLI

SHADOW GRAY,TRIM1#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-1209001

CE90,EE90..RHD..5F;AE92,CE90,EE90..GTI,STD

BLACK,TRIM1#

 1
58811A - BOX, CONSOLE, FRONT
58811-1240013

AE92,CE90,EE90..RHD

SHADOW GRAY,TRIM1#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-1214003

AE92,CE90,EE90

SHADOW GRAY,TRIM1#

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-12060

AE92,CE90,EE90

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-12030

AE92,CE90,EE90

 1
Common parts
90167-50003
90167-50020
91661-40612
Linked diagrams
7404
