AE92L-AHMNUW (1987)

Toyota Corolla Hb

Production May 1987 - Aug 1989
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

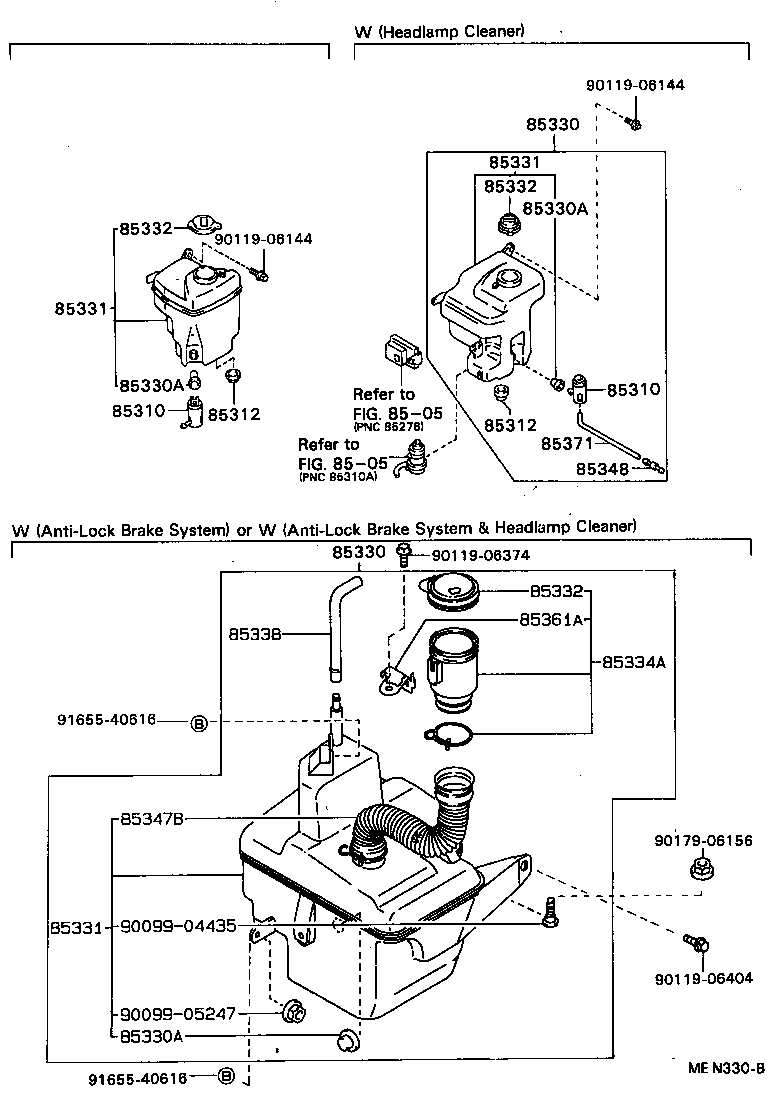

ILLUST NO. 1 OF 2(8705- )

Click highlighted areas on diagram

diagram 8505 8505 85310 85310 85312 85312 85330 85330 85330A 85330A 85330A 85331 85331 85331 85332 85332 85332 85334A 85338 85347B 85348 85361A 85371 9009904435 9009905247 9011906144 9011906144 9011906374 9011906404 9017906156 9165540616 9165540616
Part # Description Qty Price
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080

AE92,CE90,EE90

 1
85310-12180

AE92,CE90,EE90..LHD

W(*HC)

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080

AE92,CE90,EE90

 1
85310-12180

AE92,CE90,EE90..LHD

W(*HC)

 1
85312 - PACKING, WINDSHIELD WASHER TANK
85312-12650

AE92,CE90,EE90

 1
85312 - PACKING, WINDSHIELD WASHER TANK
85312-12650

AE92,CE90,EE90

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-12210

AE92,CE90,EE90..LHD

W(*HC)

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-12210

AE92,CE90,EE90..LHD

W(*HC)

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AE92,CE90,EE90

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AE92,CE90,EE90

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AE92,CE90,EE90

 1
85331 - JAR SUB-ASSY, WINDSHIELD WASHER
85331-12710

AE92,CE90,EE90..LHD

W(*HC)

 1
85331-12660

AE92,CE90,EE90

 1
85331 - JAR SUB-ASSY, WINDSHIELD WASHER
85331-12710

AE92,CE90,EE90..LHD

W(*HC)

 1
85331-12660

AE92,CE90,EE90

 1
85331 - JAR SUB-ASSY, WINDSHIELD WASHER
85331-12710

AE92,CE90,EE90..LHD

W(*HC)

 1
85331-12660

AE92,CE90,EE90

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-12320

AE92,CE90,EE90

 1
85332-22470

AE92,CE90,EE90..LHD

W(*HC)

 1
85332-12660

AE92,CE90,EE90

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-12320

AE92,CE90,EE90

 1
85332-22470

AE92,CE90,EE90..LHD

W(*HC)

 1
85332-12660

AE92,CE90,EE90

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-12320

AE92,CE90,EE90

 1
85332-22470

AE92,CE90,EE90..LHD

W(*HC)

 1
85332-12660

AE92,CE90,EE90

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

AE92,CE90,EE90..LHD..(CBR,DSL)

2-WAY

 1
85348-12250

AE92,CE90,EE90

3-WAY

 1
85349-89122

AE92,CE90,EE90..LHD

2-WAY

 1
85349-89122

AE92,CE90,EE90

2-WAY

 2
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33410

AE92,CE90,EE90..CBR,DSL

*H,L=1100

 1
90099-33185

AE92,CE90,EE90..LHD

L=120

 1
90446-07001

AE92,CE90,EE90

 1
Common parts
90099-04435
90099-05247
90119-06144
90119-06374
90119-06404
90179-06156
91655-40616
Linked diagrams
8505

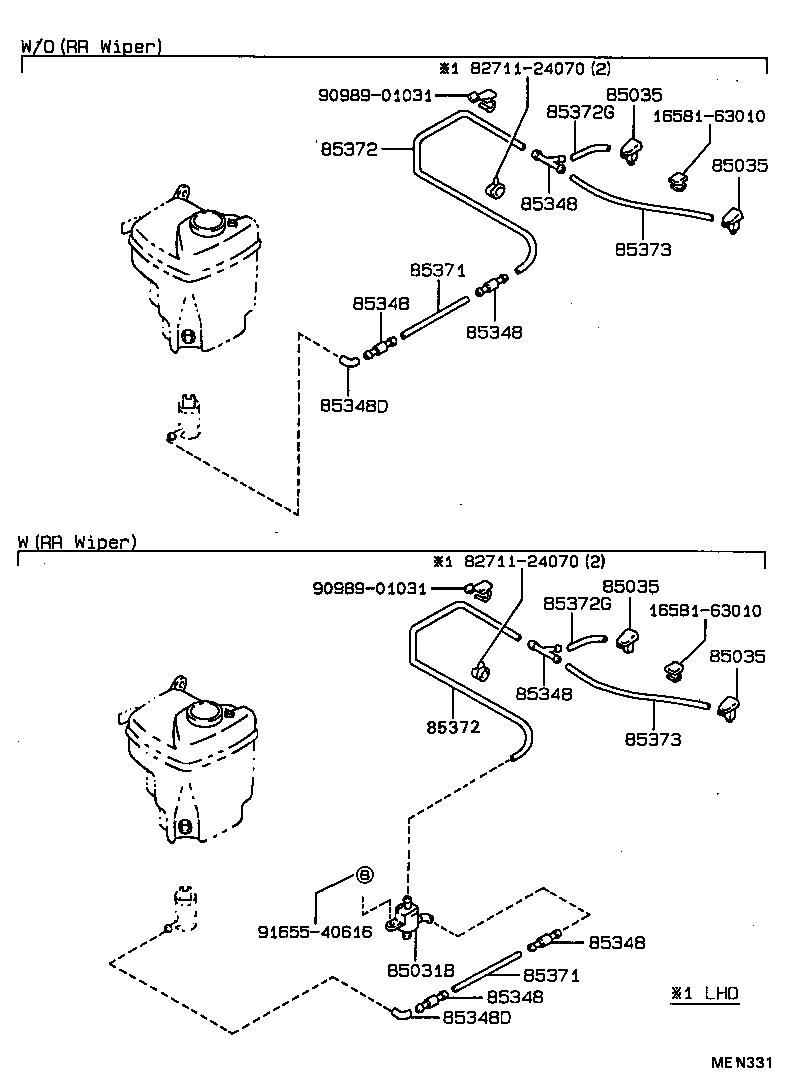

ILLUST NO. 2 OF 2(8705- )

Click highlighted areas on diagram

diagram 1658163010 1658163010 8271124070 8271124070 85031B 85035 85035 85035 85035 85348 85348 85348 85348 85348 85348 85348D 85348D 85371 85371 85372 85372 85372G 85372G 85373 85373 9098901031 9098901031 9165540616
Part # Description Qty Price
85031B - VALVE SUB-ASSY, WASHER
85031-12121

AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI

 1
85035 - NOZZLE SUB-ASSY, WASHER
85035-12390

AE92,CE90,EE90..LHD

 2
85035 - NOZZLE SUB-ASSY, WASHER
85035-12390

AE92,CE90,EE90..LHD

 2
85035 - NOZZLE SUB-ASSY, WASHER
85035-12390

AE92,CE90,EE90..LHD

 2
85035 - NOZZLE SUB-ASSY, WASHER
85035-12390

AE92,CE90,EE90..LHD

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

AE92,CE90,EE90..LHD..(CBR,DSL)

2-WAY

 1
85348-12250

AE92,CE90,EE90

3-WAY

 1
85349-89122

AE92,CE90,EE90..LHD

2-WAY

 1
85349-89122

AE92,CE90,EE90

2-WAY

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

AE92,CE90,EE90..LHD..(CBR,DSL)

2-WAY

 1
85348-12250

AE92,CE90,EE90

3-WAY

 1
85349-89122

AE92,CE90,EE90..LHD

2-WAY

 1
85349-89122

AE92,CE90,EE90

2-WAY

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

AE92,CE90,EE90..LHD..(CBR,DSL)

2-WAY

 1
85348-12250

AE92,CE90,EE90

3-WAY

 1
85349-89122

AE92,CE90,EE90..LHD

2-WAY

 1
85349-89122

AE92,CE90,EE90

2-WAY

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

AE92,CE90,EE90..LHD..(CBR,DSL)

2-WAY

 1
85348-12250

AE92,CE90,EE90

3-WAY

 1
85349-89122

AE92,CE90,EE90..LHD

2-WAY

 1
85349-89122

AE92,CE90,EE90

2-WAY

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

AE92,CE90,EE90..LHD..(CBR,DSL)

2-WAY

 1
85348-12250

AE92,CE90,EE90

3-WAY

 1
85349-89122

AE92,CE90,EE90..LHD

2-WAY

 1
85349-89122

AE92,CE90,EE90

2-WAY

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

AE92,CE90,EE90..LHD..(CBR,DSL)

2-WAY

 1
85348-12250

AE92,CE90,EE90

3-WAY

 1
85349-89122

AE92,CE90,EE90..LHD

2-WAY

 1
85349-89122

AE92,CE90,EE90

2-WAY

 2
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481

AE92,CE90,EE90

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481

AE92,CE90,EE90

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33410

AE92,CE90,EE90..CBR,DSL

*H,L=1100

 1
90099-33185

AE92,CE90,EE90..LHD

L=120

 1
90446-07001

AE92,CE90,EE90

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33410

AE92,CE90,EE90..CBR,DSL

*H,L=1100

 1
90099-33185

AE92,CE90,EE90..LHD

L=120

 1
90446-07001

AE92,CE90,EE90

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

AE92,CE90,EE90

L=1450

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

AE92,CE90,EE90

L=1450

 1
85372G - TUBE, RUBBER
90099-33080

AE92,CE90,EE90

L=1450

 1
85372G - TUBE, RUBBER
90099-33080

AE92,CE90,EE90

L=1450

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AE92,CE90,EE90..CBR,DSL

L=1450

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AE92,CE90,EE90..CBR,DSL

L=1450

 1
Common parts
16581-63010
82711-24070
90989-01031
91655-40616
