AE92L-AHMNUW (1987)

Toyota Corolla Hb

Production May 1987 - Aug 1989
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )5D

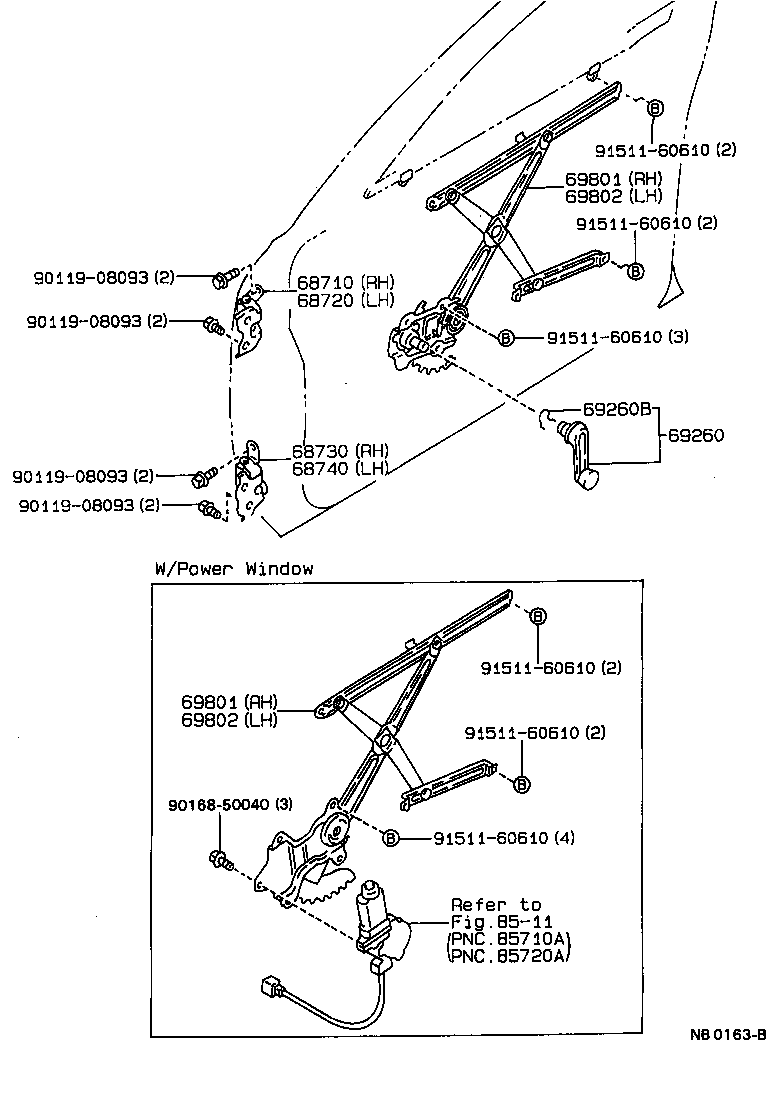

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69801 69801 69802 69802 8511 9011908093 9011908093 9011908093 9011908093 9016850040 9151160610 9151160610 9151160610 9151160610 9151160610 9151160610
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-12100

AE92,CE90,EE90..5D

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-12100

AE92,CE90,EE90..5D

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-12060

AE92,CE90,EE90..5D

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-12060

AE92,CE90,EE90..5D

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1209004

AE92..3D..GL;AE92,CE90,EE90..LHD..5D

BLUE,TRIM8#

 2
69260-1209005

AE92..3D..GL;EE90..RHD..GL;AE92,CE90,EE90..5D

DARK BEIGE,TRIM4#

 2
69260-1209003

EE90..5D;EE90..RHD..GL;AE92..GL,GLI,GTI,SR5;AE92,CE90..5D..(XL,XLI)

SHADOW GRAY,TRIM1#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01005

EE90..5D;EE90..RHD..GL;AE92..GL,GLI,GTI,SR5;AE92,CE90..5D..(XL,XLI)

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-12290

AE92,CE90,EE90..5D

 1
69801-12100

AE92,CE90,EE90..5D

W(*PW)

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-12290

AE92,CE90,EE90..5D

 1
69801-12100

AE92,CE90,EE90..5D

W(*PW)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-12290

AE92,CE90,EE90..5D

 1
69802-12100

AE92,CE90,EE90..5D

W(*PW)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-12290

AE92,CE90,EE90..5D

 1
69802-12100

AE92,CE90,EE90..5D

W(*PW)

 1
Common parts
90119-08093
90168-50040
91511-60610
Linked diagrams
8511
