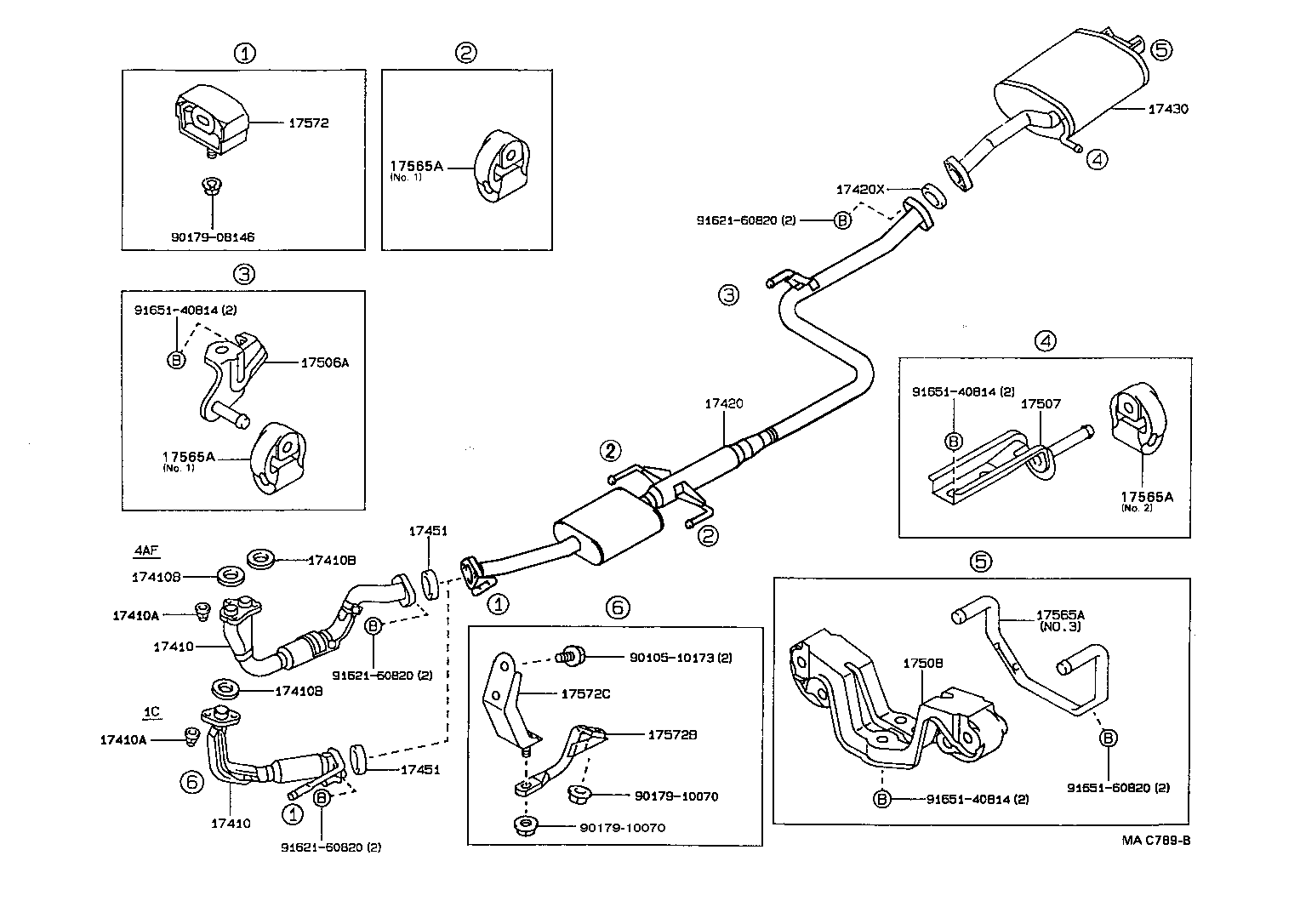

AE92L-AHMNUW (1987)
Toyota Corolla Hb
(8705- )4AF,1C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-16420 |
4AF..AE92 |
1 | ||
| 17410-16440 |
4AF..AE92 EX. EMISSION CONTROL(*77) |
1 | ||
| 17410-16450 |
4AF..AE92 EX. EMISSION CONTROL(US83) |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-16420 |
4AF..AE92 |
1 | ||
| 17410-16440 |
4AF..AE92 EX. EMISSION CONTROL(*77) |
1 | ||
| 17410-16450 |
4AF..AE92 EX. EMISSION CONTROL(US83) |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
4AF#,4AGE,2E#..AE92,EE90 |
3 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
4AF#,4AGE,2E#..AE92,EE90 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06001 |
4AF..AE92 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06001 |
4AF..AE92 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06001 |
4AF..AE92 |
2 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-16120 |
4AF..AE92 EX. EMISSION CONTROL(US83) |
1 | ||
| 17420-16130 |
4AF..AE92 EX. EMISSION CONTROL(*77) |
1 | ||
| 17420-16330 |
4AF..AE92 EX. EMISSION CONTROL(*77) |
1 | ||
| 17420-16150 |
4AF..AE92 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06004 |
4AF,1C..AE92,CE90 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-16890 |
4AF..AE92 EX. EMISSION CONTROL(US83 OR *77) |
1 | ||
| 17430-16440 |
4AF..AE92 |
1 | ||
| 17430-16470 |
4AF..AE92 EX. EMISSION CONTROL(US83 OR *77) |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06020 |
4AF,2E..AE92,EE90..LHD..MTM FR |
1 | ||
| 90917-06012 |
4AF,2E..AE92,EE90..LHD..MTM RR |
1 | ||
| 90917-06004 |
4AF,1C,2E..AE92,CE90,EE90 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06020 |
4AF,2E..AE92,EE90..LHD..MTM FR |
1 | ||
| 90917-06012 |
4AF,2E..AE92,EE90..LHD..MTM RR |
1 | ||
| 90917-06004 |
4AF,1C,2E..AE92,CE90,EE90 |
1 | ||
| 17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17506-15050 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 |
1 | ||
| 17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT | ||||
| 17507-15030 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 |
1 | ||
| 17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3 | ||||
| 17508-15040 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-15050 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.2 |
1 | ||
| 17565-15070 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.1 |
3 | ||
| 17565-15040 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 NO.3 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-15050 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.2 |
1 | ||
| 17565-15070 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.1 |
3 | ||
| 17565-15040 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 NO.3 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-15050 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.2 |
1 | ||
| 17565-15070 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.1 |
3 | ||
| 17565-15040 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 NO.3 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-15050 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.2 |
1 | ||
| 17565-15070 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.1 |
3 | ||
| 17565-15040 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 NO.3 |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-15050 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 |
1 | ||
| Common parts | ||||
| 90105-10173 | ||||
| 90179-08146 | ||||
| 90179-10070 | ||||
| 91621-60820 | ||||
| 91651-40814 | ||||
| 91651-60820 | ||||
(8705-8911)4AF,2E
EX.EMISSION CONT.=PHASE C/ANNEX25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17400 - CONVERTER ASSY, W/CATALYST | ||||
| 18450-16190 |
4AF..AE92 EX. EMISSION CONTROL(US83) |
1 | ||
| 18450-16390 |
4AF..AE92 EX. EMISSION CONTROL(US83) |
1 | ||
| 18450-16230 |
4AF..AE92 EX. EMISSION CONTROL(*77) |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-16420 |
4AF..AE92 |
1 | ||
| 17410-16440 |
4AF..AE92 EX. EMISSION CONTROL(*77) |
1 | ||
| 17410-16450 |
4AF..AE92 EX. EMISSION CONTROL(US83) |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-16420 |
4AF..AE92 |
1 | ||
| 17410-16440 |
4AF..AE92 EX. EMISSION CONTROL(*77) |
1 | ||
| 17410-16450 |
4AF..AE92 EX. EMISSION CONTROL(US83) |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
4AF#,4AGE,2E#..AE92,EE90 |
3 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
4AF#,4AGE,2E#..AE92,EE90 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06001 |
4AF..AE92 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06001 |
4AF..AE92 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06001 |
4AF..AE92 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06001 |
4AF..AE92 |
2 | ||
| 17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17561-16140 |
4AF#,2E#..AE92,EE90..LHD..MTM |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-16120 |
4AF..AE92 EX. EMISSION CONTROL(US83) |
1 | ||
| 17420-16130 |
4AF..AE92 EX. EMISSION CONTROL(*77) |
1 | ||
| 17420-16330 |
4AF..AE92 EX. EMISSION CONTROL(*77) |
1 | ||
| 17420-16150 |
4AF..AE92 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06004 |
4AF,1C..AE92,CE90 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-16890 |
4AF..AE92 EX. EMISSION CONTROL(US83 OR *77) |
1 | ||
| 17430-16440 |
4AF..AE92 |
1 | ||
| 17430-16470 |
4AF..AE92 EX. EMISSION CONTROL(US83 OR *77) |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06020 |
4AF,2E..AE92,EE90..LHD..MTM FR |
1 | ||
| 90917-06012 |
4AF,2E..AE92,EE90..LHD..MTM RR |
1 | ||
| 90917-06004 |
4AF,1C,2E..AE92,CE90,EE90 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06020 |
4AF,2E..AE92,EE90..LHD..MTM FR |
1 | ||
| 90917-06012 |
4AF,2E..AE92,EE90..LHD..MTM RR |
1 | ||
| 90917-06004 |
4AF,1C,2E..AE92,CE90,EE90 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06020 |
4AF,2E..AE92,EE90..LHD..MTM FR |
1 | ||
| 90917-06012 |
4AF,2E..AE92,EE90..LHD..MTM RR |
1 | ||
| 90917-06004 |
4AF,1C,2E..AE92,CE90,EE90 |
1 | ||
| 17504 - BRACKET SUB-ASSY, CATALYTIC CONVERTER | ||||
| 17504-16010 |
4AF,4AGE,2E#..AE92,EE90..LHD..MTM |
1 | ||
| 17504 - BRACKET SUB-ASSY, CATALYTIC CONVERTER | ||||
| 17504-16010 |
4AF,4AGE,2E#..AE92,EE90..LHD..MTM |
1 | ||
| 17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17506-15050 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 |
1 | ||
| 17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT | ||||
| 17507-15030 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 |
1 | ||
| 17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3 | ||||
| 17508-15040 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-15050 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.2 |
1 | ||
| 17565-15070 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.1 |
3 | ||
| 17565-15040 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 NO.3 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-15050 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.2 |
1 | ||
| 17565-15070 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.1 |
3 | ||
| 17565-15040 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 NO.3 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-15050 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.2 |
1 | ||
| 17565-15070 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.1 |
3 | ||
| 17565-15040 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 NO.3 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-15050 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.2 |
1 | ||
| 17565-15070 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.1 |
3 | ||
| 17565-15040 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 NO.3 |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-15050 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 |
1 | ||
| Common parts | ||||
| 90105-10023 | ||||
| 90179-08146 | ||||
| 91511-60830 | ||||
| 91621-60820 | ||||
| 91651-40814 | ||||
| 91651-60816 | ||||
| 91651-60820 | ||||
| 94180-41000 | ||||
(8705-8908)4A#,2E
EXHAUST EMISSION CONTROL(US'83)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17400 - CONVERTER ASSY, W/CATALYST | ||||
| 18450-16190 |
4AF..AE92 EX. EMISSION CONTROL(US83) |
1 | ||
| 18450-16390 |
4AF..AE92 EX. EMISSION CONTROL(US83) |
1 | ||
| 18450-16230 |
4AF..AE92 EX. EMISSION CONTROL(*77) |
1 | ||
| 17400 - CONVERTER ASSY, W/CATALYST | ||||
| 18450-16190 |
4AF..AE92 EX. EMISSION CONTROL(US83) |
1 | ||
| 18450-16390 |
4AF..AE92 EX. EMISSION CONTROL(US83) |
1 | ||
| 18450-16230 |
4AF..AE92 EX. EMISSION CONTROL(*77) |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-16420 |
4AF..AE92 |
1 | ||
| 17410-16440 |
4AF..AE92 EX. EMISSION CONTROL(*77) |
1 | ||
| 17410-16450 |
4AF..AE92 EX. EMISSION CONTROL(US83) |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-16420 |
4AF..AE92 |
1 | ||
| 17410-16440 |
4AF..AE92 EX. EMISSION CONTROL(*77) |
1 | ||
| 17410-16450 |
4AF..AE92 EX. EMISSION CONTROL(US83) |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-16420 |
4AF..AE92 |
1 | ||
| 17410-16440 |
4AF..AE92 EX. EMISSION CONTROL(*77) |
1 | ||
| 17410-16450 |
4AF..AE92 EX. EMISSION CONTROL(US83) |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
4AF#,4AGE,2E#..AE92,EE90 |
3 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
4AF#,4AGE,2E#..AE92,EE90 |
3 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
4AF#,4AGE,2E#..AE92,EE90 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06001 |
4AF..AE92 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06001 |
4AF..AE92 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06001 |
4AF..AE92 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06001 |
4AF..AE92 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06001 |
4AF..AE92 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06001 |
4AF..AE92 |
2 | ||
| 17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17561-16140 |
4AF#,2E#..AE92,EE90..LHD..MTM |
1 | ||
| 17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17561-16140 |
4AF#,2E#..AE92,EE90..LHD..MTM |
1 | ||
| 17419 - PIPE, CONVERTER AIR INLET | ||||
| 17409-16020 |
4AF,2E..AE92,EE90..LHD..MTM |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-16120 |
4AF..AE92 EX. EMISSION CONTROL(US83) |
1 | ||
| 17420-16130 |
4AF..AE92 EX. EMISSION CONTROL(*77) |
1 | ||
| 17420-16330 |
4AF..AE92 EX. EMISSION CONTROL(*77) |
1 | ||
| 17420-16150 |
4AF..AE92 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-16120 |
4AF..AE92 EX. EMISSION CONTROL(US83) |
1 | ||
| 17420-16130 |
4AF..AE92 EX. EMISSION CONTROL(*77) |
1 | ||
| 17420-16330 |
4AF..AE92 EX. EMISSION CONTROL(*77) |
1 | ||
| 17420-16150 |
4AF..AE92 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06004 |
4AF,1C..AE92,CE90 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06004 |
4AF,1C..AE92,CE90 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-16890 |
4AF..AE92 EX. EMISSION CONTROL(US83 OR *77) |
1 | ||
| 17430-16440 |
4AF..AE92 |
1 | ||
| 17430-16470 |
4AF..AE92 EX. EMISSION CONTROL(US83 OR *77) |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-16890 |
4AF..AE92 EX. EMISSION CONTROL(US83 OR *77) |
1 | ||
| 17430-16440 |
4AF..AE92 |
1 | ||
| 17430-16470 |
4AF..AE92 EX. EMISSION CONTROL(US83 OR *77) |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06020 |
4AF,2E..AE92,EE90..LHD..MTM FR |
1 | ||
| 90917-06012 |
4AF,2E..AE92,EE90..LHD..MTM RR |
1 | ||
| 90917-06004 |
4AF,1C,2E..AE92,CE90,EE90 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06020 |
4AF,2E..AE92,EE90..LHD..MTM FR |
1 | ||
| 90917-06012 |
4AF,2E..AE92,EE90..LHD..MTM RR |
1 | ||
| 90917-06004 |
4AF,1C,2E..AE92,CE90,EE90 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06020 |
4AF,2E..AE92,EE90..LHD..MTM FR |
1 | ||
| 90917-06012 |
4AF,2E..AE92,EE90..LHD..MTM RR |
1 | ||
| 90917-06004 |
4AF,1C,2E..AE92,CE90,EE90 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06020 |
4AF,2E..AE92,EE90..LHD..MTM FR |
1 | ||
| 90917-06012 |
4AF,2E..AE92,EE90..LHD..MTM RR |
1 | ||
| 90917-06004 |
4AF,1C,2E..AE92,CE90,EE90 |
1 | ||
| 17504 - BRACKET SUB-ASSY, CATALYTIC CONVERTER | ||||
| 17504-16010 |
4AF,4AGE,2E#..AE92,EE90..LHD..MTM |
1 | ||
| 17504 - BRACKET SUB-ASSY, CATALYTIC CONVERTER | ||||
| 17504-16010 |
4AF,4AGE,2E#..AE92,EE90..LHD..MTM |
1 | ||
| 17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17506-15050 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 |
1 | ||
| 17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT | ||||
| 17507-15030 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 |
1 | ||
| 17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3 | ||||
| 17508-15040 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-15050 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.2 |
1 | ||
| 17565-15070 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.1 |
3 | ||
| 17565-15040 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 NO.3 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-15050 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.2 |
1 | ||
| 17565-15070 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.1 |
3 | ||
| 17565-15040 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 NO.3 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-15050 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.2 |
1 | ||
| 17565-15070 |
4AF#,1C,2E#..AE92,CE90,EE90 NO.1 |
3 | ||
| 17565-15040 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 NO.3 |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-15050 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-15050 |
4AF#,4AGE,1C,2E#..AE92,CE90,EE90 |
1 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-15020 |
4AF,2E..AE92,EE90..LHD..MTM |
1 | ||
| Common parts | ||||
| 90105-10023 | ||||
| 90117-08022 | ||||
| 90179-08146 | ||||
| 91511-60830 | ||||
| 91621-60820 | ||||
| 91651-40814 | ||||
| 91651-60610 | ||||
| 91651-60816 | ||||
| 91651-60820 | ||||
| 94180-40800 | ||||
| 94180-41000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
