AE92L-AHMDKW (1989)

Toyota Corolla Hb

Production Aug 1989 - Jun 1992
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )

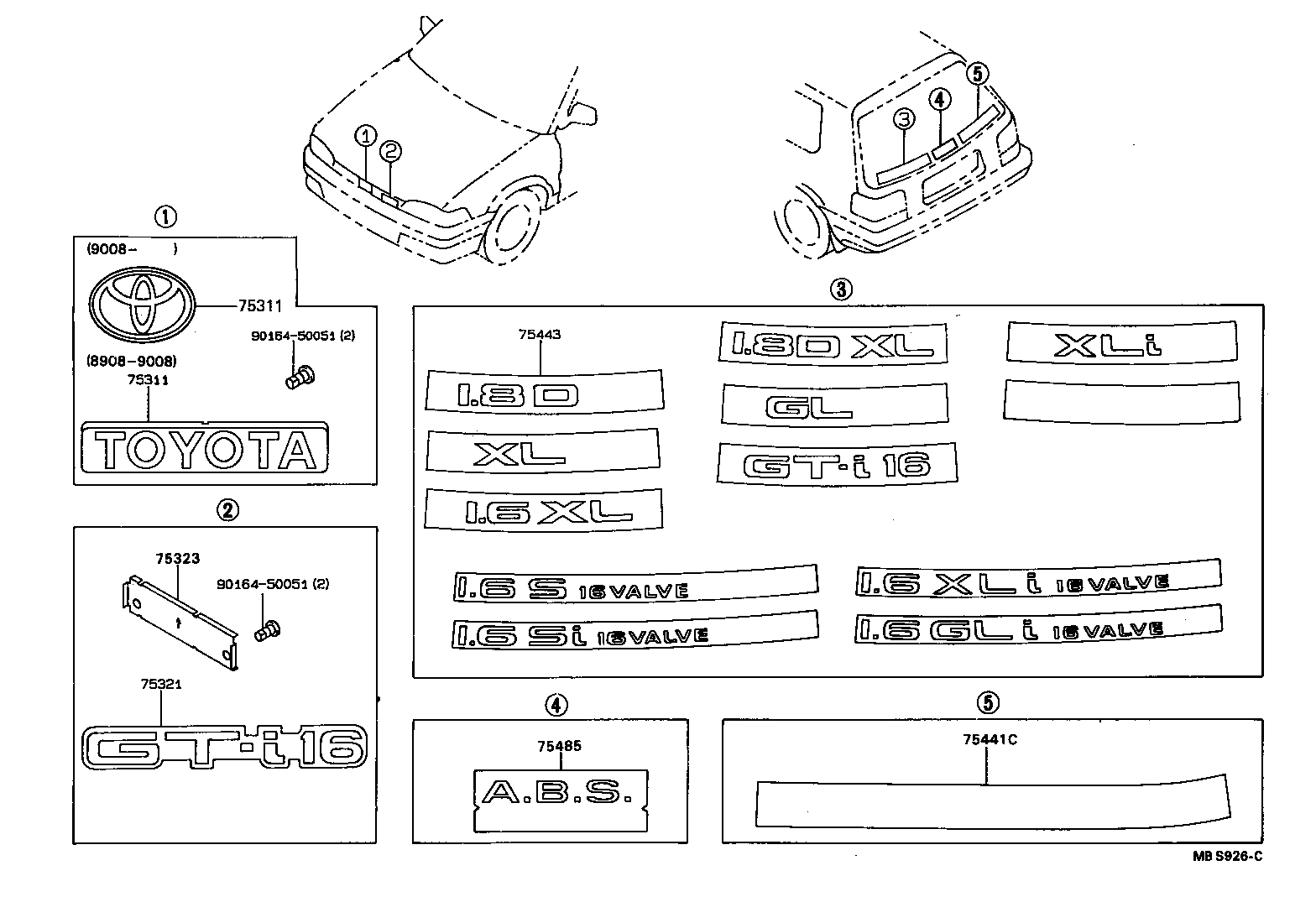

Click highlighted areas on diagram

diagram 75311 75311 75321 75323 75441C 75443 75485 9016450051 9016450051
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-1A460

AE92,CE90,EE90

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-1A460

AE92,CE90,EE90

 1
75441C - PLATE, BACK DOOR NAME
75441-12500

AE92,CE90,EE90

 1
75443 - PLATE, BACK DOOR NAME, NO.3
75443-1A330

AE92..XLI

1.6 XLI 16VALVE

 1
75443-12890

AE92..XL

1.6 XL

 1
Common parts
90164-50051
