AE92L-AGMVFW (1987)

Toyota Corolla Hb

Production May 1987 - Nov 1992
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )GTI

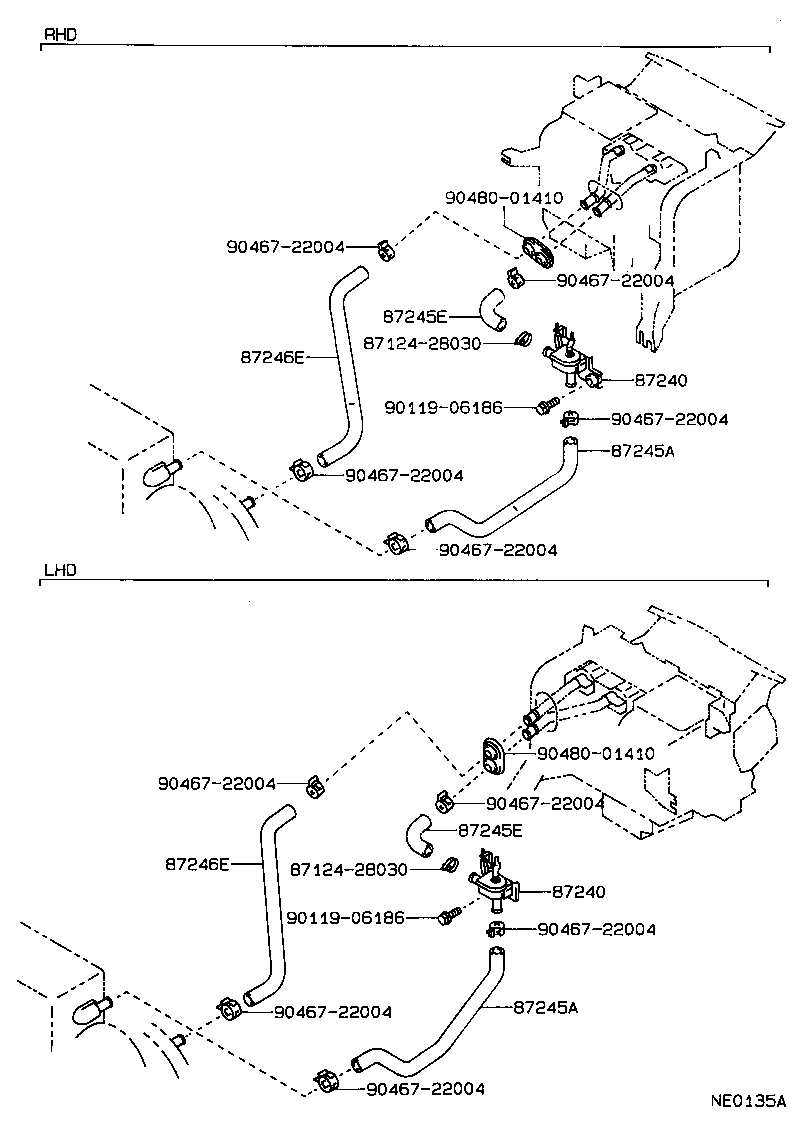

Click highlighted areas on diagram

diagram 8712428030 8712428030 87240 87240 87245A 87245A 87245E 87245E 87246E 87246E 9011906186 9011906186 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9048001410 9048001410
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-12240

AE92,CE90,EE90..LHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-12240

AE92,CE90,EE90..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-1A230

AE92..LHD..GTI

 1
87245A - HOSE, HEATER WATER, INLET A
87245-1A230

AE92..LHD..GTI

 1
87245E - HOSE, HEATER WATER, INLET E
87245-1A310

AE92,CE90,EE90..LHD

 1
87245-1A380

AE92,CE90,EE90..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-1A310

AE92,CE90,EE90..LHD

 1
87245-1A380

AE92,CE90,EE90..LHD

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-1A400

AE92..LHD..GTI

 1
87245-1A290

AE92..LHD..EFI

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-1A400

AE92..LHD..GTI

 1
87245-1A290

AE92..LHD..EFI

 1
Common parts
87124-28030
90119-06186
90467-22004
90480-01410
