AE92L-AGMVFW (1987)
Toyota Corolla Hb
Production
May 1987
-
Nov 1992
Engine
4AGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8908- )LHD..GTI

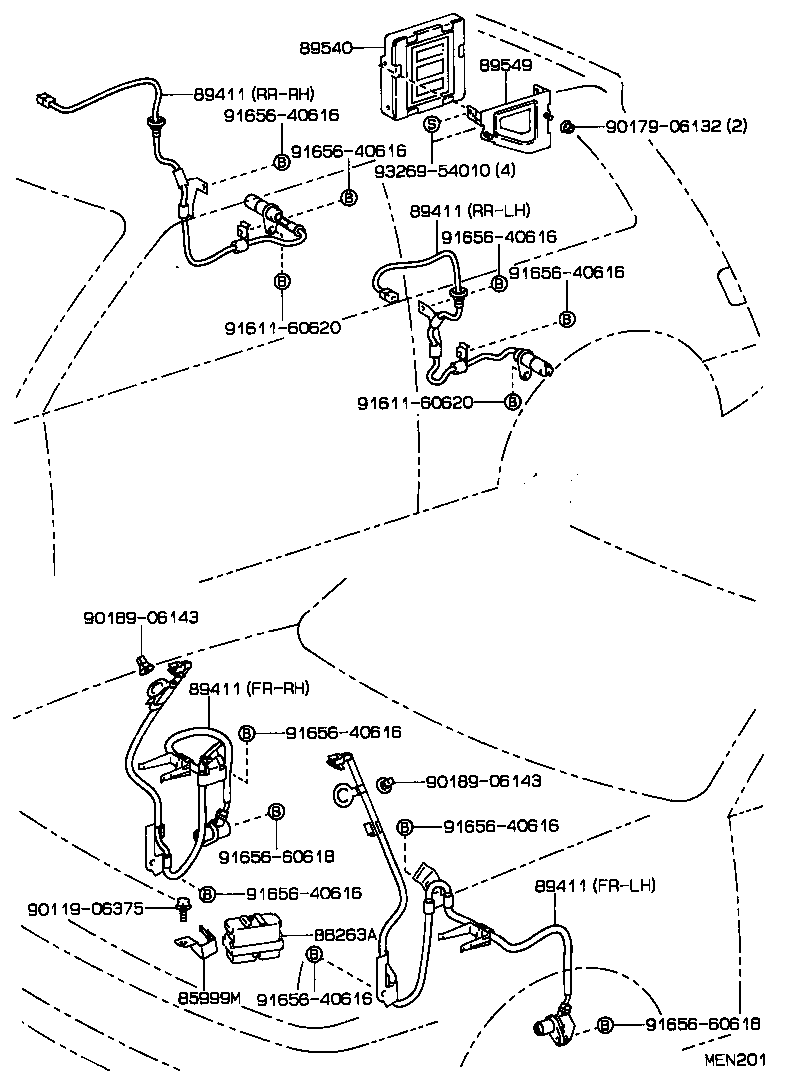

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85999M - BRACKET, RELAY | ||||
| 85999-12130 |
AE92..LHD..GTI |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-12070 |
AE92..LHD..GTI |
1 | ||
| 89411 - SENSOR, SPEED | ||||
| 89546-12010 |
AE92..LHD..GTI RR-LH |
1 | ||
| 89542-12010 |
AE92..LHD..GTI FR-RH |
1 | ||
| 89545-12010 |
AE92..LHD..GTI RR-RH |
3 | ||
| 89543-12010 |
AE92..LHD..GTI FR-LH |
1 | ||
| 89411 - SENSOR, SPEED | ||||
| 89546-12010 |
AE92..LHD..GTI RR-LH |
1 | ||
| 89542-12010 |
AE92..LHD..GTI FR-RH |
1 | ||
| 89545-12010 |
AE92..LHD..GTI RR-RH |
3 | ||
| 89543-12010 |
AE92..LHD..GTI FR-LH |
1 | ||
| 89411 - SENSOR, SPEED | ||||
| 89546-12010 |
AE92..LHD..GTI RR-LH |
1 | ||
| 89542-12010 |
AE92..LHD..GTI FR-RH |
1 | ||
| 89545-12010 |
AE92..LHD..GTI RR-RH |
3 | ||
| 89543-12010 |
AE92..LHD..GTI FR-LH |
1 | ||
| 89411 - SENSOR, SPEED | ||||
| 89546-12010 |
AE92..LHD..GTI RR-LH |
1 | ||
| 89542-12010 |
AE92..LHD..GTI FR-RH |
1 | ||
| 89545-12010 |
AE92..LHD..GTI RR-RH |
3 | ||
| 89543-12010 |
AE92..LHD..GTI FR-LH |
1 | ||
| 89540 - COMPUTER ASSY, SKID CONTROL | ||||
| 89541-12010 |
AE92..LHD..GTI |
1 | ||
| 89549 - BRACKET, SKID CONTROL COMPUTER | ||||
| 89549-12020 |
AE92..LHD..GTI |
1 | ||
| Common parts | ||||
| 90119-06375 | ||||
| 90179-06132 | ||||
| 90189-06143 | ||||
| 91611-60620 | ||||
| 91656-40616 | ||||
| 91656-60618 | ||||
| 93269-54010 | ||||
