AE92L-AGMVFW (1987)
Toyota Corolla Hb
ILLUST NO. 4 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80082 |
AE92,EE90..(GLI,GTI,SR5,XLI)..EFI |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
AE92,CE90,EE90 |
1 | ||
| 83361-32020 |
AE92,CE90,EE90 |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-12010 |
AE92,CE90,EE90..LHD |
1 | ||
| 84152-12010 |
AE92,CE90,EE90..LHD..MTM..(DSL,EFI) |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-16060 |
AE92,CE90,EE90 |
2 | ||
| 84231-12060 |
AE92,CE90,EE90 |
2 | ||
| 84231-16060 |
AE92,CE90,EE90 |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
AE92,CE90,EE90 MATSUSHITA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
AE92,CE90,EE90 |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-14010 |
AE92,CE90,EE90..LHD..(GL,GLI,GTI,SR5,XL,XLI) |
1 | ||
| 84751-14010 |
AE92..LHD |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006003 |
AE92,EE90..3D..(GL,GTI) SHADOW GRAY,TRIM1# |
1 | ||
| 84810-12070 |
AE92,EE90..3D..(GL,GLI,GTI,SR5) FR |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006003 |
AE92,EE90..3D..(GL,GTI) SHADOW GRAY,TRIM1# |
1 | ||
| 84810-12070 |
AE92,EE90..3D..(GL,GLI,GTI,SR5) FR |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006003 |
AE92,EE90..3D..(GL,GTI) SHADOW GRAY,TRIM1# |
1 | ||
| 84810-12070 |
AE92,EE90..3D..(GL,GLI,GTI,SR5) FR |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006003 |
AE92,EE90..3D..(GL,GTI) SHADOW GRAY,TRIM1# |
1 | ||
| 84810-12070 |
AE92,EE90..3D..(GL,GLI,GTI,SR5) FR |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006003 |
AE92,EE90..3D..(GL,GTI) SHADOW GRAY,TRIM1# |
1 | ||
| 84810-12070 |
AE92,EE90..3D..(GL,GLI,GTI,SR5) FR |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-1216003 |
AE92,EE90..LHD..3D..(GL,GTI) SHADOW GRAY,TRIM1# |
1 | ||
| 84820-12100 |
AE92..LHD..(GLI,GTI,SR5) |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-1216003 |
AE92,EE90..LHD..3D..(GL,GTI) SHADOW GRAY,TRIM1# |
1 | ||
| 84820-12100 |
AE92..LHD..(GLI,GTI,SR5) |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-1216003 |
AE92,EE90..LHD..3D..(GL,GTI) SHADOW GRAY,TRIM1# |
1 | ||
| 84820-12100 |
AE92..LHD..(GLI,GTI,SR5) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20080 |
AE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI |
1 | ||
| 84870-20050 |
AE92,CE90,EE90..GL,GTI,XL |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1601003 |
EE90..GL;EE90..5D..XL;AE92,CE90..5D;AE92..3D..(GL,GTI) SHADOW GRAY,TRIM1# |
1 | ||
| 84930-12080 |
AE92,EE90..3D..(GL,GLI,GTI,SR5) |
1 | ||
| 84930-1601003 |
AE92..EFI;EE90..RHD..GL;AE92,CE90,EE90..5D SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1601003 |
EE90..GL;EE90..5D..XL;AE92,CE90..5D;AE92..3D..(GL,GTI) SHADOW GRAY,TRIM1# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1601003 |
EE90..GL;EE90..5D..XL;AE92,CE90..5D;AE92..3D..(GL,GTI) SHADOW GRAY,TRIM1# |
1 | ||
| 84930-12080 |
AE92,EE90..3D..(GL,GLI,GTI,SR5) |
1 | ||
| 84930-1601003 |
AE92..EFI;EE90..RHD..GL;AE92,CE90,EE90..5D SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1601003 |
EE90..GL;EE90..5D..XL;AE92,CE90..5D;AE92..3D..(GL,GTI) SHADOW GRAY,TRIM1# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1601003 |
EE90..GL;EE90..5D..XL;AE92,CE90..5D;AE92..3D..(GL,GTI) SHADOW GRAY,TRIM1# |
1 | ||
| 84930-12080 |
AE92,EE90..3D..(GL,GLI,GTI,SR5) |
1 | ||
| 84930-1601003 |
AE92..EFI;EE90..RHD..GL;AE92,CE90,EE90..5D SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1601003 |
EE90..GL;EE90..5D..XL;AE92,CE90..5D;AE92..3D..(GL,GTI) SHADOW GRAY,TRIM1# |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-20071 |
AE92;EE90..GL;EE90..5D..XL;CE90..LHD..XL;EE90..3D..4F..XL |
1 | ||
| 84931-19035 |
AE92..3D;EE90..RHD..GL;EE90..3D..3FC..EFI;CE90,EE90..LHD..3D..(GL,XL) |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 85930-12041 |
AE92,EE90..LHD..3D..(GL,GTI) |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06601 | ||||
| 90159-50219 | ||||
| 90159-60081 | ||||
| 90189-06048 | ||||
| 90480-26015 | ||||
| 93315-14012 | ||||
| 93540-54012 | ||||
| 94120-41000 | ||||
ILLUST NO. 5 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-16021 |
AE92,CE90,EE90 |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-12030 |
AE92,CE90,EE90 |
1 | ||
| Common parts | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||

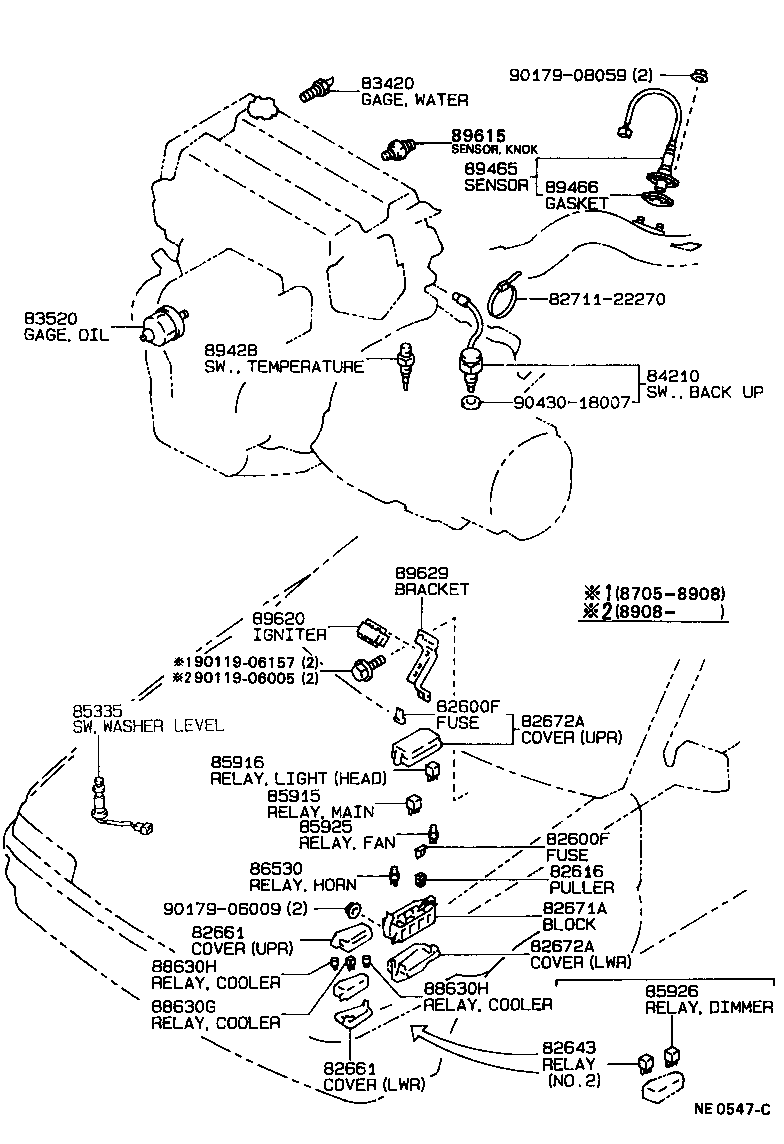

ILLUST NO. 1 OF 5(8705- )GTI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE92,CE90,EE90 15A |
1 | ||
| 90982-09005 |
AE92,CE90,EE90 7.5A |
1 | ||
| 90982-09002 |
AE92,CE90,EE90 10A |
1 | ||
| 90982-07011 |
AE92,CE90,EE90 30A,GREEN |
1 | ||
| 90982-09003 |
AE92,CE90,EE90 15A |
1 | ||
| 90982-09005 |
AE92,CE90,EE90 7.5A |
1 | ||
| 90982-07011 |
AE92,CE90,EE90 30A,GREEN |
1 | ||
| 90982-07011 |
AE92,CE90,EE90 30A,GREEN |
1 | ||
| 90982-09002 |
AE92,CE90,EE90 10A |
1 | ||
| 90982-09004 |
AE92,CE90,EE90 20A,YELLOW |
1 | ||
| 90982-09002 |
AE92,CE90,EE90 10A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE92,CE90,EE90 15A |
1 | ||
| 90982-09005 |
AE92,CE90,EE90 7.5A |
1 | ||
| 90982-09002 |
AE92,CE90,EE90 10A |
1 | ||
| 90982-07011 |
AE92,CE90,EE90 30A,GREEN |
1 | ||
| 90982-09003 |
AE92,CE90,EE90 15A |
1 | ||
| 90982-09005 |
AE92,CE90,EE90 7.5A |
1 | ||
| 90982-07011 |
AE92,CE90,EE90 30A,GREEN |
1 | ||
| 90982-07011 |
AE92,CE90,EE90 30A,GREEN |
1 | ||
| 90982-09002 |
AE92,CE90,EE90 10A |
1 | ||
| 90982-09004 |
AE92,CE90,EE90 20A,YELLOW |
1 | ||
| 90982-09002 |
AE92,CE90,EE90 10A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AE92,CE90,EE90 |
1 | ||
| 82616-12010 |
AE92,CE90,EE90 |
1 | ||
| 82616-12010 |
AE92,CE90,EE90 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12160 |
AE92..LHD..EFI *FRG OR SWEDEN SPEC & W(*HC) OR NORWAY SPEC,LWR |
1 | ||
| 82661-12150 |
AE92,EE90..LHD..5F *FRG OR SWEDEN SPEC & W(*HC) OR NORWAY SPEC,UPR |
1 | ||
| 82661-12150 |
AE92..LHD *FRG OR SWEDEN SPEC & W(*HC) OR NORWAY SPEC,UPR |
1 | ||
| 82661-12190 |
AE92..LHD..GTI *FRG OR SWEDEN SPEC OR NORWAY SPEC OR ICELAND SPEC,UPR |
1 | ||
| 82661-12160 |
AE92..LHD..GTI *FRG OR SWEDEN SPEC OR NORWAY SPEC OR ICELAND SPEC OR DENMARK SPEC,LWR |
1 | ||
| 82661-12160 |
AE92..LHD..GTI *FRG OR SWEDEN SPEC OR NORWAY SPEC OR ICELAND SPEC,LWR |
1 | ||
| 82661-12190 |
AE92..LHD..GTI *FRG OR SWEDEN SPEC OR NORWAY SPEC OR ICELAND SPEC OR DENMARK SPEC,UPR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12160 |
AE92..LHD..EFI *FRG OR SWEDEN SPEC & W(*HC) OR NORWAY SPEC,LWR |
1 | ||
| 82661-12150 |
AE92,EE90..LHD..5F *FRG OR SWEDEN SPEC & W(*HC) OR NORWAY SPEC,UPR |
1 | ||
| 82661-12150 |
AE92..LHD *FRG OR SWEDEN SPEC & W(*HC) OR NORWAY SPEC,UPR |
1 | ||
| 82661-12190 |
AE92..LHD..GTI *FRG OR SWEDEN SPEC OR NORWAY SPEC OR ICELAND SPEC,UPR |
1 | ||
| 82661-12160 |
AE92..LHD..GTI *FRG OR SWEDEN SPEC OR NORWAY SPEC OR ICELAND SPEC OR DENMARK SPEC,LWR |
1 | ||
| 82661-12160 |
AE92..LHD..GTI *FRG OR SWEDEN SPEC OR NORWAY SPEC OR ICELAND SPEC,LWR |
1 | ||
| 82661-12190 |
AE92..LHD..GTI *FRG OR SWEDEN SPEC OR NORWAY SPEC OR ICELAND SPEC OR DENMARK SPEC,UPR |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-12080 |
AE92,CE90..DSL,EFI |
1 | ||
| 82671-12090 |
AE92..LHD *FRG OR NORWAY SPEC OR SWEDEN SPEC |
1 | ||
| 82671-12090 |
AE92..LHD..GTI *FRG OR SWEDEN SPEC OR NORWAY SPEC OR ICELAND SPEC |
1 | ||
| 82671-12080 |
AE92,CE90,EE90..DSL,EFI |
1 | ||
| 82671-12090 |
AE92..LHD..GTI *FRG OR SWEDEN SPEC OR NORWAY SPEC OR ICELAND SPEC OR DENMARK SPEC |
1 | ||
| 82671-12080 |
AE92,CE90,EE90..DSL,EFI |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12020 |
AE92,CE90..DSL,EFI UPR |
1 | ||
| 82672-12070 |
AE92,CE90,EE90 LWR |
1 | ||
| 82672-12040 |
AE92..LHD *FRG OR SWEDEN SPEC OR NORWAY SPEC,UPR |
1 | ||
| 82672-12070 |
AE92,CE90,EE90 LWR |
1 | ||
| 82672-12070 |
AE92,CE90,EE90 LWR |
1 | ||
| 82672-12150 |
AE92,CE90,EE90..DSL,EFI UPR |
1 | ||
| 82672-12160 |
AE92..LHD..GTI *FRG OR SWEDEN SPEC OR NORWAY SPEC OR ICELAND SPEC OR DENMARK SPEC,UPR |
1 | ||
| 82672-12160 |
AE92..LHD..GTI *FRG OR SWEDEN SPEC OR NORWAY SPEC OR ICELAND SPEC,UPR |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12020 |
AE92,CE90..DSL,EFI UPR |
1 | ||
| 82672-12070 |
AE92,CE90,EE90 LWR |
1 | ||
| 82672-12040 |
AE92..LHD *FRG OR SWEDEN SPEC OR NORWAY SPEC,UPR |
1 | ||
| 82672-12070 |
AE92,CE90,EE90 LWR |
1 | ||
| 82672-12070 |
AE92,CE90,EE90 LWR |
1 | ||
| 82672-12150 |
AE92,CE90,EE90..DSL,EFI UPR |
1 | ||
| 82672-12160 |
AE92..LHD..GTI *FRG OR SWEDEN SPEC OR NORWAY SPEC OR ICELAND SPEC OR DENMARK SPEC,UPR |
1 | ||
| 82672-12160 |
AE92..LHD..GTI *FRG OR SWEDEN SPEC OR NORWAY SPEC OR ICELAND SPEC,UPR |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
AE92,CE90..(GTI,STD,XL)..(DSL,EFI) |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-14023 |
AE92..GTI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
AE92..GTI |
1 | ||
| 85335 - SWITCH ASSY, WASHER LEVEL WARNING | ||||
| 85335-12750 |
AE92..LHD..GTI |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
AE92,CE90,EE90 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
AE92,CE90,EE90 HEAD |
1 | ||
| 90987-02006 |
AE92,CE90,EE90 HEAD |
1 | ||
| 90987-02002 |
AE92,CE90,EE90 MARUKO,TAIL |
1 | ||
| 90987-02004 |
AE92,CE90,EE90 NIPPONDENSO,TAIL |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-03001 |
AE92,CE90,EE90 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-30020 |
AE92,EE90..LHD..5F |
1 | ||
| 85926-30020 |
AE92..LHD..GTI |
1 | ||
| 85926-30020 |
AE92..LHD |
1 | ||
| 85926-30020 |
AE92..LHD..GTI |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02004 |
AE92,CE90,EE90 NIPPONDENSO |
1 | ||
| 90987-02002 |
AE92,CE90,EE90 MARUKO |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-15011 |
AE92 |
1 | ||
| 89428-15011 |
AE92 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-19295 |
AE92..LHD..EFI |
1 | ||
| 89465-19366 |
AE92..LHD..GTI |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-12020 |
AE92..LHD |
1 | ||
| 89466-12020 |
AE92..LHD..EFI |
1 | ||
| 89466-12010 |
AE92..LHD |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-12040 |
AE92..GTI MATSUSITA |
1 | ||
| 89615-12020 |
AE92..GTI |
1 | ||
| 89615-12050 |
AE92..GTI NIPPONDENSO |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-12020 |
AE92..LHD..GTI EX.EMISSION CONTROL(U583) |
1 | ||
| 89621-12010 |
AE92..GTI |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-12040 |
AE92..LHD..GTI |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 90119-06005 | ||||
| 90119-06157 | ||||
| 90179-06009 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
ILLUST NO. 2 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80001 |
AE92,CE90,EE90..LHD MATSUSHITA |
1 | ||
| 84112-80002 |
AE92,CE90,EE90..LHD TOKAIRIKA |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-12070 |
AE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20082 |
AE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09167 |
AE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12250 |
AE92,CE90,EE90..LHD MATSUSHITA |
1 | ||
| 84140-12260 |
AE92,CE90,EE90..LHD TOKAIRIKA |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84162-1204001 |
AE92,CE90,EE90..LHD..(GTI,STD) BLACK,TRIM1# |
1 | ||
| 84162-1205001 |
AE92..LHD..EFI W(*EL),BLACK,TRIM1# |
1 | ||
| 84162-1207001 |
AE92..LHD..(GTI,SR5) BLACK,TRIM1# |
1 | ||
| 84162-1204001 |
AE92..LHD..EFI W(*PW & *EL),BLACK,TRIM1# |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-10170 |
AE92,CE90,EE90 12V 1.12W |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-1A280 |
AE92..LHD..EFI |
1 | ||
| 84310-1A440 |
AE92..LHD..GTI |
1 | ||
| 84310-1A120 |
AE92,CE90,EE90..LHD W(INTERMITTENT WIPER,WASHER-INTERLINKED) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12050 |
AE92,CE90,EE90 MATSUSHITA |
1 | ||
| 84312-12040 |
AE92,CE90,EE90 TOKAIRIKA |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12030 |
AE92,CE90,EE90..LHD |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12270 |
AE92,CE90,EE90..LHD |
1 | ||
| 84332-12310 |
AE92,CE90,EE90..LHD |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10360 |
AE92,CE90,EE90..LHD 14V 1.4W,28V 1.12W |
1 | ||
| 84999-10090 |
AE92,CE90..LHD..(GL,GTI,XL) 12V 1.8W,14V,1.8W |
1 | ||
| 84999-10100 |
AE92,CE90..LHD..(GL,GTI,XL) 24V 1.12W,28V,1.12W |
1 | ||
| 84999-10370 |
AE92,CE90,EE90..LHD 28V 1.12W,14V 1.4W |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12150 |
AE92,CE90,EE90 |
1 | ||
| 84560 - SWITCH ASSY, FUEL VALVE CONTROL | ||||
| 84560-12010 |
AE92..LHD..EFI |
1 | ||
| 84561 - KNOB, FUEL CONTROL SWITCH | ||||
| 84561-12020 |
AE92..LHD..EFI |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12840 |
AE92..LHD..EFI TOKAIRIKA |
1 | ||
| 84652-12830 |
AE92..LHD..EFI MATSUSHITA |
1 | ||
| 84652-1A050 |
AE92..LHD..GTI TOKAIRIKA |
1 | ||
| 84652-12850 |
AE92,CE90,EE90..LHD W(WASHER LINKED INTERMITTENT WIPER),MATSUSHITA |
1 | ||
| 84652-12860 |
AE92,CE90,EE90..LHD W(WASHER LINKED INTERMITTENT WIPER),TOKAIRIKA |
1 | ||
| 84652-1A030 |
AE92..LHD..GTI MATSUSHITA |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-12100 |
AE92,CE90..LHD..(DSL,EFI) |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12270 |
AE92,CE90,EE90..LHD |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AE92,CE90,EE90 14V 1.4W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-1225001 |
AE92,CE90,EE90..LHD..(GTI,STD) W(*HC),BLACK,TRIM1# |
1 | ||
| 84790-1229001 |
AE92..GTI,SR5 BLACK,TRIM1# |
1 | ||
| 84790-1230001 |
AE92..LHD..(GTI,SR5) W(*HC),BLACK,TRIM1# |
1 | ||
| 84790-1223001 |
CE90,EE90..RHD;AE92,CE90,EE90..GTI,STD BLACK,TRIM1# |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10170 |
AE92,CE90,EE90 12V 1.12W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
AE92,CE90,EE90 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10230 |
AE92,CE90,EE90 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
AE92,CE90,EE90 |
1 | ||
| 85513-12010 |
AE92,CE90,EE90 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12010 |
AE92,CE90,EE90 |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90149-40013 | ||||
| 90167-50020 | ||||
| 90179-13003 | ||||
| 90463-15402 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||
| 93567-55016 | ||||
ILLUST NO. 3 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AE92,CE90,EE90 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE92,CE90,EE90 15A |
1 | ||
| 90982-09005 |
AE92,CE90,EE90 7.5A |
1 | ||
| 90982-09002 |
AE92,CE90,EE90 10A |
1 | ||
| 90982-07011 |
AE92,CE90,EE90 30A,GREEN |
1 | ||
| 90982-09003 |
AE92,CE90,EE90 15A |
1 | ||
| 90982-09005 |
AE92,CE90,EE90 7.5A |
1 | ||
| 90982-07011 |
AE92,CE90,EE90 30A,GREEN |
1 | ||
| 90982-07011 |
AE92,CE90,EE90 30A,GREEN |
1 | ||
| 90982-09002 |
AE92,CE90,EE90 10A |
1 | ||
| 90982-09004 |
AE92,CE90,EE90 20A,YELLOW |
1 | ||
| 90982-09002 |
AE92,CE90,EE90 10A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE92,CE90,EE90 15A |
1 | ||
| 90982-09005 |
AE92,CE90,EE90 7.5A |
1 | ||
| 90982-09002 |
AE92,CE90,EE90 10A |
1 | ||
| 90982-07011 |
AE92,CE90,EE90 30A,GREEN |
1 | ||
| 90982-09003 |
AE92,CE90,EE90 15A |
1 | ||
| 90982-09005 |
AE92,CE90,EE90 7.5A |
1 | ||
| 90982-07011 |
AE92,CE90,EE90 30A,GREEN |
1 | ||
| 90982-07011 |
AE92,CE90,EE90 30A,GREEN |
1 | ||
| 90982-09002 |
AE92,CE90,EE90 10A |
1 | ||
| 90982-09004 |
AE92,CE90,EE90 20A,YELLOW |
1 | ||
| 90982-09002 |
AE92,CE90,EE90 10A |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-12010 |
AE92,CE90,EE90 |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 82642-12030 |
AE92..LHD..GTI NORWAY SPEC OR SWEDEN SPEC OR ICELAND SPEC |
1 | ||
| 82642-28010 |
AE92..LHD NORWAY SPEC OR SWEDEN SPEC |
1 | ||
| 82642-28010 |
AE92,EE90..LHD..5F NORWAY SPEC OR SWEDEN SPEC |
1 | ||
| 82642-12030 |
AE92..LHD..GTI SWEDEN SPEC OR NORWAY SPEC OR ICELAND SPEC OR DENMARK SPEC |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AE92,CE90,EE90 30A |
1 | ||
| 82650A - BREAKER ASSY, WIRING CIRCUIT, NO.2 | ||||
| 82650-20011 |
AE92;EE90..RHD..GL;EE90..RHD..5D;CE90,EE90..LHD..(GL,XL) 30A |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AE92,CE90,EE90 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
AE92,CE90,EE90..LHD NIPPONDENSO |
1 | ||
| 90987-02002 |
AE92,CE90,EE90..LHD MARUKO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
AE92,CE90,EE90 HEAD |
1 | ||
| 90987-02006 |
AE92,CE90,EE90 HEAD |
1 | ||
| 90987-02002 |
AE92,CE90,EE90 MARUKO,TAIL |
1 | ||
| 90987-02004 |
AE92,CE90,EE90 NIPPONDENSO,TAIL |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02002 |
AE92,CE90,EE90 MARUKO |
1 | ||
| 90987-02004 |
AE92,CE90,EE90 NIPPONDENSO |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02004 |
EE90..STD..EFI;AE92,CE90,EE90..5D;AE92,EE90..3D..(GL,GLI,GTI,SR5) NIPPONDENSO |
1 | ||
| 90987-02002 |
EE90..5D..XL;EE90..LHD..GL;AE92,CE90..5D;AE92..3D..(GL,GTI) MARUKO |
1 | ||
| 90987-02002 |
EE90..STD..EFI;AE92,CE90,EE90..5D;AE92,EE90..3D..(GL,GLI,GTI,SR5) MARUKO |
1 | ||
| 90987-02004 |
EE90..5D..XL;EE90..LHD..GL;AE92,CE90..5D;AE92..3D..(GL,GTI) NIPPONDENSO |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-12030 |
EE90..3FC..EFI;EE90..5D..5F..EFI;EE90..LHD..(GL,XL);AE92,CE90..LHD..(GL,GLI,GTI,SR5,XL,XLI) |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-12100 |
AE92..LHD..GTI |
1 | ||
| 85999-12100 |
AE92,EE90..LHD..5F |
1 | ||
| 85999-12100 |
AE92..LHD..GTI |
1 | ||
| 85999-12100 |
AE92..LHD |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-12090 |
AE92..LHD..GTI |
1 | ||
| 85999-12090 |
AE92..LHD..GTI |
1 | ||
| 85999-12090 |
AE92..LHD |
1 | ||
| 85999-12090 |
AE92,EE90..LHD..5F |
1 | ||
| Common parts | ||||
| 90119-06070 | ||||
| 90159-50138 | ||||
| 90159-50220 | ||||
| 90179-06070 | ||||
| 91655-40616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
