AE92L-AGMVFW (1987)
Toyota Corolla Hb

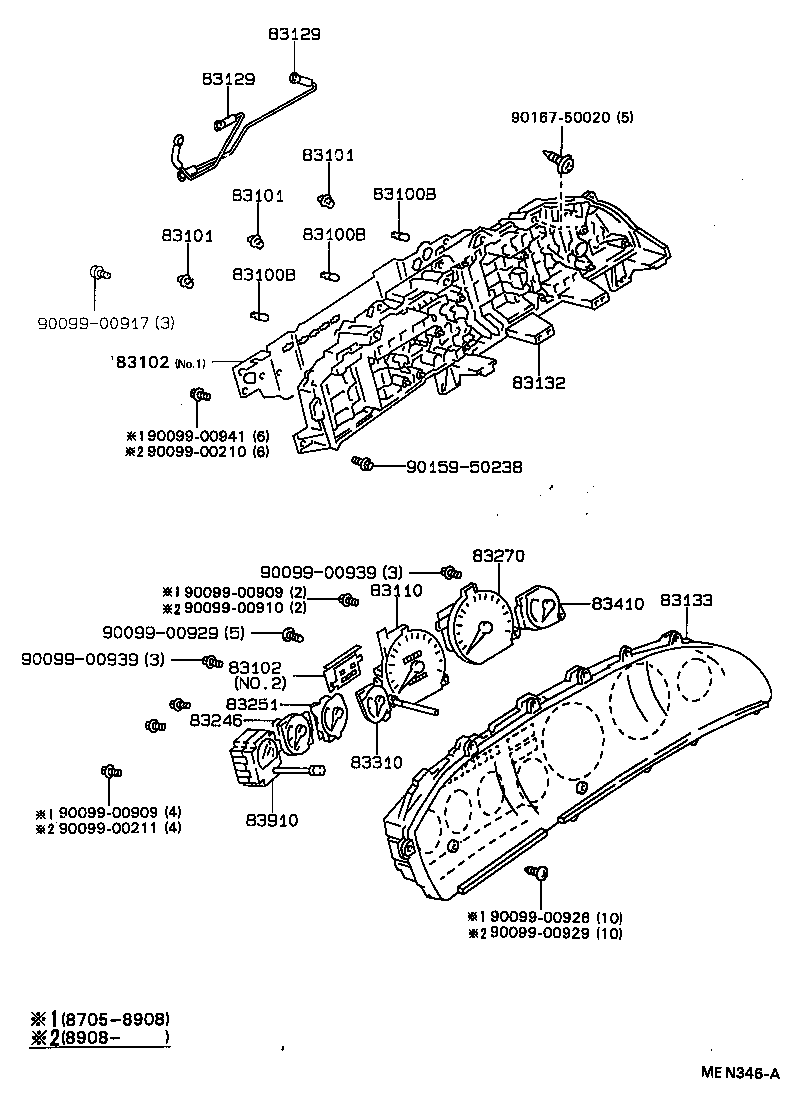

ILLUST NO. 1 OF 3(8705- )GTI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE92..EFI 12V 1.2W W/O SOCKET |
9 | ||
| 99132-12034 |
AE92..GTI 12V 3.4W |
1 | ||
| 90981-11018 |
AE92..LHD..GTI 12V 1.2W W/O SOCKET |
11 | ||
| 83109-12030 |
AE92..GTI 12V 3.4W,BLUE CAP |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE92..EFI 12V 1.2W W/O SOCKET |
9 | ||
| 99132-12034 |
AE92..GTI 12V 3.4W |
1 | ||
| 90981-11018 |
AE92..LHD..GTI 12V 1.2W W/O SOCKET |
11 | ||
| 83109-12030 |
AE92..GTI 12V 3.4W,BLUE CAP |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE92..EFI 12V 1.2W W/O SOCKET |
9 | ||
| 99132-12034 |
AE92..GTI 12V 3.4W |
1 | ||
| 90981-11018 |
AE92..LHD..GTI 12V 1.2W W/O SOCKET |
11 | ||
| 83109-12030 |
AE92..GTI 12V 3.4W,BLUE CAP |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE92..EFI 14V 1.4W BULB |
9 | ||
| 83101-14040 |
AE92..LHD..GTI 14V 1.4W BULB |
11 | ||
| 83101-14030 |
AE92..GTI 12V 3.4W BULB |
5 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE92..EFI 14V 1.4W BULB |
9 | ||
| 83101-14040 |
AE92..LHD..GTI 14V 1.4W BULB |
11 | ||
| 83101-14030 |
AE92..GTI 12V 3.4W BULB |
5 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE92..EFI 14V 1.4W BULB |
9 | ||
| 83101-14040 |
AE92..LHD..GTI 14V 1.4W BULB |
11 | ||
| 83101-14030 |
AE92..GTI 12V 3.4W BULB |
5 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1E220 |
AE92..LHD..EFI NO.2 |
1 | ||
| 83247-1E120 |
AE92..LHD..EFI NO.1 |
1 | ||
| 83247-1E221 |
AE92..LHD..GTI NO.2 |
1 | ||
| 83247-1E121 |
AE92..LHD..GTI NO.1 |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1E220 |
AE92..LHD..EFI NO.2 |
1 | ||
| 83247-1E120 |
AE92..LHD..EFI NO.1 |
1 | ||
| 83247-1E221 |
AE92..LHD..GTI NO.2 |
1 | ||
| 83247-1E121 |
AE92..LHD..GTI NO.1 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1E120 |
AE92..LHD..EFI |
1 | ||
| 83110-1E121 |
AE92..LHD..GTI |
1 | ||
| 83129 - WIRE, METER | ||||
| 83129-12050 |
AE92..LHD..GTI L=75,RED |
1 | ||
| 83129-12070 |
AE92..LHD..GTI L=195,BLACK |
1 | ||
| 83129 - WIRE, METER | ||||
| 83129-12050 |
AE92..LHD..GTI L=75,RED |
1 | ||
| 83129-12070 |
AE92..LHD..GTI L=195,BLACK |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1A170 |
AE92..LHD..EFI |
1 | ||
| 83132-1A171 |
AE92..LHD..GTI |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1E830 |
AE92..LHD..GTI |
1 | ||
| 83133-1A390 |
AE92..LHD..EFI |
1 | ||
| 83246 - GAUGE, OIL PRESSURE RECEIVER | ||||
| 83246-12191 |
AE92..LHD..GTI |
1 | ||
| 83246-12190 |
AE92..LHD..EFI |
1 | ||
| 83251 - METER, VOLTAGE | ||||
| 83251-12091 |
AE92..LHD..GTI |
1 | ||
| 83251-12090 |
AE92..LHD..EFI |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-1A810 |
AE92..LHD..EFI |
1 | ||
| 83242-1A811 |
AE92..LHD..GTI |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-1A170 |
AE92..LHD..EFI |
1 | ||
| 83243-1A171 |
AE92..LHD..GTI |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1A570 |
AE92..LHD..EFI |
1 | ||
| 83244-1A571 |
AE92..LHD..GTI |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12440 |
AE92..GTI |
1 | ||
| Common parts | ||||
| 90099-00210 | ||||
| 90099-00211 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00917 | ||||
| 90099-00926 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90099-00941 | ||||
| 90159-50238 | ||||
| 90167-50020 | ||||
ILLUST NO. 3 OF 3(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83391D - SWITCH, VACUUM | ||||
| 83391-16020 |
AE92,EE90..LHD |
1 | ||
| 83391-16020 |
AE92,EE90 |
1 | ||
| 83391D - SWITCH, VACUUM | ||||
| 83391-16020 |
AE92,EE90..LHD |
1 | ||
| 83391-16020 |
AE92,EE90 |
1 | ||
| 83391D - SWITCH, VACUUM | ||||
| 83391-16020 |
AE92,EE90..LHD |
1 | ||
| 83391-16020 |
AE92,EE90 |
1 | ||
| 83399B - BRACKET, VACUUM SWITCH | ||||
| 83399-12150 |
AE92..LHD..GTI W(PS) |
1 | ||
| 83399-12140 |
AE92,EE90 |
1 | ||
| 83399-12140 |
AE92,EE90..LHD |
1 | ||
| 83399B - BRACKET, VACUUM SWITCH | ||||
| 83399-12150 |
AE92..LHD..GTI W(PS) |
1 | ||
| 83399-12140 |
AE92,EE90 |
1 | ||
| 83399-12140 |
AE92,EE90..LHD |
1 | ||
| 83399B - BRACKET, VACUUM SWITCH | ||||
| 83399-12150 |
AE92..LHD..GTI W(PS) |
1 | ||
| 83399-12140 |
AE92,EE90 |
1 | ||
| 83399-12140 |
AE92,EE90..LHD |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 90999-92002 |
AE92,EE90 *H,L=300 |
1 | ||
| 90999-92003 |
AE92..LHD..GTI L=600 |
1 | ||
| 90999-92002 |
EE90..EFI;AE92..LHD..GTI *H,L=300 |
1 | ||
| 95411-10039 |
AE92..EFI *H,L=390,MARK=#0 |
1 | ||
| 95411-10039 |
AE92..LHD..GTI *H,L=390,MARK=#0 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 90999-92002 |
AE92,EE90 *H,L=300 |
1 | ||
| 90999-92003 |
AE92..LHD..GTI L=600 |
1 | ||
| 90999-92002 |
EE90..EFI;AE92..LHD..GTI *H,L=300 |
1 | ||
| 95411-10039 |
AE92..EFI *H,L=390,MARK=#0 |
1 | ||
| 95411-10039 |
AE92..LHD..GTI *H,L=390,MARK=#0 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 90999-92002 |
AE92,EE90 *H,L=300 |
1 | ||
| 90999-92003 |
AE92..LHD..GTI L=600 |
1 | ||
| 90999-92002 |
EE90..EFI;AE92..LHD..GTI *H,L=300 |
1 | ||
| 95411-10039 |
AE92..EFI *H,L=390,MARK=#0 |
1 | ||
| 95411-10039 |
AE92..LHD..GTI *H,L=390,MARK=#0 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 90999-92002 |
AE92,EE90 *H,L=300 |
1 | ||
| 90999-92003 |
AE92..LHD..GTI L=600 |
1 | ||
| 90999-92002 |
EE90..EFI;AE92..LHD..GTI *H,L=300 |
1 | ||
| 95411-10039 |
AE92..EFI *H,L=390,MARK=#0 |
1 | ||
| 95411-10039 |
AE92..LHD..GTI *H,L=390,MARK=#0 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 90999-92002 |
AE92,EE90 *H,L=300 |
1 | ||
| 90999-92003 |
AE92..LHD..GTI L=600 |
1 | ||
| 90999-92002 |
EE90..EFI;AE92..LHD..GTI *H,L=300 |
1 | ||
| 95411-10039 |
AE92..EFI *H,L=390,MARK=#0 |
1 | ||
| 95411-10039 |
AE92..LHD..GTI *H,L=390,MARK=#0 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 90999-92002 |
AE92,EE90 *H,L=300 |
1 | ||
| 90999-92003 |
AE92..LHD..GTI L=600 |
1 | ||
| 90999-92002 |
EE90..EFI;AE92..LHD..GTI *H,L=300 |
1 | ||
| 95411-10039 |
AE92..EFI *H,L=390,MARK=#0 |
1 | ||
| 95411-10039 |
AE92..LHD..GTI *H,L=390,MARK=#0 |
1 | ||
| 83550B - UNION OR WAY, ED MONITOR GAGE | ||||
| 90412-05001 |
EE90..EFI;AE92..LHD..GTI |
1 | ||
| 90412-05001 |
AE92,EE90 |
1 | ||
| 83550B - UNION OR WAY, ED MONITOR GAGE | ||||
| 90412-05001 |
EE90..EFI;AE92..LHD..GTI |
1 | ||
| 90412-05001 |
AE92,EE90 |
1 | ||
| 83550B - UNION OR WAY, ED MONITOR GAGE | ||||
| 90412-05001 |
EE90..EFI;AE92..LHD..GTI |
1 | ||
| 90412-05001 |
AE92,EE90 |
1 | ||
| Common parts | ||||
| 90119-06053 | ||||
| 90464-00082 | ||||
| 90464-00151 | ||||
| 90464-00175 | ||||
ILLUST NO. 3 OF 3(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83391D - SWITCH, VACUUM | ||||
| 83391-16020 |
AE92,EE90..LHD |
1 | ||
| 83391-16020 |
AE92,EE90 |
1 | ||
| 83399B - BRACKET, VACUUM SWITCH | ||||
| 83399-12150 |
AE92..LHD..GTI W(PS) |
1 | ||
| 83399-12140 |
AE92,EE90 |
1 | ||
| 83399-12140 |
AE92,EE90..LHD |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 90999-92002 |
AE92,EE90 *H,L=300 |
1 | ||
| 90999-92003 |
AE92..LHD..GTI L=600 |
1 | ||
| 90999-92002 |
EE90..EFI;AE92..LHD..GTI *H,L=300 |
1 | ||
| 95411-10039 |
AE92..EFI *H,L=390,MARK=#0 |
1 | ||
| 95411-10039 |
AE92..LHD..GTI *H,L=390,MARK=#0 |
1 | ||
| Common parts | ||||
| 90119-06053 | ||||
ILLUST NO. 2 OF 3(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12460 |
AE92,CE90,EE90 |
1 | ||
| 83710-12461 |
AE92,CE90,EE90 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12460 |
AE92,CE90,EE90 |
1 | ||
| 83710-12461 |
AE92,CE90,EE90 |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-12450 |
AE92,CE90,EE90..LHD |
1 | ||
| 83710-12620 |
AE92,CE90,EE90..LHD |
1 | ||
| 83710-12451 |
AE92,CE90,EE90..LHD |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-12450 |
AE92,CE90,EE90..LHD |
1 | ||
| 83710-12620 |
AE92,CE90,EE90..LHD |
1 | ||
| 83710-12451 |
AE92,CE90,EE90..LHD |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 83791-12060 | ||||
| 91561-40614 | ||||
