AE92L-AGMVFW (1987)

Toyota Corolla Hb

Production May 1987 - Nov 1992
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )AE92..LHD

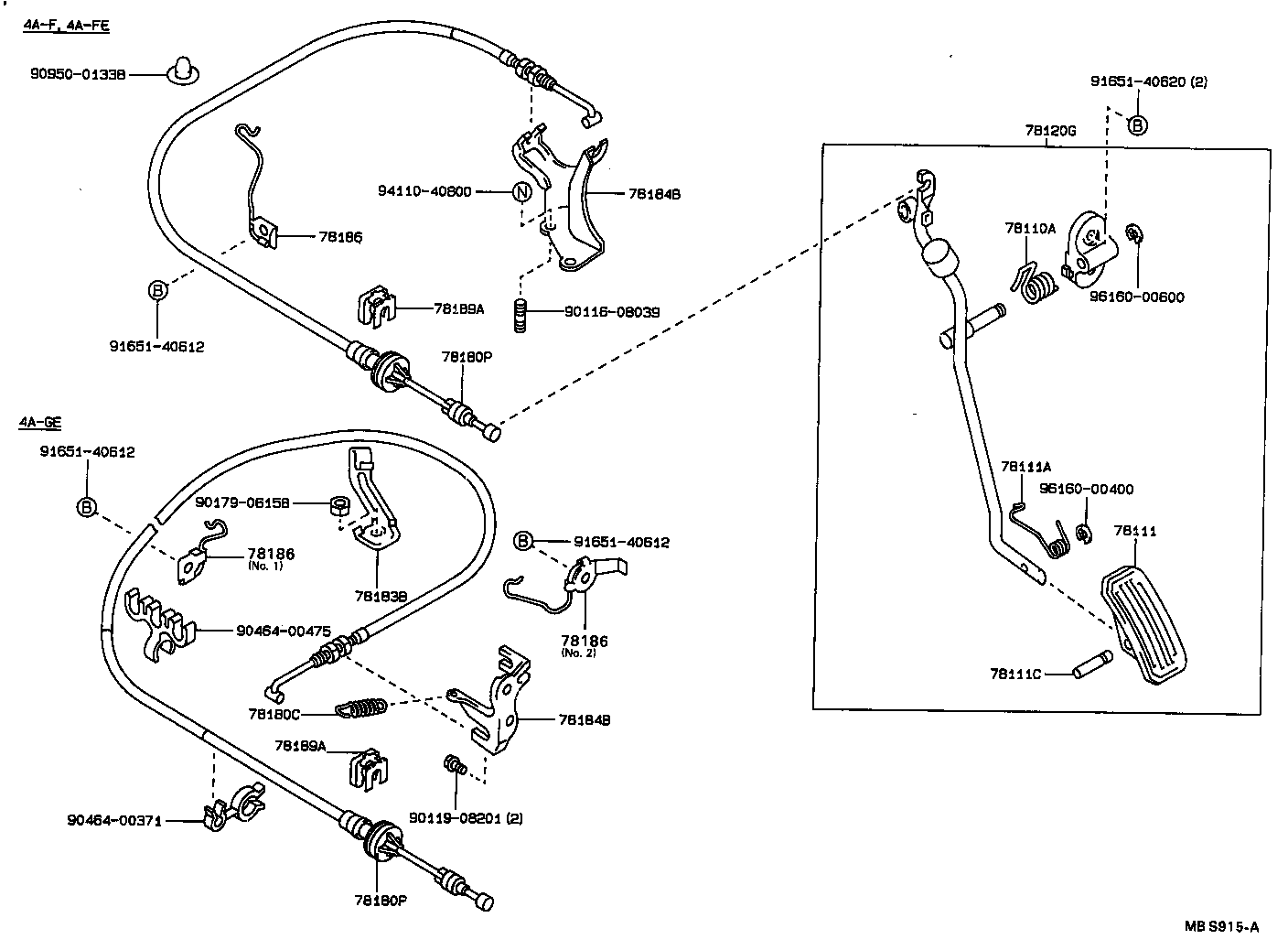

Click highlighted areas on diagram

diagram 78110A 78111 78111A 78111C 78120G 78180C 78180P 78180P 78183B 78184B 78184B 78186 78186 78186 78189A 78189A 9011608039 9011908201 9017906158 9046400371 9046400475 9095001338 9165140612 9165140612 9165140612 9165140620 9411040800 9616000400 9616000600
Part # Description Qty Price
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26036

AE92,CE90..(GTI,STD,XL)..(DSL,EFI)

 1
78111 - PEDAL, ACCELERATOR
78111-32010

AE92,CE90,EE90

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-20056

AE92,CE90,EE90

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

AE92,CE90,EE90

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-12110

AE92,CE90..LHD..(GTI,STD,XL)..(DSL,EFI)

 1
78180C - SPRING, TENSION (FOR ACCELERATOR WIRE)
90507-10016

AE92..GTI

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-1A030

AE92..LHD..GTI

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-1A030

AE92..LHD..GTI

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
35524-12050

AE92..LHD..GTI

 1
78183-12120

AE92..LHD..EFI

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-12220

AE92..GTI

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-12220

AE92..GTI

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-12240

AE92..LHD..GTI

NO.1

 1
78186-12250

AE92..LHD..GTI

NO.2

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-12240

AE92..LHD..GTI

NO.1

 1
78186-12250

AE92..LHD..GTI

NO.2

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-12240

AE92..LHD..GTI

NO.1

 1
78186-12250

AE92..LHD..GTI

NO.2

 1
78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2
78189-12030

AE92,CE90,EE90..LHD

 1
78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2
78189-12030

AE92,CE90,EE90..LHD

 1
Common parts
90116-08039
90119-08201
90179-06158
90464-00371
90464-00475
90950-01338
91651-40612
91651-40620
94110-40800
96160-00400
96160-00600
