AE92L-AGMVFW (1987)
Toyota Corolla Hb

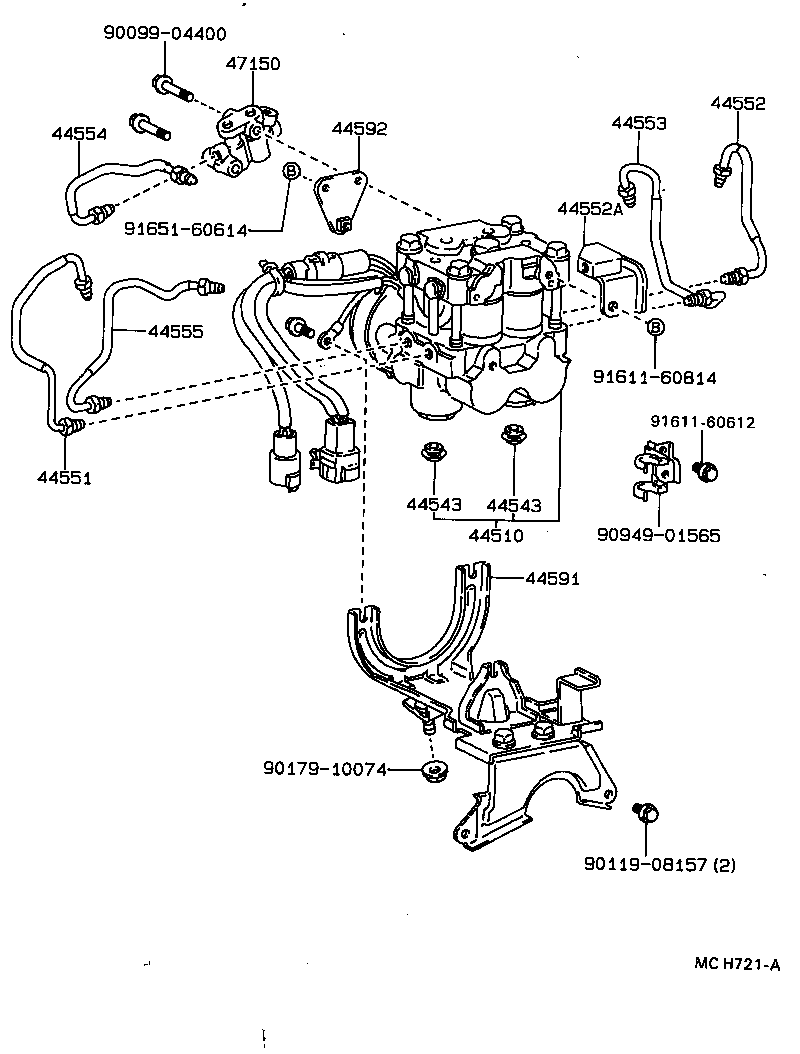

ILLUST NO. 2 OF 2(8908- )LHD..GTI
W(ANTI-LOCK BRAKE SYSTEM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-12010 |
AE92..LHD..GTI |
1 | ||
| 44543 - CAP, RUBBER | ||||
| 44543-14010 |
AE92..LHD..GTI |
2 | ||
| 44543 - CAP, RUBBER | ||||
| 44543-14010 |
AE92..LHD..GTI |
2 | ||
| 44551 - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-12020 |
AE92..LHD..GTI |
1 | ||
| 44552 - TUBE, BRAKE ACTUATOR, NO.2 | ||||
| 44552-12010 |
AE92..LHD..GTI |
1 | ||
| 44552A - WAY, NO.2(FOR BRAKE ACTUATOR) | ||||
| 90413-10215 |
AE92..LHD..GTI |
1 | ||
| 44553 - TUBE, BRAKE ACTUATOR, NO.3 | ||||
| 44553-12020 |
AE92..LHD..GTI |
1 | ||
| 44554 - TUBE, BRAKE ACTUATOR, NO.4 | ||||
| 44554-20030 |
AE92..LHD..GTI |
1 | ||
| 44555 - TUBE, BRAKE ACTUATOR, NO.5 | ||||
| 44555-12010 |
AE92..LHD..GTI |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-12010 |
AE92..LHD..GTI |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-20010 |
AE92..LHD..GTI |
1 | ||
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12070 |
AE92..EFI |
1 | ||
| 47150-20220 |
AE92..LHD..GTI W(*66) |
1 | ||
| 47150-12120 |
AE92..GTI |
1 | ||
| Common parts | ||||
| 90099-04400 | ||||
| 90119-08157 | ||||
| 90179-10074 | ||||
| 90949-01565 | ||||
| 91611-60612 | ||||
| 91611-60814 | ||||
| 91651-60614 | ||||

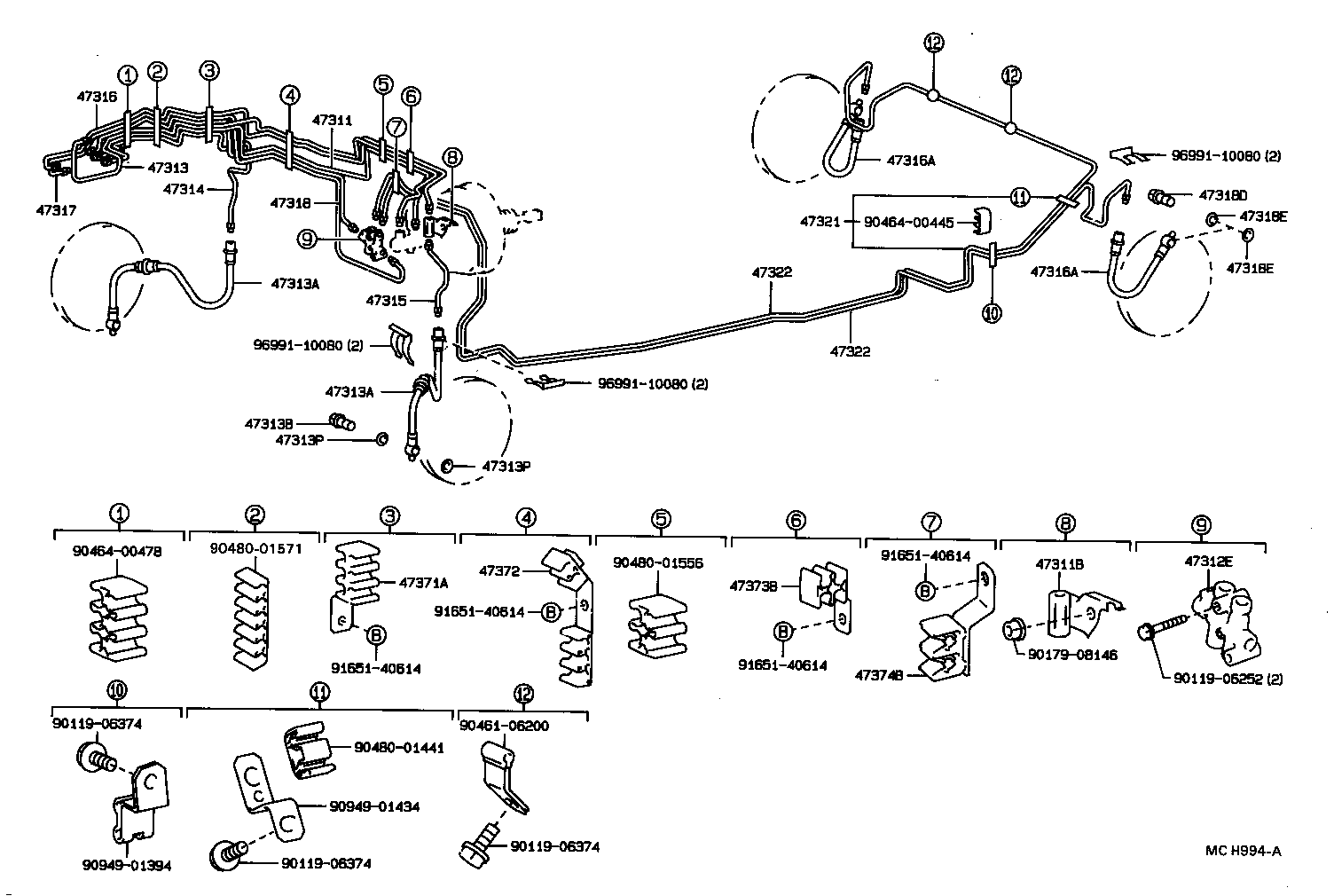

ILLUST NO. 1 OF 2(8908- )LHD..GTI
W(ANTI-LOCK BRAKE SYSTEM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12390 |
AE92,CE90,EE90..LHD |
1 | ||
| 47311-12420 |
AE92..LHD..GTI W(*66) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10160 |
AE92..LHD..GTI W(*66) |
1 | ||
| 90413-10159 |
AE92,CE90,EE90..LHD |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10140 |
AE92..LHD..GTI |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12190 |
AE92,CE90,EE90..LHD |
1 | ||
| 47313-12230 |
AE92..LHD..GTI W(*66) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02587 |
AE92..LHD..GTI W(*66) |
2 | ||
| 90947-02532 |
AE92,CE90,EE90 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02587 |
AE92..LHD..GTI W(*66) |
2 | ||
| 90947-02532 |
AE92,CE90,EE90 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
AE92,CE90,EE90 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE92,CE90,EE90 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE92,CE90,EE90 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12310 |
AE92..LHD..GTI W(*66) |
1 | ||
| 47314-12270 |
AE92,CE90,EE90..LHD |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12410 |
AE92,CE90,EE90..LHD |
1 | ||
| 47315-12440 |
AE92,CE90,EE90..LHD |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-12180 |
AE92..LHD..GTI |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02541 |
AE92..EFI |
2 | ||
| 90947-02541 |
AE92..GTI |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02541 |
AE92..EFI |
2 | ||
| 90947-02541 |
AE92..GTI |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-12030 |
AE92..LHD..GTI |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-12170 |
AE92..LHD..GTI |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
AE92..GTI |
2 | ||
| 90401-10015 |
AE92..LHD..EFI |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE92..GTI |
4 | ||
| 90430-10074 |
AE92..LHD..EFI |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE92..GTI |
4 | ||
| 90430-10074 |
AE92..LHD..EFI |
4 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-12050 |
AE92,CE90,EE90..LHD |
1 | ||
| 47321-12090 |
AE92..LHD..GTI W(*66) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-12250 |
AE92..LHD..GTI W(*66) |
1 | ||
| 47322-12200 |
AE92,CE90,EE90..LHD |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-12250 |
AE92..LHD..GTI W(*66) |
1 | ||
| 47322-12200 |
AE92,CE90,EE90..LHD |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-12010 |
AE92,CE90,EE90..LHD |
1 | ||
| 47371-12060 |
AE92..LHD..GTI W(*66) |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-12070 |
AE92..LHD..GTI |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-12080 |
AE92..LHD..GTI |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-12010 |
AE92..LHD..GTI |
1 | ||
| Common parts | ||||
| 90119-06252 | ||||
| 90119-06374 | ||||
| 90179-08146 | ||||
| 90461-06200 | ||||
| 90464-00445 | ||||
| 90464-00478 | ||||
| 90480-01441 | ||||
| 90480-01556 | ||||
| 90480-01571 | ||||
| 90949-01394 | ||||
| 90949-01434 | ||||
| 91651-40614 | ||||
| 96991-10080 | ||||
(8705- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12070 |
AE92..EFI |
1 | ||
| 47150-20220 |
AE92..LHD..GTI W(*66) |
1 | ||
| 47150-12120 |
AE92..GTI |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12390 |
AE92,CE90,EE90..LHD |
1 | ||
| 47311-12420 |
AE92..LHD..GTI W(*66) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10160 |
AE92..LHD..GTI W(*66) |
1 | ||
| 90413-10159 |
AE92,CE90,EE90..LHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-12260 |
AE92,CE90,EE90..LHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12190 |
AE92,CE90,EE90..LHD |
1 | ||
| 47313-12230 |
AE92..LHD..GTI W(*66) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02587 |
AE92..LHD..GTI W(*66) |
2 | ||
| 90947-02532 |
AE92,CE90,EE90 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02587 |
AE92..LHD..GTI W(*66) |
2 | ||
| 90947-02532 |
AE92,CE90,EE90 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
AE92,CE90,EE90 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE92,CE90,EE90 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE92,CE90,EE90 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12310 |
AE92..LHD..GTI W(*66) |
1 | ||
| 47314-12270 |
AE92,CE90,EE90..LHD |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12410 |
AE92,CE90,EE90..LHD |
1 | ||
| 47315-12440 |
AE92,CE90,EE90..LHD |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02541 |
AE92..EFI |
2 | ||
| 90947-02541 |
AE92..GTI |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02541 |
AE92..EFI |
2 | ||
| 90947-02541 |
AE92..GTI |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02541 |
AE92..EFI |
2 | ||
| 90947-02541 |
AE92..GTI |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
AE92..GTI |
2 | ||
| 90401-10015 |
AE92..LHD..EFI |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE92..GTI |
4 | ||
| 90430-10074 |
AE92..LHD..EFI |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE92..GTI |
4 | ||
| 90430-10074 |
AE92..LHD..EFI |
4 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-12050 |
AE92,CE90,EE90..LHD |
1 | ||
| 47321-12090 |
AE92..LHD..GTI W(*66) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-12250 |
AE92..LHD..GTI W(*66) |
1 | ||
| 47322-12200 |
AE92,CE90,EE90..LHD |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-12010 |
AE92,CE90,EE90..LHD |
1 | ||
| 47371-12060 |
AE92..LHD..GTI W(*66) |
1 | ||
| Common parts | ||||
| 90119-06252 | ||||
| 90119-06374 | ||||
| 90179-08146 | ||||
| 90461-06055 | ||||
| 90461-06118 | ||||
| 90461-06200 | ||||
| 90461-06211 | ||||
| 90464-00445 | ||||
| 90480-01441 | ||||
| 90949-01394 | ||||
| 90949-01434 | ||||
| 91651-40614 | ||||
| 96991-10080 | ||||
