AE92L-AGMVFW (1987)

Toyota Corolla Hb

Production May 1987 - Nov 1992
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )4AGE

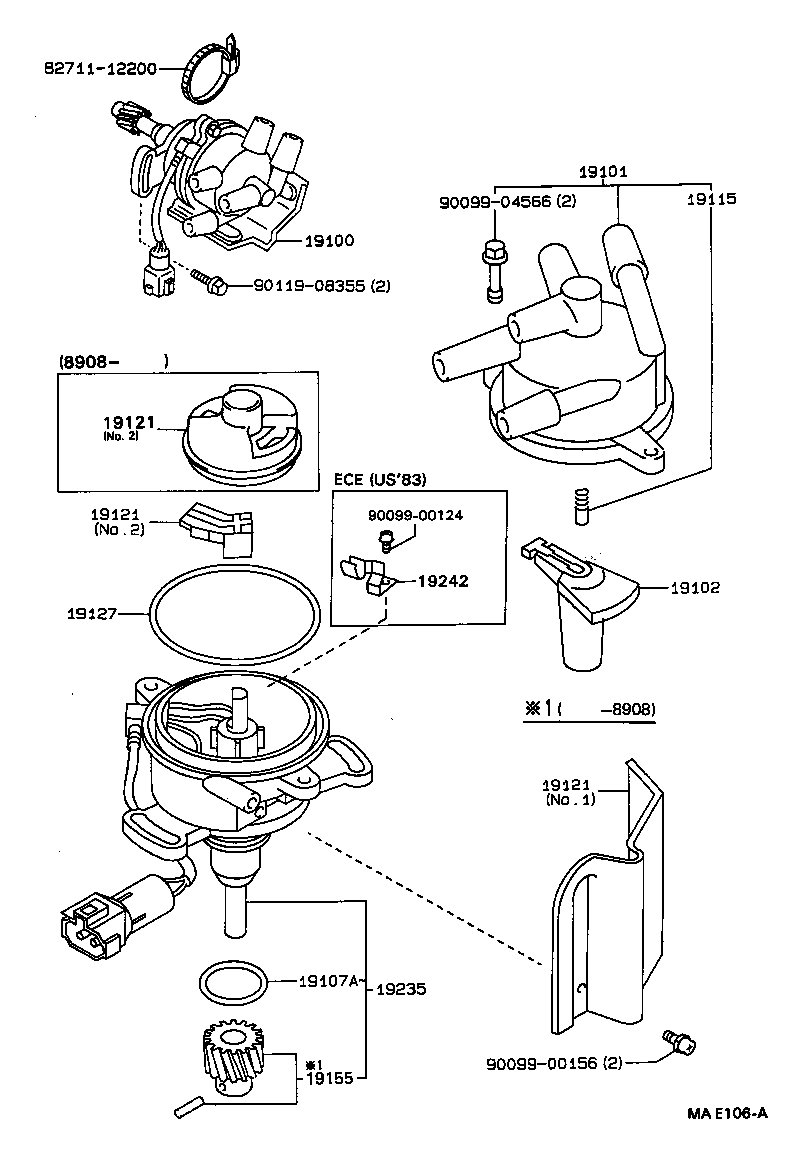

Click highlighted areas on diagram

diagram 19100 19101 19102 19107A 19115 19121 19121 19121 19127 19155 19235 19242 8271112200 9009900124 9009900156 9009904566 9011908355
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-16180

4AGE..AE92..LHD

EX. EMISSION CONTROL(US83)

 1
19100-16170

4AGE..AE92

 1
19100-16260

4AGE..AE92..LHD

EX. EMISSION CONTROL(US83)

 1
19100-16250

4AGE..AE92

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-16160

4AGE..AE92

 1
19101-16250

4AGE..AE92

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-16060

4AGE..AE92..LHD

EX. EMISSION CONTROL(US83)

 1
19102-11031

4AF#,4AGE..AE92

 1
19102-16060

4AGE..AE92

 1
19102-11031

4AF#,4AGE..AE92

 1
19107A - RING, O, DISTRIBUTOR HOUSING
96711-35030

4A#..AE92

 1
90099-14091

4AGE..AE92

 1
90099-14091

4AF#,4AGE..AE92

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

4AGE..AE92

 1
19121 - COVER, DUST PROOF
19121-16160

4AGE..AE92

NO.1

 1
19121-16090

4AGE..AE92

NO.1

 1
19121-16040

4AGE..AE92

NO.2

 1
19121-16080

4AGE..AE92..LHD

EX. EMISSION CONTROL(US83),NO.1

 1
19121-16150

4AGE..AE92

NO.2

 1
19121-16040

4AGE..AE92..LHD

EX. EMISSION CONTROL(US83),NO.2

 1
19121 - COVER, DUST PROOF
19121-16160

4AGE..AE92

NO.1

 1
19121-16090

4AGE..AE92

NO.1

 1
19121-16040

4AGE..AE92

NO.2

 1
19121-16080

4AGE..AE92..LHD

EX. EMISSION CONTROL(US83),NO.1

 1
19121-16150

4AGE..AE92

NO.2

 1
19121-16040

4AGE..AE92..LHD

EX. EMISSION CONTROL(US83),NO.2

 1
19121 - COVER, DUST PROOF
19121-16160

4AGE..AE92

NO.1

 1
19121-16090

4AGE..AE92

NO.1

 1
19121-16040

4AGE..AE92

NO.2

 1
19121-16080

4AGE..AE92..LHD

EX. EMISSION CONTROL(US83),NO.1

 1
19121-16150

4AGE..AE92

NO.2

 1
19121-16040

4AGE..AE92..LHD

EX. EMISSION CONTROL(US83),NO.2

 1
19127 - PACKING, DUST PROOF
19127-15021

4AGE..AE92

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-16040

4AGE..AE92

 1
19235 - HOUSING, DISTRIBUTOR
19235-16180

4AGE..AE92..LHD

EX. EMISSION CONTROL(US83)

 1
19235-16250

4AGE..AE92

 1
19235-16160

4AGE..AE92

 1
19235-16260

4AGE..AE92..LHD

EX. EMISSION CONTROL(US83)

 1
19242 - CLAMP, CORD
19242-16030

4AGE..AE92..LHD

 1
Common parts
82711-12200
90099-00124
90099-00156
90099-04566
90119-08355
