Toyota Corolla hb AE92 AIR CLEANER

AE92L-AGMVFW (1987)

Toyota Corolla Hb

Production May 1987 - Nov 1992

Engine 4AGE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

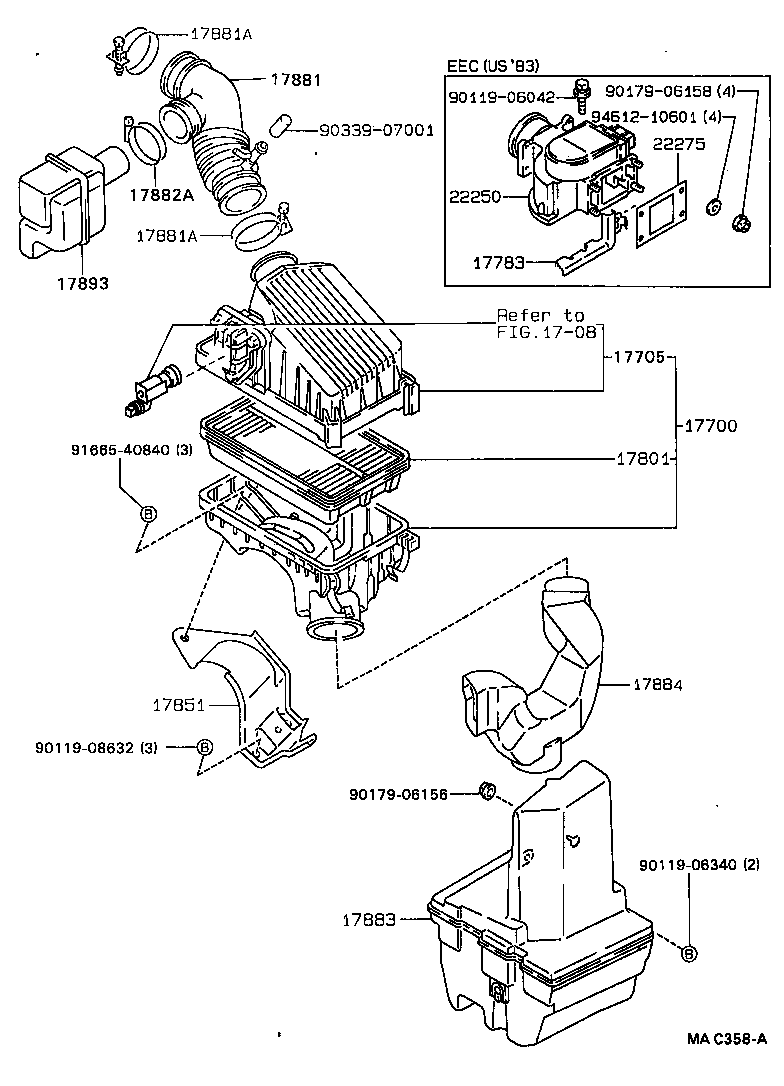

(8908- )4AGE

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-16370	4AGE..AE92	05/1987 - 08/1989	1
17700-16380	4AGE..AE92..LHD EX. EMISSION CONTROL(US83)	05/1987 - 08/1989	1
17700-16650	4AGE..AE92..LHD EX. EMISSION CONTROL(US83)	08/1989 - 12/1989	1
17700-16700	4AGE..AE92..LHD EX. EMISSION CONTROL(US83)	12/1989 - 11/1992	1
17700-16640	4AGE..AE92	08/1989 - 11/1992	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-16160	4AGE..AE92	05/1987 - 08/1989	1
17705-16330	4AGE..AE92..LHD EX. EMISSION CONTROL(US83)	08/1989 - 12/1989	1
17705-16170	4AGE..AE92..LHD EX. EMISSION CONTROL(US83)	05/1987 - 08/1989	1
17705-16400	4AGE..AE92..LHD EX. EMISSION CONTROL(US83)	12/1989 - 11/1992	1
17705-16320	4AGE..AE92	08/1989 - 11/1992	1
17783 - PLATE, AIR CLEANER BAFFLE
17783-16010	4AGE..AE92..LHD	08/1989 - 11/1992	1
17783-74020	4AGE..AE92..LHD	05/1987 - 08/1989	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-16020	4AGE..AE92	05/1987 - 08/1989	1
17801-74020	4AFE,4AGE..AE92	08/1989 - 11/1992	1
17801-16040	4AGE..AE92..LHD EX. EMISSION CONTROL(US83)	08/1989 - 11/1992	1
17851 - BRACKET, AIR CLEANER SUPPORT
17851-15010	4AFE,4AGE..AE92	05/1987 - 11/1992	1
17881 - HOSE, AIR CLEANER, NO.1
17881-16130	4AGE..AE92	05/1987 - 08/1989	1
17881-16130	4AGE..AE92..LHD EX. EMSSION CONTROL(US83)	08/1989 - 11/1992	1
17881-16240	4AGE..AE92	08/1989 - 11/1992	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800	4AGE..AE92	05/1987 - 05/1989	2
90460-80002	4AGE..AE92	05/1989 - 11/1992	2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800	4AGE..AE92	05/1987 - 05/1989	2
90460-80002	4AGE..AE92	05/1989 - 11/1992	2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-58003	4AGE..AE92	08/1989 - 11/1992	1
17883 - HOSE, AIR CLEANER, NO.3
17883-16040	4AGE..AE92	05/1987 - 05/1988	1
17883-16041	4AFE,4AGE..AE92	05/1988 - 11/1992	1
17884 - HOSE, AIR CLEANER, NO.4
17882-16100	4AGE..AE92	05/1987 - 08/1989	1
17882-16130	4AGE..AE92	08/1989 - 11/1992	1
17893 - RESONATOR, INTAKE AIR
17893-16040	4AGE..AE92	08/1989 - 11/1992	1
22250 - METER ASSY, INTAKE AIR FLOW
22250-16060	4AGE..AE92..LHD	05/1987 - 08/1989	1
22250-16100	4AGE..AE92..LHD	08/1989 - 11/1992	1
22275 - GASKET, AIR FLOW METER
22275-41010	4AGE..AE92..LHD	05/1987 - 11/1992	1
Common parts
90119-06042
90119-06340
90119-08632
90179-06156
90179-06158
90339-07001
91665-40840
94612-10601
Linked diagrams
1708

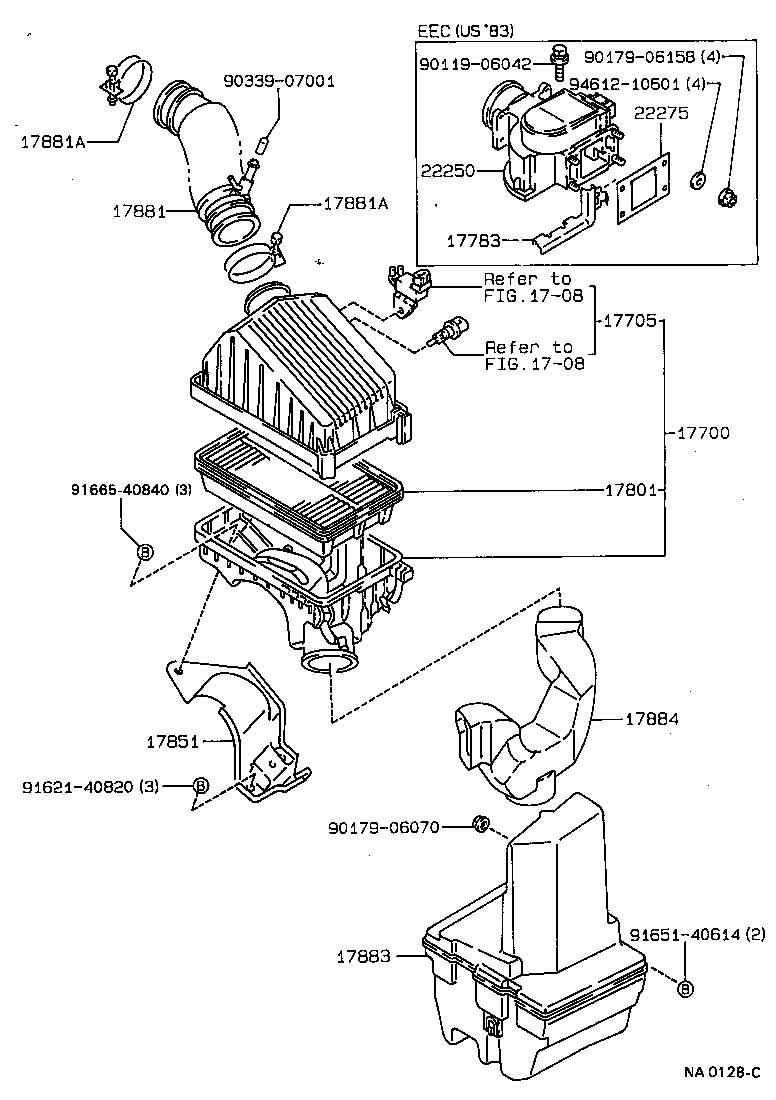

(8705-8908)4AGE

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-16370	4AGE..AE92	05/1987 - 08/1989	1
17700-16380	4AGE..AE92..LHD EX. EMISSION CONTROL(US83)	05/1987 - 08/1989	1
17700-16650	4AGE..AE92..LHD EX. EMISSION CONTROL(US83)	08/1989 - 12/1989	1
17700-16700	4AGE..AE92..LHD EX. EMISSION CONTROL(US83)	12/1989 - 11/1992	1
17700-16640	4AGE..AE92	08/1989 - 11/1992	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-16160	4AGE..AE92	05/1987 - 08/1989	1
17705-16330	4AGE..AE92..LHD EX. EMISSION CONTROL(US83)	08/1989 - 12/1989	1
17705-16170	4AGE..AE92..LHD EX. EMISSION CONTROL(US83)	05/1987 - 08/1989	1
17705-16400	4AGE..AE92..LHD EX. EMISSION CONTROL(US83)	12/1989 - 11/1992	1
17705-16320	4AGE..AE92	08/1989 - 11/1992	1
17783 - PLATE, AIR CLEANER BAFFLE
17783-16010	4AGE..AE92..LHD	08/1989 - 11/1992	1
17783-74020	4AGE..AE92..LHD	05/1987 - 08/1989	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-16020	4AGE..AE92	05/1987 - 08/1989	1
17801-74020	4AFE,4AGE..AE92	08/1989 - 11/1992	1
17801-16040	4AGE..AE92..LHD EX. EMISSION CONTROL(US83)	08/1989 - 11/1992	1
17851 - BRACKET, AIR CLEANER SUPPORT
17851-15010	4AFE,4AGE..AE92	05/1987 - 11/1992	1
17881 - HOSE, AIR CLEANER, NO.1
17881-16130	4AGE..AE92	05/1987 - 08/1989	1
17881-16130	4AGE..AE92..LHD EX. EMSSION CONTROL(US83)	08/1989 - 11/1992	1
17881-16240	4AGE..AE92	08/1989 - 11/1992	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800	4AGE..AE92	05/1987 - 05/1989	2
90460-80002	4AGE..AE92	05/1989 - 11/1992	2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800	4AGE..AE92	05/1987 - 05/1989	2
90460-80002	4AGE..AE92	05/1989 - 11/1992	2
17883 - HOSE, AIR CLEANER, NO.3
17883-16040	4AGE..AE92	05/1987 - 05/1988	1
17883-16041	4AFE,4AGE..AE92	05/1988 - 11/1992	1
17884 - HOSE, AIR CLEANER, NO.4
17882-16100	4AGE..AE92	05/1987 - 08/1989	1
17882-16130	4AGE..AE92	08/1989 - 11/1992	1
22250 - METER ASSY, INTAKE AIR FLOW
22250-16060	4AGE..AE92..LHD	05/1987 - 08/1989	1
22250-16100	4AGE..AE92..LHD	08/1989 - 11/1992	1
22275 - GASKET, AIR FLOW METER
22275-41010	4AGE..AE92..LHD	05/1987 - 11/1992	1
Common parts
90119-06042
90179-06070
90179-06158
90339-07001
91621-40820
91651-40614
91665-40840
94612-10601
Linked diagrams
1708

AE92L-AGMVFW (1987)

(8908- )4AGE

(8705-8908)4AGE
