AE92L-AGMVFW (1987)

Toyota Corolla Hb

Production May 1987 - Nov 1992
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )4AGE

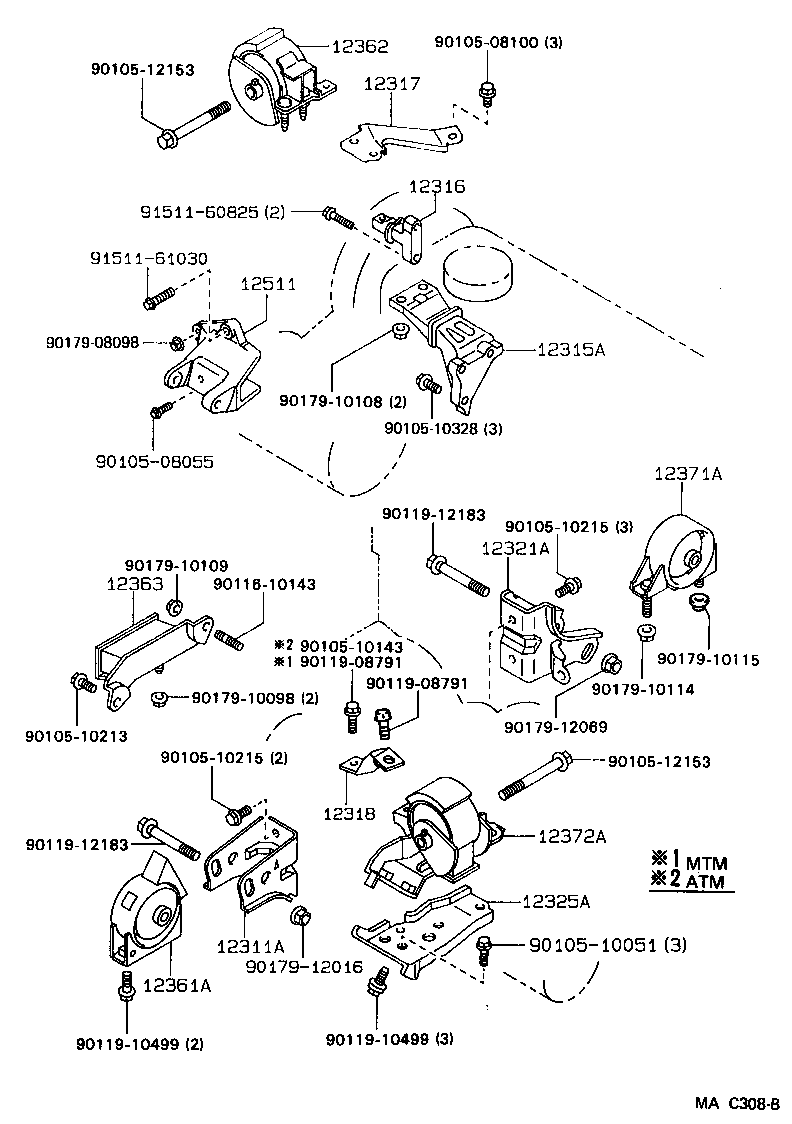

Click highlighted areas on diagram

diagram 12311A 12315A 12316 12317 12318 12321A 12325A 12361A 12362 12363 12371A 12372A 12511 9010508055 9010508100 9010510051 9010510143 9010510213 9010510215 9010510215 9010510328 9010512153 9010512153 9011610143 9011908791 9011908791 9011910499 9011910499 9011912183 9011912183 9017908098 9017910098 9017910108 9017910109 9017910114 9017910115 9017912016 9017912069 9151160825 9151161030
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-16040

4AF#,4AGE..AE92

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-16040

4AGE..AE92

 1
12316 - BRACKET, ENGINE MOUNTING, NO.2 RH
12316-16010

4AGE..AE92

 1
12317 - STAY, ENGINE MOUNTING, RH
12317-16010

4AGE..AE92

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-16010

4AF#,4AGE..AE92

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-15050

4AF#,4AGE..AE92

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-16060

4AF#,4AGE..AE92

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-16040

4AF#,4AGE..AE92

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-16070

4AGE..AE92

 1
12362-16150

4AGE..AE92

 1
12363 - INSULATOR, ENGINE MOUNTING, CENTER
12363-15020

4AF#,4AGE..AE92

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-16190

4AF#,4AGE..AE92

 1
12371-15200

4A#..AE92

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-16060

4AGE..AE92

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-16030

4AGE..AE92

 1
Common parts
90105-08055
90105-08100
90105-10051
90105-10143
90105-10213
90105-10215
90105-10328
90105-12153
90116-10143
90119-08791
90119-10499
90119-12183
90179-08098
90179-10098
90179-10108
90179-10109
90179-10114
90179-10115
90179-12016
90179-12069
91511-60825
91511-61030
