AE92L-AGMNUW (1987)

Toyota Corolla Hb

Production May 1987 - Aug 1989
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

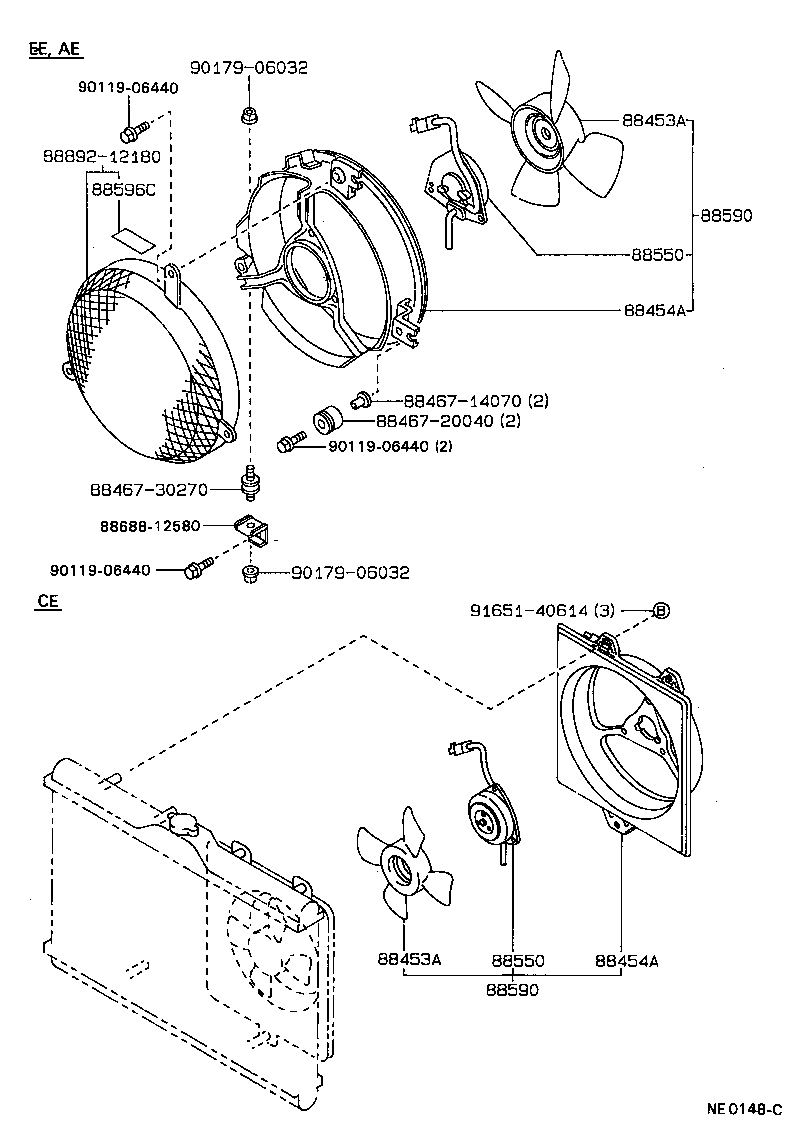

ILLUST NO. 2 OF 3(8705- )LHD

Click highlighted areas on diagram

diagram 88453A 88453A 88454A 88454A 8846714070 8846720040 8846730270 88550 88550 88590 88590 88596C 8868812580 8889212180 9011906440 9011906440 9011906440 9017906032 9017906032 9165140614
Part # Description Qty Price
88453A - FAN, COOLING
88453-12050

AE92,EE90..LHD..CBR

 1
88453A - FAN, COOLING
88453-12050

AE92,EE90..LHD..CBR

 1
88454A - SHROUD, FAN
88454-12100

AE92,EE90..LHD..CBR

 1
88454A - SHROUD, FAN
88454-12100

AE92,EE90..LHD..CBR

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12120

AE92,EE90..LHD..CBR

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12120

AE92,EE90..LHD..CBR

 1
88590 - BLOWER ASSY, W/SHROUD
88590-12170

AE92,EE90..LHD..CBR

 1
88590 - BLOWER ASSY, W/SHROUD
88590-12170

AE92,EE90..LHD..CBR

 1
88596C - PLATE, CAUTION, NO.2
88723-12030

AE92,CE90,EE90..LHD..(CBR,DSL)

 1
88723-12020

AE92,EE90..LHD..CBR

 1
Common parts
88467-14070
88467-20040
88467-30270
88688-12580
88892-12180
90119-06440
90179-06032
91651-40614

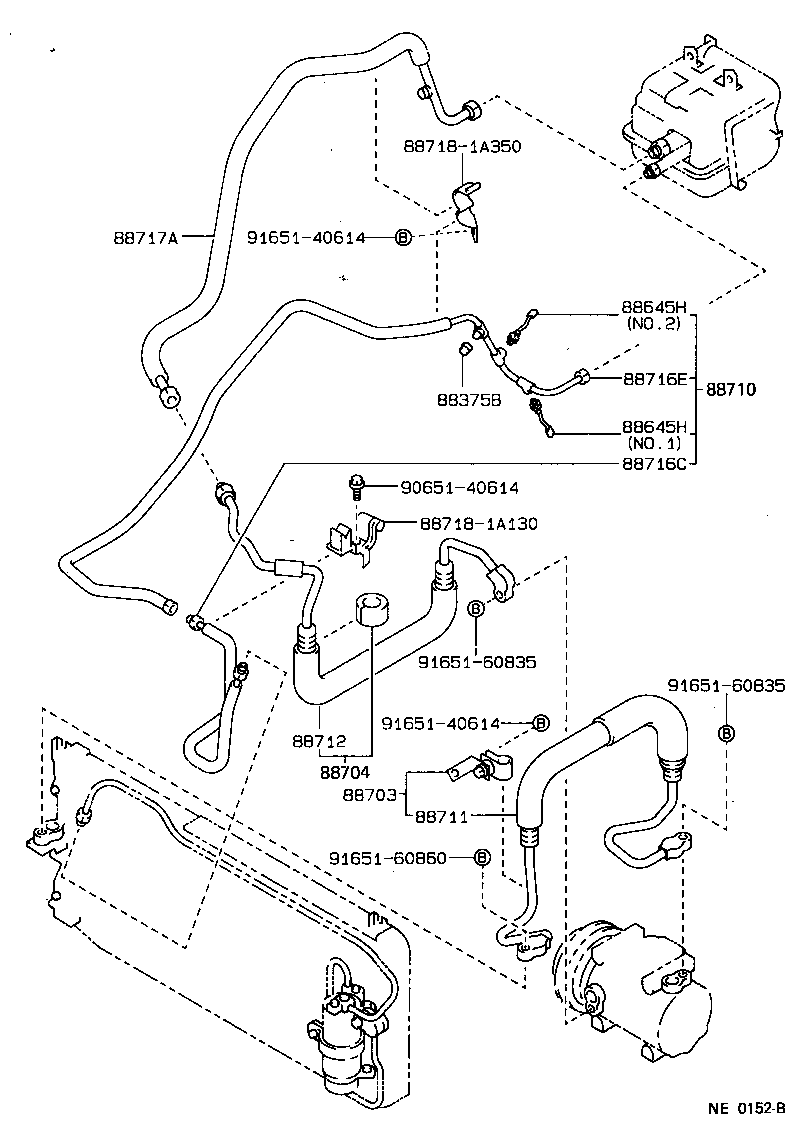

ILLUST NO. 3 OF 3(8705- )AE92..GL,SR5,XL

Click highlighted areas on diagram

diagram 88375B 88645H 88645H 88703 88704 88710 88711 88712 88716C 88716E 88717A 887181A130 887181A350 9065140614 9165140614 9165140614 9165160835 9165160835 9165160860
Part # Description Qty Price
88375B - CAP, SERVICE VALVE, NO.1
88375-20010

CE90..STD;AE92,EE90..LHD..CBR

 1
88645H - SWITCH, PRESSURE NO.1
88645-16050

CE90..STD;AE92,EE90..LHD..CBR

NO.2

 1
88645-10020

CE90..STD;AE92,EE90..LHD..CBR

NO.1

 1
88645-12030

CE90..STD;AE92,EE90..LHD..CBR

NO.2

 1
88645H - SWITCH, PRESSURE NO.1
88645-16050

CE90..STD;AE92,EE90..LHD..CBR

NO.2

 1
88645-10020

CE90..STD;AE92,EE90..LHD..CBR

NO.1

 1
88645-12030

CE90..STD;AE92,EE90..LHD..CBR

NO.2

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-12070

AE92..CBR

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-12070

AE92..CBR

 1
88704-12071

AE92..CBR

 1
88710 - TUBE ASSY, AIR CONDITIONER
88706-12031

CE90..STD;AE92,EE90..LHD..CBR

 1
88706-12032

CE90..STD;AE92,EE90..LHD..CBR

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12460

AE92..CBR

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-12650

AE92..CBR

 1
88712-12651

AE92..CBR

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88726-12291

CE90..STD;AE92,EE90..LHD..CBR

 1
88726-12290

CE90..STD;AE92,EE90..LHD..CBR

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-12270

CE90..STD;AE92,EE90..LHD..CBR

 1
88726-12271

CE90..STD;AE92,EE90..LHD..CBR

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-12410

AE92..CBR

 1
Common parts
88718-1A130
88718-1A350
90651-40614
91651-40614
91651-60835
91651-60860

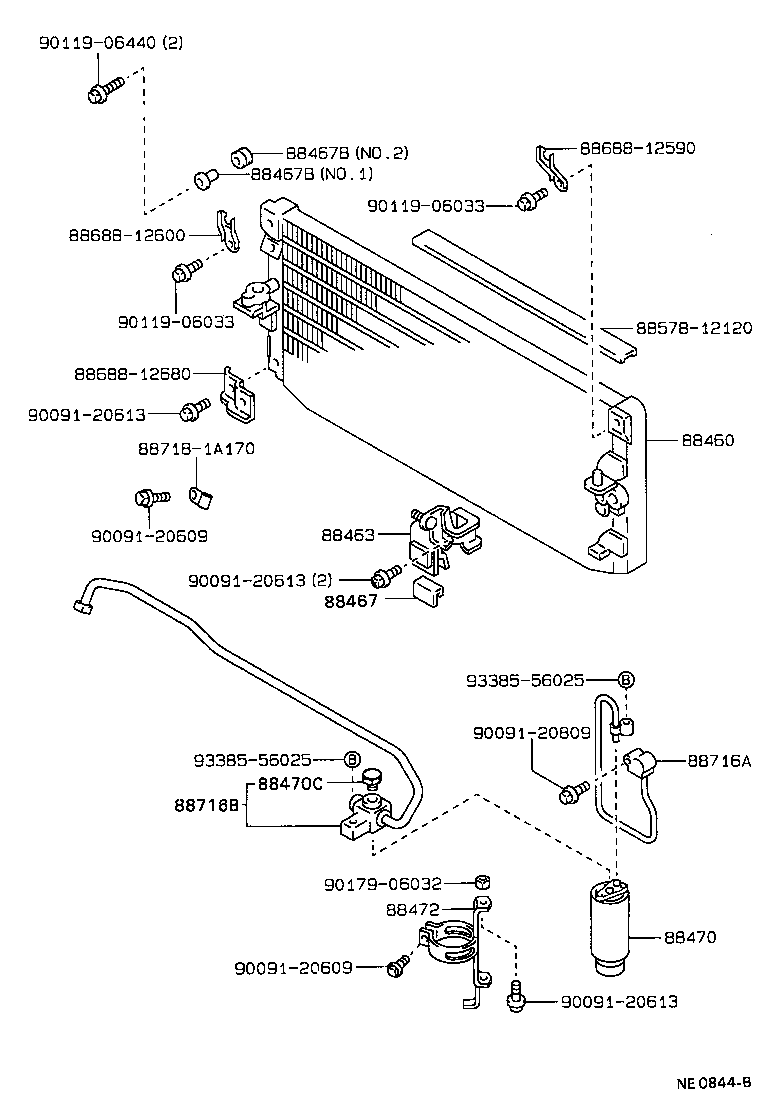

ILLUST NO. 1 OF 3(8705- )LHD

Click highlighted areas on diagram

diagram 88460 88463 88467 88467B 88467B 88470 88470C 88472 8857812120 8868812590 8868812600 8868812680 88716A 88716B 887181A170 9009120609 9009120609 9009120613 9009120613 9009120613 9009120809 9011906033 9011906033 9011906440 9017906032 9338556025 9338556025
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-12370

AE92,CE90,EE90..LHD..(CBR,DSL)

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-12040

AE92,CE90,EE90..LHD..(CBR,DSL)

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12080

AE92,CE90,EE90..LHD..(CBR,DSL)

 2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-14070

AE92,EE90..LHD..CBR

NO.1

 2
88467-20040

AE92,EE90..LHD..CBR

NO.2

 2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-14070

AE92,EE90..LHD..CBR

NO.1

 2
88467-20040

AE92,EE90..LHD..CBR

NO.2

 2
88470 - RECEIVER & DRYER ASSY, COOLER
88471-16040

AE92,CE90,EE90..LHD..(CBR,DSL)

L=187

 1
88471-12020

AE92,CE90,EE90..LHD..(CBR,DSL)

L=167

 1
88470C - BOLT, FUSE
88475-12020

AE92,CE90,EE90..LHD..(CBR,DSL)

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-12040

AE92,CE90,EE90..LHD..(CBR,DSL)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-12240

AE92,CE90,EE90..LHD..(CBR,DSL)

 1
88726-12340

AE92,CE90,EE90..LHD..(CBR,DSL)

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-12251

AE92,CE90,EE90..LHD..(CBR,DSL)

 1
88726-12250

AE92,CE90,EE90..LHD..(CBR,DSL)

 1
Common parts
88578-12120
88688-12590
88688-12600
88688-12680
88718-1A170
90091-20609
90091-20613
90091-20809
90119-06033
90119-06440
90179-06032
93385-56025
