AE92L-AGMNKW (1989)

Toyota Corolla Hb

Production Aug 1989 - May 1992
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

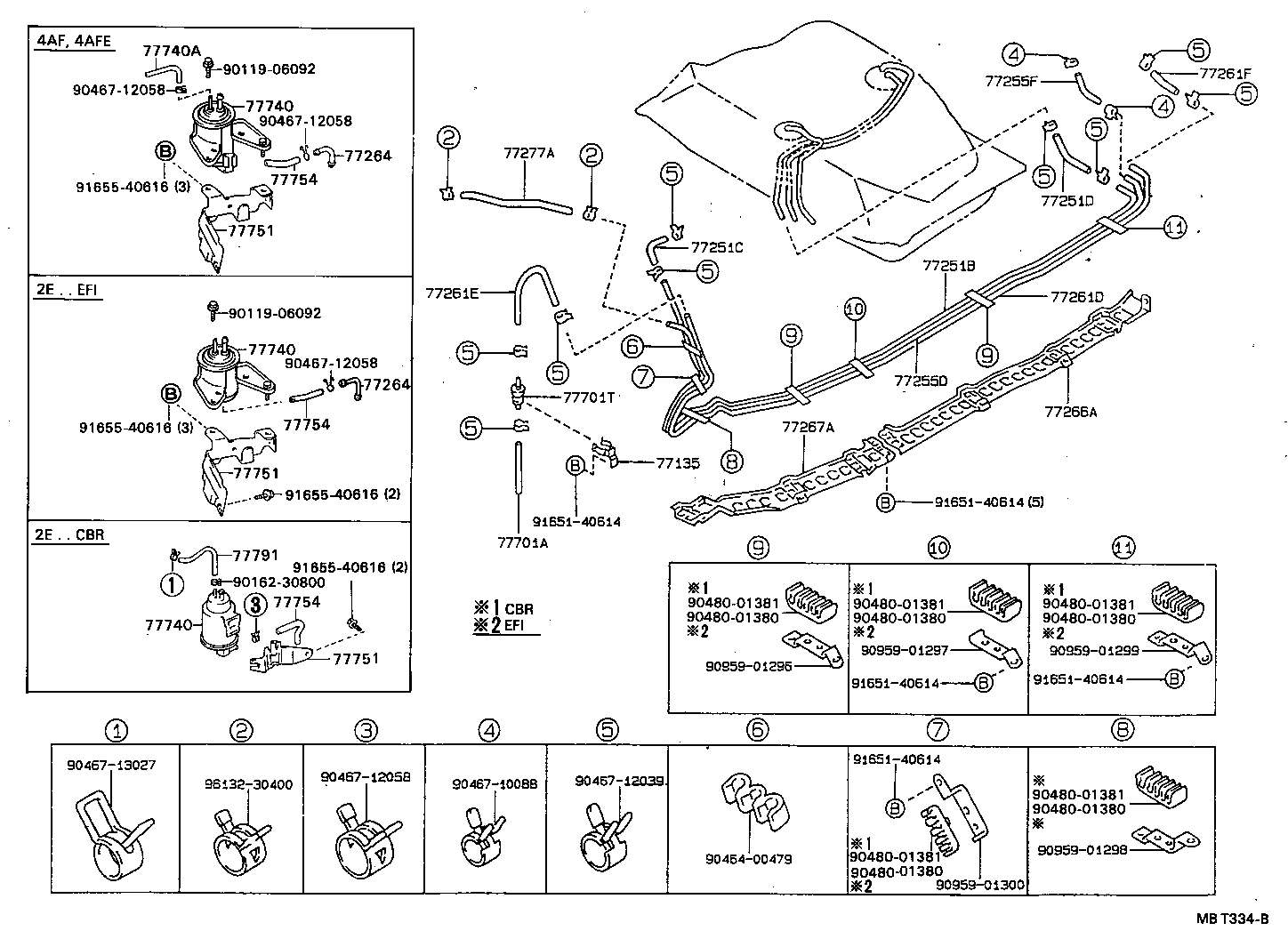

ILLUST NO. 2 OF 2(8908- )AE92,EE90..GL,GLI,STD,XL,XLI

Click highlighted areas on diagram

diagram 77135 77251B 77251C 77251D 77255D 77255F 77261D 77261E 77261F 77264 77264 77266A 77267A 77277A 77701A 77701T 77740 77740 77740 77740A 77751 77751 77751 77754 77754 77754 77791 9011906092 9011906092 9016230800 9046400479 9046710088 9046712039 9046712058 9046712058 9046712058 9046712058 9046713027 9048001380 9048001380 9048001380 9048001380 9048001380 9048001381 9048001381 9048001381 9048001381 9048001381 9095901296 9095901297 9095901298 9095901299 9095901300 9165140614 9165140614 9165140614 9165140614 9165140614 9165540616 9165540616 9165540616 9165540616 9613230400
Part # Description Qty Price
77135 - BRACKET, CHECK VALVE
77135-20050

AE92,EE90

 1
77251B - TUBE, FUEL MAIN
77251-12510

AE92,EE90..(GLI,SR5,STD,XLI)..EFI

 1
77255D - TUBE, FUEL RETURN
77255-12360

AE92,EE90..LHD..EFI

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-06020

AE92,EE90..EFI

*H,L=200

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-12260

AE92,CE90,EE90..LHD

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77259-12140

AE92,CE90,EE90

 1
77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
95333-06020

AE92,CE90,EE90

*H,L=200

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-12030

AE92,CE90,EE90

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-12060

AE92,CE90,EE90

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12091

AE92..EFI

L=410

 1
77701A - HOSE, FUEL, NO.1 (FOR BREATHER VALVE)
77249-12050

AE92,CE90,EE90

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10069

AE92,CE90,EE90

 1
77740 - CANISTER ASSY, CHARCOAL
77740-12520

AE92..(GLI,SR5,XLI)..EFI

 1
77740 - CANISTER ASSY, CHARCOAL
77740-12520

AE92..(GLI,SR5,XLI)..EFI

 1
77740 - CANISTER ASSY, CHARCOAL
77740-12520

AE92..(GLI,SR5,XLI)..EFI

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
90999-92003

AE92..LHD..EFI

L=600

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77750-12040

AE92,EE90..(GLI,SR5,STD,XLI)..EFI

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77750-12040

AE92,EE90..(GLI,SR5,STD,XLI)..EFI

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77750-12040

AE92,EE90..(GLI,SR5,STD,XLI)..EFI

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-12110

AE92..(GLI,SR5,XLI)..EFI

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-12110

AE92..(GLI,SR5,XLI)..EFI

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-12110

AE92..(GLI,SR5,XLI)..EFI

 1
Common parts
90119-06092
90162-30800
90464-00479
90467-10088
90467-12039
90467-12058
90467-13027
90480-01380
90480-01381
90959-01296
90959-01297
90959-01298
90959-01299
90959-01300
91651-40614
91655-40616
96132-30400
