AE92L-AGMDUW (1987)

Toyota Corolla Hb

Production May 1987 - May 1992
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8908- )AE92..LHD

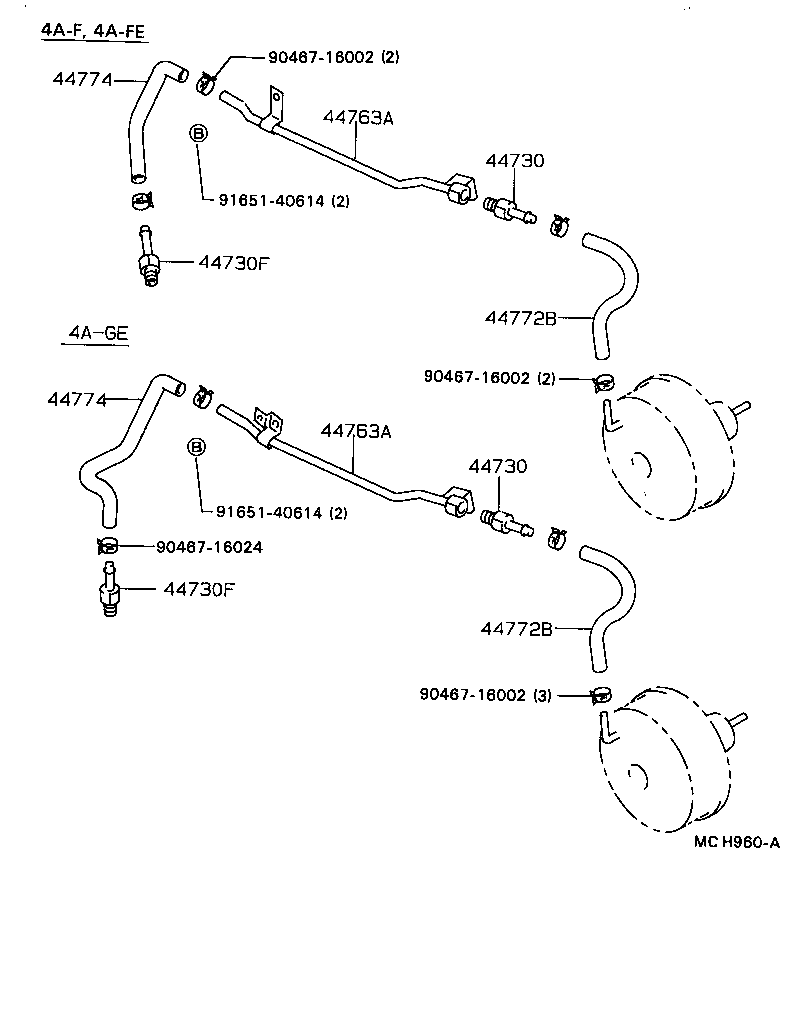

Click highlighted areas on diagram

diagram 44730 44730 44730F 44730F 44763A 44763A 44772B 44772B 44774 44774 9046716002 9046716002 9046716002 9046716024 9165140614 9165140614
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44580-22030

EE90;AE92..LHD

 1
44580-22030

EE90;AE92..LHD

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44580-22030

EE90;AE92..LHD

 1
44580-22030

EE90;AE92..LHD

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

AE92..CBR

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

AE92..CBR

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-12090

AE92..GL,GLI,SR5,XL,XLI

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-12090

AE92..GL,GLI,SR5,XL,XLI

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-12330

AE92,EE90..LHD

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-12330

AE92,EE90..LHD

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12110

AE92..CBR

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12110

AE92..CBR

 1
Common parts
90467-16002
90467-16024
91651-40614

ILLUST NO. 2 OF 2(8705-8908)AE92,EE90..LHD

Click highlighted areas on diagram

diagram 44730 44730 44730 44730F 44730F 44730F 44763A 44763A 44763A 44772B 44772B 44772B 44774 44774 44774 9046716002 9046716002 9046716002 9046716002 9046716002 9046716024 9165140614 9165140614 9165140614
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44580-22030

EE90;AE92..LHD

 1
44580-22030

EE90;AE92..LHD

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44580-22030

EE90;AE92..LHD

 1
44580-22030

EE90;AE92..LHD

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44580-22030

EE90;AE92..LHD

 1
44580-22030

EE90;AE92..LHD

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

AE92..CBR

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

AE92..CBR

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

AE92..CBR

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-12090

AE92..GL,GLI,SR5,XL,XLI

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-12090

AE92..GL,GLI,SR5,XL,XLI

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-12090

AE92..GL,GLI,SR5,XL,XLI

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-12330

AE92,EE90..LHD

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-12330

AE92,EE90..LHD

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-12330

AE92,EE90..LHD

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12110

AE92..CBR

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12110

AE92..CBR

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12110

AE92..CBR

 1
Common parts
90467-16002
90467-16024
91651-40614

ILLUST NO. 1 OF 2(8705- )

Click highlighted areas on diagram

diagram 04443 44606E 44610 44621V 44629 44635B 44642 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-12600

AE92,EE90..CBR

 1
44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON
44606-12520

AE92,CE90,EE90

 1
44610 - BOOSTER ASSY, BRAKE
44610-12650

AE92,CE90,EE90..LHD..(CBR,DSL)

 1
44621V - SEAL, BOOSTER BODY
44621-28120

AE92,CE90,EE90

 1
44629 - RING, CIRCULAR INTERNAL
44628-28120

AE92,CE90,EE90

 1
44635B - KEY, VALVE STOPPER
44635-12630

AE92,CE90,EE90

 1
44642 - PISTON, BRAKE BOOSTER
44642-12520

AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

AE92,CE90,EE90

 1
Common parts
90179-08038
