ZZE112R-DLFNKW (1999)

Toyota Corolla Hb/Lb

Production Nov 1999 - Nov 2001
Engine 3ZZFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9911- )ZZE111..UKP..TERRA ; (9911- )ZZE112..UKP..RHD..TERRA ; (9911- )ZZE

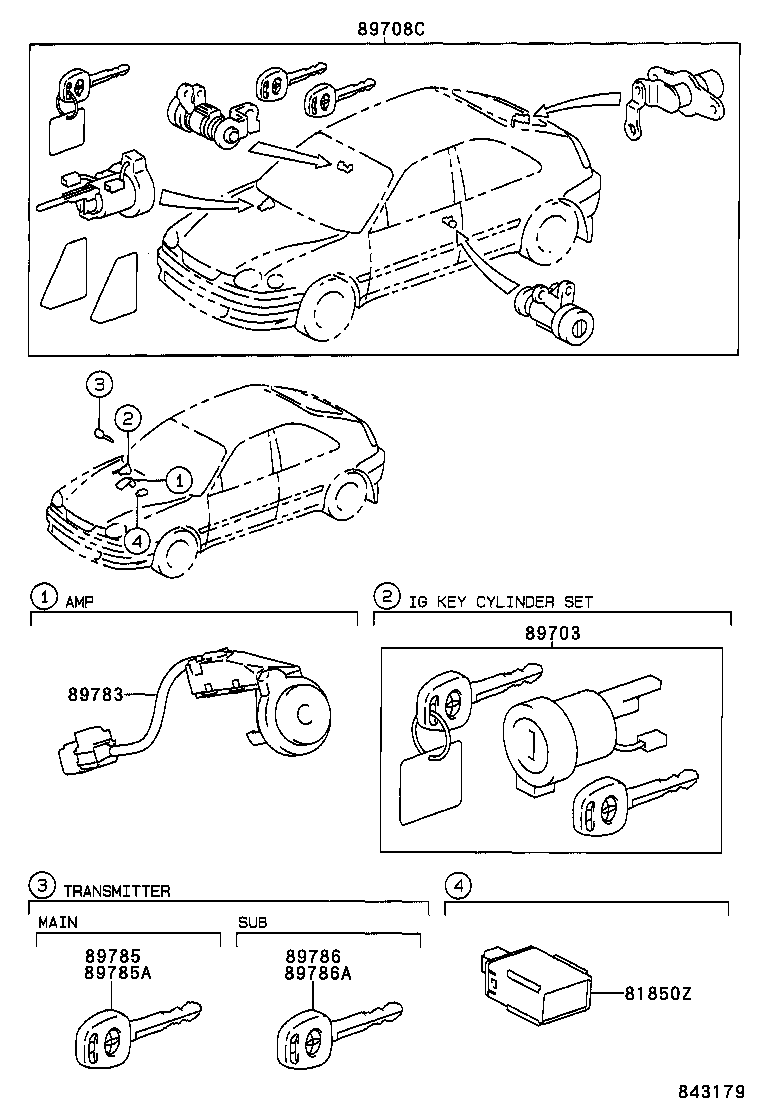

Click highlighted areas on diagram

diagram 81850Z 89703 89708C 89783 89785 89785A 89786 89786A
Part # Description Qty Price
89783 - AMPLIFIER, TRANSPONDER KEY
89783-02010

ZZE11#..UKP

 1
89786 - TRANSMITTER, TRANSPONDER KEY SUB
89786-05020

ZZE11#..UKP

 1
89786A - TRANSMITTER, TRANSPONDER CUT KEY SUB
89786-05030

ZZE11#..UKP

 1

(9911- )ZZE11#..UKP

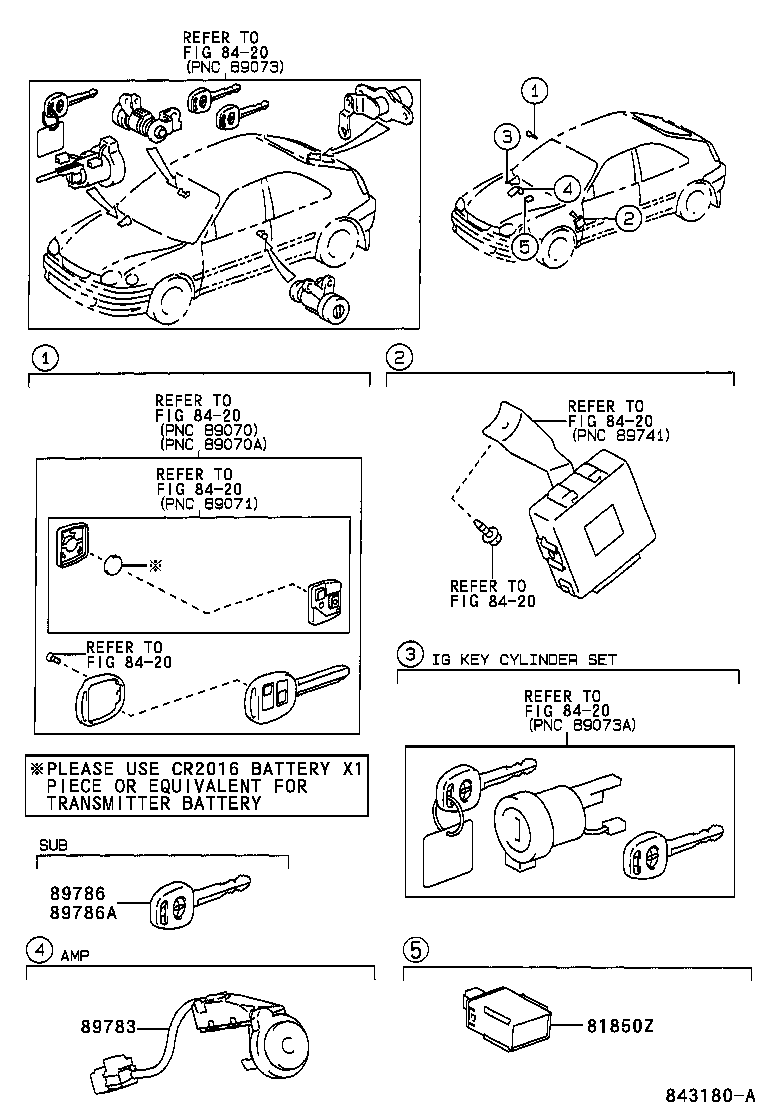

Click highlighted areas on diagram

W(KEY LESS ENTRY)

diagram 81850Z 8420 8420 8420 8420 8420 8420 8420 89783 89786 89786A
Part # Description Qty Price
89783 - AMPLIFIER, TRANSPONDER KEY
89783-02010

ZZE11#..UKP

 1
89786 - TRANSMITTER, TRANSPONDER KEY SUB
89786-05020

ZZE11#..UKP

 1
89786A - TRANSMITTER, TRANSPONDER CUT KEY SUB
89786-05030

ZZE11#..UKP

 1
Linked diagrams
8420
