ZZE112R-DLFNKW (1999)

Toyota Corolla Hb/Lb

Production Nov 1999 - Nov 2001
Engine 3ZZFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9911- )ZZE11#..UKP

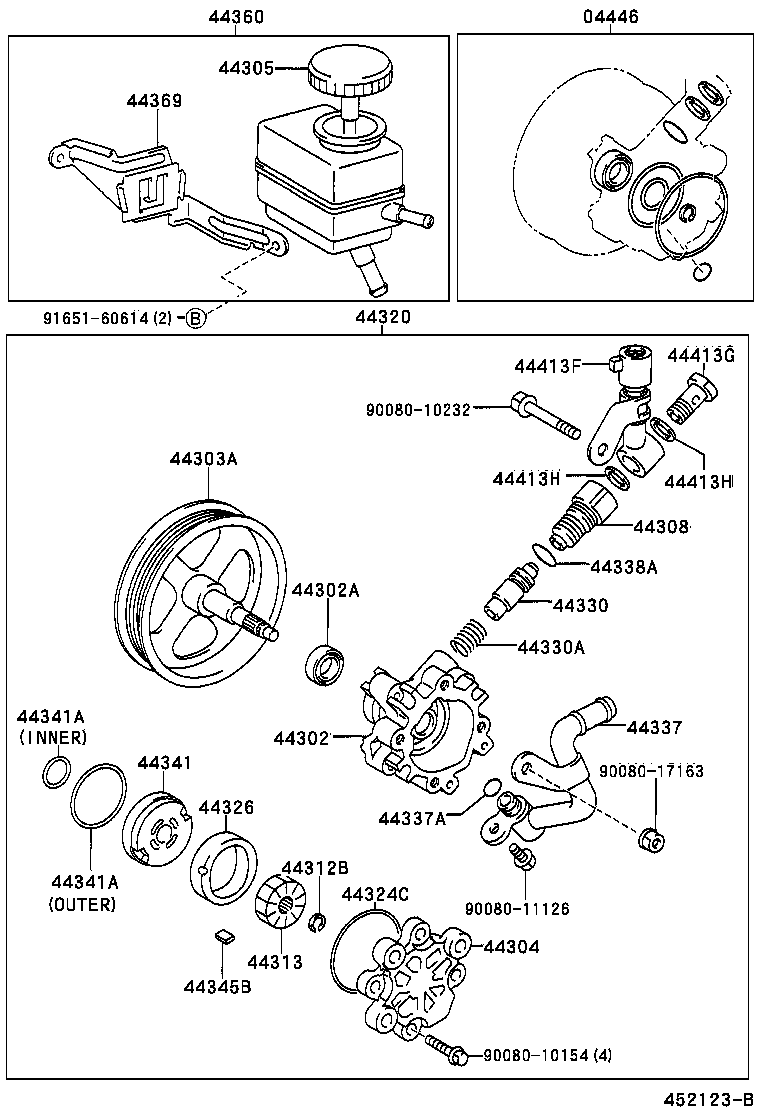

Click highlighted areas on diagram

diagram 04446 44302 44302A 44303A 44304 44305 44308 44312B 44313 44320 44324C 44326 44330 44330A 44337 44337A 44338A 44341 44341A 44341A 44345B 44360 44369 44413F 44413G 44413H 44413H 9008010154 9008010232 9008011126 9008017163 9165160614
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-02040

ZZE11#..UKP

 1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-02070

ZZE11#..UKP

 1
44302A - SEAL, OIL, NO.1(FOR VANE PUMP HOUSING)
90080-31063

WZE110,ZZE11#..UKP

 1
44303A - SHAFT SUB-ASSY, W/PULLEY
44303-02020

ZZE11#..UKP

 1
44304 - HOUSING SUB-ASSY, VANE PUMP, REAR
44304-02021

ZZE11#..UKP

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-02050

ZZE11#..UKP

 1
44308 - UNION SUB-ASSY, PRESSURE PORT
44308-02040

ZZE11#..UKP

 1
44313 - ROTOR, VANE PUMP
44313-02140

WZE110,ZZE11#..UKP

MARK 3

 1
44313-02120

WZE110,ZZE11#..UKP

MARK 1

 1
44313-02150

WZE110,ZZE11#..UKP

MARK 4

 1
44313-02110

WZE110,ZZE11#..UKP

MARK 0

 1
44313-02130

WZE110,ZZE11#..UKP

MARK 2

 1
44320 - PUMP ASSY, VANE
44310-02060

ZZE11#..UKP

 1
44324C - RING, O(FOR PUMP HOUSING REAR)
90080-30057

WZE110,ZZE11#..UKP

 1
44326 - RING, CAM(FOR VANE PUMP)
44325-02250

ZZE11#..UKP

MARK 4

 1
44325-02210

ZZE11#..UKP

MARK 0

 1
44325-02240

ZZE11#..UKP

MARK 3

 1
44325-02230

ZZE11#..UKP

MARK 2

 1
44325-02220

ZZE11#..UKP

MARK 1

 1
44330 - VALVE ASSY, FLOW CONTROL
44330-02260

ZZE11#..UKP

MARK B

 1
44330-02280

ZZE11#..UKP

MARK D

 1
44330-02250

ZZE11#..UKP

MARK A

 1
44330-02270

ZZE11#..UKP

MARK C

 1
44330-02290

ZZE11#..UKP

MARK E

 1
44330-02300

ZZE11#..UKP

MARK F

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90080-50261

WZE110,ZZE11#..UKP

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-02040

ZZE11#..UKP

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90080-30059

WZE110,ZZE11#..UKP

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90080-30056

WZE110,ZZE11#..UKP

 1
44341 - PLATE, VANE PUMP SIDE, FRONT
44341-02011

WZE110,ZZE11#..UKP

 1
44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE)
90080-30055

WZE110,ZZE11#..UKP

INNER

 1
90080-30058

WZE110,ZZE11#..UKP

OUTER

 1
44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE)
90080-30055

WZE110,ZZE11#..UKP

INNER

 1
90080-30058

WZE110,ZZE11#..UKP

OUTER

 1
44345B - PLATE, VANE PUMP
44345-02130

WZE110,ZZE11#..UKP

MARK 2

 10
44345-02150

WZE110,ZZE11#..UKP

MARK 4

 10
44345-02140

WZE110,ZZE11#..UKP

MARK 3

 10
44345-02110

WZE110,ZZE11#..UKP

MARK 0

 10
44345-02120

WZE110,ZZE11#..UKP

MARK 1

 10
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-02040

ZZE11#..UKP

 1
44413F - TUBE, PRESSURE FEED, NO.2
44413-02050

ZZE11#..UKP

 1
44413G - BOLT, UNION(FOR PRESSURE FEED TUBE NO.2)
90080-40046

ZZE11#..UKP

 1
44413H - GASKET(FOR PRESSURE FEED TUBE NO.2)
44327-02030

ZZE11#..UKP

 2
44413H - GASKET(FOR PRESSURE FEED TUBE NO.2)
44327-02030

ZZE11#..UKP

 2
Common parts
90080-10154
90080-10232
90080-11126
90080-17163
91651-60614
