ZZE112R-AGMDKW (1999)

Toyota Corolla Hb/Lb

Production Oct 1999 - Jul 2001
Engine 3ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9910- )

Click highlighted areas on diagram

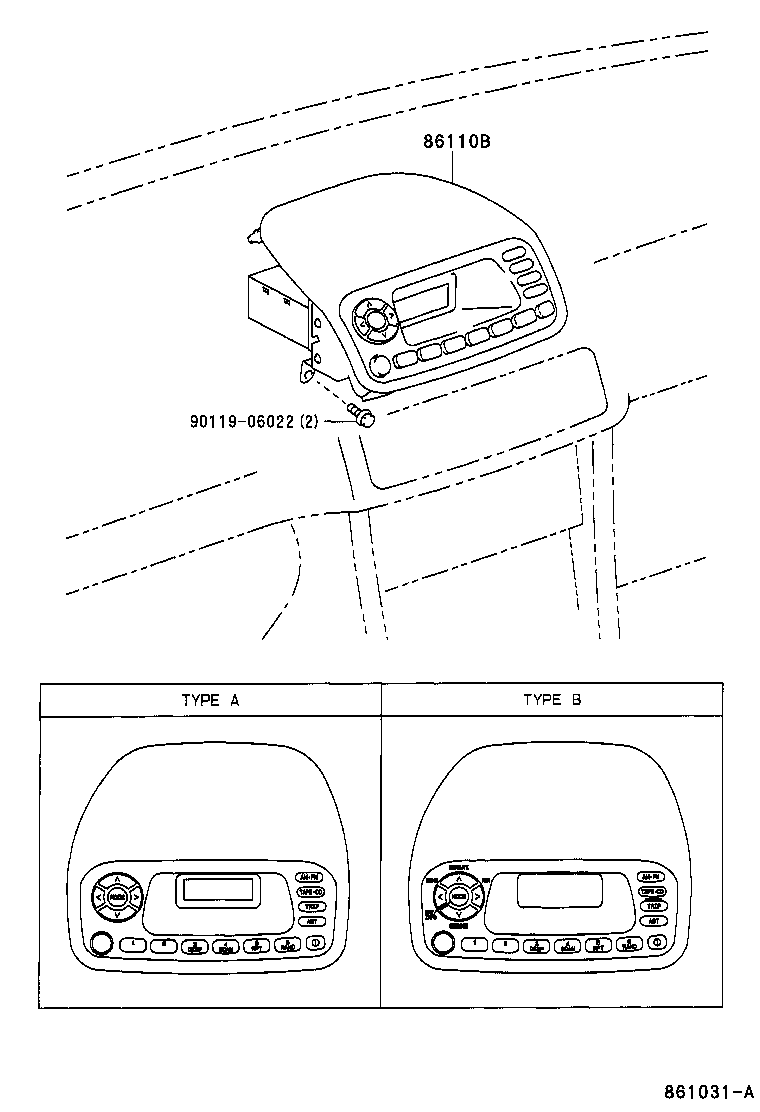

diagram 86110B 9011906022
Part # Description Qty Price
86110B - MULTI-DISPLAY ASSY
86110-12020B0

ZZE11#..RHD..(SOL,TERRA)

JECO,TYPE B:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM16

 1
86110-12010B0

ZZE11#..RHD..TERRA

JECO,TYPE A:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM16

 1
86110-02010

WZE110,ZZE11#..JPP..RHD..TERRA

PANASONIC,TYPE A:REFER TO ILLUSTRATION

 1
86110-02010B0

CDE110,WZE110,ZZE11#..JPP..RHD..TERRA

PANASONIC,TYPE A:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM16,MATSUSHITA

 1
86110-02030B0

CDE110,WZE110,ZZE11#..JPP..RHD..(SOL,TERRA)

PANASONIC,TYPE B:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM16

 1
86110-12020B0

ZZE112..JPP..RHD..LB..4FC;WZE110,ZZE11#..JPP..RHD..5F

JECO,TYPE B:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM16,JECO

 1
86110-02030

WZE110,ZZE11#..JPP..RHD..(SOL,TERRA)

PANASONIC,TYPE B:REFER TO ILLUSTRATION

 1
86110-12010B0

CDE110,WZE110,ZZE11#..JPP..RHD..TERRA

JECO,TYPE A:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM16,JECO

 1
Common parts
90119-06022
